Price:$35,800.00 - $35,900.00

Quantity:


Product Overview

Description





Products Description


SINOSWAN Mobile stages and LED Roadshows Trucks Can be used diversity events such as Concerts events,Festivals Events,Chuch Crusade,Evangelism,Gospel events,Campigns Election activities,Political Activities,Marketing Promotion,Exhibitions,Sports Events,Mobile House etc.






SS40
SS40N
SS50
SS70
SS90
Min.Set-up Time
0:20
0:20
0:20
0:30
0:30
Manpower
2
2
2
2
2
Stage Floor Bearing
400kg/m²
400kg/m²
400kg/m²
400kg/m²
400kg/m²
Foof Load Bearing
1500KG
1500KG
1500KG
2000KG
2500KG
Floor Area
8m×6m
26'24"×19'68"
3.9m×3.55m 12'10"×11'8"
8.15m×7.15m 23'5"×26'9''
8.92m×7.6m 29'26''×24'93"
9m×8.72m 29'5"×28'6"
Lifting Height
3.35m
-
4m
4.7m
4.7m
10'99"
13'12"
15'42"
15'42"
Total Height
4.85m
-
5.06m
5.55m
5.99m
15'91"
16'6"
18'2"
19'65"
Audience Covered
500-1000P
100-500P
500-2000P
2000-5000P
5000-10000P


SS50 MOBILE STAGE TRUCK
TRUCK (STAGE BUILD ON TRUCK CAN GO BY ITSELF)
Length
7000mm
22'11''
Width
2450mm
8'
Height
3370mm
11'
Storage Space
12.5m³
440ft³
Weight
6390kg
14090lb
STAGE FLOOR
Length and Depth
7150 x 8150mm
23' 5' x 26' 9''
Length and Depth with Extension Platforms
10000 x 8000mm
32' 8'' x 26' 42''
Height from Ground
840mm
2'9''
Design Live Load
400kg/m²
882lb/ft²

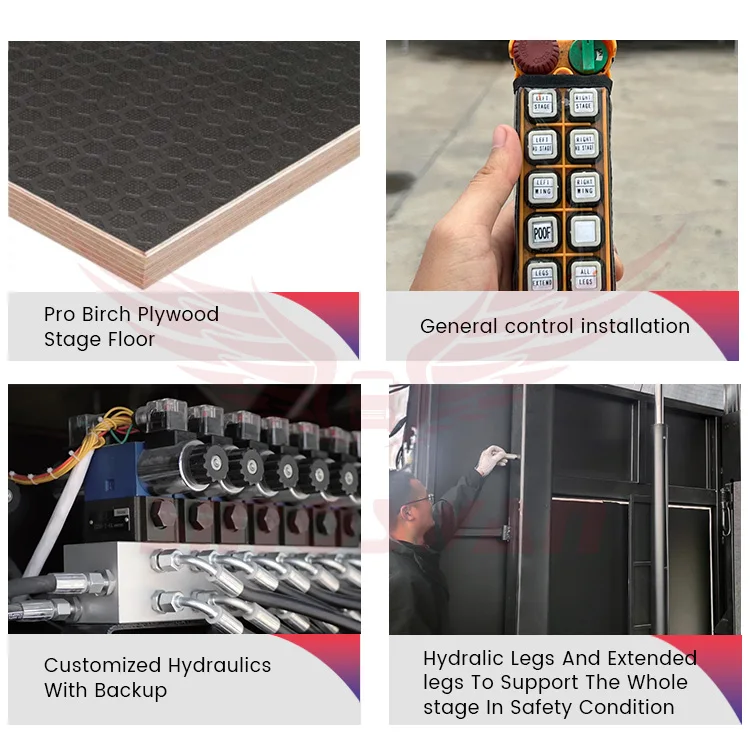

Type of Surface
Pro Stage Plywood
ROOF
Length and Depth
5200 x 7525mm
17'1'' x 24'8''
Height from Roof to Stage Floor/ Ground
4000mm/5060mm
13'12''/16'6''
Maximum Height with Banner
6560mm
21'52''
Type of Surface
Fiberglass bonded on steel
Lifting Capacity
1.5T
3310lb
Load Bearing Capacity
Rigging Points
260Kg
570lb
Rigging Bars
260Kg
570lb
Trusses-Central Roof(2), Downstage & Upstage
1000Kg
2200lb
Front Overhang Extensions
Lateral Overhang Rigging Beams
300Kg
660lb
Line Array Rigging Beams
300Kg
660lb
240Kg
530lb
ROOF
Length and Depth
5200 x 7525mm
17'1'' x 24'8''
Height from Roof to Stage Floor/ Ground
4000mm/5060mm
13'12''/16'6''
Maximum Height with Banner
6560mm
21'52''
Type of Surface
Fiberglass bonded on steel
Lifting Capacity
1.5T
3310lb
Load Bearing Capacity
Rigging Points
260Kg
570lb
Rigging Bars
260Kg
570lb
Trusses-Central Roof(2), Downstage & Upstage
1000Kg
2200lb
Front Overhang Extensions
Lateral Overhang Rigging Beams
300Kg
660lb
Line Array Rigging Beams
300Kg
660lb
240Kg
530lb






Product advantages

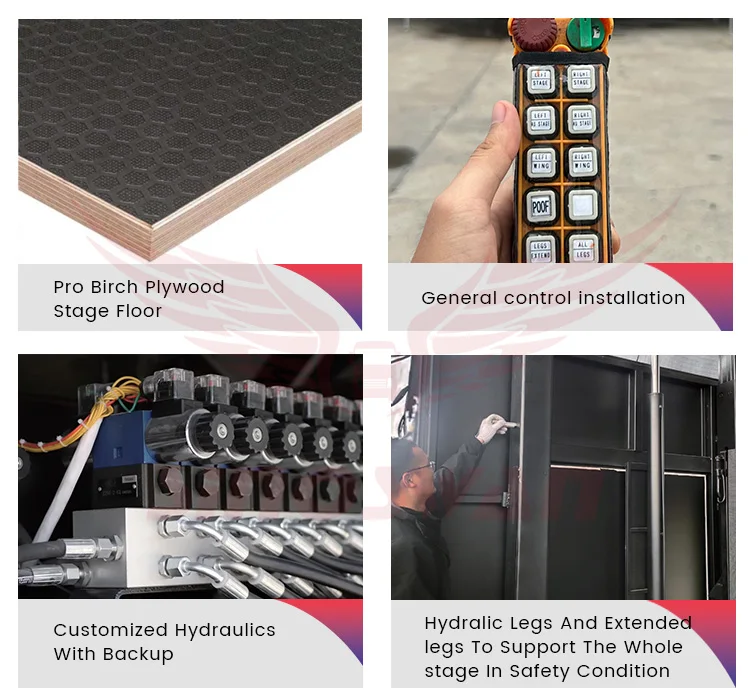

We provide a one-stop shopping platform that supports various accessories, including lighting, sound systems, engine packs, LED walls, and more.

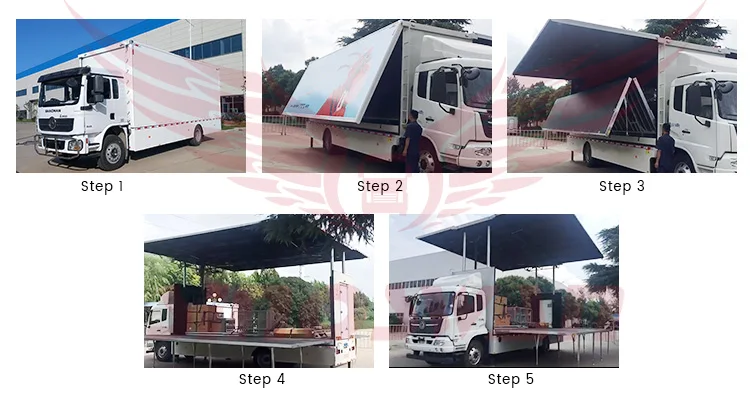

Operating Steps

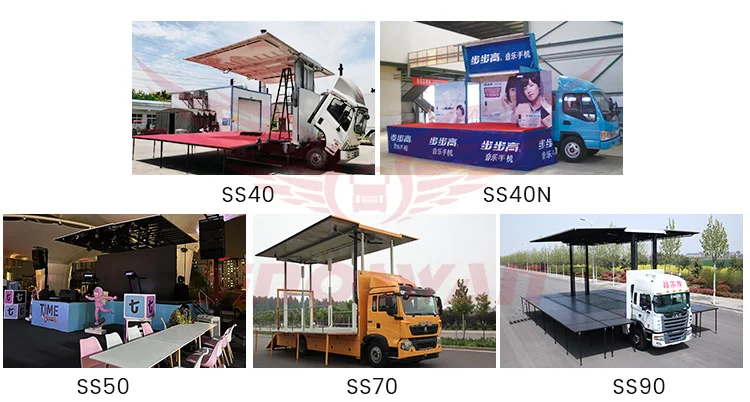

More model choices


We have multiple models for you to choose from, and you can choose the product that suits your needs.




Why Choose Us

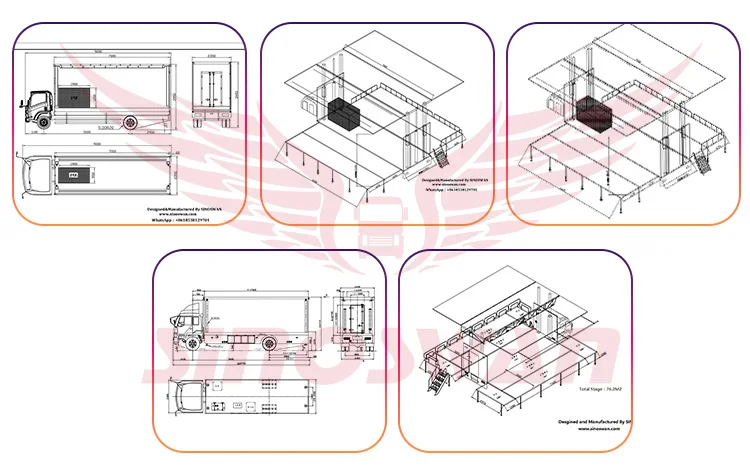

Our better team, free floor plans, free 3D design, just need you to provide drawings, and we will provide our full service.




Our products are exported to various parts of the world and have received unanimous praise.






Certificate








Company Profile




FAQ


1. Can you customize?
Yes, we have a professional design team and technical support.

2. Can you tell me how to transport the moving stage to me?
Option 1: bulk carrier
Option 2: Frame boat
Option 3: roll-on-roll-off

3.What is the freight to our country?
Please contact us and inform your port, then we will inspect for you.

4.What is your lead time?
Our production cycle is about 30-45 days.

5. Terms of payment50% via T/T as deposit: balance needs to be paid before delivery from the factory. Local and medium bankcharges are for buver'saccount
