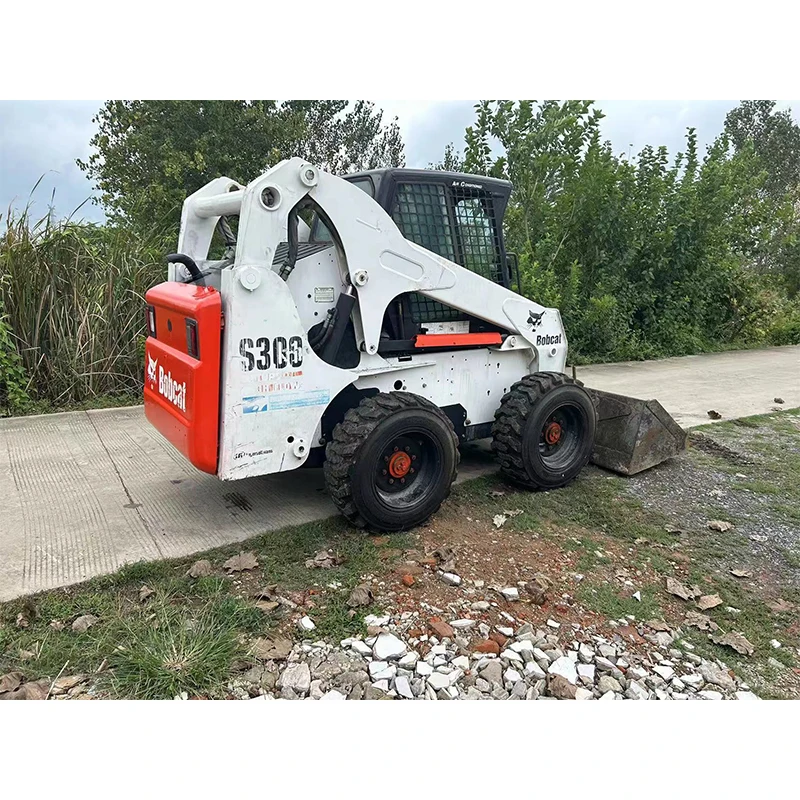

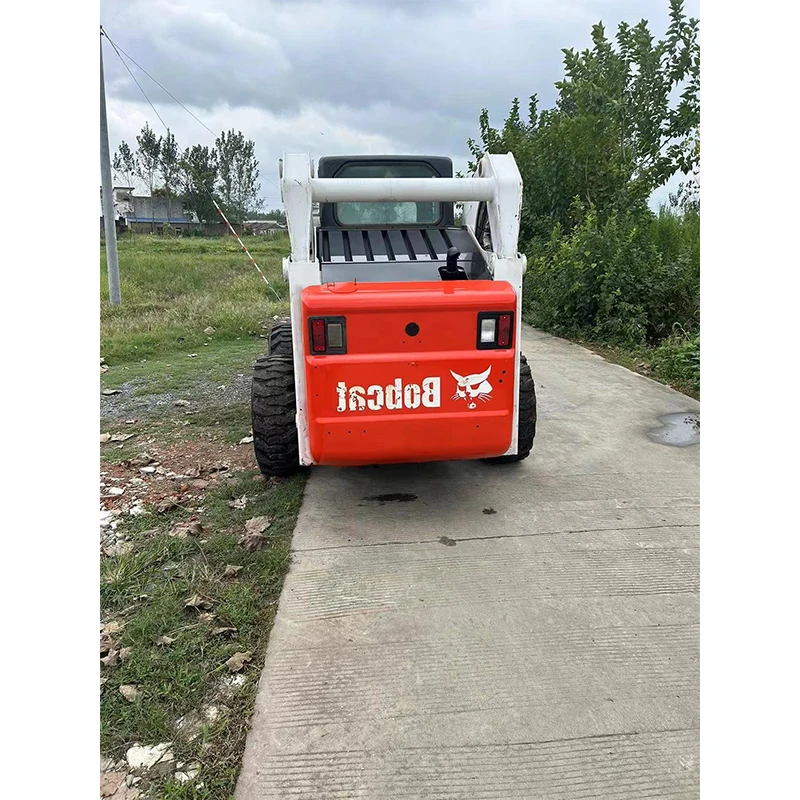

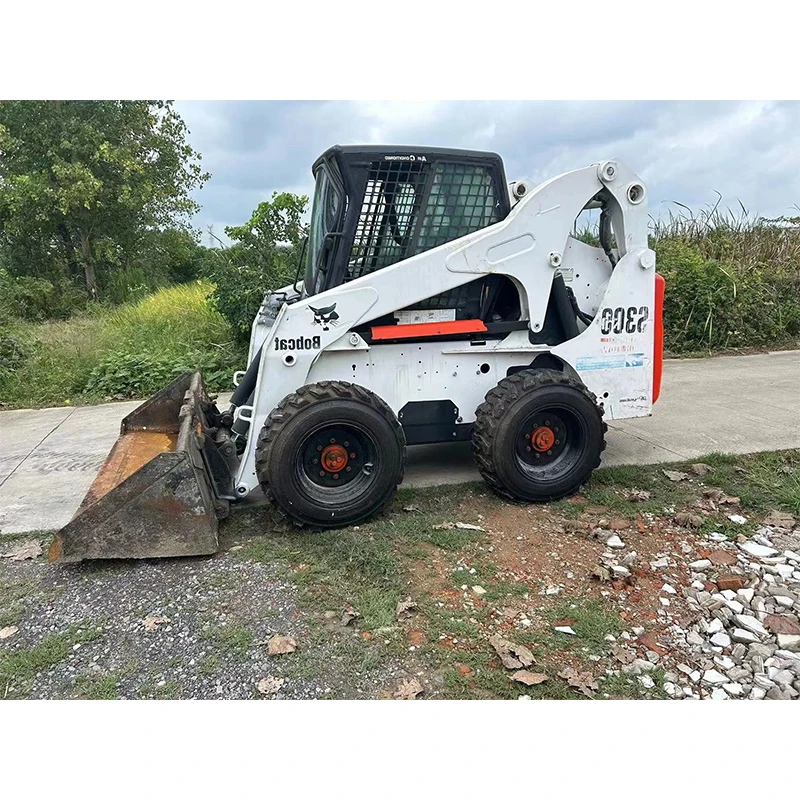

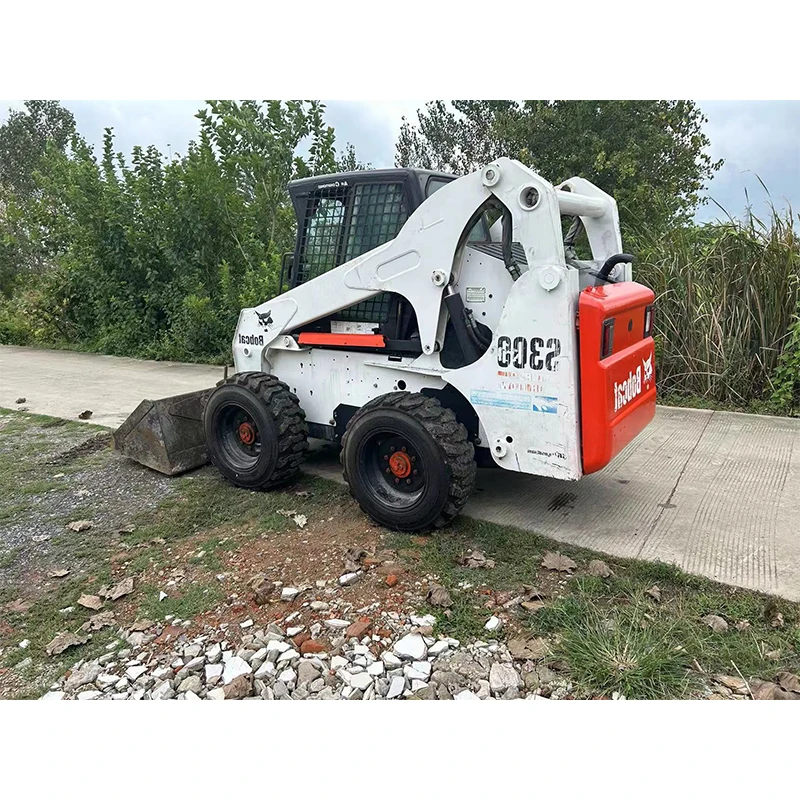

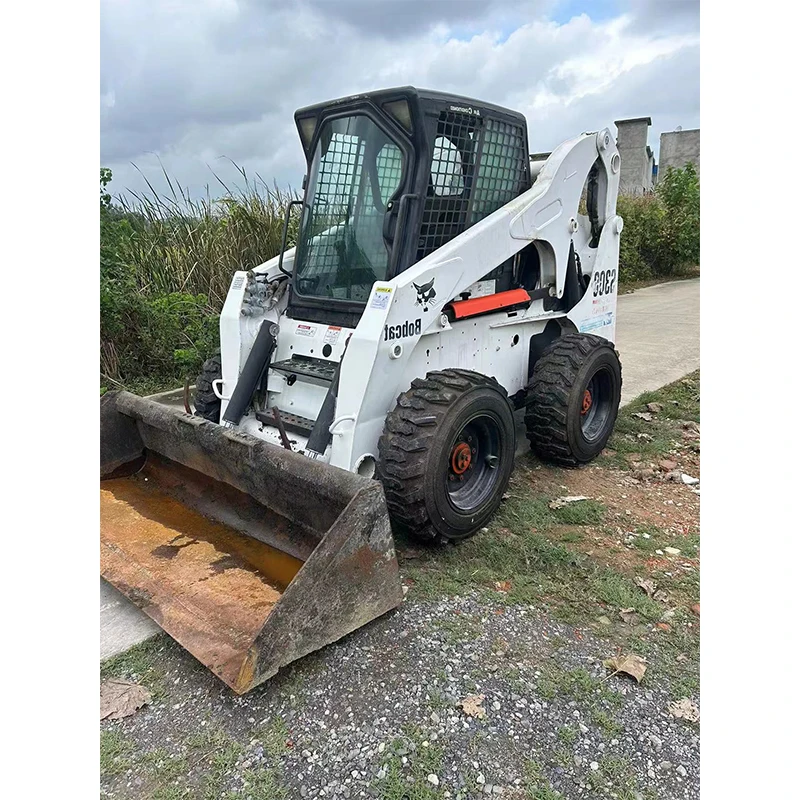

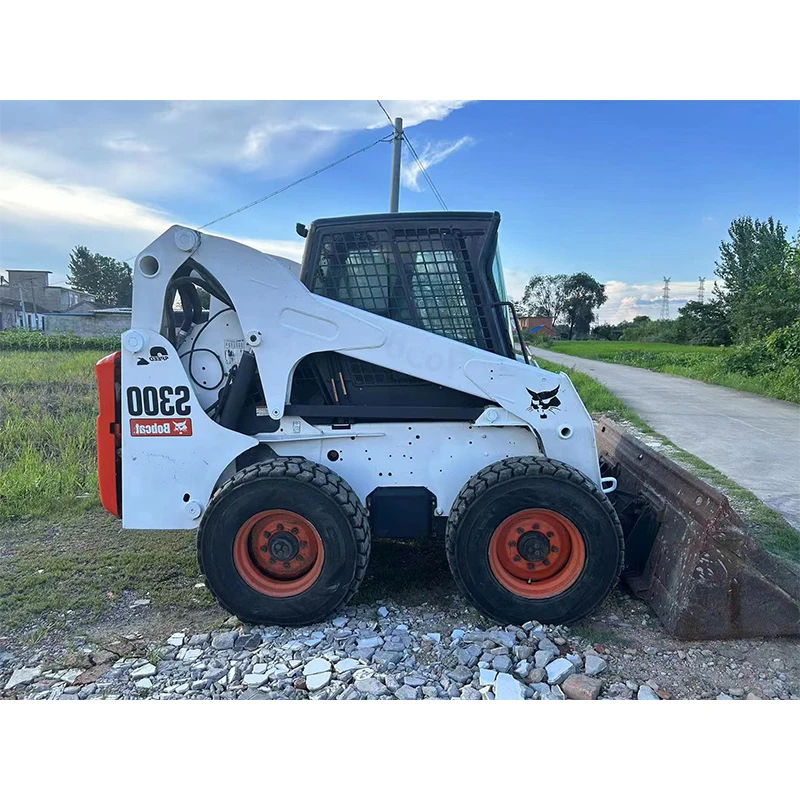

Competitive Price 3770kg 11.1 Km/H Mini Used Bobcat S300 Steer Skid Loader With Low Price
- Category: >>>
- Supplier: Shanghai Biaozan Industrial Co. Ltd.
Share on (1600993425950):
Product Overview
Description
Products Description
Rated load (kg) | 1386 |
Overturning load (kg) | 2772 |
Machine weight (kg) | 3750/3770 (high-flow configuration) |
Lifting mechanism form | Vertical Lift |
Engine type | Kubota V3800-DI-TE3 |
Working form | Turbocharged; diesel direct injection |
Rated power (kw/rpm) | 60kw（81 HP） |
Maximum torque (N.m/rpm) | 295/1600 |
Displacement (L) | 3.7 |
Number of cylinders | 4 |
Maximum driving speed (km/h) | 11.1/19.1 (two-speed option) |
Tire Size | 12×16.5 |
Front turning radius (with bucket) (mm) | 2139 |
Departure Angle (°) | 26 |
System Safety pressure (bar) | 228 |
System rated flow (L/min) | 78.4/140 (high-flow configuration, optional) |
Fuel tank (L) | 87.1 |
Maximum unloading height (mm) | 2586 |
Unloading distance (at maximum height) (mm) | 864 |
Bucket pin maximum height (mm) | 3272 |
Unloading Angle (°) at maximum unloading height | 41.9 |
Scoop Angle at highest (°) | 96.1 |
Bucket take-up Angle on the ground (°) | 30 |
Full length (with bucket) (mm) | 3630 |
Full width (tire rim) (mm) | 1819 |
Full width (bucket edge) (mm) | 2032 |
Full height (to cab top) (mm) | 2055 |
Wheelbase (mm) | 1227 |
Minimum ground clearance (mm) | 213 |
