Hybrid Solar Energy Inverters 12Kw 12000Watt On Off Grid Solar Panel Inverter single phase
- Category: >>>
- Supplier: Vland International Ltd.
Share on (1600993559237):
Product Overview
Description
Product Description
Specification
Model | GSDHW VIV-6KW 48V | |
Phase | 1-phase in/ 1-phase out | |
Maximum PV input power (W) | 6500 | |
Rated output power (W) | 6000 | |
Maximum charging power (W) | 6000 | |
GRID-TIE OPERATION | ||
PV INPUT (DC) | ||
Maximum DC voltage (VDC) | 550 | |
Start-up voltage/ initial feeding voltage (VDC) | 120/ 150 | |
MPPt voltage range (VDC) | 120~450 | |
Number of MPPT trackers/ maximum input current (A) | 1/30 | |
GRID OUTPUT (AC) | ||
Nominal output voltage | 220/230/240 | |
Output voltage range | 184-264.5 or 195.5-253 (Selectable) | |
Nominal output current | 26 | |
Power factor | >0.99 | |
EFFICIENCY | ||
Maximun coversion efficiency (DC/AC) | 95% | |
OFF-GRID OPERATION | ||
AC INPUT | ||
AC start-up voltage/ auto restart voltage (VAC) | 120-140/180 | |
Acceptable input voltage range (VAC) | 90-280 or 170-280 | |
Frequency range (Hz) | 50/60 (Auto sensing) | |
Maximum AC input current (A) | 40 | |
PV INPUT (DC) | ||
Maximum DC voltage (VDC) | 550 | |
MPPT voltage range (VDC) | 120~450 | |
Number of MPPT trackers/ maximum input current (A) | 1/30 | |
BATTERY MODE OUTPUT (AC) | ||
Nominal output voltage (VAC) | 220/230/240 | |
Output waveform | Pure sine wave | |
Efficiency (DC to AC) | 93% | |
HYBRID OPERATION | ||
PV INPUT (DC) | ||
Maximum DC voltage (VDC) | 550 | |
Start-up voltage/ initial feeding voltage (VDC) | 120/150 | |
MPPT voltage range (VDC) | 120-450 | |
Number of MPPT trackers/ maximum input current (A) | 1/30 | |
GRID OUTPUT (AC) | ||
Nominal output voltage (VAC) | 220/230/240 | |
Output voltage range (VAC) | 184-264.5 or 195.5-253 (Selectable) | |
Nominal output current (A) | 26 | |
AC INPUT | ||
AC start-up voltage/ auto restart voltage (VAC) | 120-140/180 | |
Acceptable input voltage range (VAC) | 90-280 or 170-280 | |
Maximum AC input current (A) | 40 | |
BATTERY MODE OUTPUT (AC) | ||
Nominal output voltage (VAC) | 220/230/240 | |
Efficiency (DC to AC) | 93% | |
BATTERY & CHARGER | ||
Nominal DC voltage (VDC) | 48 | |
Maximum solar charging current (A) | 120 | |
Maximun AC charging current (A) | 120 | |
Maximum charging current (A) | 120 | |
GENERAL | ||
PHYSICAL | ||
Dimension (mm) | 192x360x665 | |
Net weight (kg) | 22.5 | |
INTERFACE | ||
Parallel function | Yes, 9 units | |
Communication port | USB or RS-232/ Dry Contact/ RS485 | |
ENVIRONMENT | ||
Humidity | 0~95%RH (No condensing) | |
IP degree | IP65 | |
Operating temperature (°c) | -25 to 50 | |
Packing & Delivery

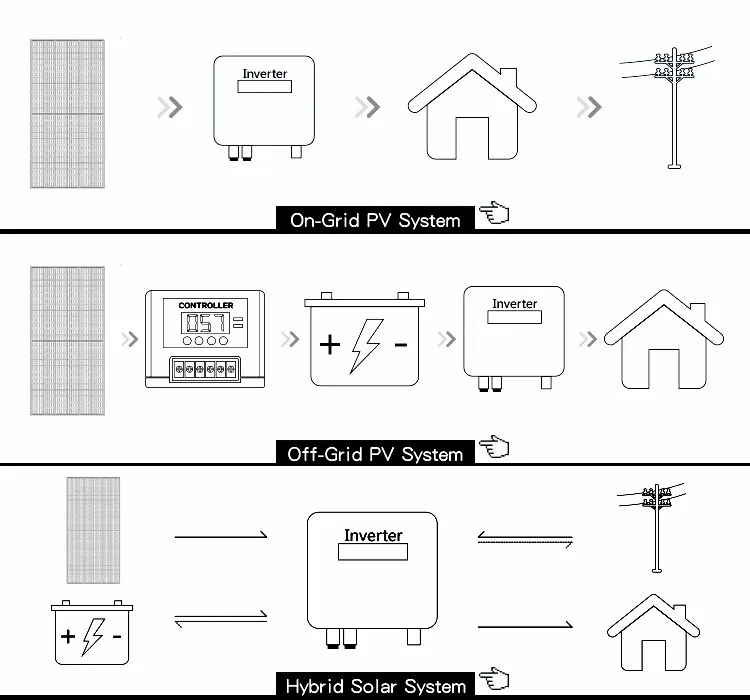

Application
Company Profile
FAQ
1. who are we?
We are based in Shandong, China, start from 2023,sell to North America(30.00%),Northern Europe(15.00%),Southern Europe(15.00%),Africa(10.00%),Mid East(10.00%),South America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Western Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
solar panel,solar cell,lithium battery,energy storage system,inverter
4. why should you buy from us not from other suppliers?
1.Customized Design
2.Quality Warranty
3.R&D team and Testing lab
4.ISO9001,CE,EMC,RoHS,BIS
5.QA/QC Inspection
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2023,sell to North America(30.00%),Northern Europe(15.00%),Southern Europe(15.00%),Africa(10.00%),Mid East(10.00%),South America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Western Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
solar panel,solar cell,lithium battery,energy storage system,inverter
4. why should you buy from us not from other suppliers?
1.Customized Design
2.Quality Warranty
3.R&D team and Testing lab
4.ISO9001,CE,EMC,RoHS,BIS
5.QA/QC Inspection
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
