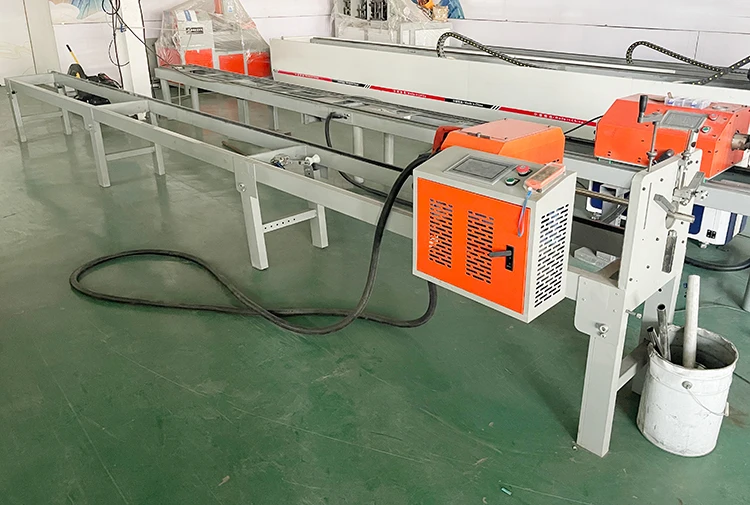

Steel pipe cut arc hole Plasma cutting machine for Square and round Tube H Shaped cut arc hole plasma cutter
- Category: >>>
- Supplier: Shandong Soar Machinery Co. Ltd.
Share on (1600993668482):
Product Overview
Description
Products Description
Specification | ||||
Suitable pipe to cut | Pipe material: carbon steel, stainless steel, iron pipe | |||
Diameter: Round tube 25-160 | ||||
Square pipe: 25x25-160x160 | ||||
Thickness within 5mm (depending on plasma size) | ||||
Effective stroke: ≥6100mm | ||||
Information | ||||
Model | SP160(6000) | |||
The name of the | Square pipe intersecting line cutting machine | |||
volume | 7400*1000*1700mm (in kind) | |||
The weight of the | 1600KG (based on the actual) | |||
Input power supply | 220V (control part) 380V (plasma) | |||
Output power supply | 24V | |||
Size of guide rail | 25 square guide rail | |||
Rack type | 24* 24-2m precision helical teeth | |||
Mode of cutting | plasma | |||
Gas cutting gun | Non-contact P80 (plasma) | |||
Air supply | It should be brought by oneself (≥0.8MPa) | |||
Machine frame steel size | 100*100mm | |||
Main component Settings and parameters | ||||
Electric control unit | chint | |||
Control system | Fangling CNC system | |||

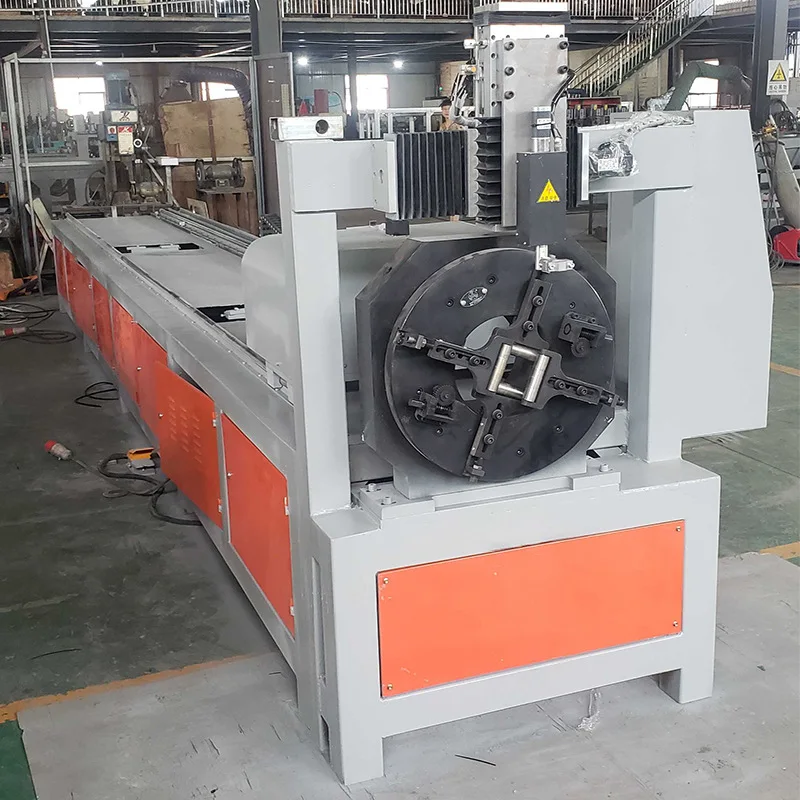

Four jaw chuck | Manual electric pneumatic | |||
Auxiliary support system | Pneumatic takeoff and landing support frame | |||
Servo servo system | Servo 750w/1.5kw*3 400w*2 | |||
Speed of movement | 10-6000mm/min(can be adjusted according to processing requirements) | |||
Speed of cutting | 10-2000mm/min(can be adjusted according to processing requirements) | |||
Chuck speed | 2-6 seconds/RPM | |||
Bear the weight of a single pipe | 450KG | |||
SALES AND SERVICE NETWORK
our survice
We will assist you deal with all questions if there will be any problomes with machine after install in your plant,and we will offer you accessories freely if there is damage as quality problems wiithin 24 morths,you just pay freight
FAQ
1 how long have you been in this filed?
we have been in this filed for more than 15 years
2 Do you have any Certification with product or your factory?
yes, we have passed TUV certification with our product and factory
3 where is your factory?
we are in shandong province,it is about 150KM far from Qingdao port
4 Can we be as your agent in our country?
yes, if you have this idea, welcome to visit our factory and talk about this, or we fly to visit you
we have been in this filed for more than 15 years
2 Do you have any Certification with product or your factory?
yes, we have passed TUV certification with our product and factory
3 where is your factory?
we are in shandong province,it is about 150KM far from Qingdao port
4 Can we be as your agent in our country?
yes, if you have this idea, welcome to visit our factory and talk about this, or we fly to visit you
