Price:$5,800.00 - $9,800.00

Quantity:


Product Overview

Description



Product Description


Introduction to the opening mill：
Open mixer is the abbreviation of open rubber mixing machine. It is a type of rubber mixing machine with exposed rollers used in rubber and plastic factories to prepare plastic rubber, mix rubber, or perform heat refining and molding. Its main working components are two hollow or drilled rollers that rotate inward in opposite directions. The device on the operator's side is called the front roller, while the rear roller is fixed and cannot move forward or backward.




model
ZG-400LD
ZG-360L
ZG-300L














More models
(Support customization)
Mixed capacity
3-40kgs
2-30kgs
2—20kg
Heating method
frictional heating
Drum speed
Single frequency conversion andsingle speed regulation (1 30kwfrequency converter)
Fixed speed (variable frequencyspeed regulation can be addedaround 19 revolutions, and otherspeeds can be customized)
Fixed speed around 19 revolutions
Drum speed ratio
1:1.35
1:1.35
(0ther speed customization)
1:1.35
Drum size
ф400mmXL1100mm
ф360mmXL910mm
ф300mm×L720mm
Drum spacing
0.1-16mm adjustable


0.1-15mm adjustable

Protective devices
Multiple touch emergency stops (with reverse function, userfriendly design, and no work-related injuries for operators)
power
30KW
18.5KW
15KW
volume
(WxDxH) 3600X1480X2350mm
(WxDxH)
2800X1280X1580mm
(WxDxH)
2900×1180×1680mm
Roller lubrication
The excellent wear-resistant bearing has a large contact area.Extends the service life by two-thirds compared to traditional
source
5∮，AC380V
weight
3800KG
2600KG
1600KG


Specification




Stable, durable,low consumption, and efficient

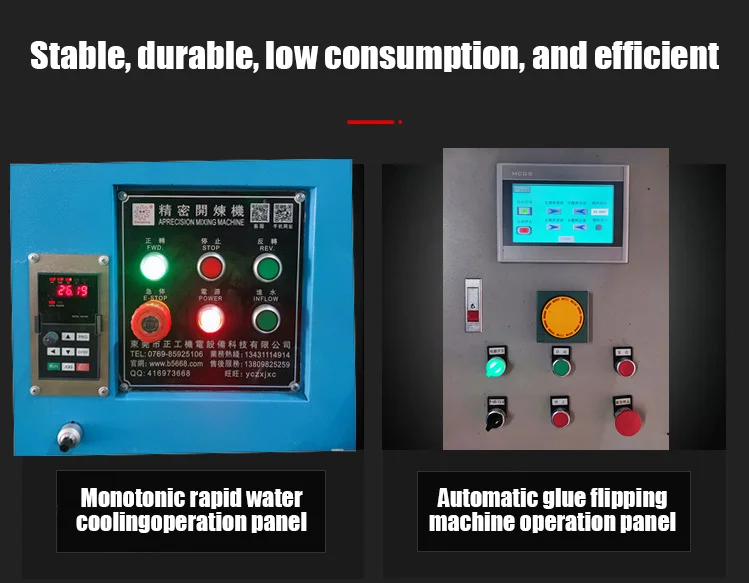

1.Monotonic fast water cooling open mill operation panel




2.Automatic glue flipping machine operation panel

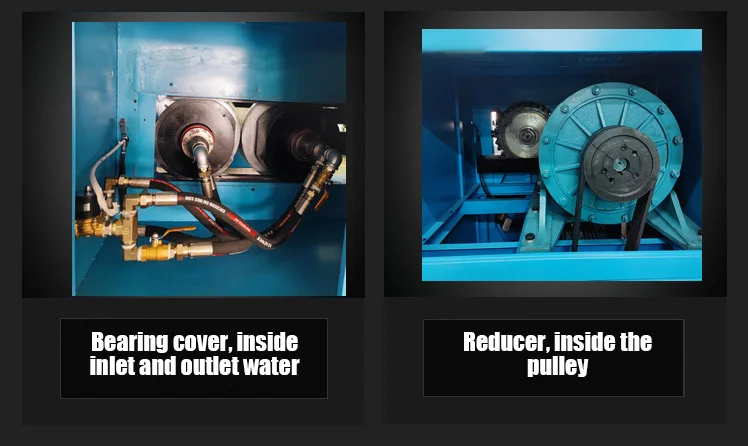

3.Bearing cover,insideinlet and outlet water




4.Reducer, inside thepulley

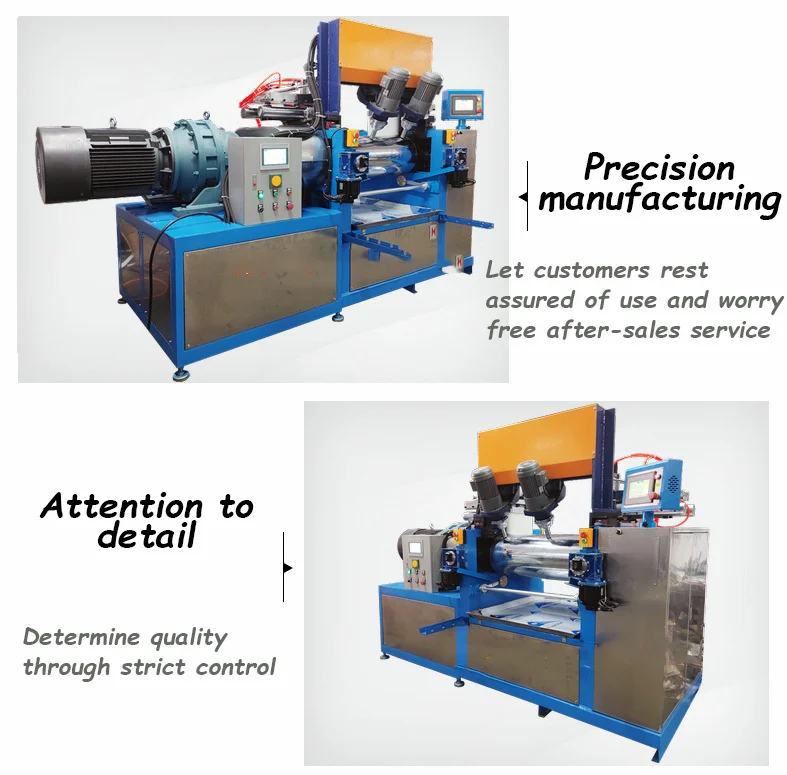

Precisionmanufacturing
Let customers rest
assured of use and worryfree after-sales service



Attention todetail



Determine qualitythrough strict control

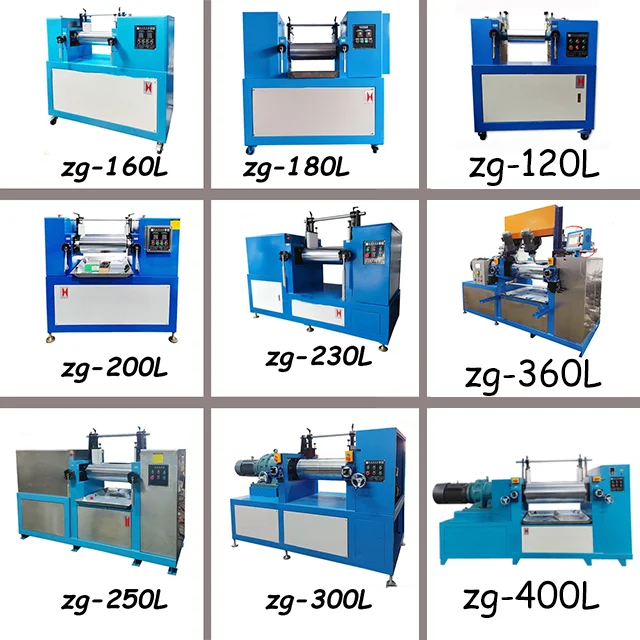

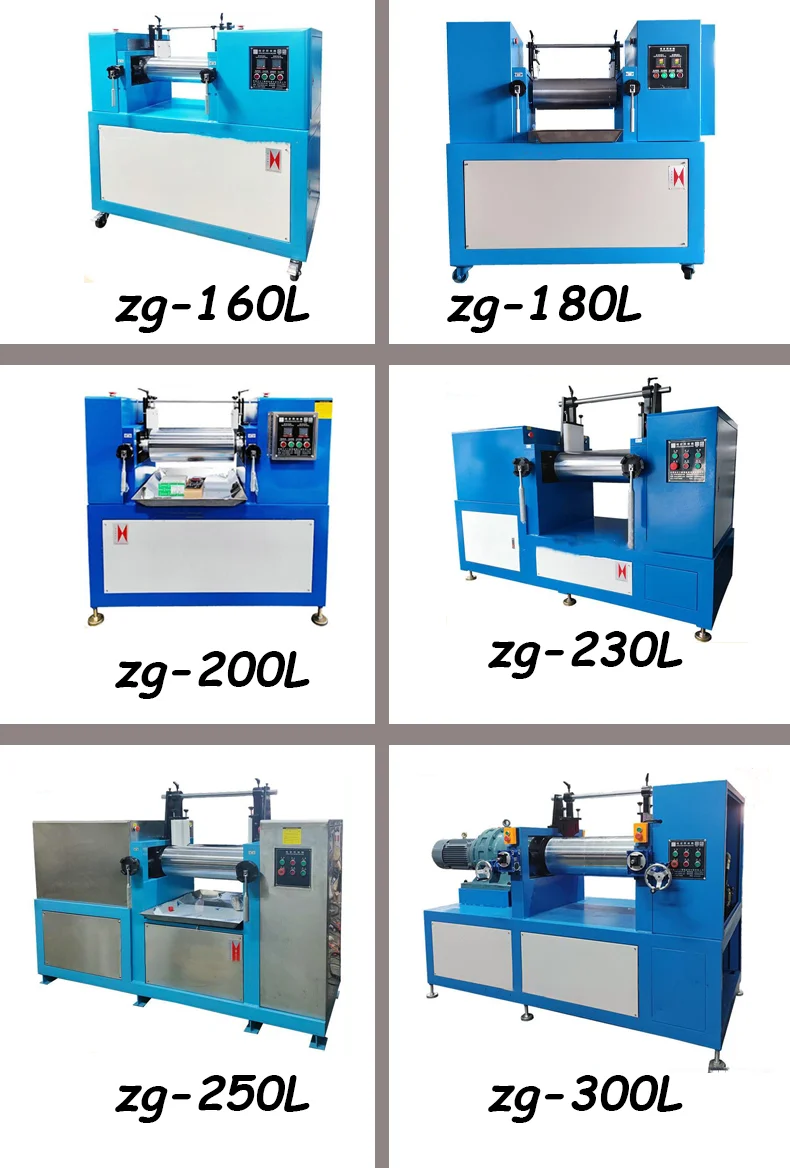

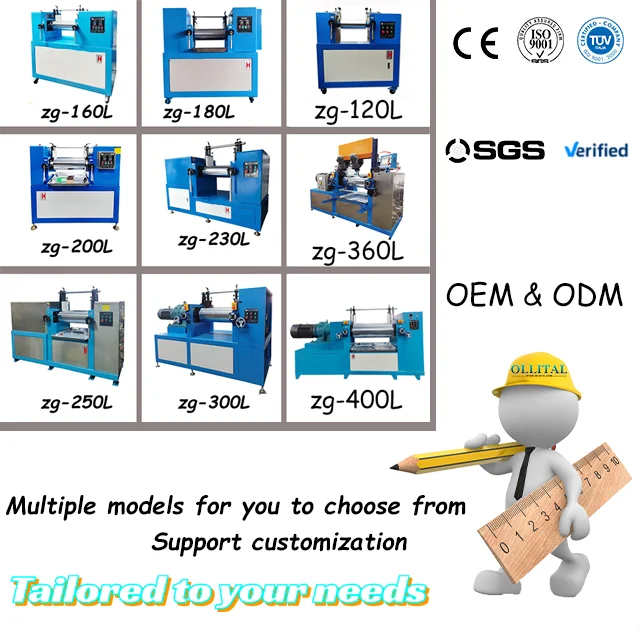

Customization of multiple styles and models








Company Profile




Packing & Delivery


Export wooden package




Package and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one
based on your timeline and budget. Besides,you can choose to use your own shipping agent
