Product Overview

Description

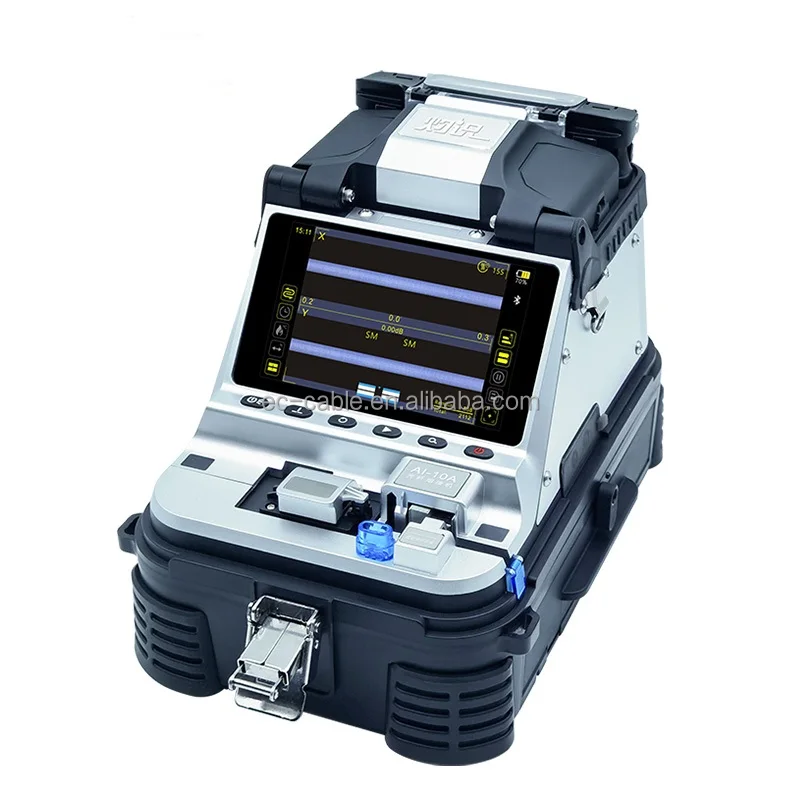

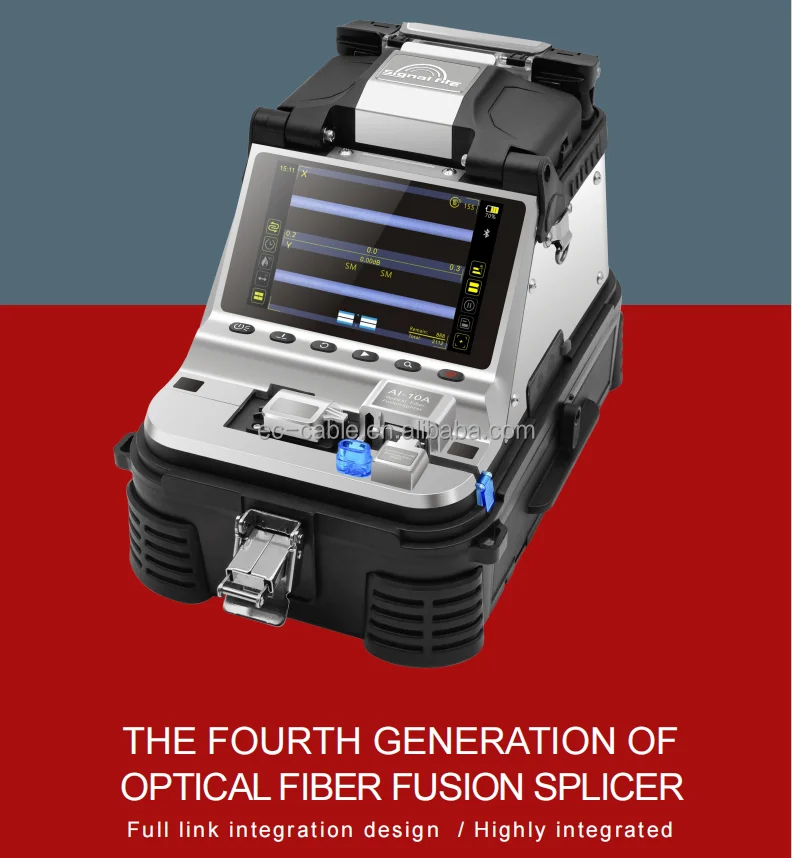

Ai 10A Signal Fire Cheap Price Ai-9 Automatic Intelligent Fusion Splicer Fiber Optic Machine Ai10A



Product Description








































































































Fiber Alignment


Core/cladding alignment / Manual alignment


Splicing Time


5s


Heating Time


15s


Heating Mode


Automatic heating(Preheating)


Focus Mode


Six motors Auto focus


Applicable Fibers


SM(G.652&G.657),MM(G.651),DS(G.657), NZDS(G.655)


Splice Loss


0.025dB(SM),0.01dB(MM),0.04dB(DS/NZDS)


Control Technology


Real-time control and calibration of fusion ARC


Return Loss


Better than 60DB


Fiber Diameter


Cladding Diameter:80-150μm
Coating Diameter:100-1000μm


Fiber Cleave Length


Coating less than 250µm:8-16mm
Coating less than 250-1000µm:16mm


Software upgrade


Mobile APP update,Turn on Blue-tooth sync to the machine


Lighting


External

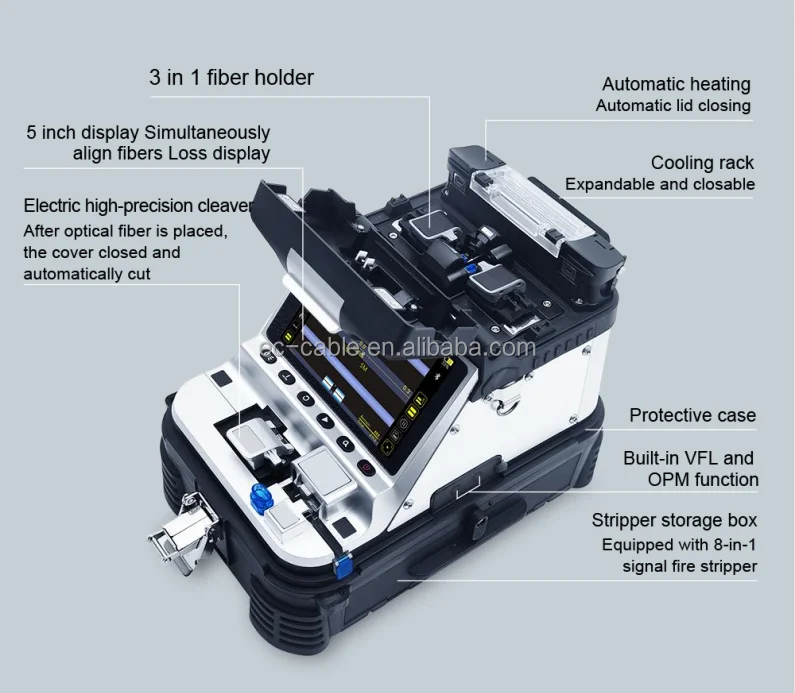

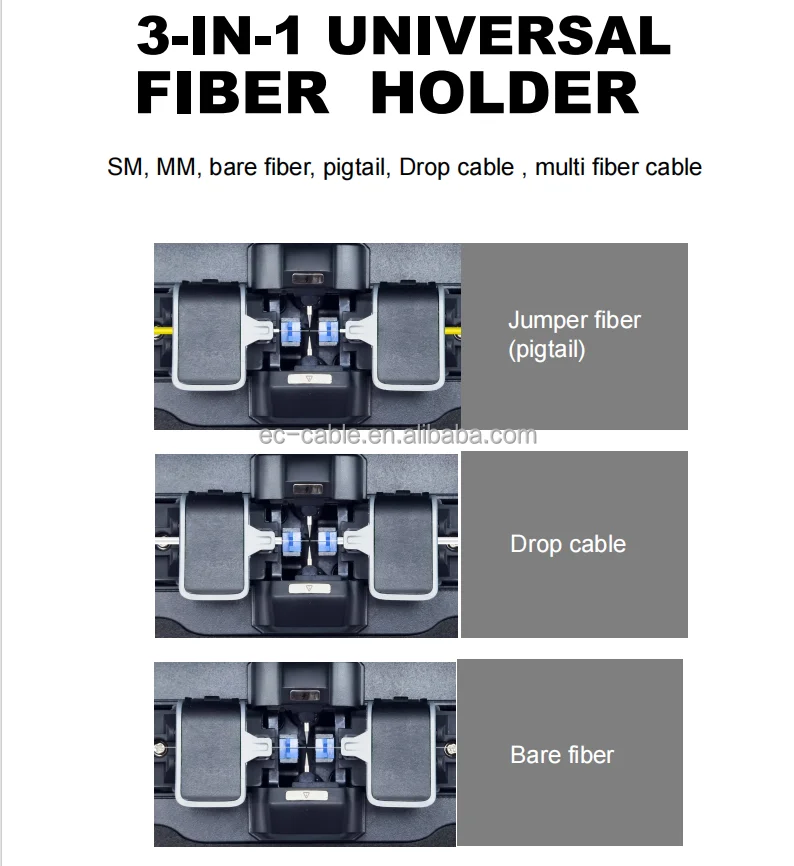

Fiber Holders


3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable


Magnification


300 for X or Y view, 150 for X or Y view


Screen


5 inch TFT color display


Splicing Mode


Normal / high precision splicing


Splicing Method


Fully automatic,Step by step splicing


Splicing Record Storage


Synchronize to the phone, the server to cloud storage unlimited

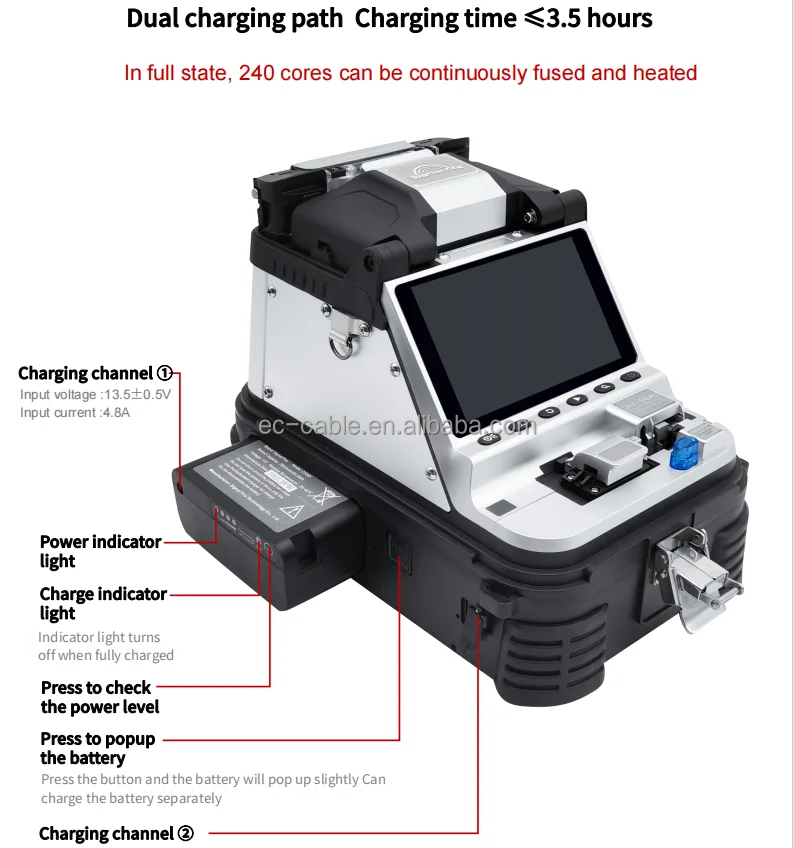

Built-in battery


7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 260 times


Power Supply


Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power


Operating Conditions


Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation)                              Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s


Shrinkable Tube


60mm,40mm


Optical Power Meter


Wavelength:850nm,1300nm,1310nm,1490nm,1550nm,1625nm
Measuring Range:-70 ~ +6db Absolute Error:<0.3db(-50dbm ~ +3dbm Range)


 1

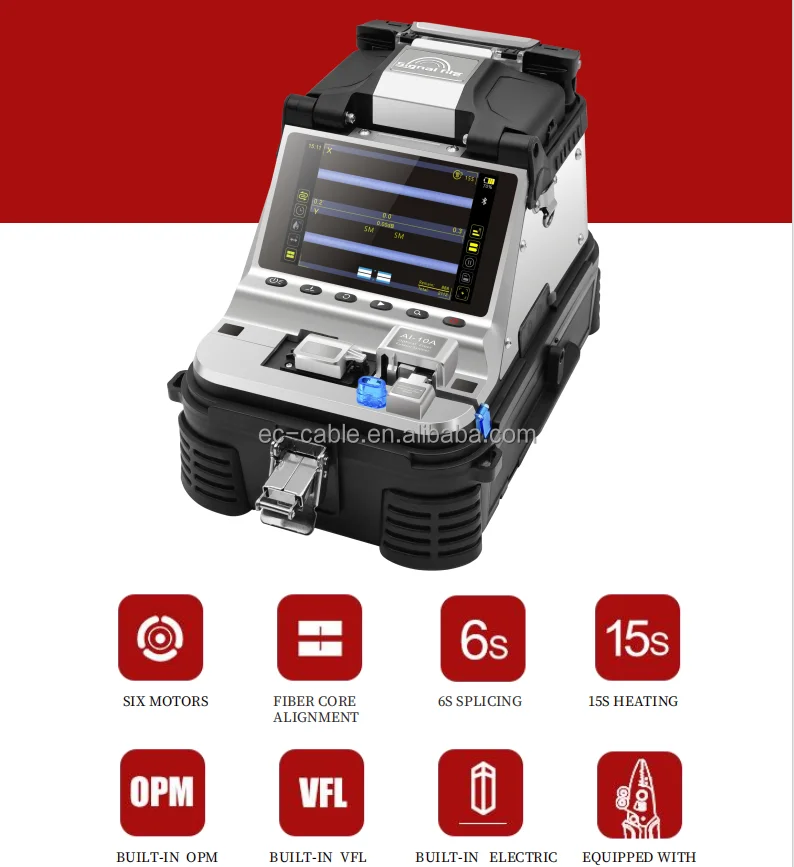

Features:
1). SIX MOTORS.


2). FIBER  CORE ALIGNMENT.
3). 6S SPLICING.

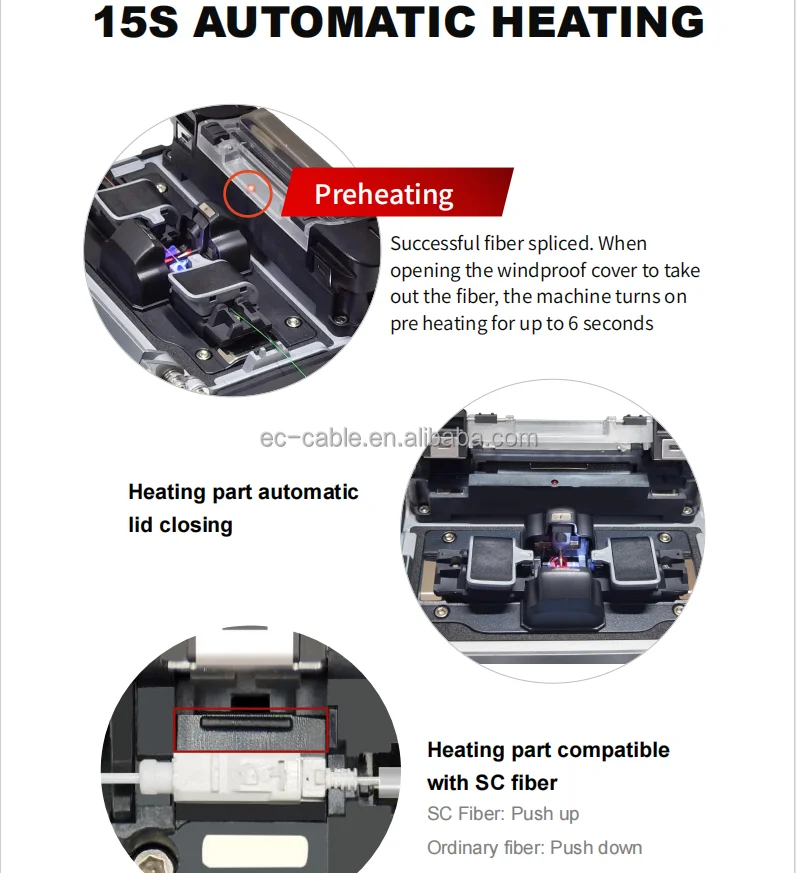

4). 15S HEATING.

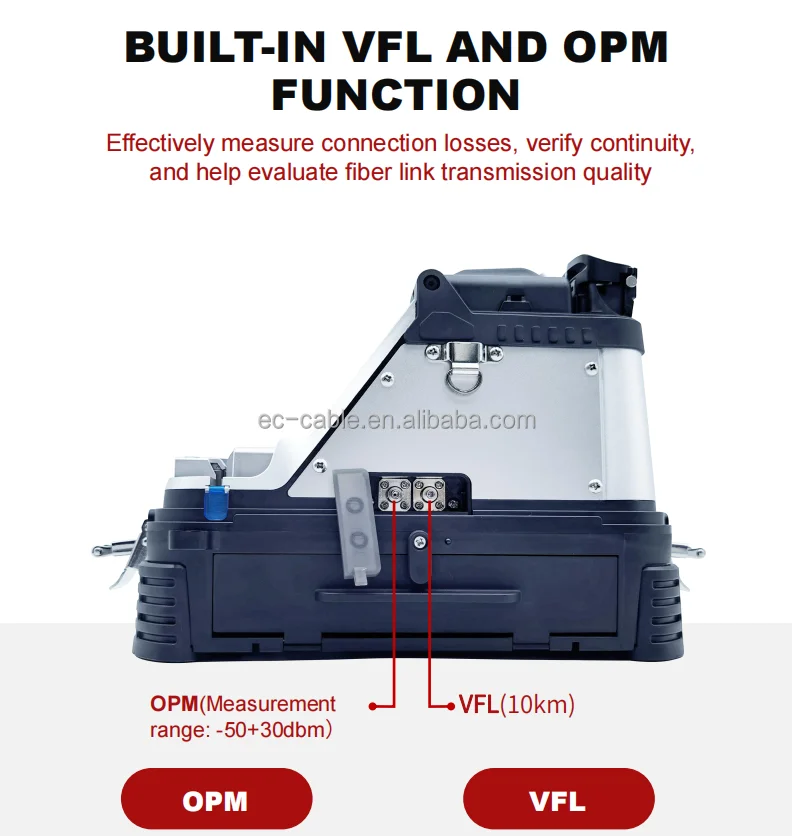

5). BUILT-IN OPM FUNCTION.


6). BUILT-IN VFL FUNCTION.


7). BUILT-IN ELECTRICPRECISION CLEAVER.

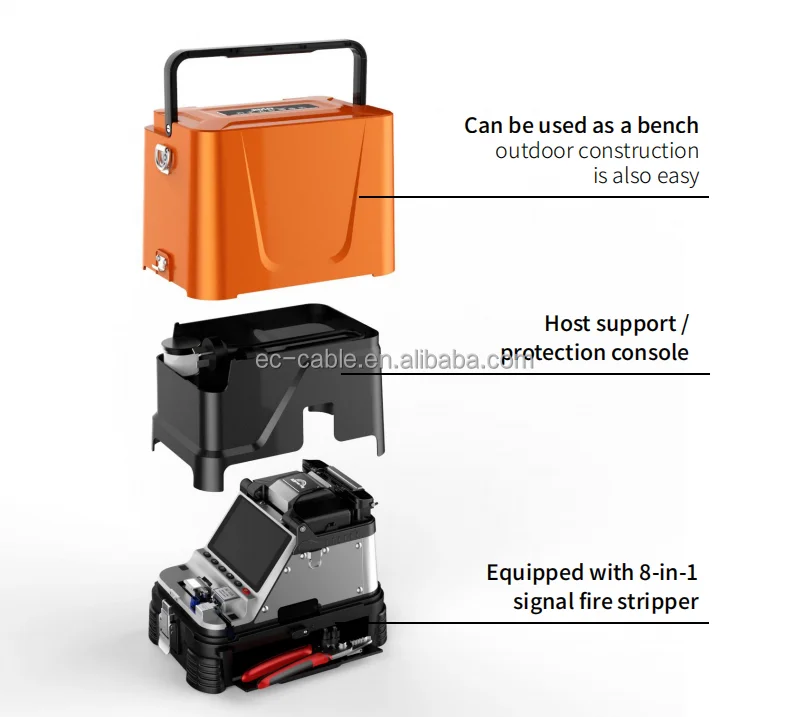

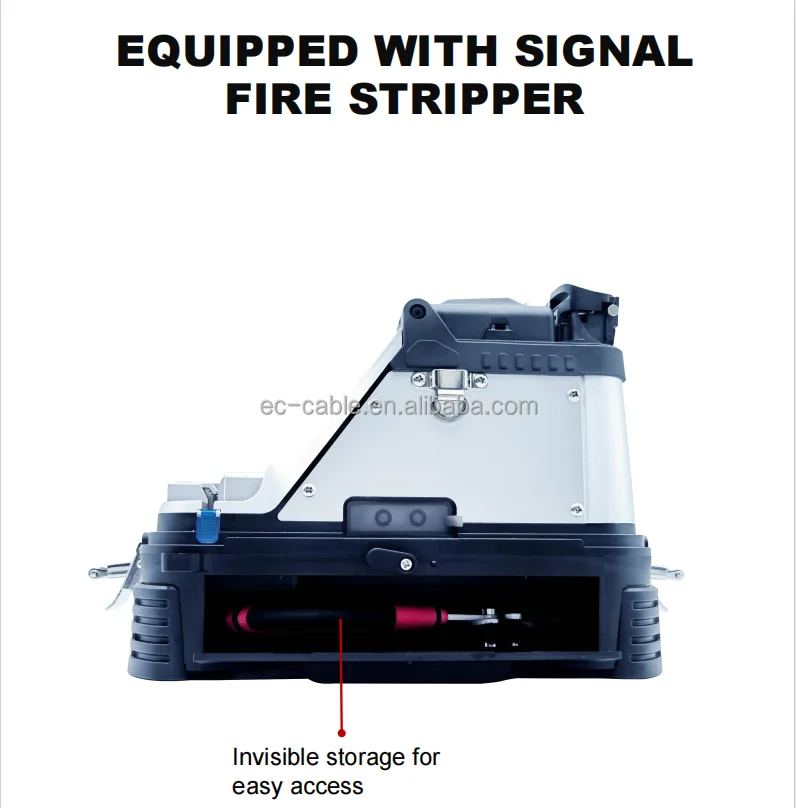

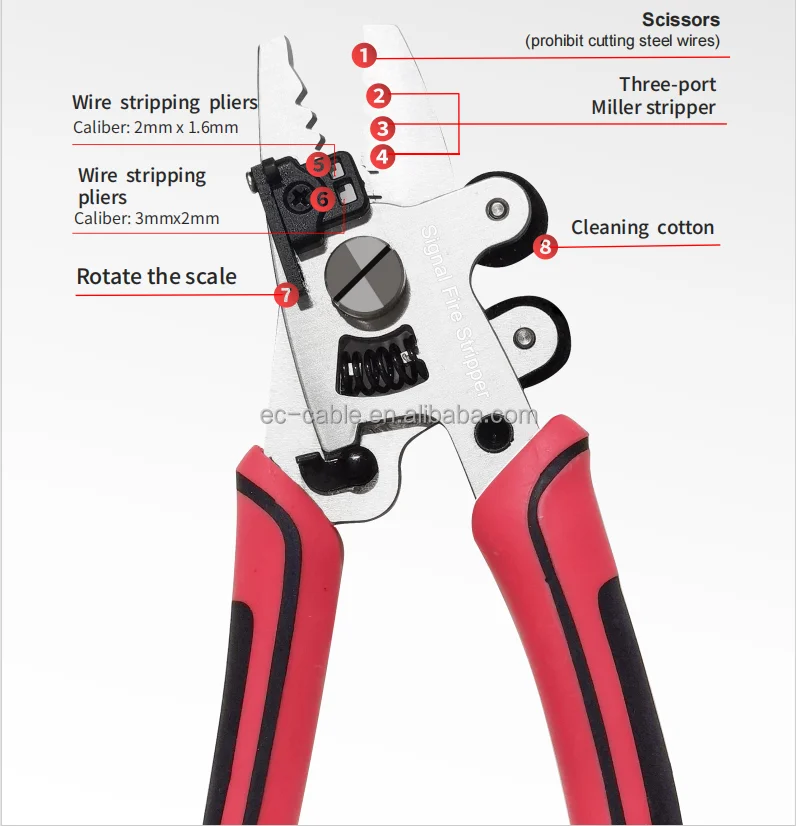

8). EQUIPPED WITHSIGNAL FIRE STRIPPER
