Stainless Steel Airlock Valve Rotary Valve For Spray Dryer
- Category: >>>
- Supplier: Changzhou Kodi Machinery Co. Ltd.
Share on (1600993769490):
Product Overview
Description
KODI Stainless Steel Airlock Valve Rotary Valve For Spray Dryer
1, Rotary valve / Spray dryer rotary valve for powder collection
2, Low energy consumption and large handling capacity
3, Easy operation and control
1, Rotary valve / Spray dryer rotary valve for powder collection
2, Low energy consumption and large handling capacity
3, Easy operation and control
Products Description
Rotary Valve Description
Rotary valve, also known as shut-off fan, star valve, rotary feeder, air lock valve, etc. The structure of a rotary valve usually consists of a rotor impeller with several blades, a casing, sealing elements, a reducer, an electric motor, etc. It is particularly suitable for materials such as powder and small particles. Our company has absorbed advanced domestic manufacturing technology, combined with market requirements and after years of research, has developed various rotary valves, which are widely used in various engineering projects such as food, pharmaceutical, metallurgical, chemical, and new energy, and are deeply loved by customers.
Rotary valve, also known as shut-off fan, star valve, rotary feeder, air lock valve, etc. The structure of a rotary valve usually consists of a rotor impeller with several blades, a casing, sealing elements, a reducer, an electric motor, etc. It is particularly suitable for materials such as powder and small particles. Our company has absorbed advanced domestic manufacturing technology, combined with market requirements and after years of research, has developed various rotary valves, which are widely used in various engineering projects such as food, pharmaceutical, metallurgical, chemical, and new energy, and are deeply loved by customers.

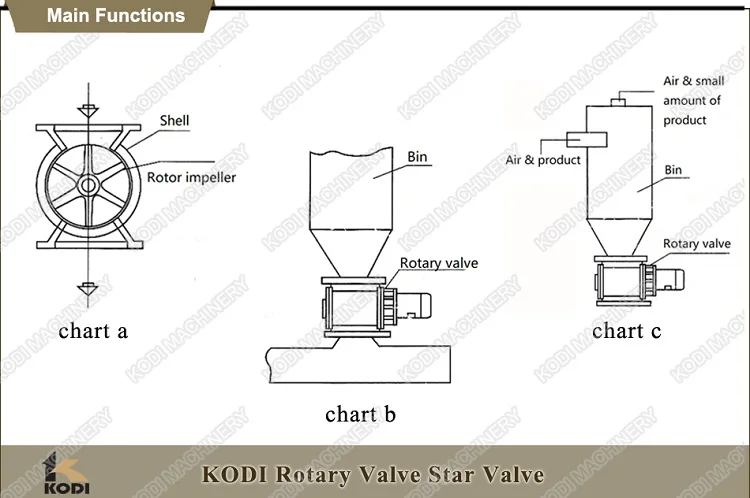

Rotary Valve Main Functons
1. The rotary valve can discharge product quantitatively and continuously. When the product in the upper silo falls by its own weight and fills the gap between the blades, it is discharged from the lower part as the blades rotate (see chart a).
2. The rotary valve is an important component commonly used in pneumatic conveying systems. For pressure output systems or negative pressure output systems, the rotary valve can evenly and continuously supply material to the conveying pipe to ensure that the air and solid inside the pneumatic output pipe are relatively stable, so that the pneumatic conveying can work normally. At the same time, it can also isolate the upper and lower air pressures of the rotary valve and play a air locking role (see chart b).
3. The rotary valve can be used in material collection systems. It is currently the most advanced unloading device in China and is commonly used as one of the important equipment in dust removal systems (see chart c).
1. The rotary valve can discharge product quantitatively and continuously. When the product in the upper silo falls by its own weight and fills the gap between the blades, it is discharged from the lower part as the blades rotate (see chart a).
2. The rotary valve is an important component commonly used in pneumatic conveying systems. For pressure output systems or negative pressure output systems, the rotary valve can evenly and continuously supply material to the conveying pipe to ensure that the air and solid inside the pneumatic output pipe are relatively stable, so that the pneumatic conveying can work normally. At the same time, it can also isolate the upper and lower air pressures of the rotary valve and play a air locking role (see chart b).
3. The rotary valve can be used in material collection systems. It is currently the most advanced unloading device in China and is commonly used as one of the important equipment in dust removal systems (see chart c).
Rotary Valve Main Features
Rotary Valve For Food Industry Or API Industry

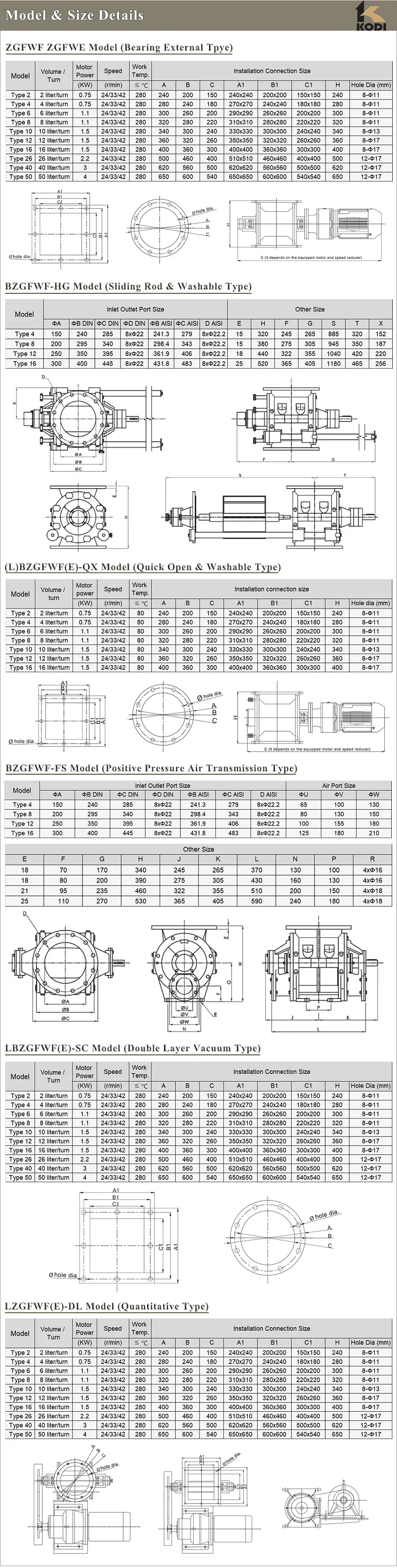

Technic Parameter of Rotary Valve
Model | Inlet Outlet Port Size | ||||||||||||
ΦA | ΦB DIN | ΦC DIN | ΦD DIN | ΦB AISI | ΦC AISI | D AISI | |||||||
Type 4 | 150 | 240 | 285 | 8xΦ22 | 241.3 | 279 | 8xΦ22.2 | ||||||
Type 8 | 200 | 295 | 340 | 8xΦ22 | 298.4 | 343 | 8xΦ22.2 | ||||||
Type 12 | 250 | 350 | 395 | 8xΦ22 | 361.9 | 406 | 8xΦ25.4 | ||||||
Type 16 | 300 | 400 | 445 | 8xΦ22 | 431.8 | 483 | 8xΦ25.4 | ||||||

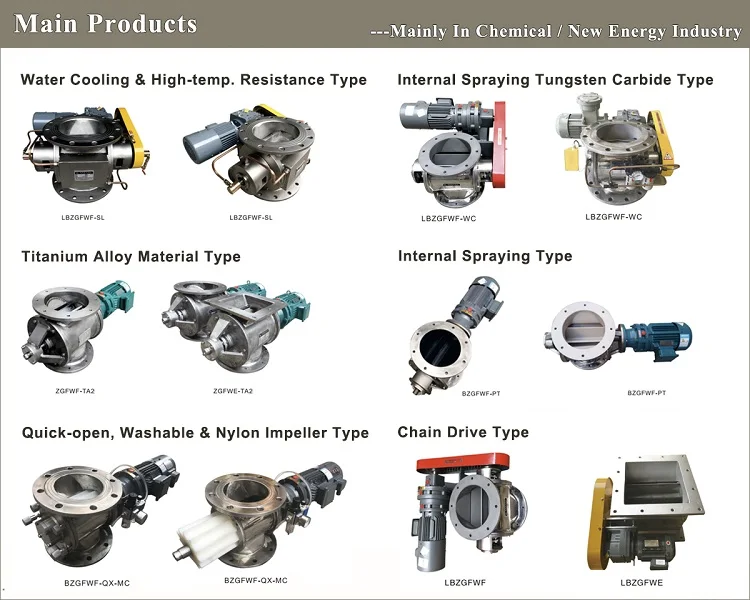

KODI also produce rotary valve mainly used in Chemical Industry Or New Energy Industry, If you have interest in these, please click below photo to know more:
Packing & Delivery
Company Profile
Why Choose KODI
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City, Jiangsu Province which is 150km away from Shanghai city, with a comfortable environment and convenient transportation access.
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer price, Food ingredients spray dryer price, Flavor spray dryer price (Cocoa, Maltdextrin,Gum Acacia), Lab rotary Atomizer Spray dryer price / rotary atomizer type spray drye, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc..
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer price, Food ingredients spray dryer price, Flavor spray dryer price (Cocoa, Maltdextrin,Gum Acacia), Lab rotary Atomizer Spray dryer price / rotary atomizer type spray drye, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc..
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
Our Service
Pre-service:
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale-service:
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale-service:
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
FAQ
Special Notice:
In order to quota you the right rotary valve / spray dryer rotary valve / airlock valve price, we would like to get the following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou. Or we can visit you in Shanghai.
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou. Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 40% TT in advance, 60% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
