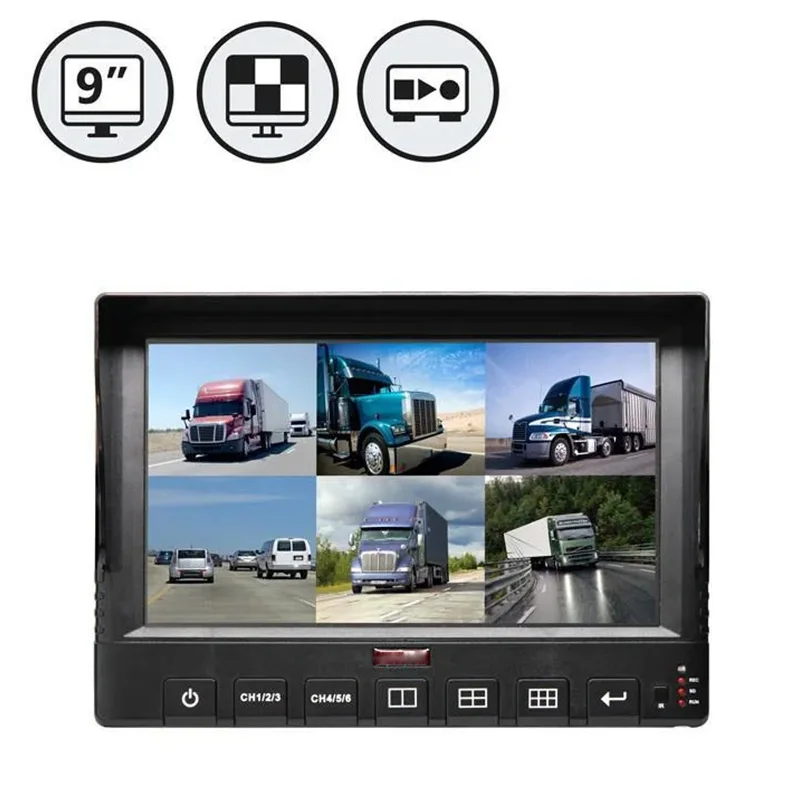

6CH 1080P Touch Screen DVR monitor Driver Aid Camera System Vehicle Reversing aid and fleet management with 4G GPS
- Category: >>>
- Supplier: Visionmaster(shenzhen) Industrial Co. Ltd.
Share on (1600994006687):
Product Overview
Description
6CH 1080P Touch Screen DVR monitor Driver Aid Camera System Vehicle Reversing aid and fleet management with 4G GPS
GPS function ,G-sensor, motion detection,Wi-fi,3G/4G optional
Support 2XSD card up to 2* 256GB
Linux operating system
Resolution:1280x 3(RGB) x 720 Pixels
Features:
Industrial Linear power IC, Touch screen
HD 6 channels, 6 split video H.246 Compression,audio: G.711A
Ø Linux operating system
Ø Touch screen(optional)
Ø 2xSD memory storage support(Max. 256GB) and SSD support(optional)
Ø Built-in GPS module,
Ø Resolution of monitor: 1,280 x 3(RGB) x 720 Pixels
Ø Video quality up to 1080P resolution
Ø Supports 6 ch video input,audio input on/off
Ø External USB2.0 interface, can upgrade the product and download files
Ø Support 4 alarm mode: manual, alarm, timing, trigger
Ø Additional 4Ch inputs with triggers
Ø Full CH, Auto Scan, Trigger CH & Live display
Ø 6CH AV Inputs with 1080P/720P
Ø Date & Time Stamp ,vehicle information,GPS information,ch number on the file
Ø When Playback Recorder still go on
Ø Setup on the LCD menu
Ø Map Tracking available
Ø G-sensor applicable
Ø Built-in Circuit protection chip from over voltage & reversing voltage
Ø Professional In-Vehicle power design, 9-36V DC Wide Voltage Range
Ø Support password protection function
Ø With memory function
Ø 6pcs auto trigger for each channel
Ø With grid line
Specifications
Product Name | 9 inches DVR monitor |
All-in-One (monitor + DVR) | Yes |
OS | Embedded Linux |
Monitor Size | 9” LED Digital Panel |
Display Views | Single/split/QUAD/2CH /4CH/6CH display optional |
Display Format | 16:9 |
Monitor Resolution | 1280 x 720 x 3 (RGB) |
Luminance | 450 cd/m2 |
Contrast Ratio | 500:1 |
Number of Cameras Supported | 6 (six) 720p or 4 (four) 1080p & 2(two) 720P optional |
Video Input Connector | 4-pin Aviation |
Input Level | high |
Camera Resolutions | 1080p / 720p |
Recording Speed | 25fps / 30fps |
Memory Storage | 2 SDXC High speed SD card(SSD is optional) |
Security | SD Cards Lockable |
Video Compression Method | H264(H265 in future) |
Audio | 4 Watt Speaker |
Audio Input | 6 Audio Input |
Audio Compression | G.711U |
Playback on Device | Yes |
Playback Software on PC | support |
Power Source | 9V DC to 36VDC |
Operating Temperature | -20℃ ~ +75 ℃ |
Storage Temperature | -30℃ ~ +85 ℃ |
Storage Humidity | <80%RH |
IP Rating | IP65 |
Shock and Vibration Rating | passed the test: 20G peak |
Trigger wire | 6 Channels |
ACC (Accessory) - turn Tablet on/off based on ACC signal. | Yes |
USB 2.0 | 1 (support U disk/mouse/download) |
Event Record | Supports |
GPS | Yes |
LTE/4G | Optional |
G-Sensor | Yes |
Pictures

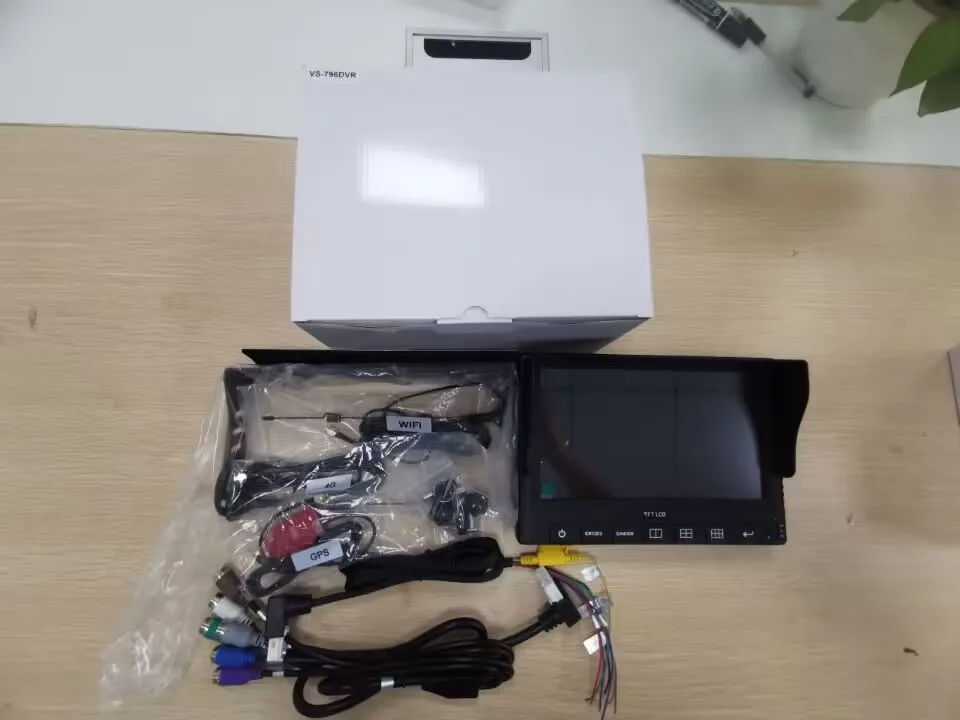

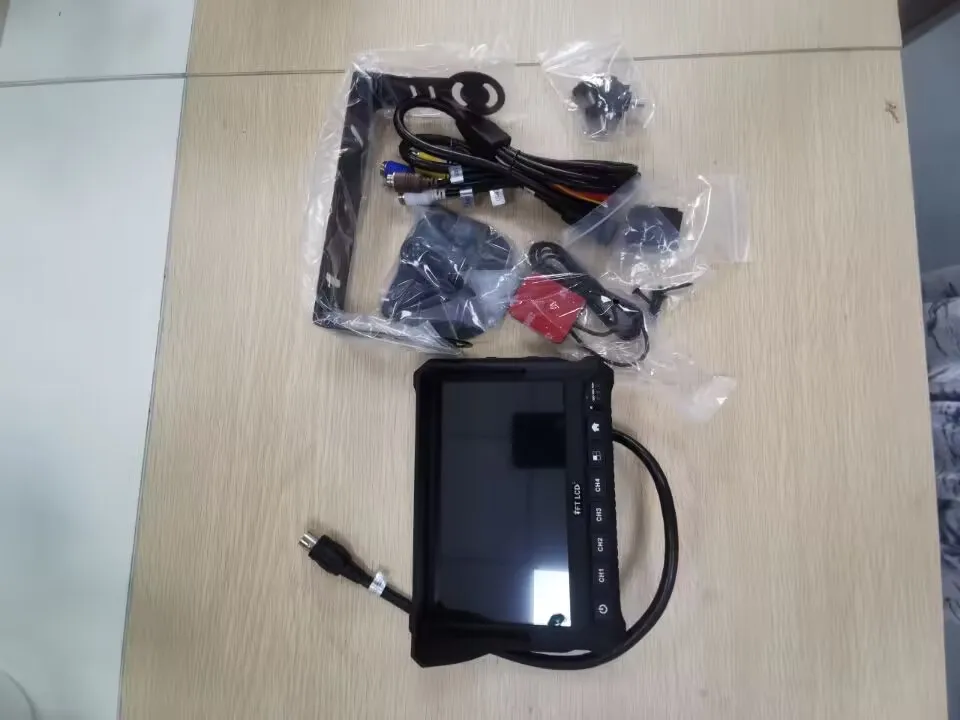

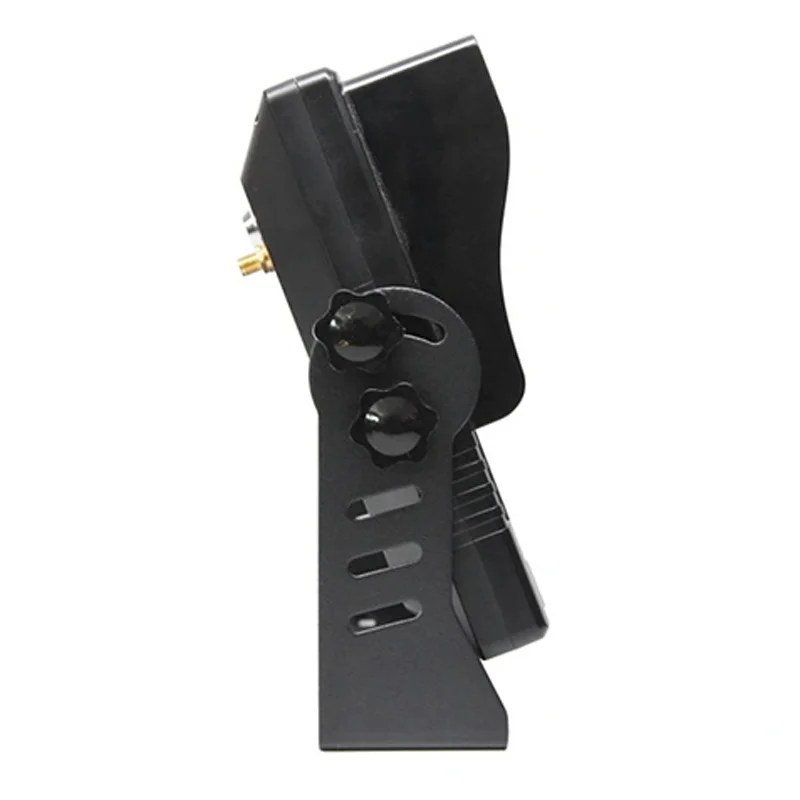

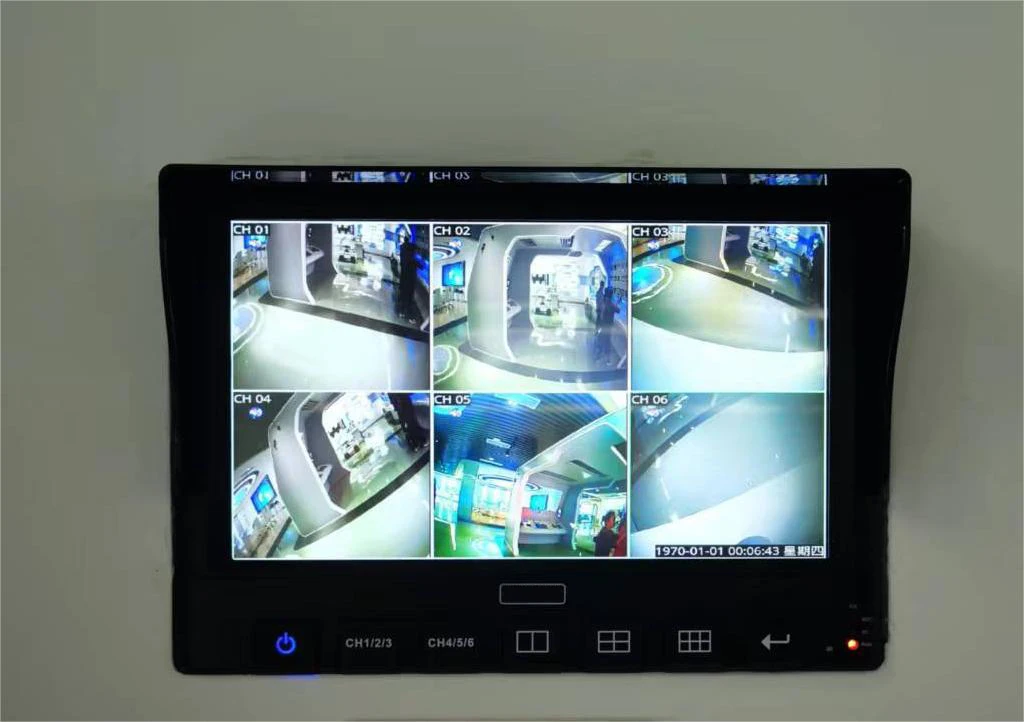

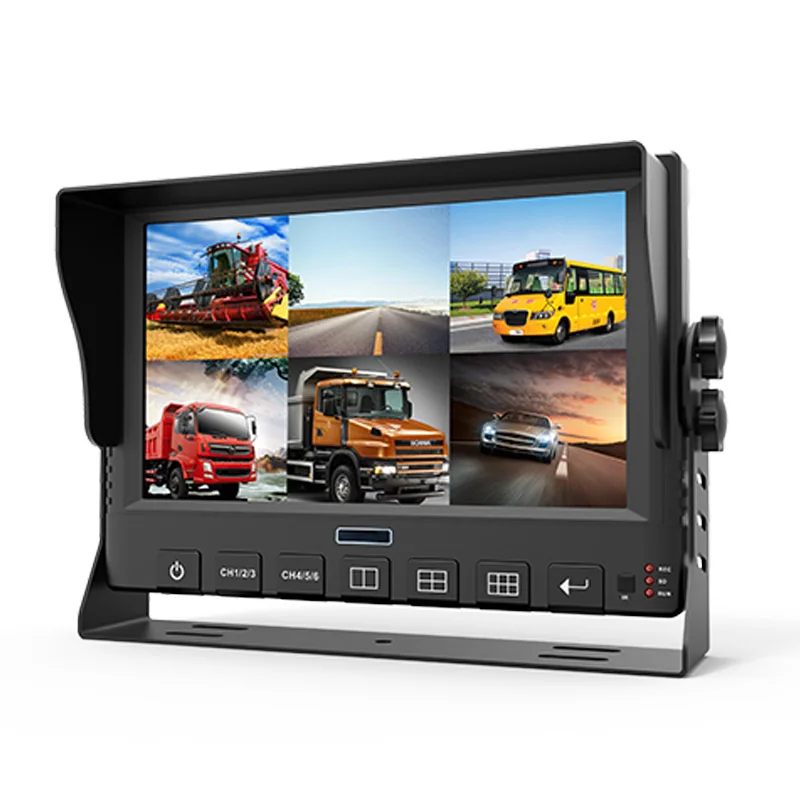

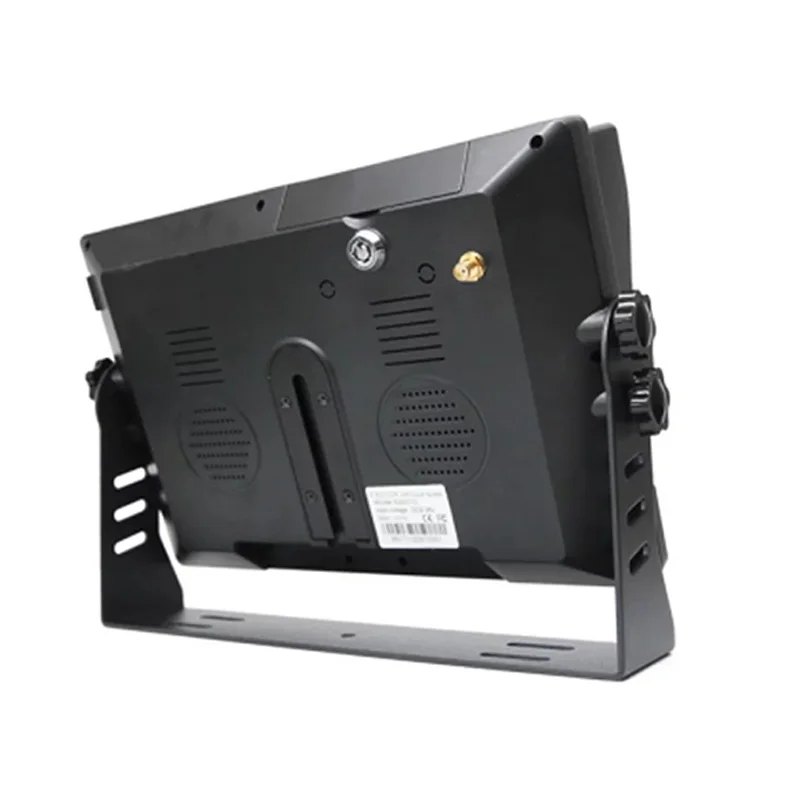

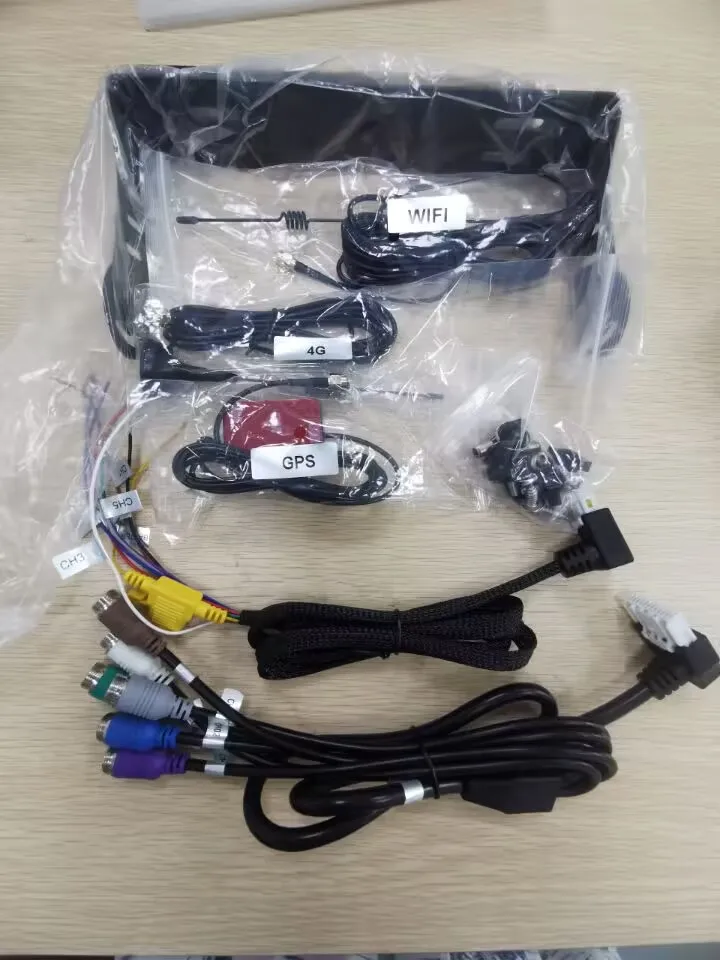

Pictures Real Shot:
