hot sale factory price CNC control 3d fence making machine full automatic
- Category: >>>
- Supplier: Anping Wanzhong Wire Mesh Products Co. Ltd.
Share on (1600994147402):
Product Overview
Description

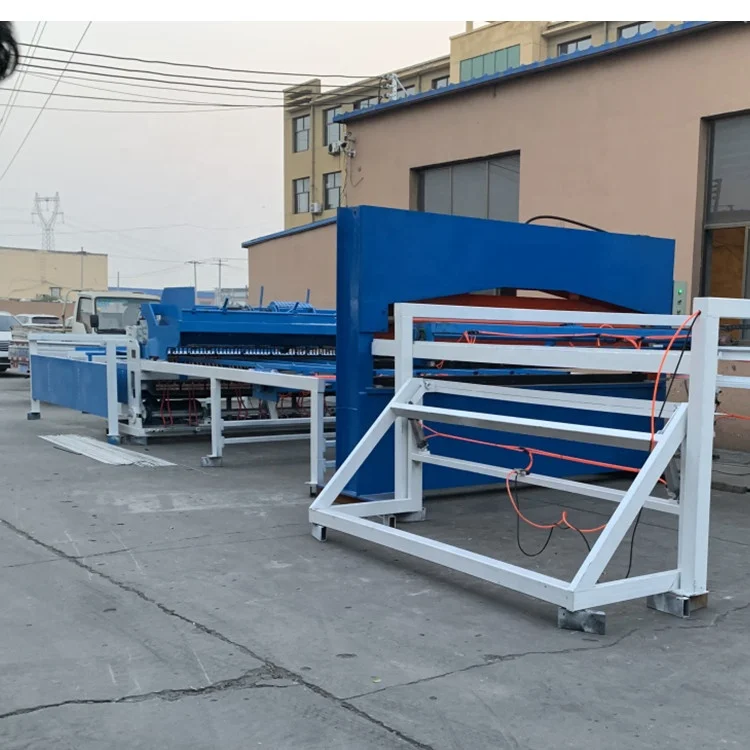

hot sale factory price CNC control 3d fence making machine full automatic
Product Description

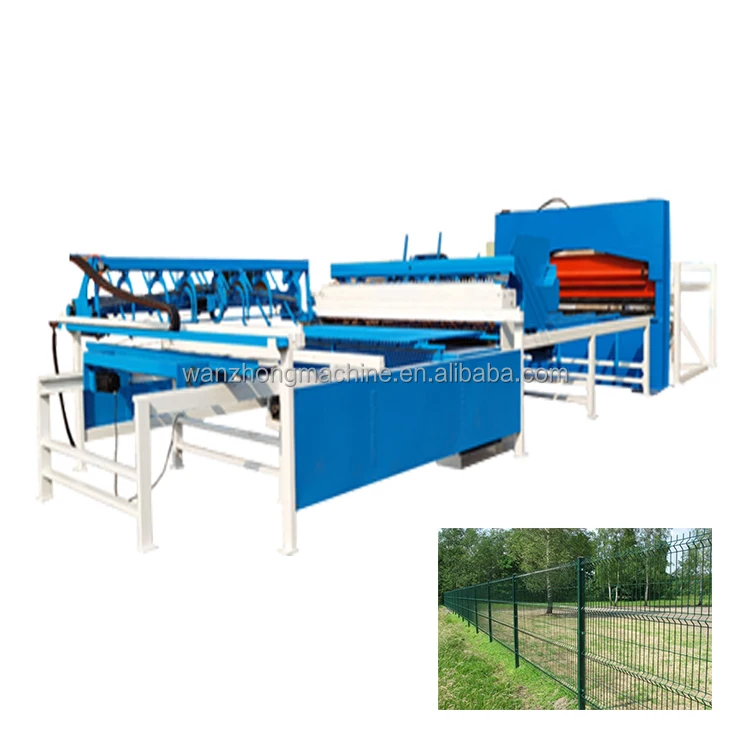

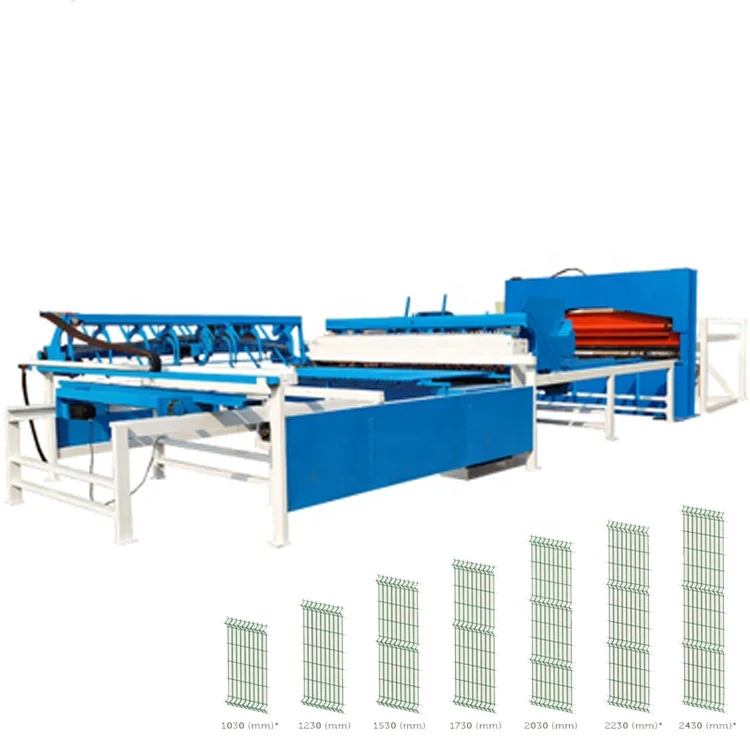

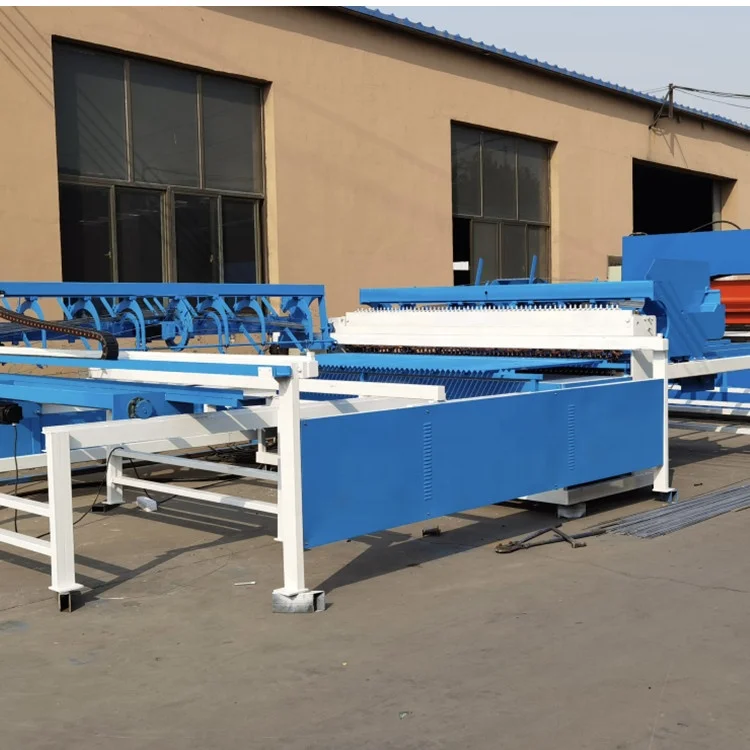

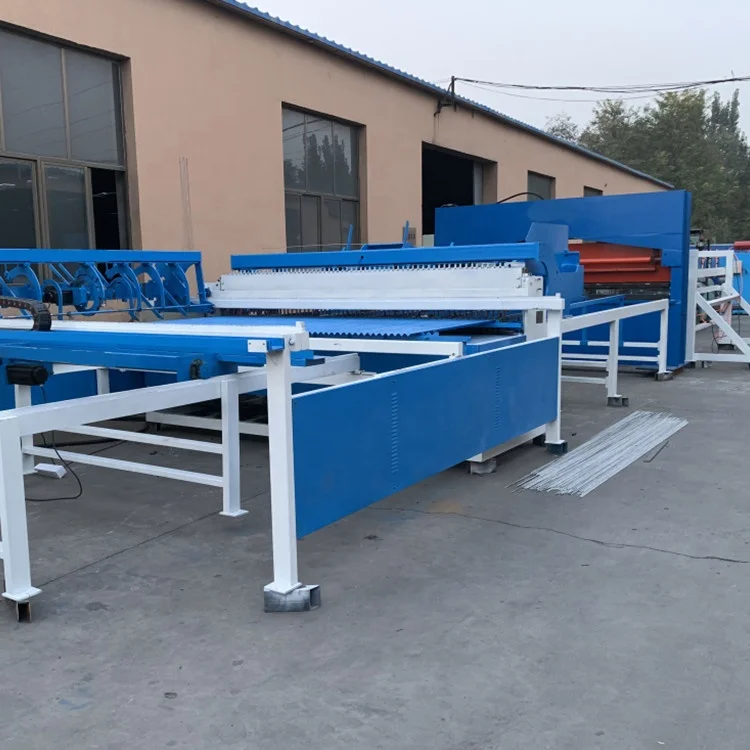

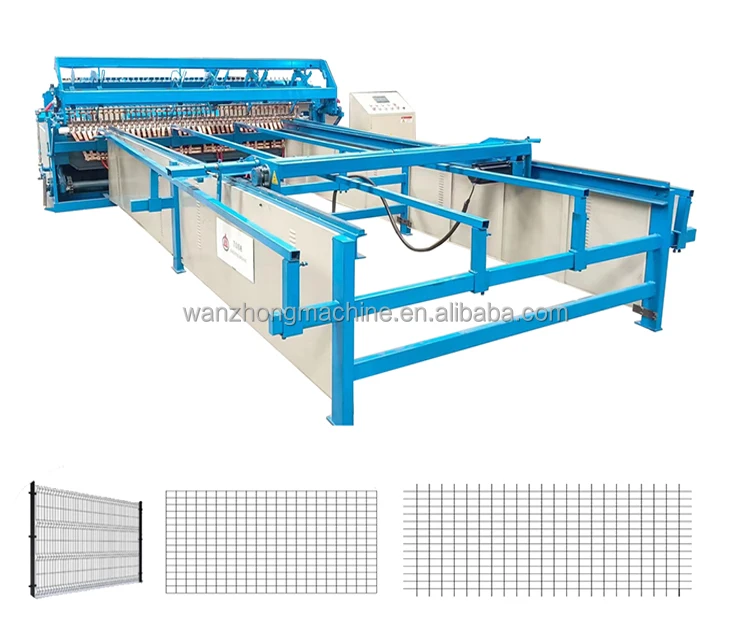

Fully Automatic 3D Fence Mesh Welding Machine Most Popular Parameters in the market:
| Item | WZ-2000HA | WZ-2500HA | WZ-3000HA |
| Number of Electrodes | 40 | 48 | 60 |
| Max.Mesh Width | 2000mm | 2500mm | 3000mm |
| Wire Diameter | 3.0-6.0mm | 3.0-6.0mm | 3.0-6.0mm |
| Mesh Length | 500-3000mm | 500-3000mm | 500-3000mm |
| Cross Wire Space | 50-250mm | 50-250mm | 50-250mm |
| Line Wire Space | 50-250mm | 50-250mm | 50-250mm |
| Electric Capacity | 125KVA*5 | 125KVA*6 | 125KVA*8 |
| Welding Speed | 50-70t/min | 50-70t/min | 50-70t/min |
| Line Wire Feeding Way | By the Special Electric Hopper | ||
| Cross Wire Feeding Way | By the Special Electric Hopper | ||
| 3D Bending Way | Bending Automatically | ||
| Control System | PLC control and Touch Screen | ||
Fence Mesh Welding Machine Advantages:
1. longitude wire adopts automatic feeding system from the special electric hopper;
2.Cross wire adopts automatic feeding system from the special electric hopper;
3.Pulling mesh system adopts three special pulling mesh cars
No.1 mesh pulling car is to pull the welded cross wires out of the mesh according to the parameters set by the program according to the length of the mesh and mesh size, it can realize multiple reciprocating pulling mesh, until the whole mesh is completely pulled out.
No.2 mesh pulling car is to push the mesh panel on the down mould of the automatic bending machine according to the program until the final 3d shape is finished.
No.3 mesh pulling car is used to pull out the 3d fence panel according to the program step by step.
4.Automatic bending mesh machines can be shaped as "v".
Related Products

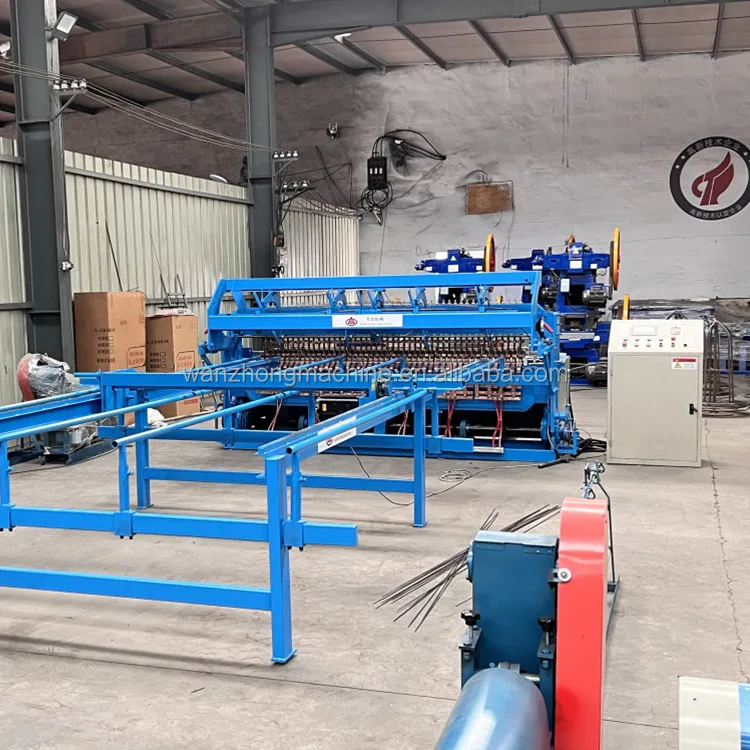

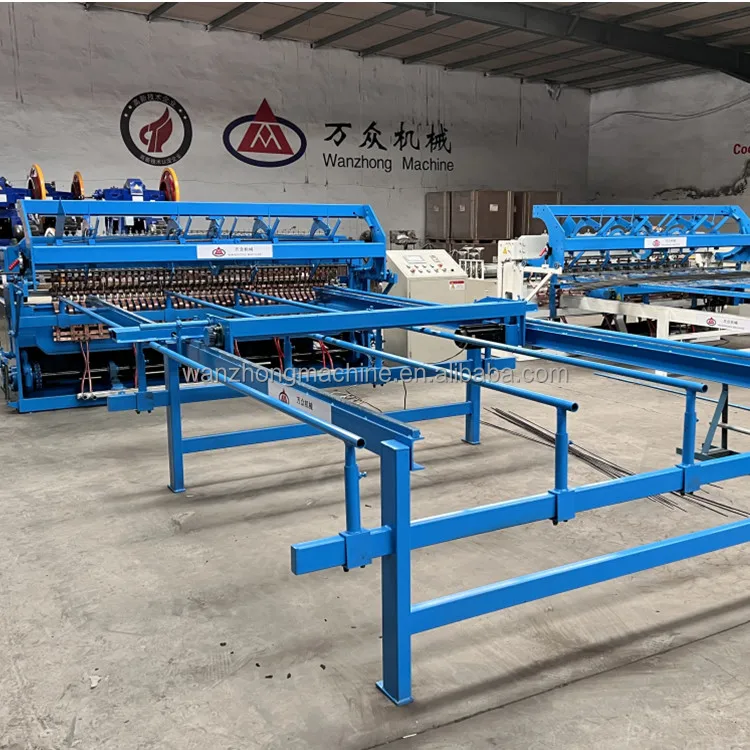

Semi Automatic 3D Fence Mesh Welding Machine
Fence Mesh Welding Machine Advantages:
1 Our this mesh welding machine, adopts pre-cut wires,line wire threaded by hand,the cross wires are also fed from pre-cut,which adopts step motor driven from the special hopper one by one;
2The welding transformers is our new model and installed with water cooling system,which prolong the service life,and this water is not wasted, can be recycled all the time;
3 Our welding pressure adopts mechanical spring,easy to adjust,which save the cost and maintenance cost is lower than other pneumatic model;
4 Every welding transformer is controlled by single microcomputer control ,cent-control welding one time pressure ,which is more intelligentialized.The controller will connect with the touch screen , and we can set the welding current and welding time on the touch screen ,which is very convenient,this machine will save energy greatly,in the theory,the production line will need only 12 degree electricity.
Main Technical Parameters:
| Item | WZ-2000A | WZ-2500A | WZ-3000A |
| Number of Electrodes | 40 | 48 | 60 |
| Max.Mesh Width | 2100mm | 2500mm | 3000mm |
| Welding Wire Diameter | 3.0-6.0mm/5.0-8.0mm | 3.0-6.0mm/5.0-8.0mm | 3.0-6.0mm/5.0-8.0mm |
| Mesh Length | 500-3000mm | 500-3000mm | 500-3000mm |
| Cross Wire Space | 50-250mm | 50-250mm | 50-250mm |
| Line Wire Space | 50-250mm | 50-250mm | 50-250mm |
| Electric Capacity | 125KVA*5 | 125KVA*6 | 125KVA*8 |
| Welding Speed | 50-70t/min | 50-70t/min | 50-70t/min |
| Control System | PLC control and Touch Screen | ||

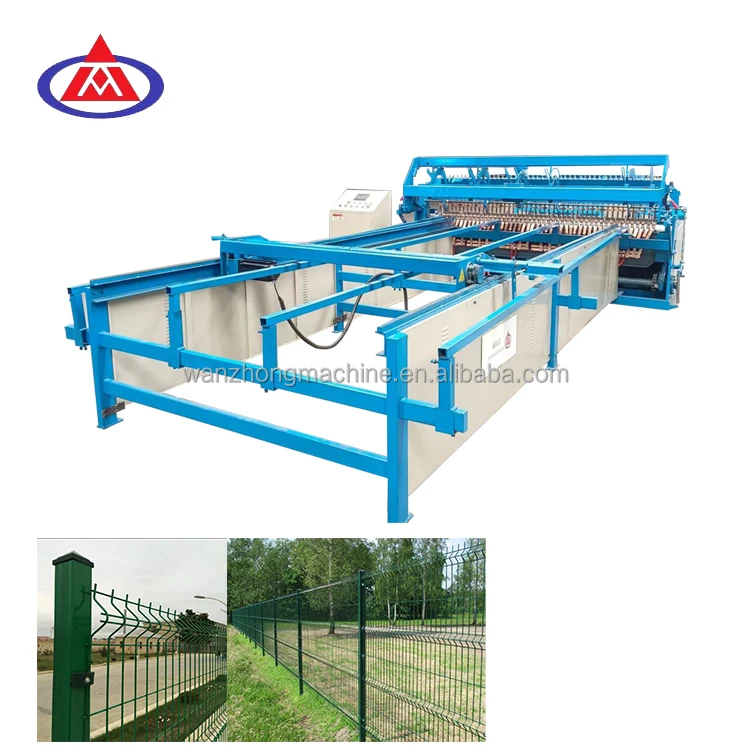

Line Wire Falling Automatic 2D and 3D Fence Mesh Welding Machine:
| Item | WZ-1600LA | WZ-2000LA | WZ-2500LA | WZ-3000LA |
| Number of Electrodes | 32 | 40 | 48 | 60 |
| Max.Mesh Width | 1600mm | 2100mm | 2500mm | 3000mm |
| Wire Diameter | 3.0-6.0mm | 3.0-6.0mm | 3.0-6.0mm | 3.0-6.0mm |
| Cross Wire Space | 50-250mm | 50-250mm | 50-250mm | 50-250mm |
| Line Wire Space | 50-250mm | 50-250mm | 50-250mm | 50-250mm |
| Line Wire Feeding Way | By the Special Electric Hopper | |||
| Pulling Mesh Way | Servo Motor | Servo Motor | Servo Motor | Servo Motor |
| Electric Capacity | 125KVA*4 | 125KVA*5 | 125KVA*6 | 125KVA*8 |
| Welding Speed | 50-80t/min | 50-70t/min | 50-70t/min | 50-70t/min |
| Control System | PLC andTouch Screen | |||
