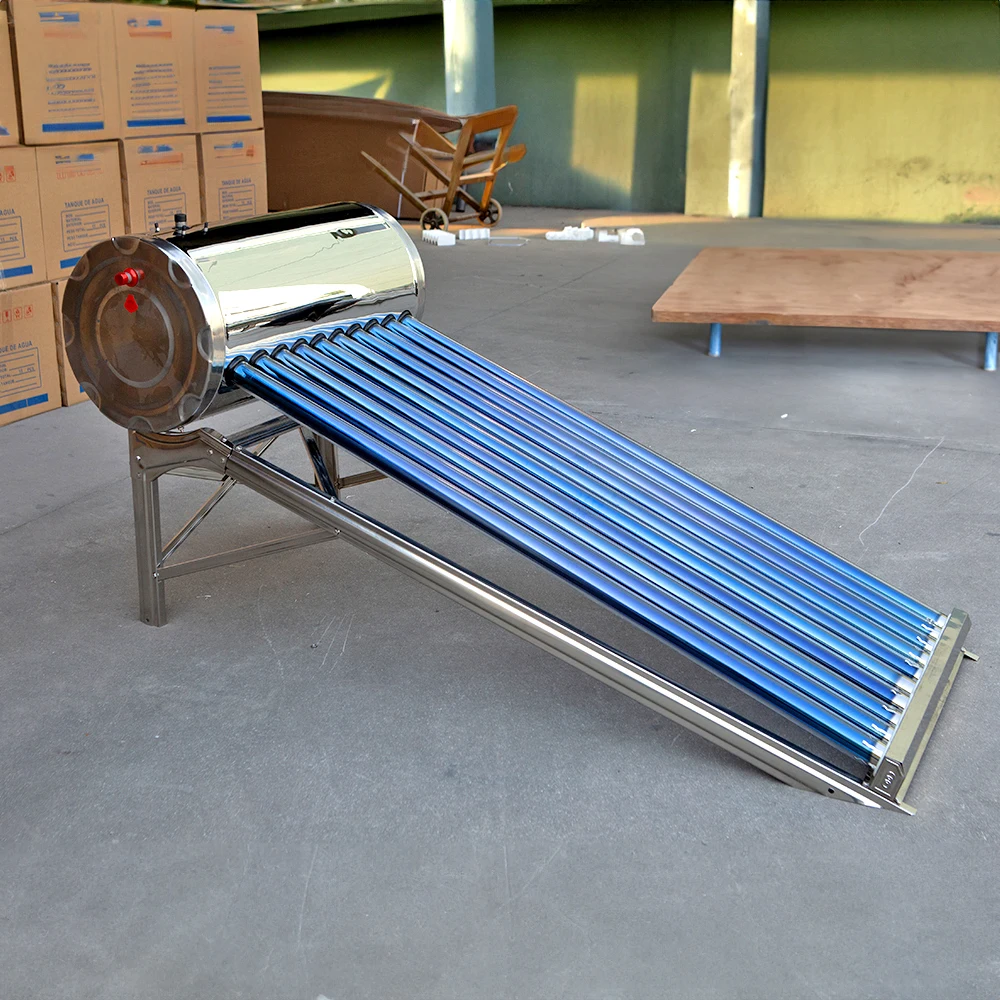

100L 200L 300L Factory Wholesale Household Roof Solar Water Heater System Stainless Steel water tank
- Category: >>>
- Supplier: Hangzhou Zhongyi Solar Technology Co. Ltd.
Share on (1600994333767):
Product Overview
Description

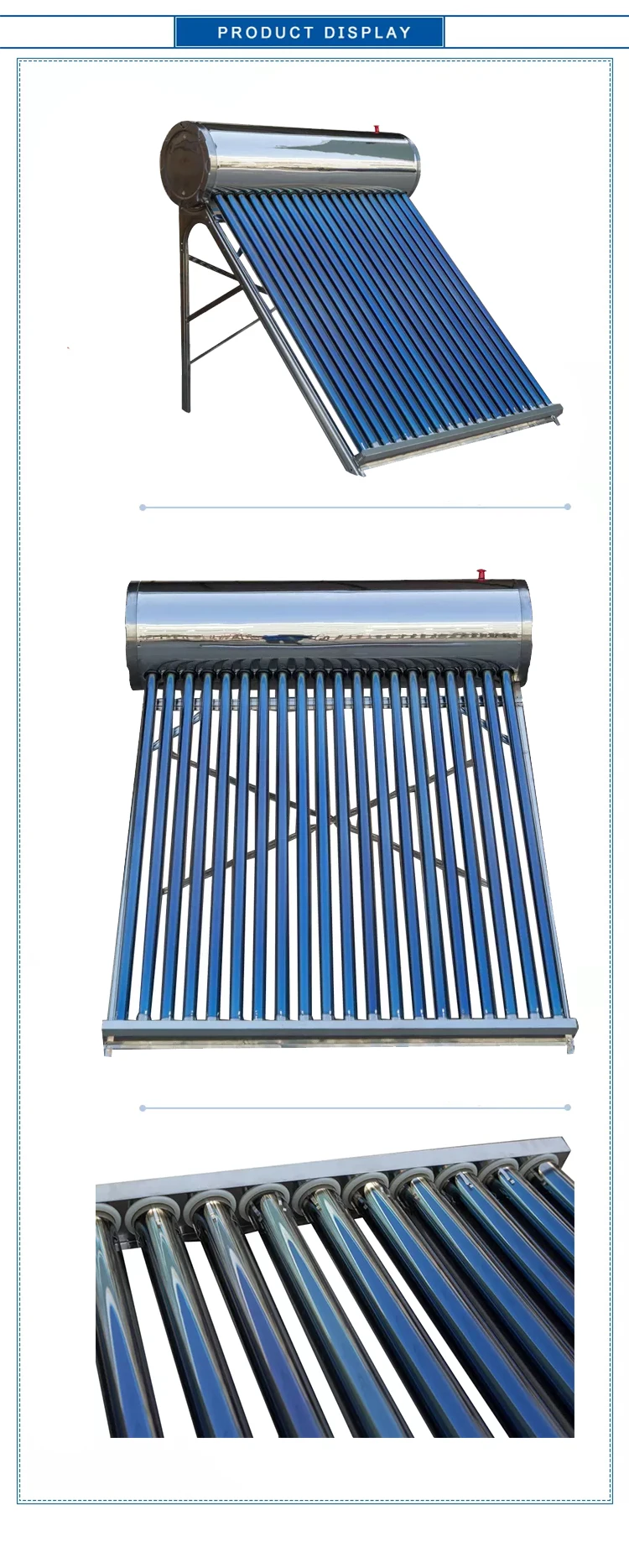

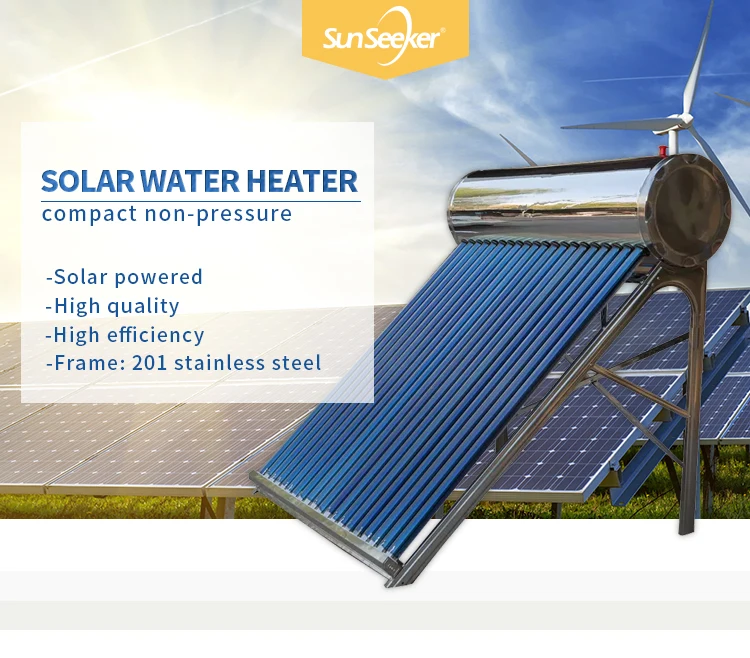

Compact non pressure solar water heater relies on the nature circulation of the water between solar tubes and the water
tank.Thermosyphon systems work on principal of heat rising. The water enters in the bottom of the collector and rises to the tank
as it warms. The advantage of this system is that solar heat is stored in a well-insulated tank, so hot water can be used at any
time without the penalty of overnight losses.
Moreover the insulation of the tank can protect heat during 3 days without heat loss.
tank.Thermosyphon systems work on principal of heat rising. The water enters in the bottom of the collector and rises to the tank
as it warms. The advantage of this system is that solar heat is stored in a well-insulated tank, so hot water can be used at any
time without the penalty of overnight losses.
Moreover the insulation of the tank can protect heat during 3 days without heat loss.
Our services
1. Packing: Standard export carton with foam or wooden box, Wooden Box Packing for Sample
2.Shipping: 7 days for sample, 7-10 days for 20/40 container
3.MOQ: Sample is available
4.Warranty: 5 years guarantee for whole set solar water heater
5.Port of departure:Shanghai or Ningbo
6.Supply ability: 6000 sets per month
7.life time : more than 20 years
Recommend Products

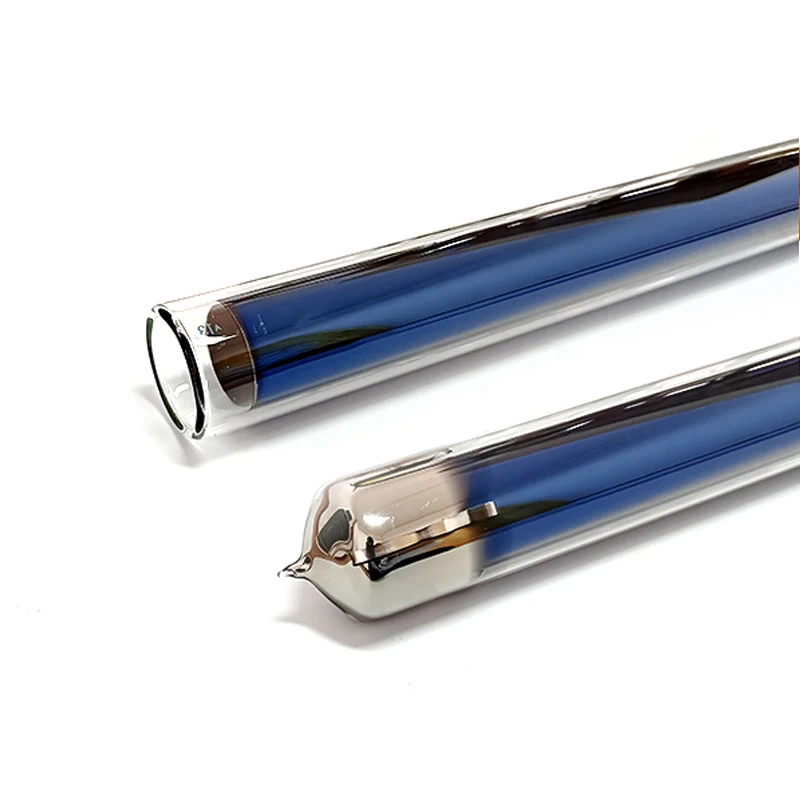

Item no | Water tank capacity | Number of vacuum tubes | Vacuum tube size | Application people |
ZY-1B-5808 | 80L | 8pcs | 58*1800MM | 2 |
ZY-1B-5810 | 100L | 10pcs | 58*1800MM | 2-3 |
ZY-1B-5812 | 120L | 12pcs | 58*1800MM | 3 |
ZY-1B-5815 | 150L | 15pcs | 58*1800MM | 3-4 |
ZY-1B-5818 | 180L | 18pcs | 58*1800MM | 4 |
ZY-1B-5820 | 200L | 20pcs | 58*1800MM | 4-5 |
ZY-1B-5824 | 240L | 24pcs | 58*1800MM | 5-6 |
ZY-1B-5830 | 300L | 30pcs | 58*1800MM | 6 |
ZY-1A-5836 | 360L | 36pcs | 58*1800MM | 6-7 |

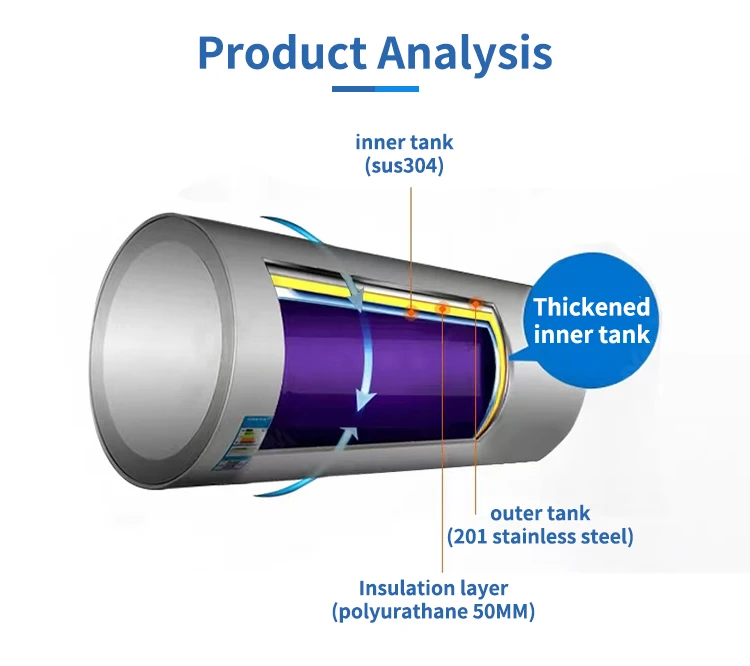

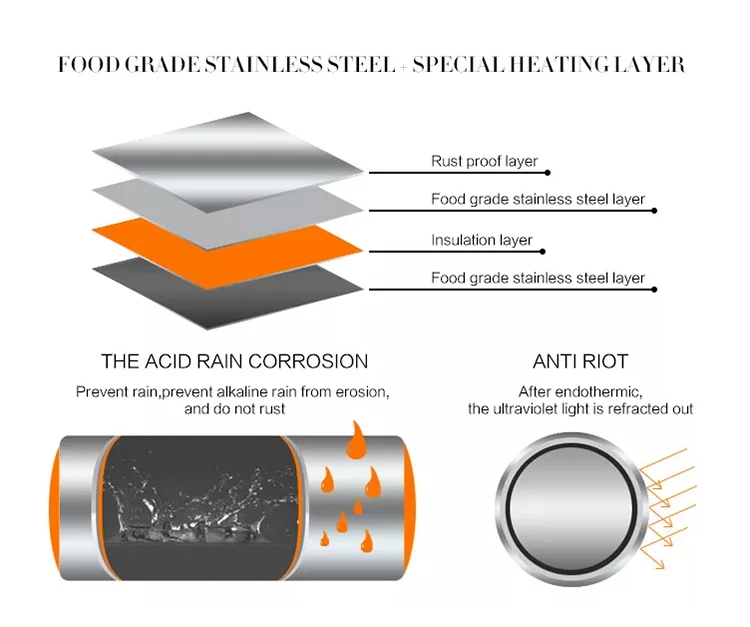

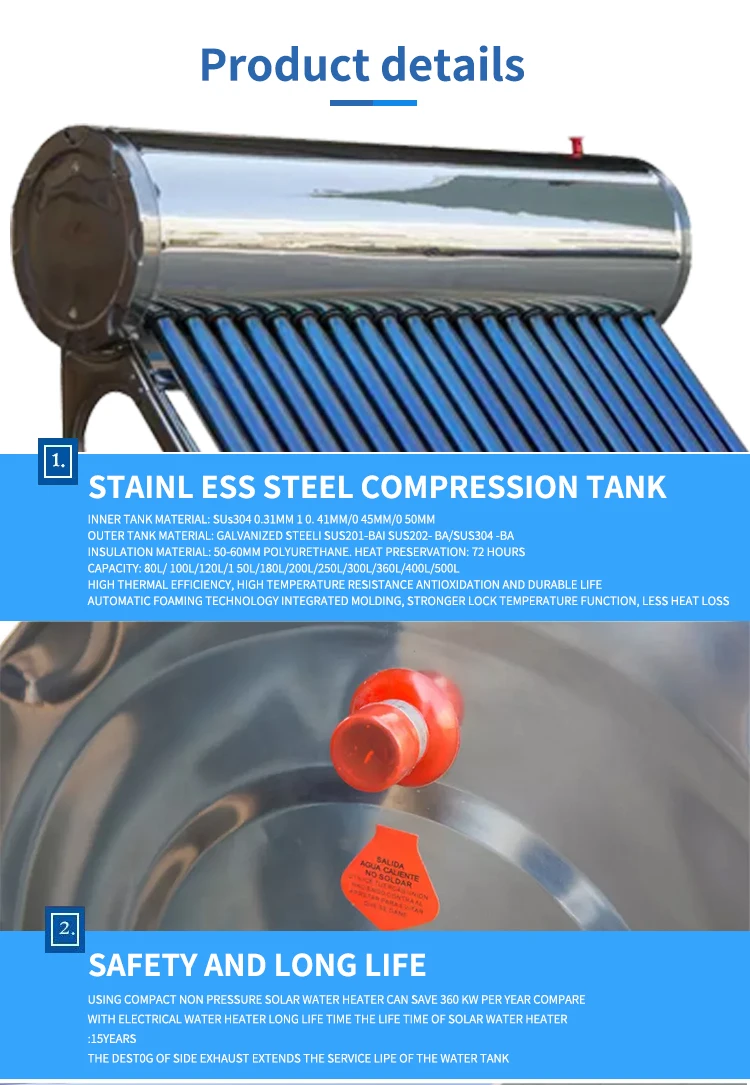

"1. Material of inner drum: SUS304 0.31MM, outer diameter 460MM
2. Material of outer barrel board: 201 0.31MM, inner diameter 360MM
3. Insulation layer: 5 cm

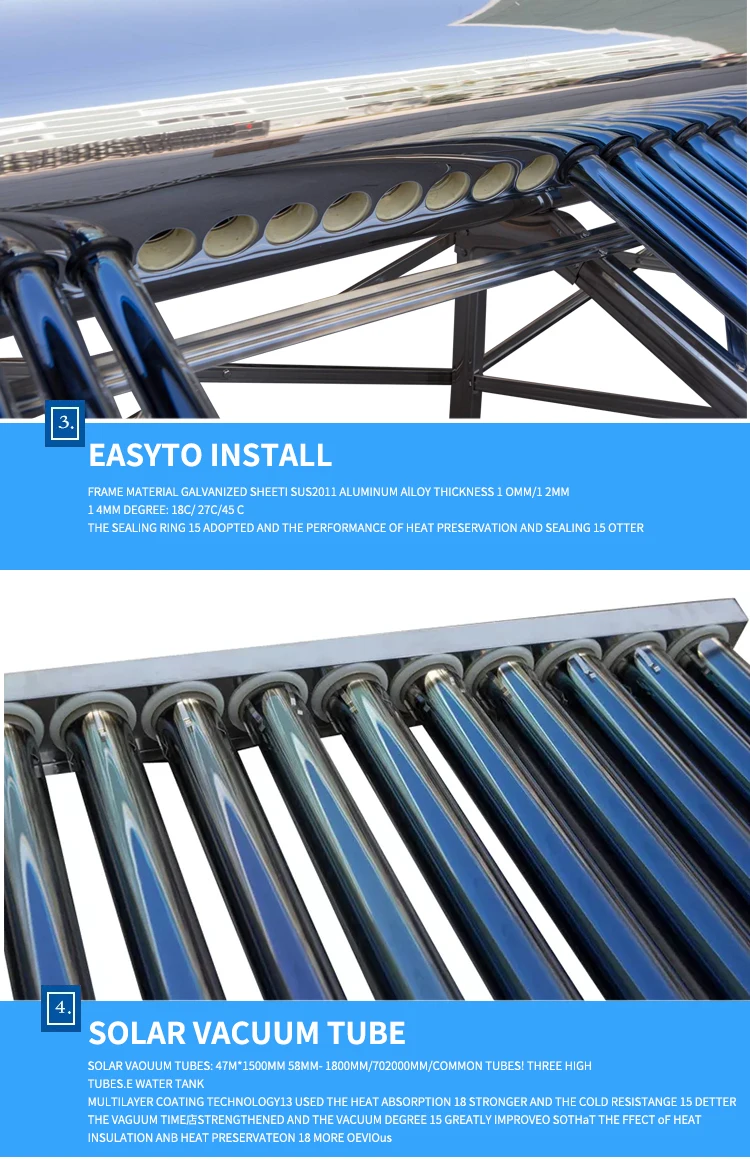

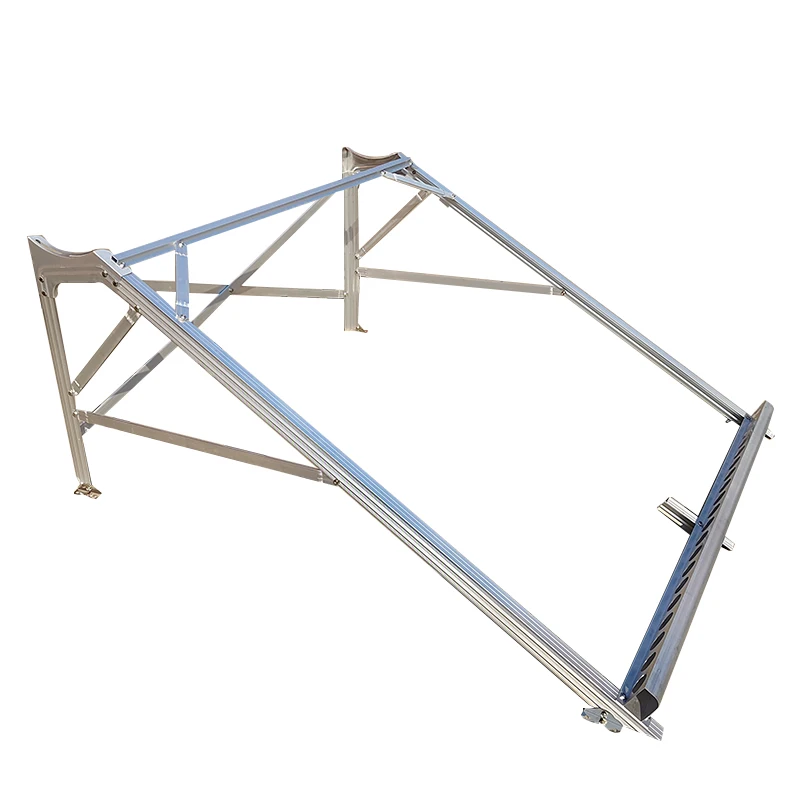

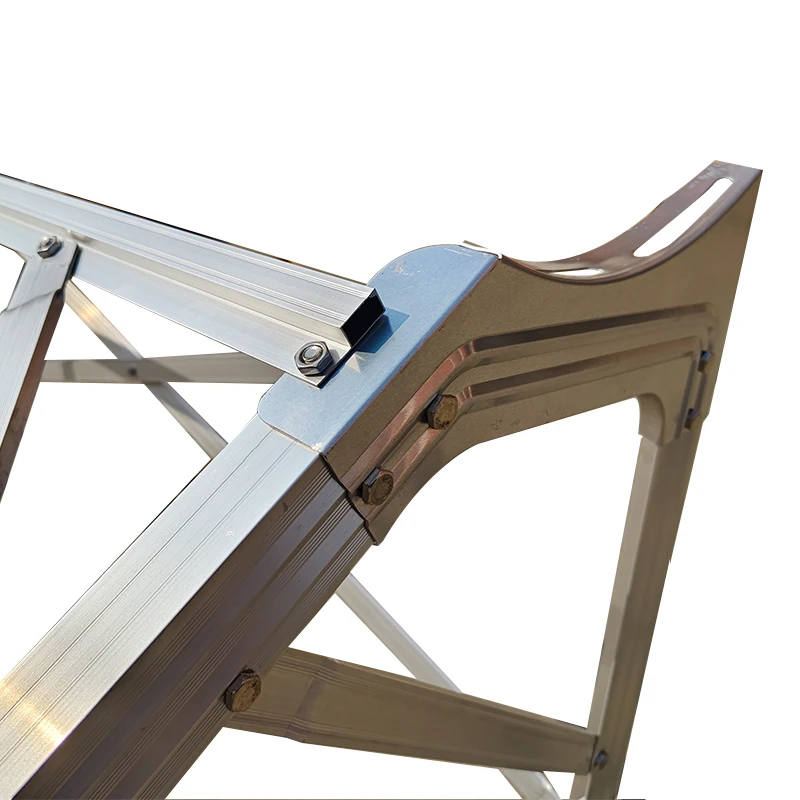

4. Bracket: 201 bracket 1.0MM, angle 18.27.45 degrees"
2. Material of outer barrel board: 201 0.31MM, inner diameter 360MM
3. Insulation layer: 5 cm
4. Bracket: 201 bracket 1.0MM, angle 18.27.45 degrees"

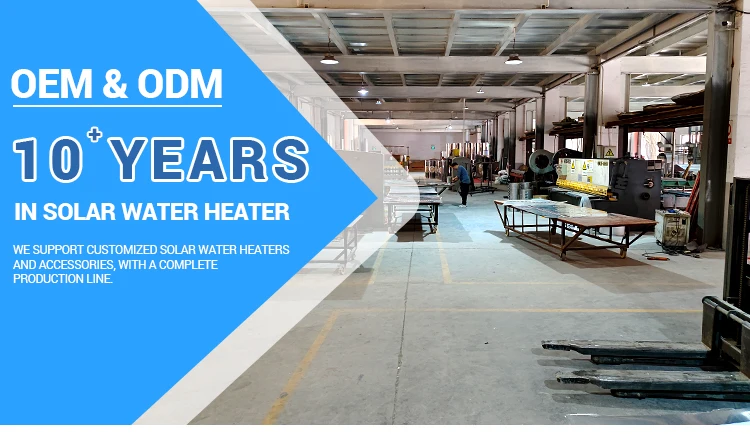

Company Profile
Exhibition and Certifications
Packing and shipping
FAQ
Q: Are you a manufacture or trading company?
A: We are a manufacture special for solar water heater.
Q: Which payment way you accept?
A: Paypal, Alipay, T/T, L/C ,D/P.
Q: What’s the MOQ?
A: For trail sample order, 1pcs is available.
Q: What’s your delivery time?
A: 7-10 working days after receipt of signed PI and down payment
Q: What is your package ways?
A: Generally, standard products with standard package.
Inside: plastic foam. Outside: cartons
Q: Do you have other ADDITIONAL SERVICE?
A: YES
We could offer other accessories (cover side/ support / solar water heater controller /silicon seal /rubber seal ) used on solar water heater system and the price will be much competitive.
A: We are a manufacture special for solar water heater.
Q: Which payment way you accept?
A: Paypal, Alipay, T/T, L/C ,D/P.
Q: What’s the MOQ?
A: For trail sample order, 1pcs is available.
Q: What’s your delivery time?
A: 7-10 working days after receipt of signed PI and down payment
Q: What is your package ways?
A: Generally, standard products with standard package.
Inside: plastic foam. Outside: cartons
Q: Do you have other ADDITIONAL SERVICE?
A: YES
We could offer other accessories (cover side/ support / solar water heater controller /silicon seal /rubber seal ) used on solar water heater system and the price will be much competitive.
