API Spec 6A Christmas Tree Caps
- Category: >>>
- Supplier: Shandong Zhuo Hong Petroleum Technology Co. Ltd.
Share on (1600994337019):
Product Overview
Description
Products Description

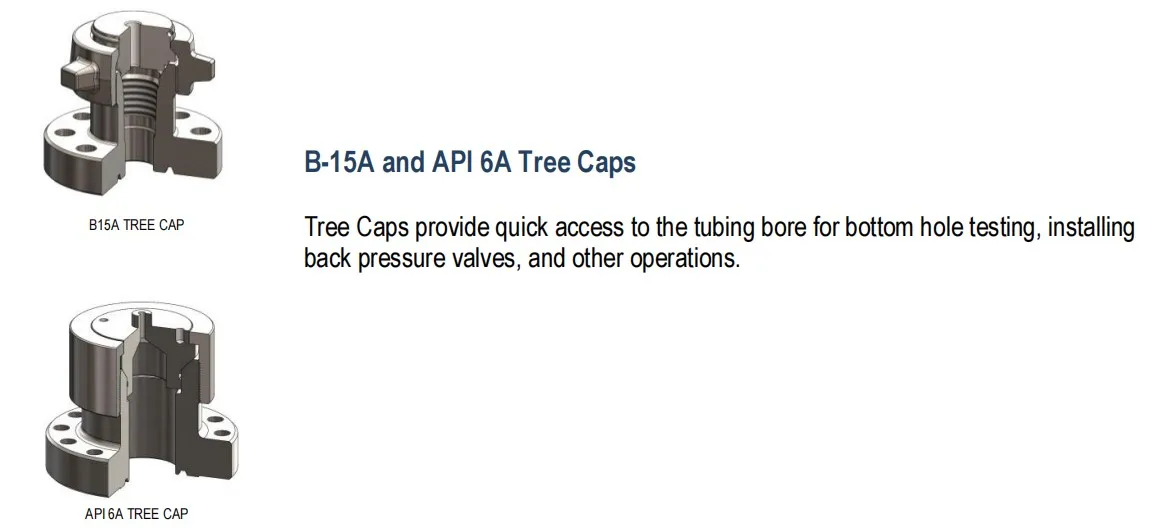

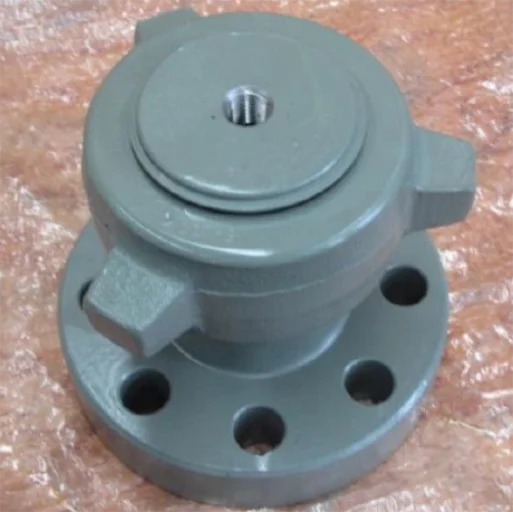

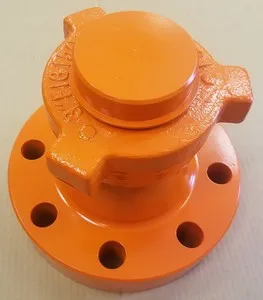

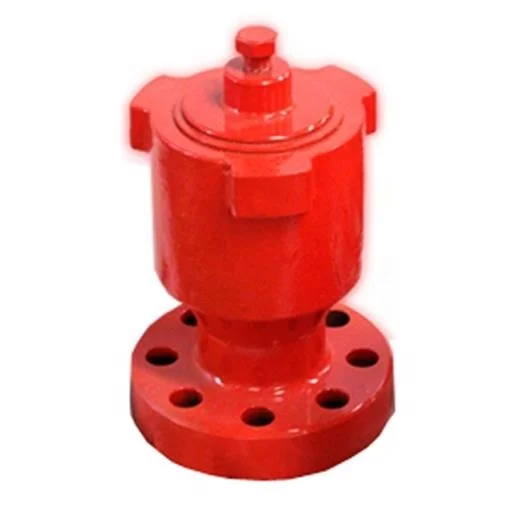

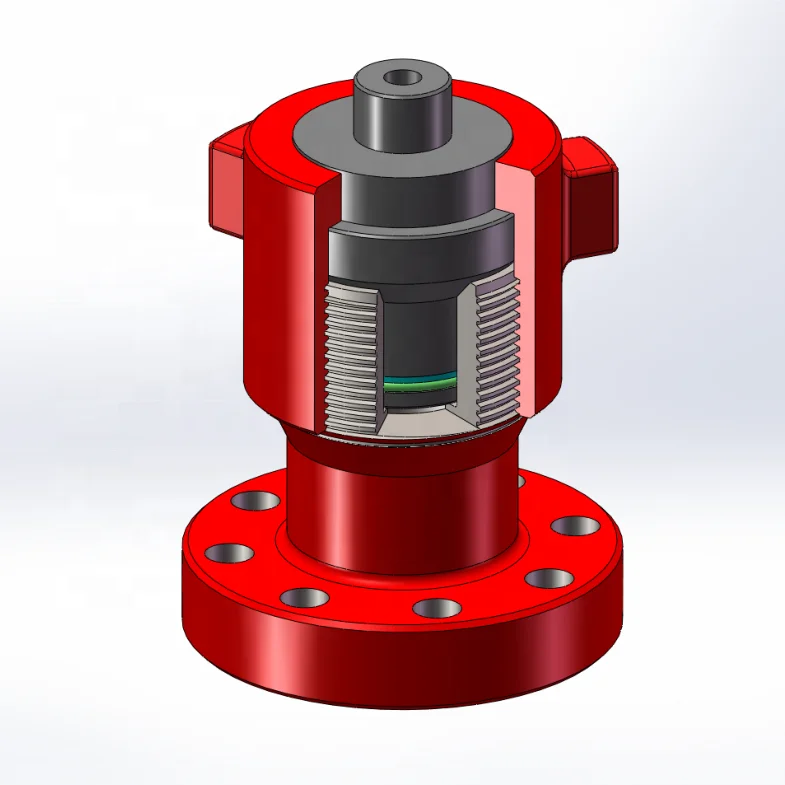

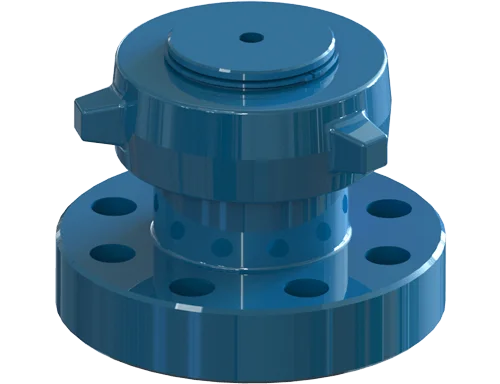

A Christmas Tree Cap or Tree Cap, also known as Bottom Hole Test Adapter - BHTA, is an important component of Wellhead Assembly and Christmas Tree. As its name suggests, tree cap is often installed on the upper section of the Swab Valve which is right on top of the Christmas Tree. You will constantly find standard API-UPTBG (EUE) lift thread in the body of tree cap.The top plug of the tree cap has a thread for mounting a pressure gauge to measure well pressure.The Tree Gap provides access to Wellhead Assembly and Christmas Tree for service and monitoring . t provides quick access to the tubing bore for bottom hole testing, installing down-hole equipment, swabbing, and other services.
All of our Wellhead Christmas Tree Caps are fully designed, manufactured, and tested in accordance with APl Spec 6A & NACE MR-0175 standards. Available in nominal bore sizes from 2-1/16" to 7-1/16" and working pressure ranging from 2000PSl to 20000PSI. The standard material for our tree caps is high quality integral forged AISI 4130 alloy steel, stainless steel and other material and sizes are also available upon request.
Detailed Specifications:
Product Name: Wellhead Christmas Tree Cap, Bottom Hole Test Adapter - BHTA
Bore Size: 2-1/16", 2-9/16", 3-1/16", 3-1/8", 4-1/16", 5-1/8", 7-1/16" or customized
Lifting Thread: 2-3/8” EUE, 2-7/8”EUE, 3-1/2”EUE, 4-1/2”EUE, etc
Connection: API 6A Flange
Standards: APl Spec 6A, NACE MR-0175, ISO 9001, ISO14001, etc
Working Pressure: 2000 PSl to 20000 PSI
Material Class: AA, BB, CC, DD, EE, FF
Material: AISI 4130 (Integral Forged), Stainless Steel
Temp Class: K-X ( -60~180℃ )
Performance Requirement: PR1, PR2
Product Specification Level: PSL1~4
Application: Wellhead Assembly and Christmas Tree
All of our Wellhead Christmas Tree Caps are fully designed, manufactured, and tested in accordance with APl Spec 6A & NACE MR-0175 standards. Available in nominal bore sizes from 2-1/16" to 7-1/16" and working pressure ranging from 2000PSl to 20000PSI. The standard material for our tree caps is high quality integral forged AISI 4130 alloy steel, stainless steel and other material and sizes are also available upon request.
Detailed Specifications:
Product Name: Wellhead Christmas Tree Cap, Bottom Hole Test Adapter - BHTA
Bore Size: 2-1/16", 2-9/16", 3-1/16", 3-1/8", 4-1/16", 5-1/8", 7-1/16" or customized
Lifting Thread: 2-3/8” EUE, 2-7/8”EUE, 3-1/2”EUE, 4-1/2”EUE, etc
Connection: API 6A Flange
Standards: APl Spec 6A, NACE MR-0175, ISO 9001, ISO14001, etc
Working Pressure: 2000 PSl to 20000 PSI
Material Class: AA, BB, CC, DD, EE, FF
Material: AISI 4130 (Integral Forged), Stainless Steel
Temp Class: K-X ( -60~180℃ )
Performance Requirement: PR1, PR2
Product Specification Level: PSL1~4
Application: Wellhead Assembly and Christmas Tree

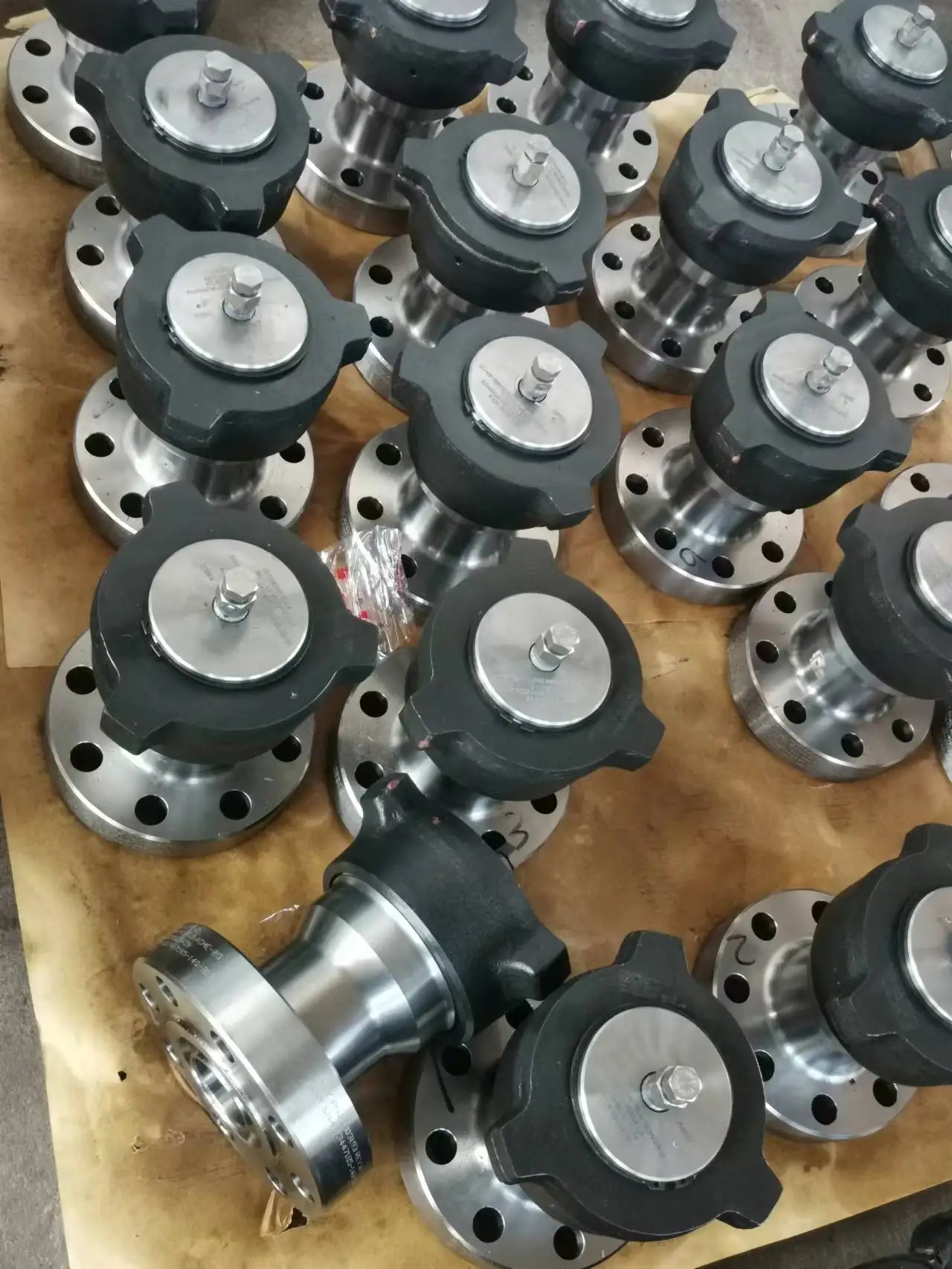

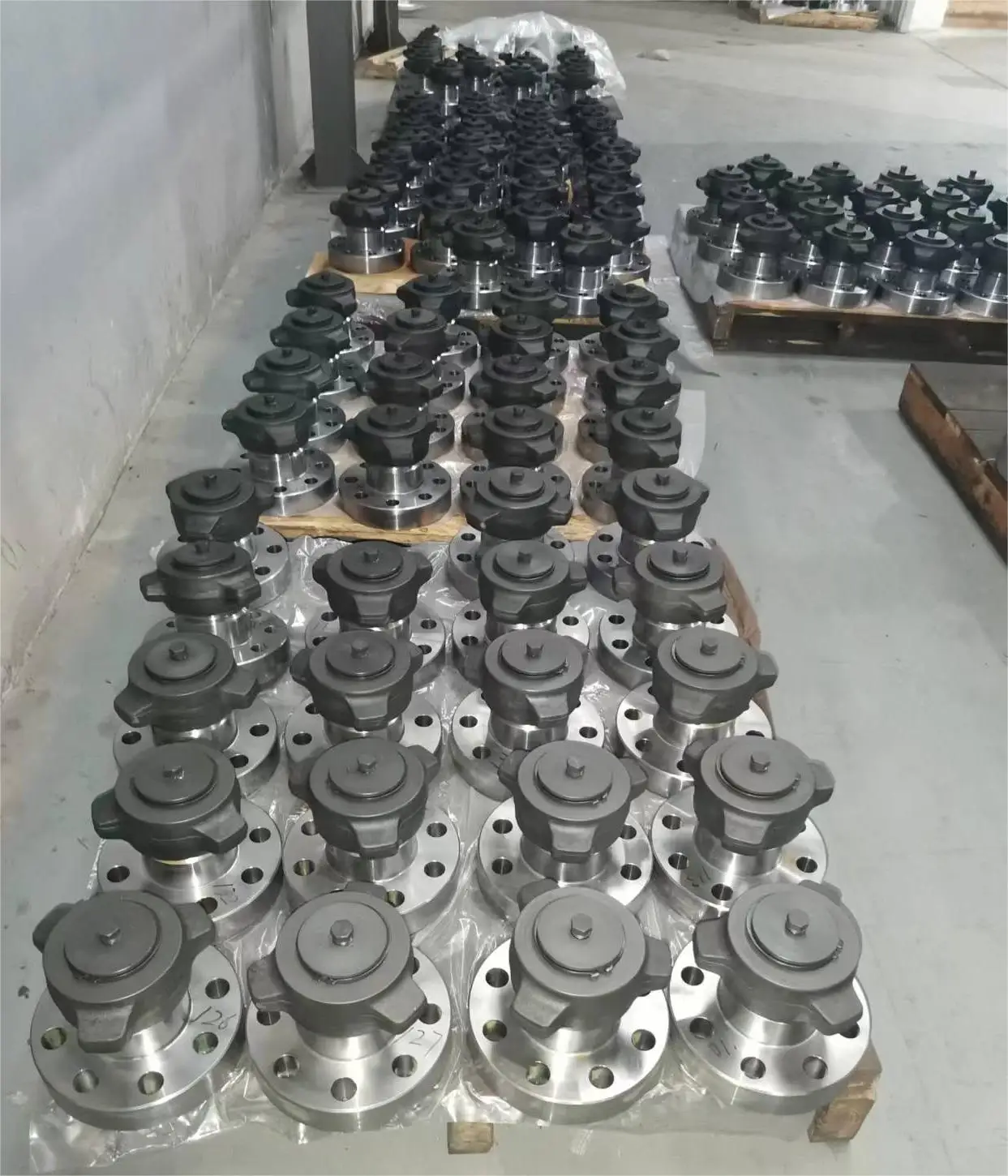

Details Images
Certifications
The Tree Cup are designed and manufactured per API 6A and NACE MR - 0175, and holds API 6A lisence.
Product packaging
Plywood box(free-fumigation)
Company Profile
ZHUOHONG PETROLEUM TECHNOLOGY CO., LTD. is located in China's second largest oilfield - Shengli Oilfield, center of the Yellow River Delta city - Dongying City, Shandong Province. ZHPT is a highly qualified supplier for API 6A wellhead equipment and other related oil equipment products.
ZHPT takes "Be the world’s first-class equipment provider of oil & gas development and utilization." as a goal and "provide customers with the highest quality products and technical services" as our mission. It has always put great emphasis on integrity, met customer needs and offered customer best service wholeheartedly.
