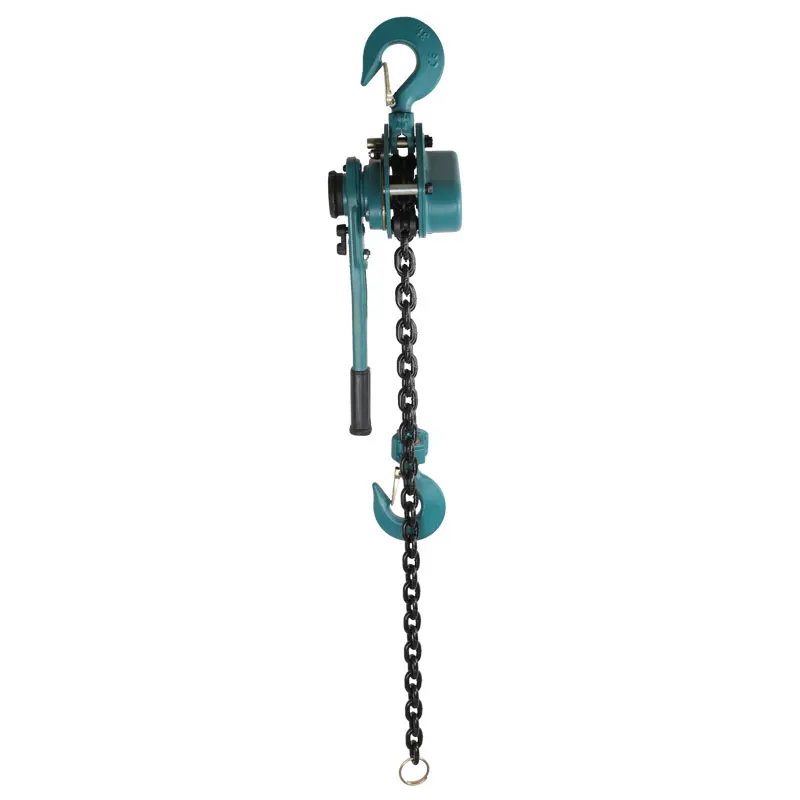

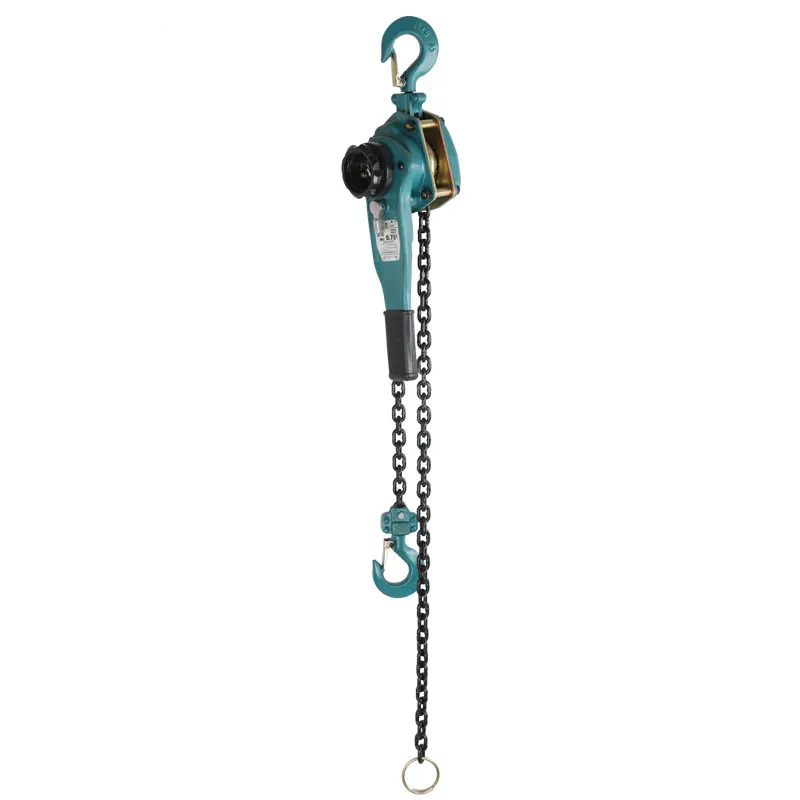

Dependable Chain Connector Terminal Block For food industry Lever Hoists
- Category: >>>
- Supplier: Hebei Mutian Hoisting Equipment Manufacturing Co. Ltd.
Share on (1600994380751):
Product Overview
Description
Dependable Chain Connector Terminal Block For food industry Lever Hoistshot sale Ratchet Chain 6ton Hand Operated Block Lifting For paint factory Lever Pulley Hoist
| Model | MLA008 | MLA010 | MLA015 | MLA020 | MLA030 | MLA060 | MLA090 | |
| Rated lifting capacity | TONS | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 |
| Mark the lifting height | M | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Style load | KN | 11.2 | 15 | 22.5 | 30 | 45 | 75 | 112.5 |
| Maximum hand pull | N | 225 | 300 | 310 | 310 | 350 | 400 | 410 |
| Number of lifting chain rows | 1 | 1 | 1 | 1 | 2 | 2 | 4 | |
| Hoisting chain diameter Dimensions | MM | 6.3 | 6.3 | 7.1 | 7.1 | 9.1 | 9.1 | 9.1 |
| A | 155 | 155 | 180 | 180 | 205 | 205 | 205 | |
| B | 100 | 100 | 115 | 115 | 120 | 120 | 120 | |
| C | 130 | 130 | 155 | 155 | 195 | 240 | 300 | |
| D | 34 | 34 | 48 | 48 | 53 | 67 | 80 | |
| H | 310 | 310 | 390 | 390 | 470 | 780 | 780 | |
| L | 265 | 265 | 360 | 360 | 410 | 410 | 410 | |
| K | 23 | 23 | 33 | 33 | 38 | 47 | 57 | |
| Net weight | KG | 7.5 | 7.5 | 9.5 | 15.5 | 16.5 | 27 | 40 |
| Dimensions | CM | 39x17x16.5 | 39x17x16.5 | 56.5x25x18 | 56.5x25x18 | 55x25x17.5 | 55x25x23 | 55x32.5x25 |
| The weight added for every one meter increase in lifting height | KG | 1.8 | 1.8 | 2.1 | 2.2 | 3.1 | 4.2 | 7.7 |
Product features:
The use of a free device with stickers for quick chain pulling results in high work efficiency, stable braking, and high safety. The long axle adopts a patented structure, and the multi limit control braking effect is higher and more reliable.
The handwheel is connected with involute splines, making the long shaft and handwheel a whole and less susceptible to external interference. The optional gear ratio is very small when using the handle for operation
Standard configuration high-strength alloy steel lifting chain
Forged hook with specialized heat treatment, high strength and long service life
Environmental conditions for use:
Temperature range: -10 ° C-50 ° C
Humidity: less than or equal to 100% RH. This product is not intended for underwater operations and should not be subjected to long-term moisture to prevent rain and water intrusion for use
Material: No special materials (friction discs do not contain effective carcinogenic asbestos materials)
Company Information
Hebei Mutian Hoisting Equipment Manufacturing Co., Ltd
was founded in 2014. After several years' effort, Mutian has developed into a comprehensive group company, and set up branch international trade branch company in Dalian, the most important sea port in north-China. Basing on the reliable quality, reasonable price, the products of Mutian gained high reputation among all the clients from home and abroad, and keep long term stable cooperation relationship. Hebei Mutian Hoisting Equipment Manufacturing Co., Ltd always follows the vision of Survive by good quality, develop by keeping good credit, and carry forward the spirit of "Dedication, Integrity, Innovation", to offer best product and service to clients, and to make the quality more stable by increasing the quality management.
FAQ
1. Is your products customized?
Yes, because the working condition are different, all our products can be customized depending on detail requirement! The more details(capacity, height etc) you give us, the better quote we can provide for you.
2. What's the information should I provide when inquiry?
Thanks for your question. Usually The information such as the lift capacity, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons. You can choose any of them, just tell us!
