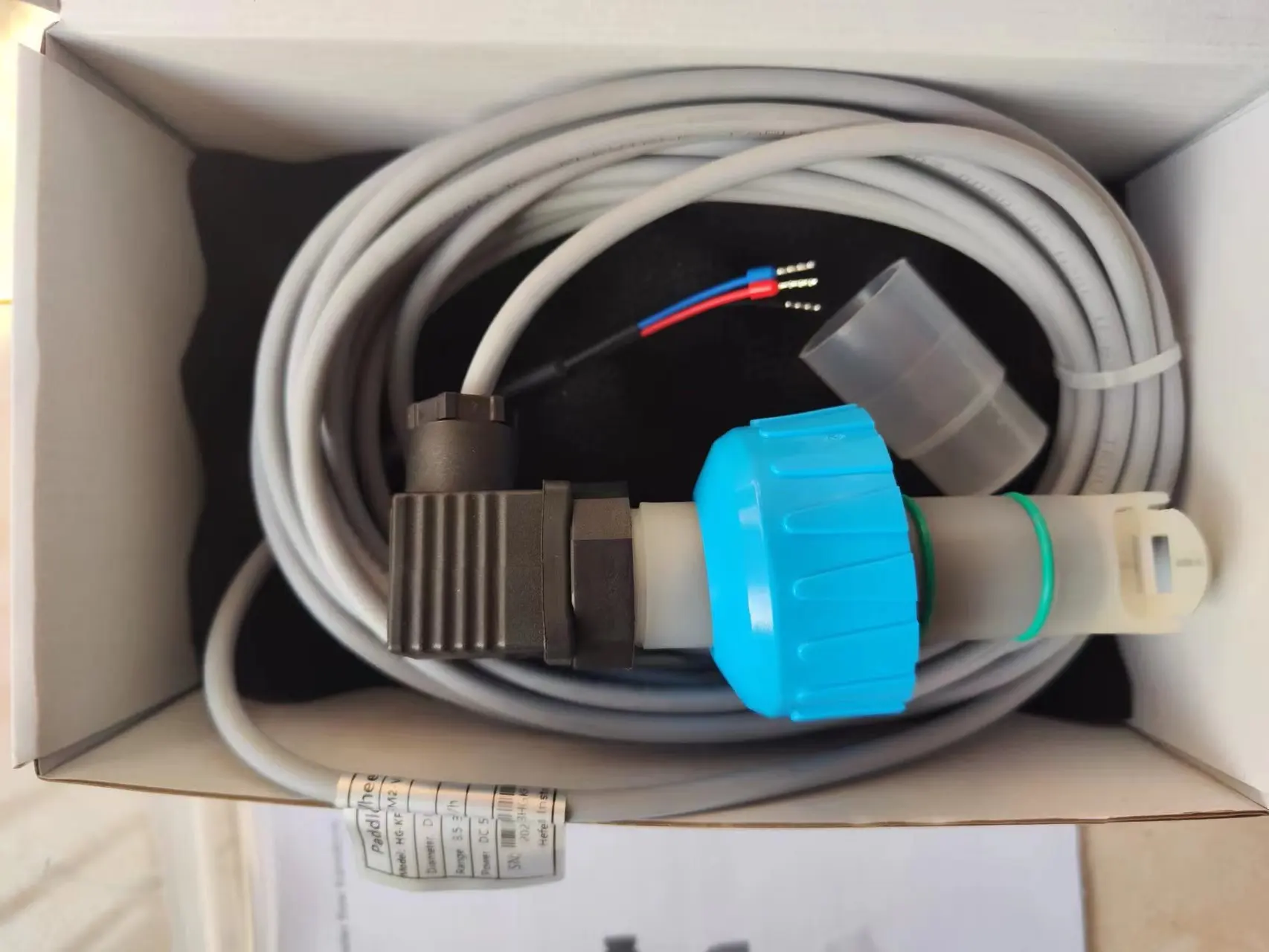

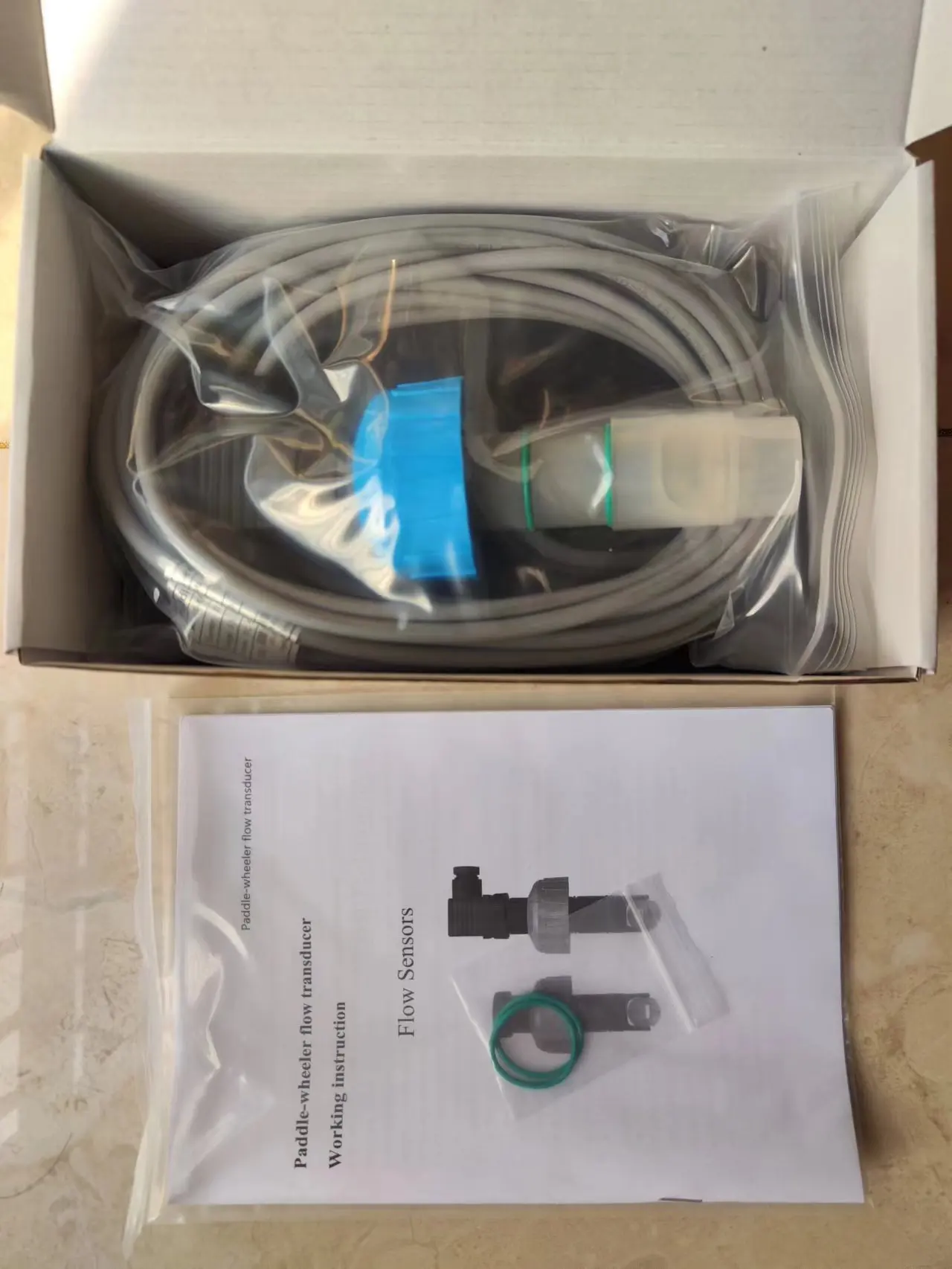

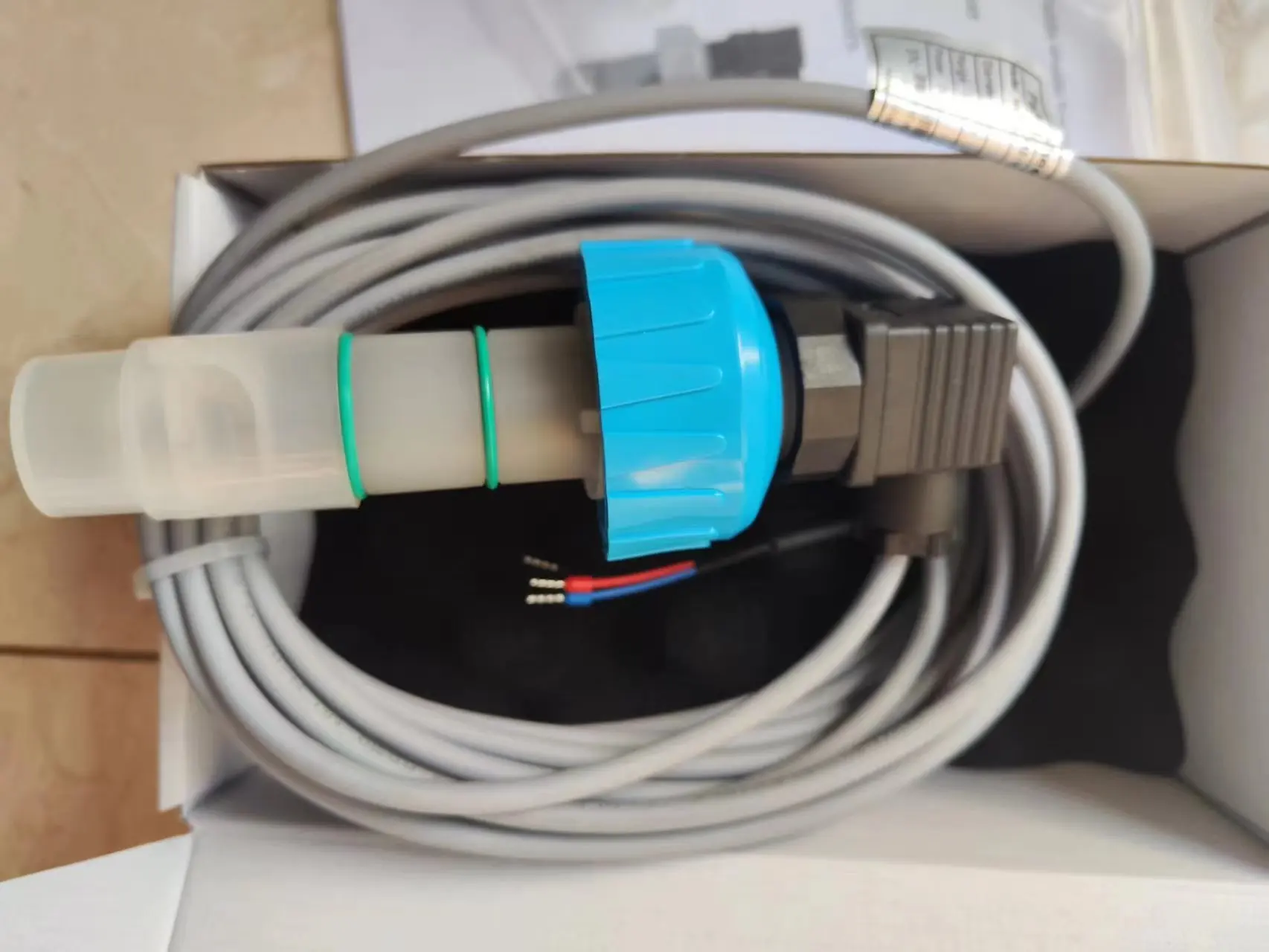

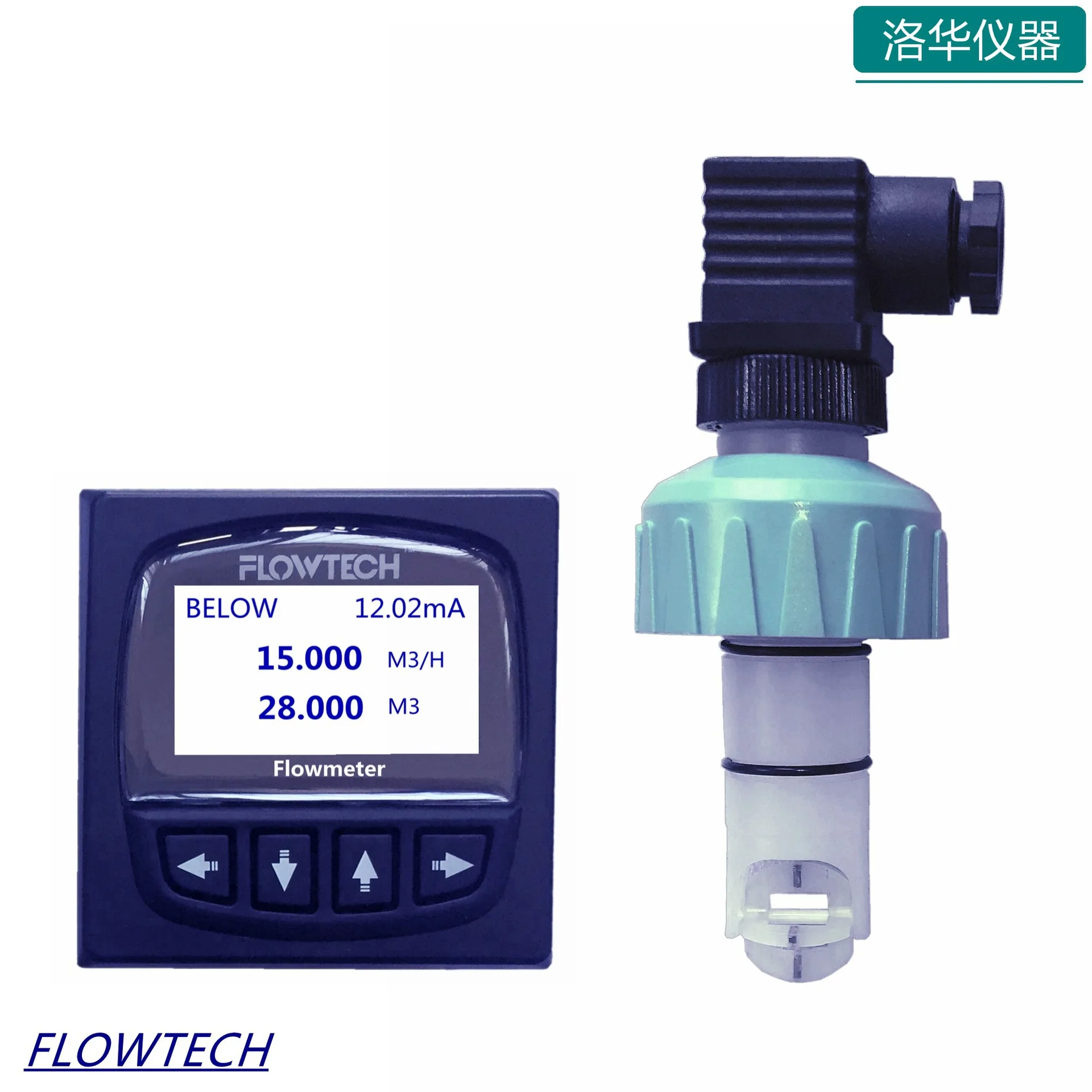

2 Inch NPN PNP Pulse Output Digital Plastic Impeller Water Flow Meter Accurate Measurement Paddlewheel Flow Transmitter
- Category: >>>
- Supplier: Hefei Siko Instruments Co. Ltd.
Share on (1600994712949):
Product Overview
Description
2 Inch NPN PNP Pulse Output Digital Plastic Impeller Water Flow Meter Accurate Measurement Paddlewheel Flow Transmitter
1) The Impeller Adopts A Five-Piece Paddle Wheel Design And Is Made Of PP/PVDF/PTFE, Which Better Ensures The Dynamic Balance Characteristics And Improves The Linear Accuracy And Repeatability Accuracy Of The Sensor.
2) MinVelocity 0.1m/s & DN25-DN600 (1"-24").
3) NPN Open Collector Output & Square Wave Signal (Max Distance Can Be Transmitted To 300m).
4) Not Suitable For Media Containing Particles And Fibrous Impurities.
2) MinVelocity 0.1m/s & DN25-DN600 (1"-24").
3) NPN Open Collector Output & Square Wave Signal (Max Distance Can Be Transmitted To 300m).
4) Not Suitable For Media Containing Particles And Fibrous Impurities.
Features
01. | High Resistance To Chemical Corrosion. |
02. | IP68 Protection & Suitable For Harsh On-Site Application. |
03. | Plug-In Type & Easy Installation & Good Reliability & Maintenance-Free. |
04. | Hall Pulse Output & Open Collector NPN & Strong Driving Ability. |
Product Description
Technical Parameters
Line Size | 4mm-200mm |
Working Temperature | -20 - 150 Deg.C |
Working Pressure | up to 42 Mpa |
Accuracy | Standard: ±1% of reading Optional: ±0.5% of reading |
Housing Material | Standard: 304 Stainless Steel Optionl: 316 Stainless Steel |
Rotor Material | Standard: 2Cr13 Stainless Steel Optioanl: Alloy CD4Mcu, Teflon etc |
Power Supply | DC12-24V / 3.6V Lithium Battery |
Transmitter Connection | M20*1.5 Female |
Protection Class | IP 65 |
Explosion Proof | ExdII BT 6 / ExiaII CT4 |
Signal Output | Pulse / 4-20mA / RS 485 |
Process Connection | Flange / Thread / Tri-clamp On NPT thread for less than DN 40 DIN flange for bigger than DN 15 Optioanl: G" thread, ANSI Flang. JIS Flange |
Relative Humidity | 5% -95%R.H. |
Ambient Temperature | -20 - 55 Deg.C |
Ambient Pressure | 86 -106 Kpa |

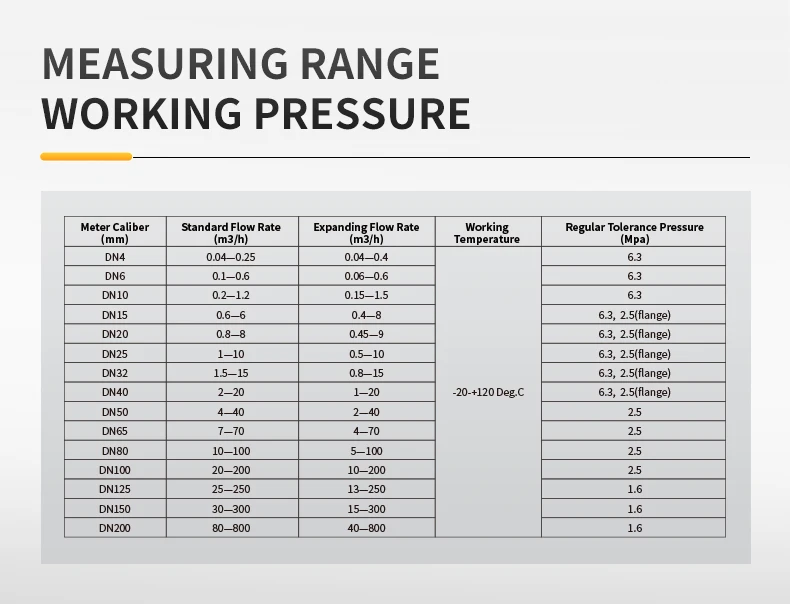

Flow Range & Size
Selection Table
Please Provide The Following Information: | ||
01. Type Of Liquids: | The Liquids Will Be Measured Including Operating Density And Viscosity. | |
02. Flow Range: | The Maximum And Minimum Flow Rates. | |
03. Line Size: | The Pipe Size And Connection Type (Flange, Threaded, etc) | |
04. Process Pressure And Temperature: | We Will Calibrate The Flowmeter As Close To Your Operating Conditions As Possible. | |
05. Type Of Display: | Indicate If You Need Integrated, Remoted Type LCD Display Or Non-Display. | |
Specific Model Selection | ||
Item | Liquids Turbine Flow Meter | |
Model | HG-LTFM | |
Meter Caliber (mm) | 4,6,10,15,20,25,32,40,50,80,100,150,200 | |
Housing Material | 304- SS 304 | |
316- SS 316 | ||
N-No Output (3.6V Lithium Battery Operated) | ||
P-Pulse Output (3 Wire) | ||
4-4-20mA Output(2 Wire) | ||
R4-RS 485 (3 Wire) | ||
Display | N-No Display | |
D-LCD Display | ||
A-AC 220V | ||
B-3.6V Lithium Battery | ||
D-DC 24V | ||
F-Flange Connection | ||
T-Threaded Connection | ||
C-Tri-Clamp On | ||
Structure | I-Integrated Type | |
R-Remote Type | ||
Ne-No Explosion | ||
Ex-Explosion Proof | ||
Eg: HG-LTFM-50-304-4-D-D-F-I-Ne | ||

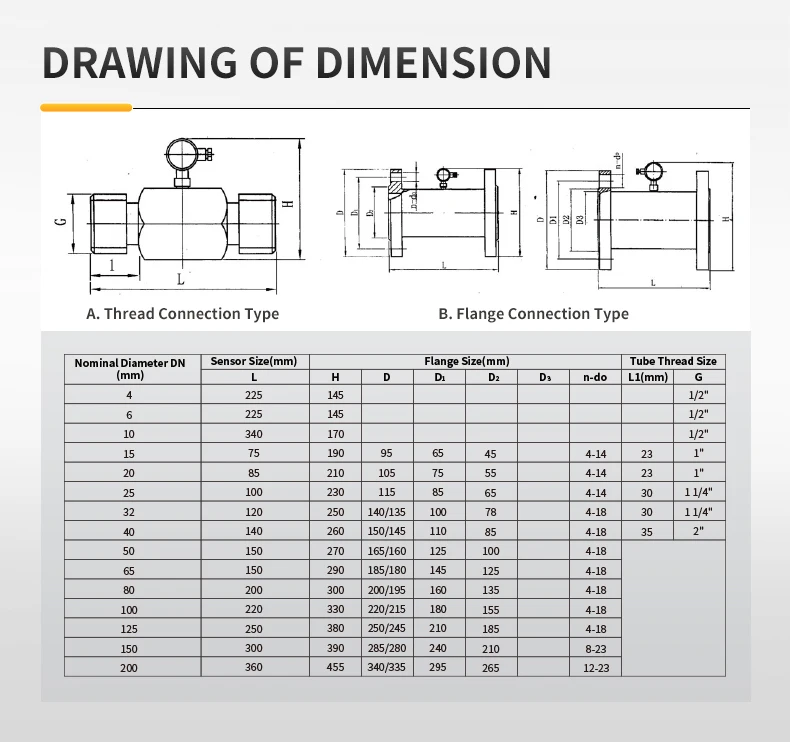

Outline Dimension
