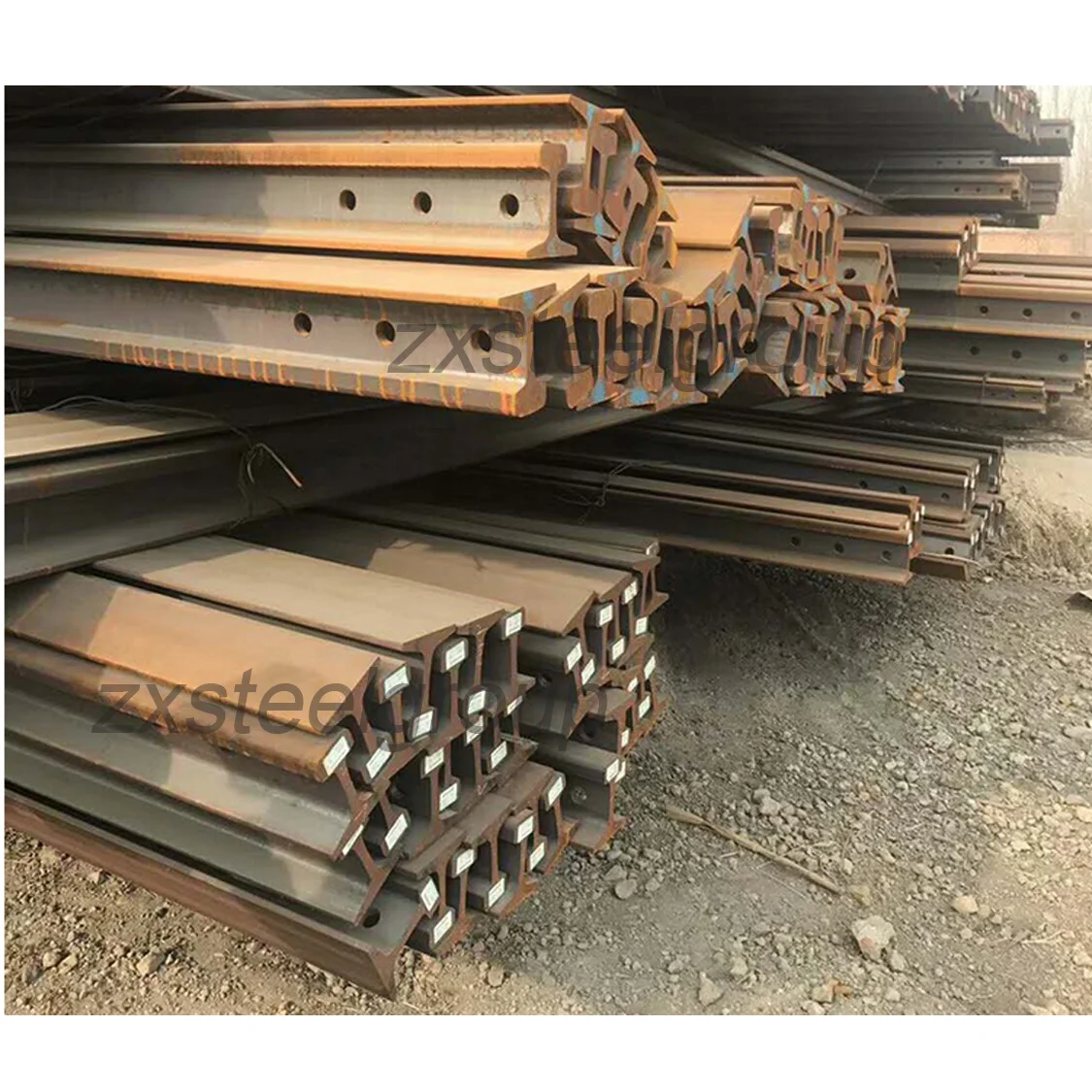

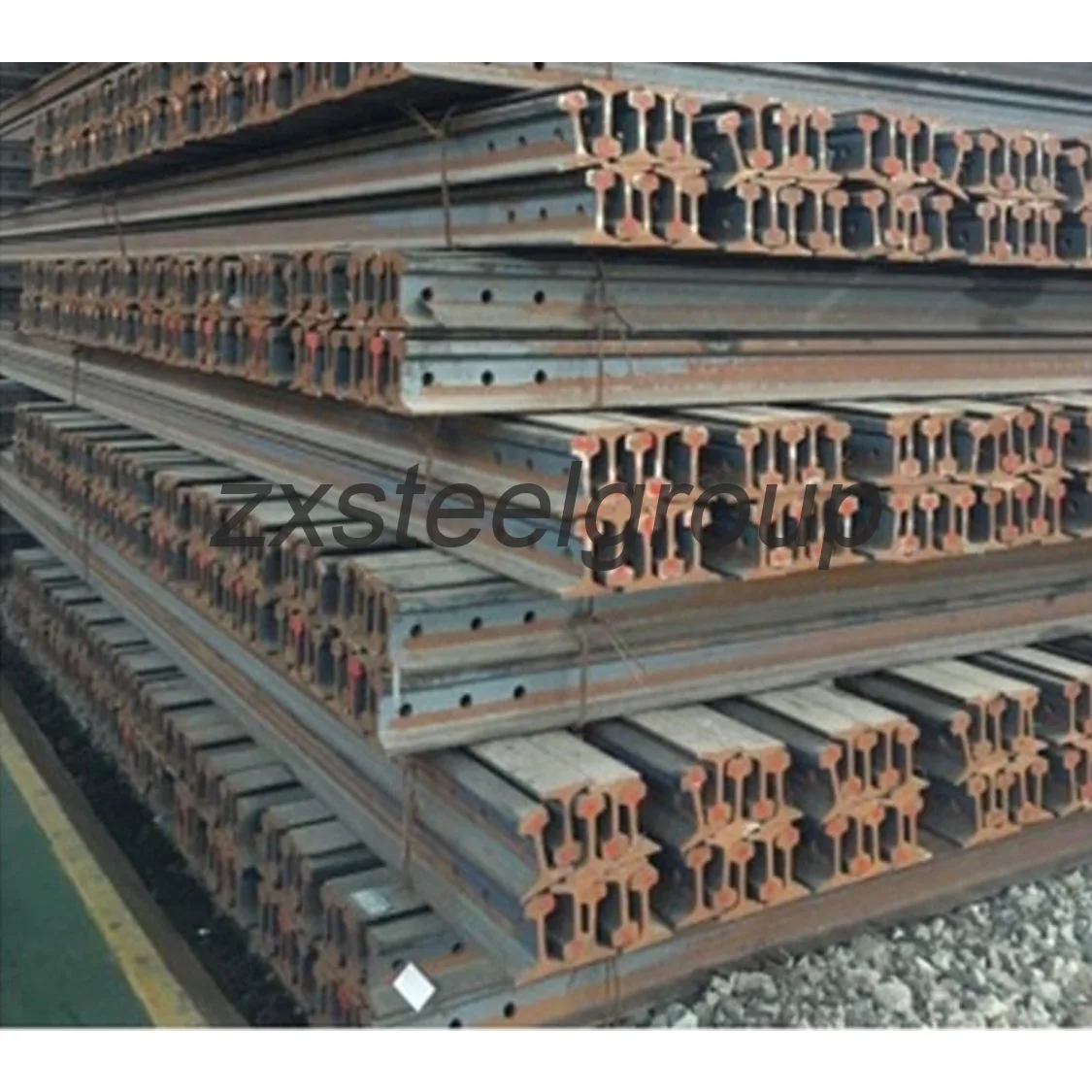

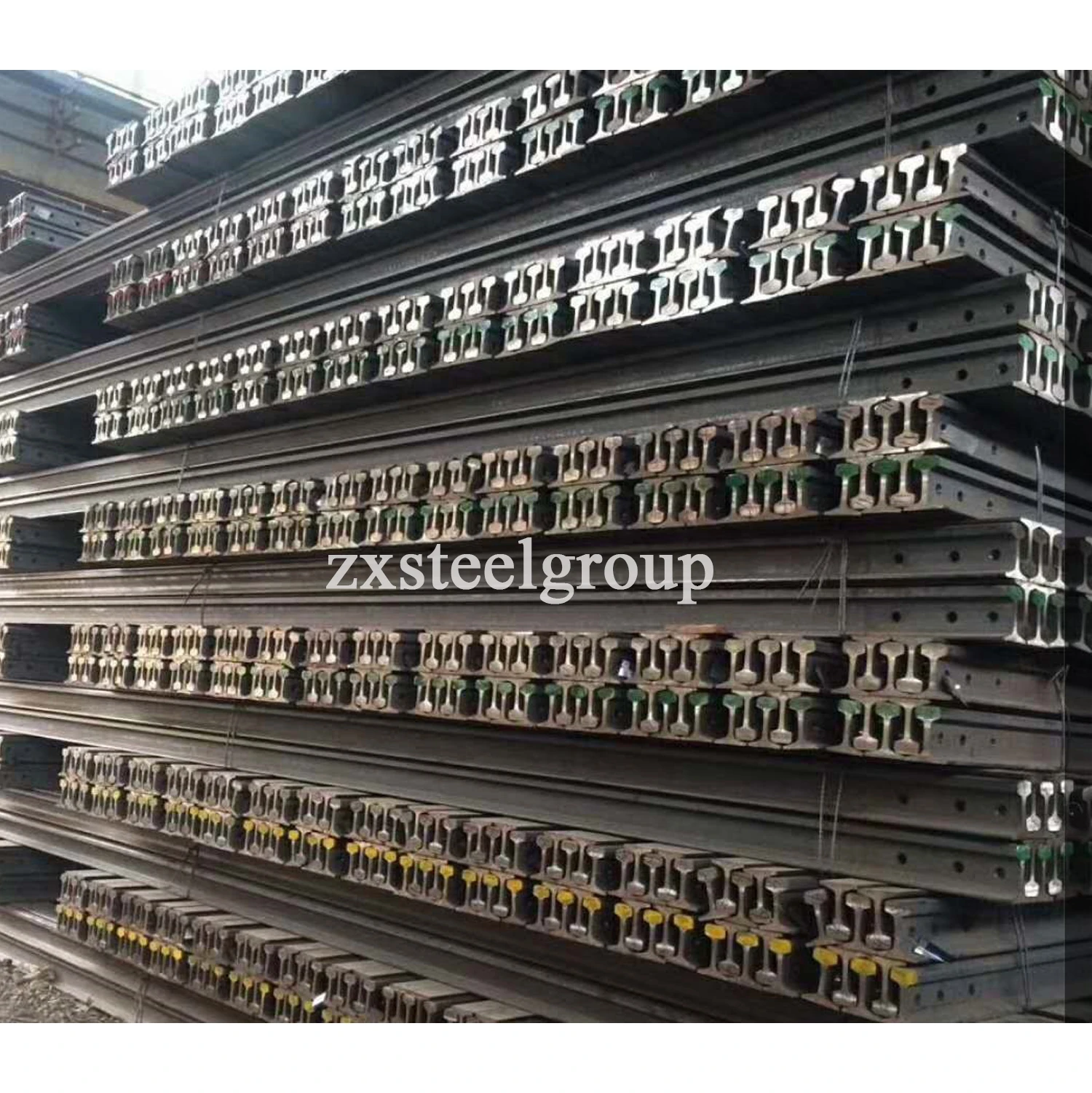

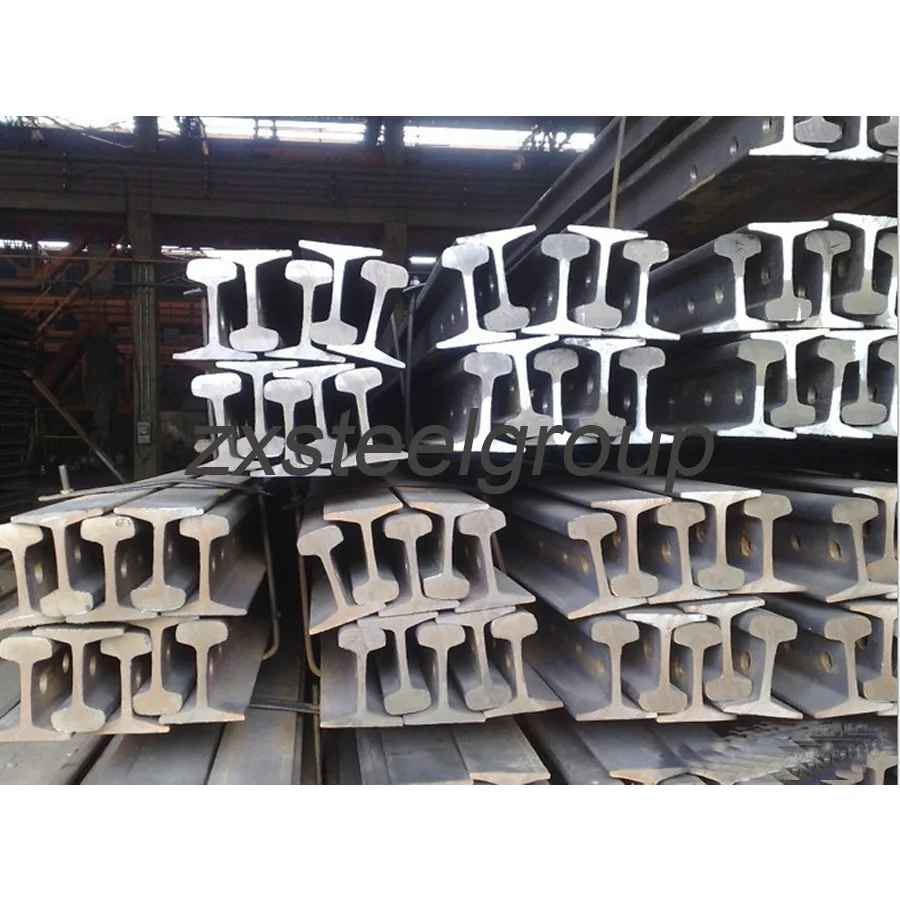

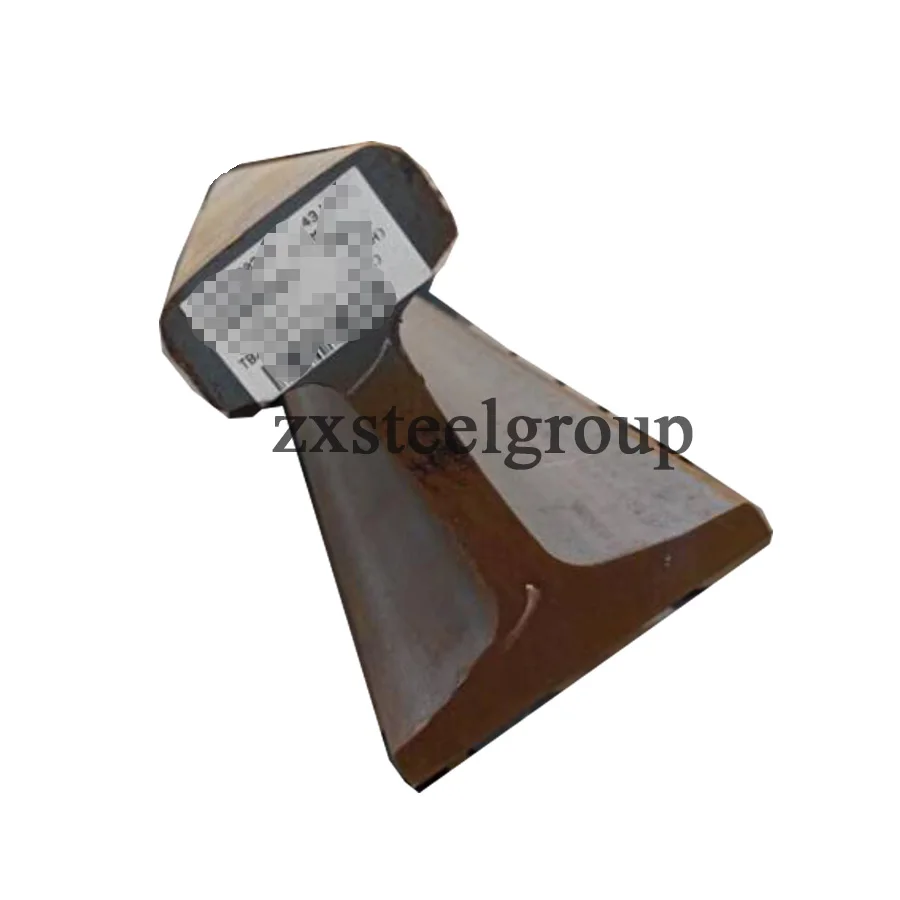

Wholesale Cudtomized American Standard railway 136re steel rail track
- Category: >>>
- Supplier: Henan Zongxiang Heavy Industry Import & Export Co. Ltd.
Share on (1600994874898):
Product Overview
Description
Product Description
STEEL RAIL
Steel rail, also called rail track, steel track, is the main component of railway track. Its function is to guide the wheels of the locomotive, bear the great pressure of the wheel, and keep the stability of railway transportation. The rail must provide continuous, smooth and minimum rolling surfaces for the wheels. In electrified railway or automatic block section, rail can also be used as an orbital circuit.
Product Parameters
Product Name | American Standard Rail | ||||||||||||
Standard | ASTM A1/AREMA | ||||||||||||

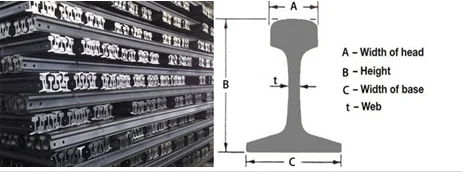

Model | DIMENSION | Weight | Material | Length | |||||||||
A(mm) | B(mm) | C(mm) | t(mm) | (KG/M) | (m/PC) | ||||||||
ASCE 25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 | 700 | 6-12 | ||||||
ASCE 30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 | 700 | 6-12 | ||||||
ASCE 40 | 47.62 | 88.9 | 88.9 | 9.92 | 19.84 | 700 | 6-12 | ||||||
ASCE 50 | 54 | 98.4 | 98.4 | 11.11 | 24.855 | 700 | 6-12 | ||||||
ASCE 60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 | 700 | 6-12 | ||||||
ASCE 75 | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | 900A/1100 | 12-25 | ||||||
ASCE 85 | 65.09 | 131.76 | 131.76 | 14.29 | 42.17 | 900A/1100 | 12-25 | ||||||
90RA | 65.09 | 142.88 | 130.18 | 14.29 | 44.65 | 900A/1100 | 12-25 | ||||||
115RE | 69.06 | 168.28 | 139.7 | 15.88 | 56.9 | 900A/1100 | 12-25 | ||||||
136RE | 74.61 | 185.74 | 152.4 | 17.46 | 67.41 | 900A/1100 | 12-25 | ||||||
175LBs | 109.86 | 152.4 | 152.4 | 38.1 | 86.8 | 900A/1100 | 12-25 | ||||||

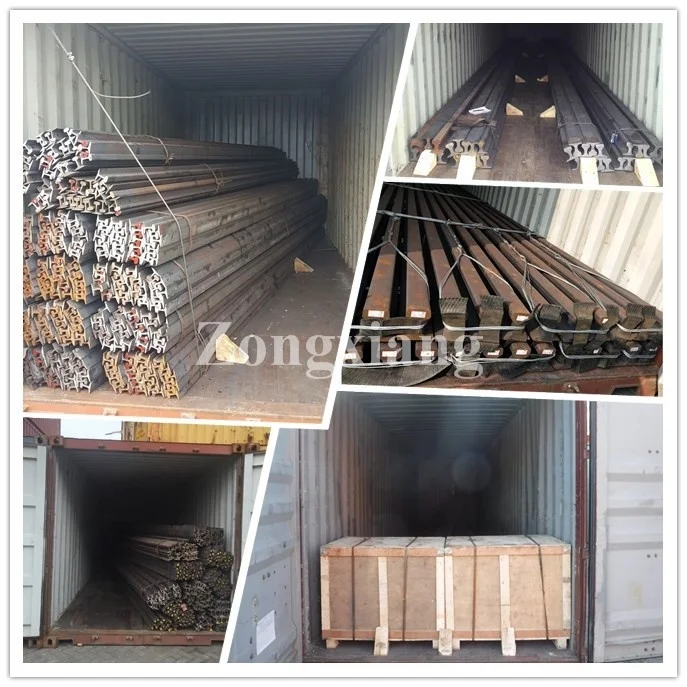

Packaging and Shipping
Our products are shipped to all parts of the world, and will be shipped as soon as possible after receiving your order, and we will promptly tell you about all the movements
of the products.
of the products.
Company Information
Henan Zhongxiang Heavy Industry Import & Export Co., Ltd
large inventory,factory direct sales,high processing capacity,quick response around the clock
ZX Steel Group has been engaged in steel trade plate processing nearly 20 years. We establish branch companies and processing plants in Shanghai, Henan, Hebei, Guizhou.We strive to provide customers with more convenient, thoughtful, high quality service.And our products have been exported to countries and regions over the world, like Russia, India, Pakistan, Thailand, Korea,Brazil, South Asia and so on.We have inventory, resources, and experience to meet your needs.

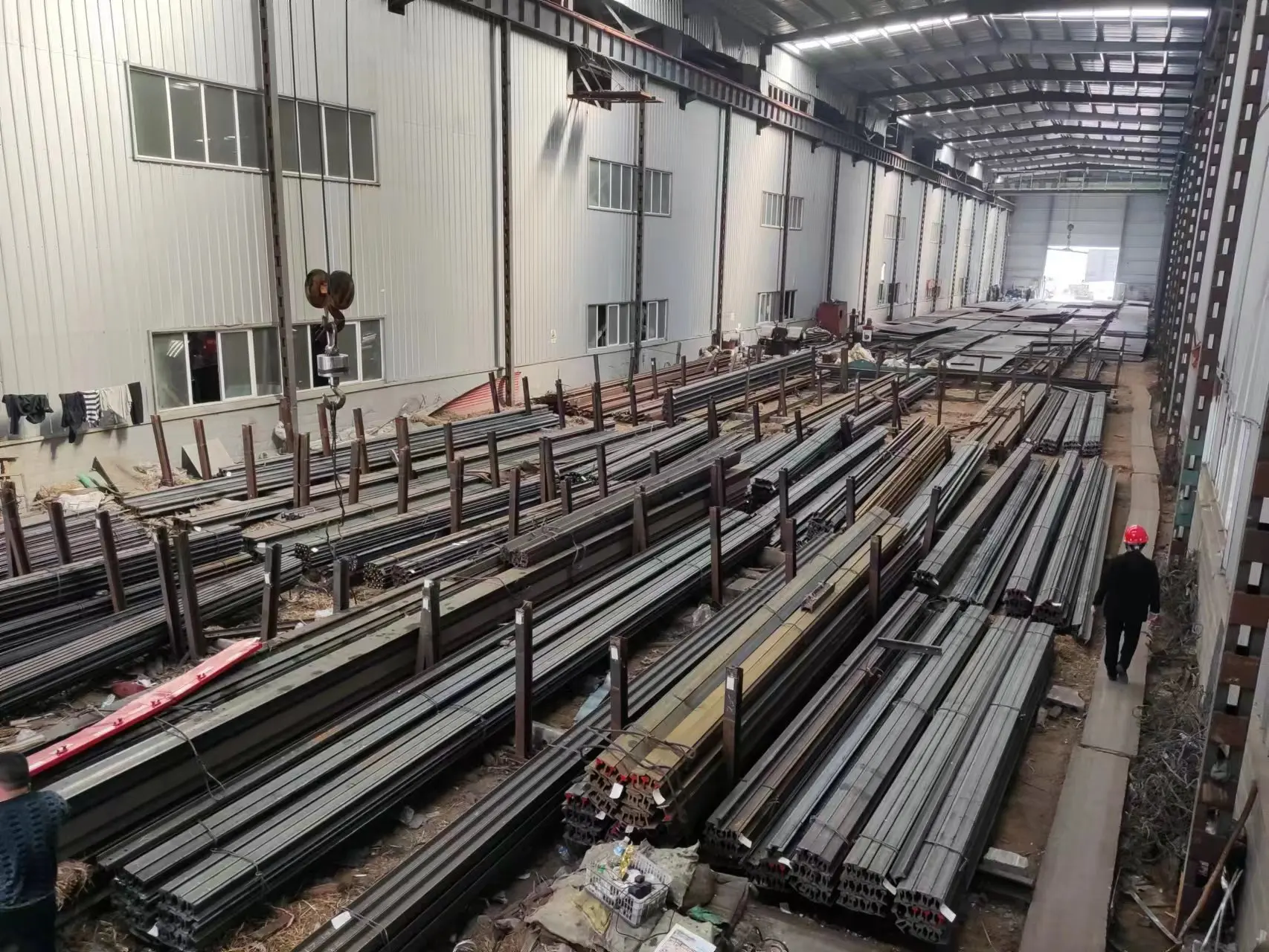

Large inventory
