240W IR LED Chip 850nm 940nm COB LED

Product Overview

Description

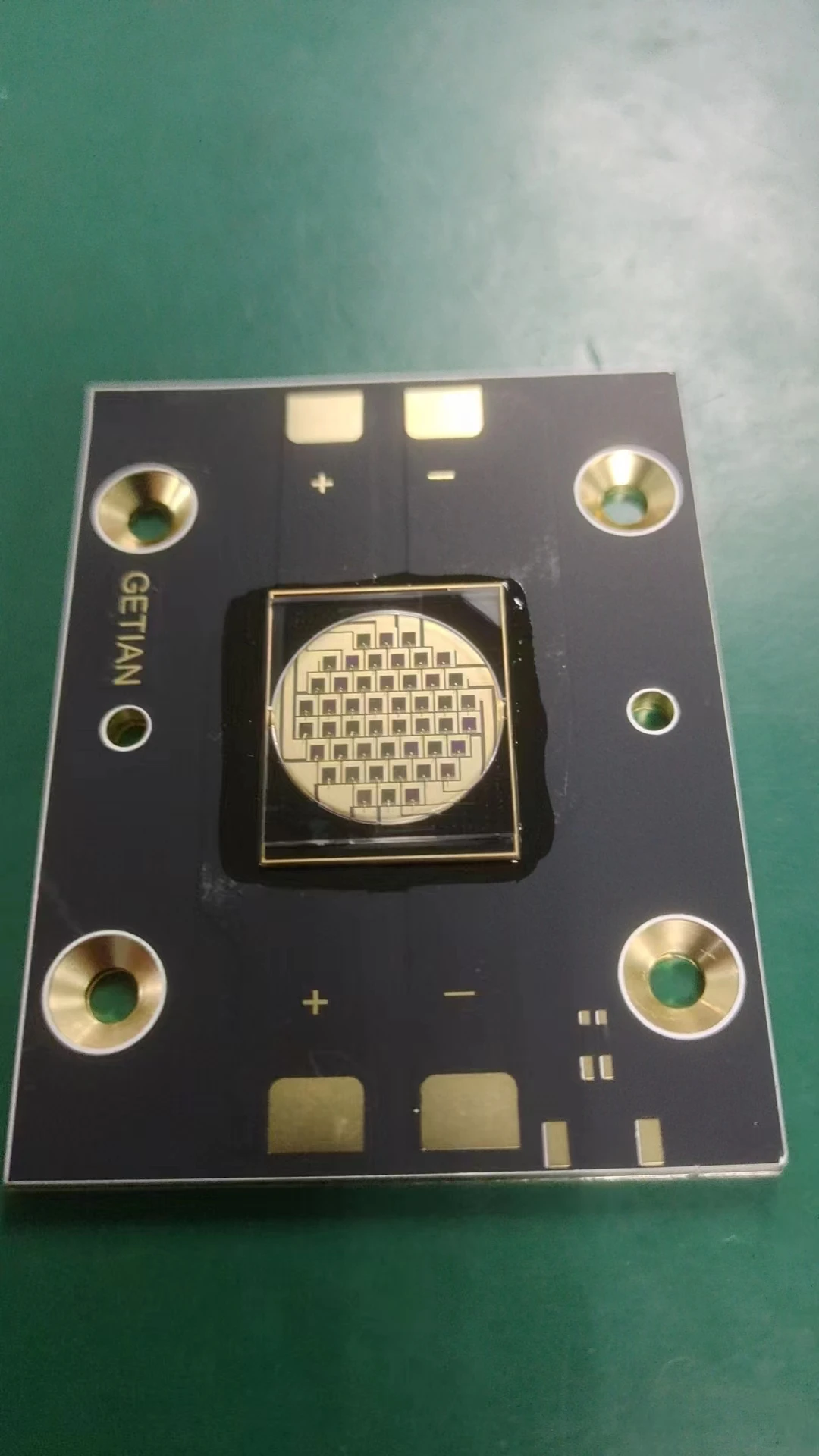

240W IR LED Chip 850nm+ 940nm COB LED



GETIAN Model GT-PST240IR940IR8501822A-5266A 240W IR High Power IR led chip is combined with IR850nm and IR940nm chip in one COB. It is perfectly applied for light therapy and medical beauty industry.

GETIAN's 240W high intensity IR LED Modules is widely used in life sciences, medical beauty and industrial applications. The IR LED COB chip Model: GT-PST240IR940IR8501822A-5266A LEDs come in peak wavelength – 850nm + 940nm in one cob led chip– and deliver unmatched radiometric power in a compact package platform that is well-suited for fiber-coupled applications. Which also reduces system cost greatly.

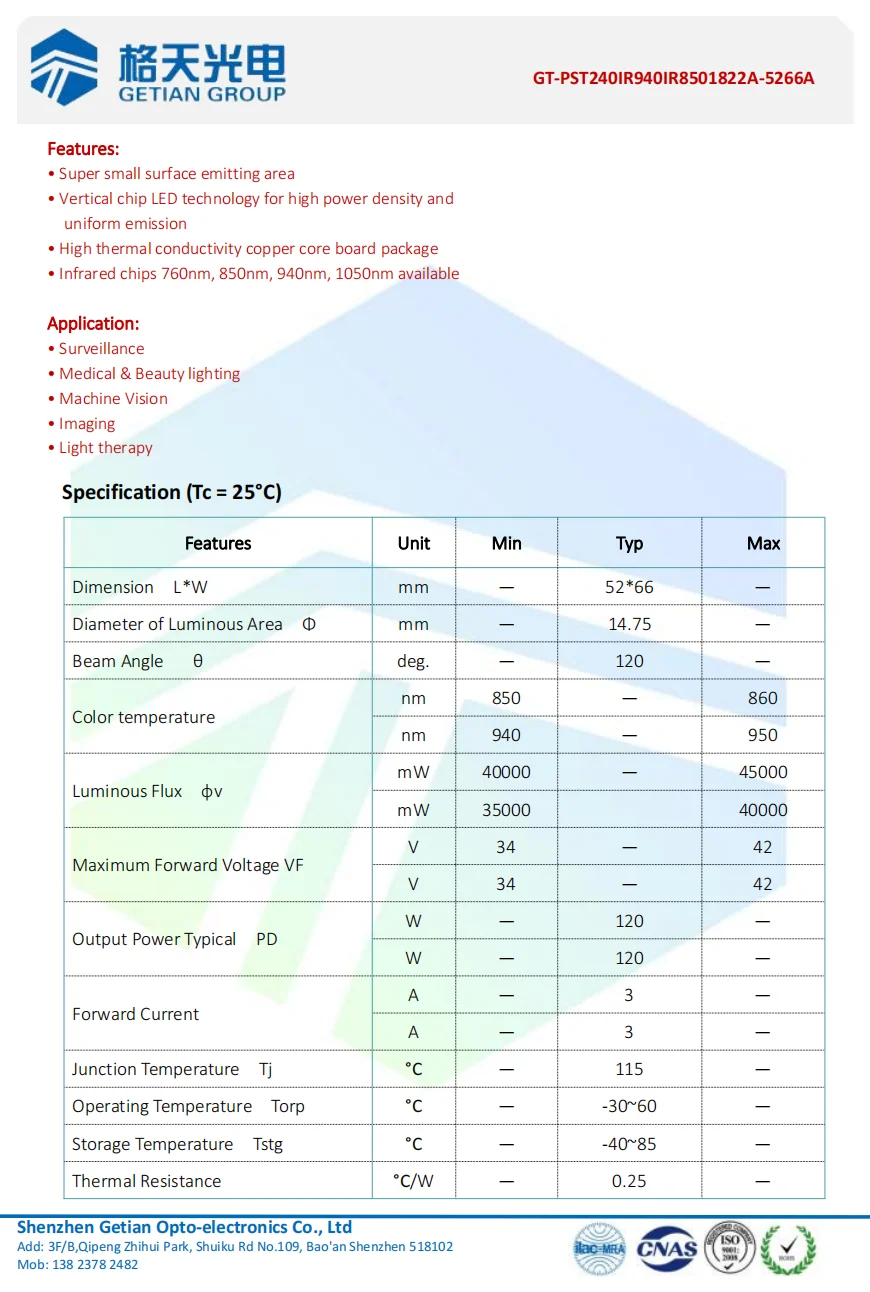

Features:

• Super small surface emitting area

• Vertical chip LED technology for high power density and uniform emission

• High thermal conductivity copper core board package

• Infrared chips 760nm, 850nm, 940nm, 1050nm available



Application:

• Surveillance

• Medical & Beauty lighting

• Machine Vision

• Imaging

• Light therapy
