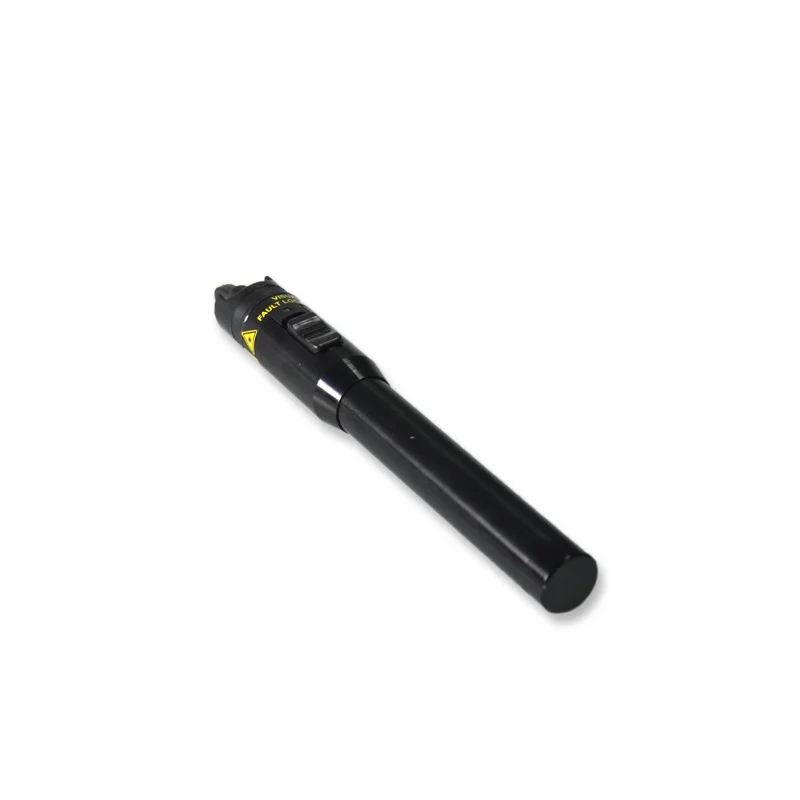

FCST080503 Plastic Material 1.25mm 2.5mm FC SC LC SM MM Fiber Optic Fault Locator For FTTH Network Maintenance
- Category: >>>
- Supplier: Fiber Cable Solution Technology Co. Ltd.
Share on (1600995010743):
Product Overview
Description
Product Views
Product Overview
FCST080503 VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical network. It includes:

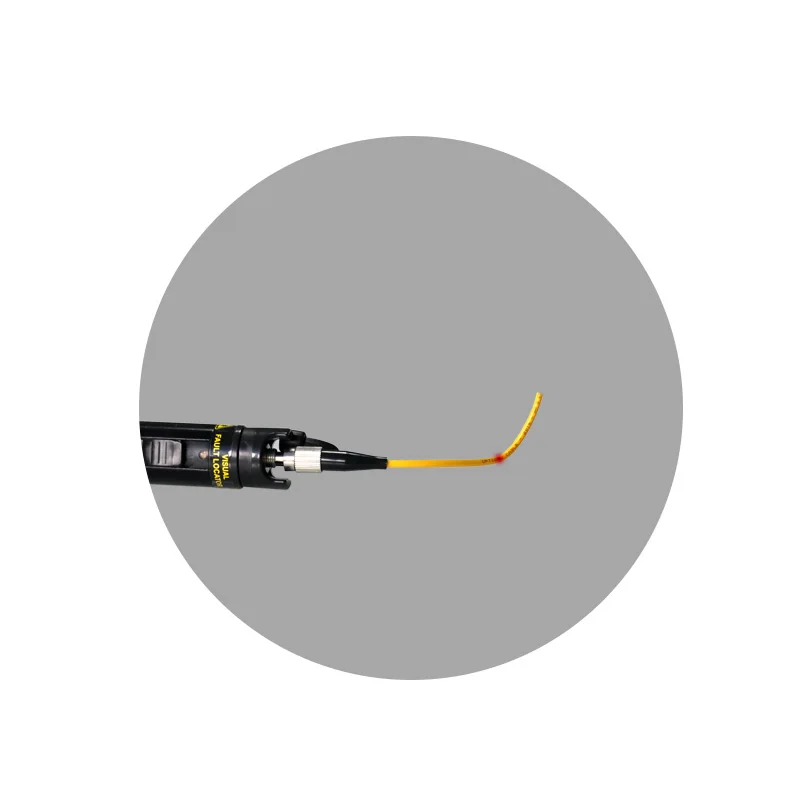

- Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
- Finding the faults of OTDR dead zone.

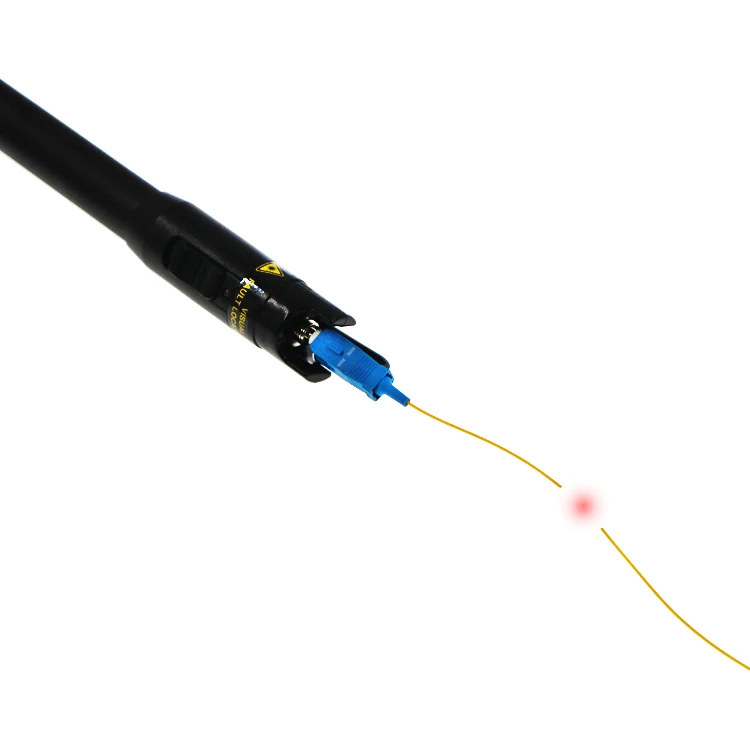

- End-to-end visual fiber identification.
- Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
- Finding the faults of OTDR dead zone.
- End-to-end visual fiber identification.
Product Advantages
- Operates either in CW or Pulsed.
- Constant output power .
- Lower Battery warning.
- Long battery life. (up to 60 hours)
- Crash-proof and dust-proof design for laser head.
- Laser case ground design prevents ESD damage.
- Burning testing to ensure the reliability.
- Portable and rugged, easy to use.
- 2.5mm universal connector, for 1.25mm connectors,FC (Male)-LC (Female) convertor can be provided on requests.
- Constant output power .
- Lower Battery warning.
- Long battery life. (up to 60 hours)
- Crash-proof and dust-proof design for laser head.
- Laser case ground design prevents ESD damage.
- Burning testing to ensure the reliability.
- Portable and rugged, easy to use.
- 2.5mm universal connector, for 1.25mm connectors,FC (Male)-LC (Female) convertor can be provided on requests.
Construction | Description |
Product Name | FCST080503 Pen-type Visual Fault Locator |
Central Wavelength | 650nm±10nm (635nm can be required on request) |
Emitter Type | FP-LD |
Output Power | Optional choice for 1mw, 10mw on actual needs |
Distance Range | 5-8km/10mw |
Optical Connector | 2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests |
Operating Model | Both CW and Pulse available |
Pulse Frequency | 2~3Hz |
Power Supply | 2 AA alkaline batteries |
Battery Operating Time | 650nm@1mw ≥65hour 650nm@10mw≥15hour Test with Panasonic LR6 AA ALKALINE battery |
Operating Temperature | -10~+45 (℃) |
Storage Temperature | -40~+70 (℃) |
Dimension (mm) | ￠15X180 |
Weight | 900g(Without battery) |
Product Advantage
Aluminum alloy material, metal body material, wear-resistant and anti-drop
Aluminum alloy material, metal body material, wear-resistant and anti-drop

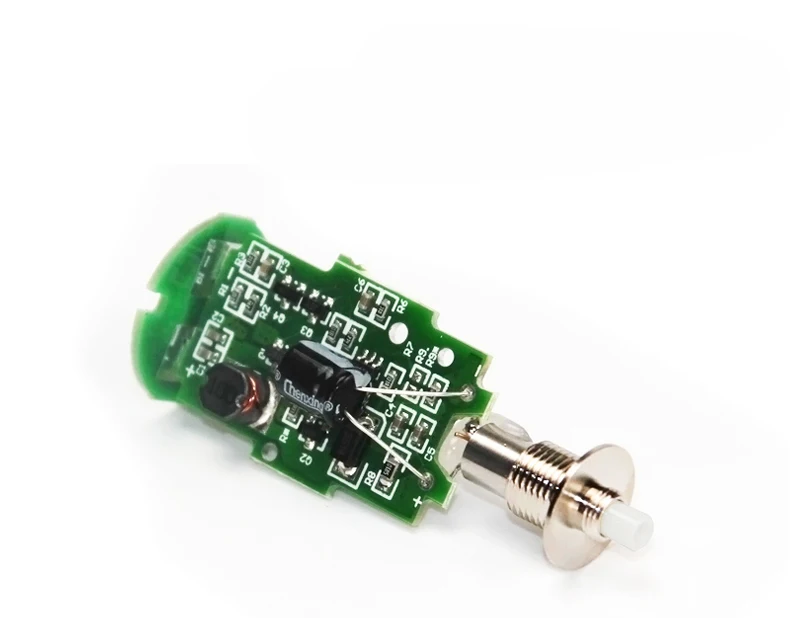

Using high-quality laser chips, easily penetrate optical fibers

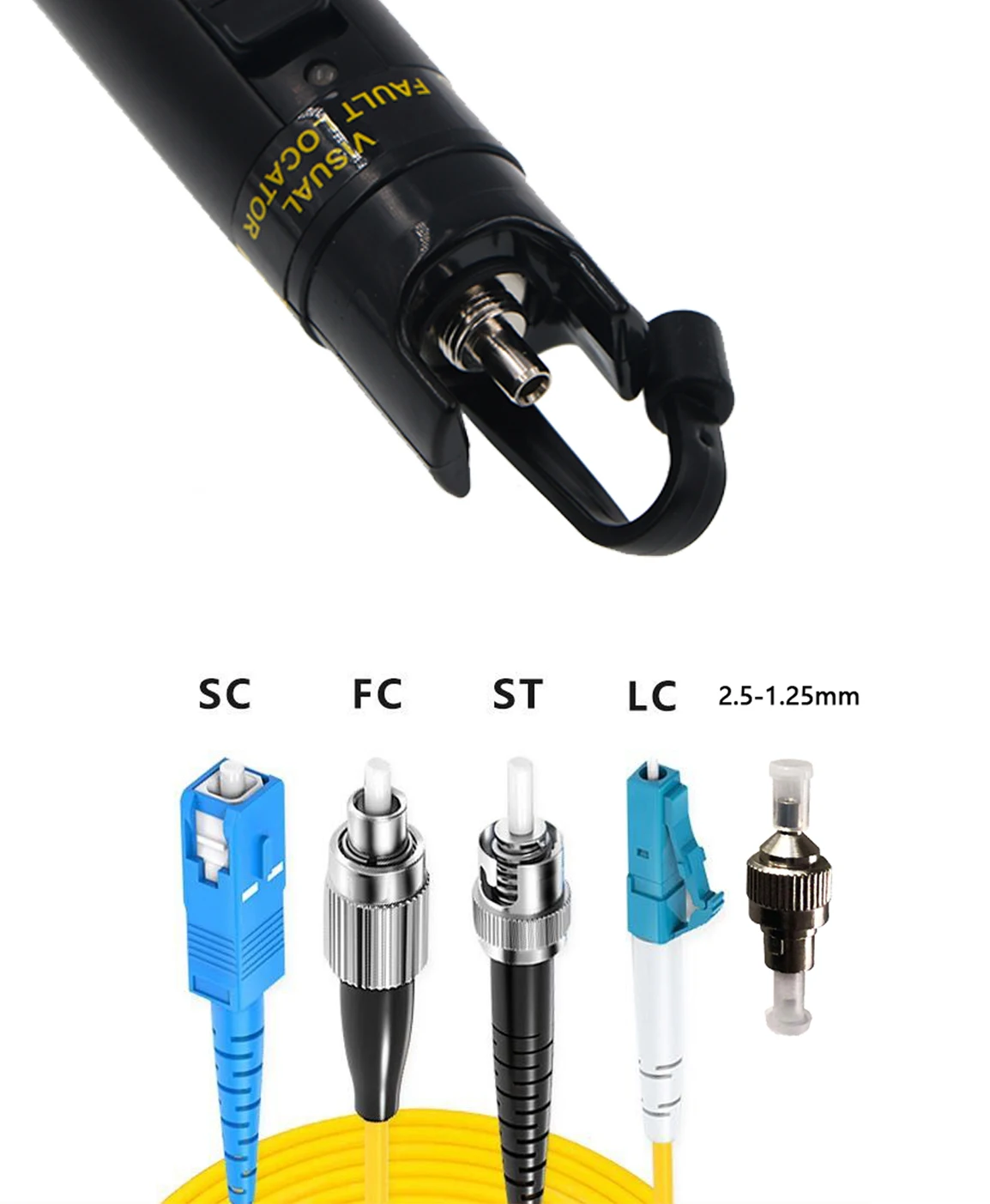

Standard 2.5mm interface, could match SC/FC/ST/LC adapter
