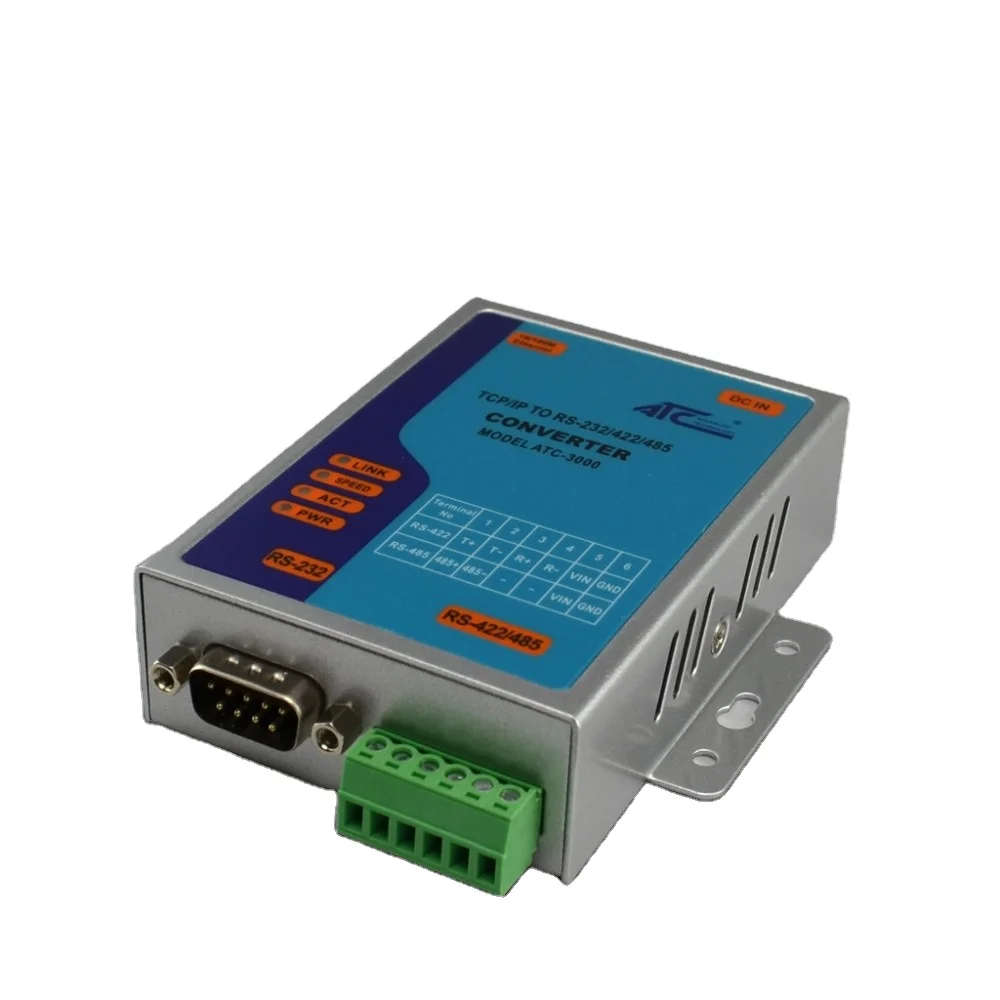

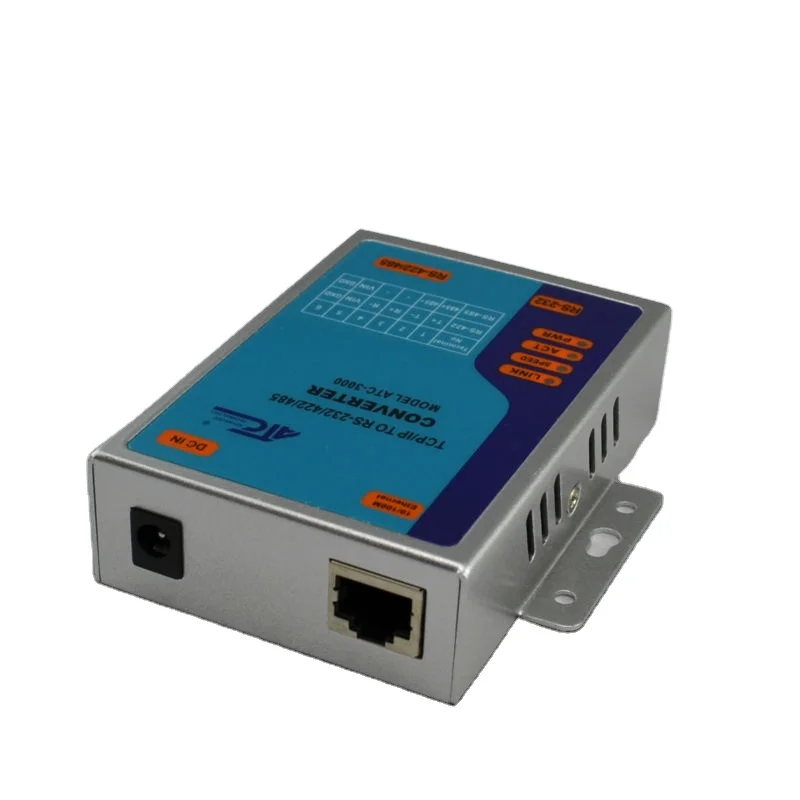

RS232/422/485 Converter with TCP/IP(ATC 3000)

Product Overview

Description

Product Description:

    The Embedded Serial Server ATC-3000 is a gateway between Ethernet (TCP/IP) and serial signal communications.

It can be built into any facilities or equipments, and converts any serial port to Ethernet network.By encapsulating serial data and transporting it over Ethernet, ATC-3000 allows bi-directional data trans-mission to be transparent between serial port and Ethernet. By using this unit, limited distance, point-to-point, direct serial connections can now be extended to the facility or equipment.

     In the industrial and manufacturing automation, ATC-3000 can be embedded into most field devices, include-ing PLCs, HMIs, Barcode Scanners, Data Terminals, Electronic Kanbans, UPS, Electronic Meters and Controllers Automation Devices. These devices will soon be linked to the network. Existing Windows-based applications can access serial-Ethernet devices by using Virtual COM software which creates virtual serial ports on the host computer mapping to the remote Serial Server over Ethernet.

    Flexible configuration options allow the unit to be setup remotely over Ethernet by Telnet, web browser, or other windows utilities. It is not only a transparent, cost-effective, network-enabled serial device, but also it is easy to install.

Product Features:

1.3-in-1 RS-232/422/485 interface Max.460.8Kbps Serial interface and 10/100 Mbps Ethernet

2.Supports 4- and 2-wire RS485 with AUTO-SEND™ and built-in terminator

3.Terminal block accessories for easy RS-422/485 serial wiring

4.Support TCP client, UDP for Virtual COM mode

5.Monitor, manage and control industrial field devices remotely

6.Configuration: Web Server page, Telnet Console

7.Monitor IP configuration utility for Windows

8.Supports industrial 24 VDC power input and optional Power over Serial

9.PWR/ACT /SPEED/LINK indication pin

Specifications:

Serial Interface
Data Rates	300 bps to 460,800 bps
Characters	7 or 8 data bits
Parity	Odd, Even, None, Space, Mark
Stop Bits	1 or 2
Flow Control	None, Software: Xon/Xoff, Hardware: RTS/CTS
Connector	DB9-DTE (Male),Removable 6 bit Terminal Block
Network Interface
Interface	Ethernet 10Base-T or 100Base-TX (Auto-Sensing)
Connector	RJ45
Protocol	ARP, UDP/IP, TCP/IP, PING/ICMP, DHCP, BOOTP, Auto IP,TFTP, SNTP ,TELNET ,HTTP, DNS,SMTP, PPP, LCP, PAP, CHAP, IPCP, PPPoE. SSL/TLS,HTTPS
Indicators (LED)
l  10/100Base-TX Link   l  Date Sending / Receiving between Serial and the Ethernet l  Power indicator l  Normal connected to the network
Software
Configuration	Web Page / Telnet
Device View	Windows port redirection software
System
CPU	Embedded high-performance 32-bit network processor,32-bit RISC (NP7/9 series)
Memory	32MB RAM, 16MB/32MB Code + 32KB Boot
Watchdog	ASIC Hardware built-in
Power
Input Voltage	9-24 VDC@500mA——100mA
Physical Specifications
Dimensions		100 x 86 x 26 mm	Weight	0.45 kg
Humidity		5 to 95% (non-condensing)
Installation		DIN-Rail Mounting
Operating temperature		-4° to158° F (-20° to 70° C)
