Feasycom FSC BW101 IoT BT5.0 HS & LE High speed 802.11a/b/g/n/ac Wireless 2.4g 5g Wifi Module
Feasycom FSC-BW101 IoT BT5.0+HS & LE High-speed 802.11a/b/g/n/ac Wireless 2.4g 5g Wifi Module
Feasycom FSC-BW101 IoT BT5.0+HS & LE High-speed 802.11a/b/g/n/ac Wireless 2.4g 5g Wifi Module
Feasycom FSC-BW101 IoT BT5.0+HS & LE High-speed 802.11a/b/g/n/ac Wireless 2.4g 5g Wifi Module
Feasycom FSC-BW101 IoT BT5.0+HS & LE High-speed 802.11a/b/g/n/ac Wireless 2.4g 5g Wifi Module
Feasycom FSC-BW101 IoT BT5.0+HS & LE High-speed 802.11a/b/g/n/ac Wireless 2.4g 5g Wifi Module
Feasycom FSC-BW101 IoT BT5.0+HS & LE High-speed 802.11a/b/g/n/ac Wireless 2.4g 5g Wifi Module

Feasycom FSC BW101 IoT BT5.0 HS & LE High speed 802.11a/b/g/n/ac Wireless 2.4g 5g Wifi Module

Share on (1600995274141):


Price:$4.90 - $6.90

Quantity:


Product Overview

Description



Products Description

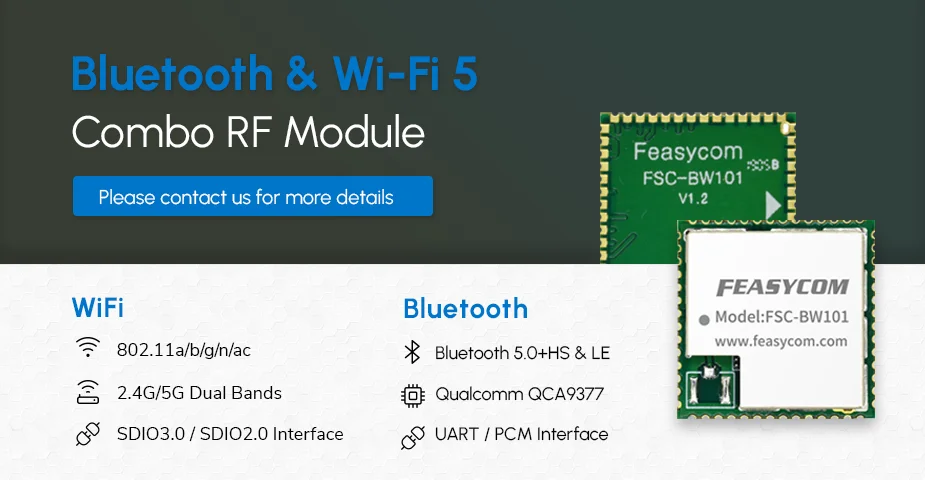

FSC-BW101 is a High-End Bluetooth & Wi-Fi Combo RF Module, adopt QCA9377 chipset, it’s a single-die wireless local area network(WLAN) and Bluetooth combination solution to support 1*1 802.11a/b/g/n/ac WLAN standards and Bluetooth 5.0+HS, designed to deliver superior integration of WAN/Bluetooth and low-energy technology.


WLAN Features

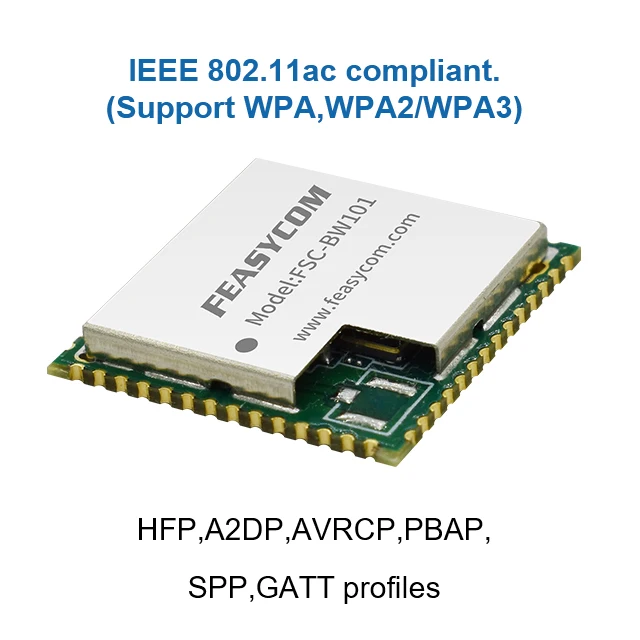

- IEEE 802.11ac compliant. (Support WPA, WPA2/WPA3)
- Single-stream spatial multiplexing up to 433.3 Mbps data rate
- Supports 20, 40, and 80 MHz channels with optional SGI (256 QAM modulation)
- Full IEEE 802.11a/b/g/n legacy compatibility with enhanced performance.
- Low power SDIO3.0/SDIO2.0 interface for WLAN


Bluetooth Features
- Bluetooth V5.0, and is backwards compatible with BT 1.X, 2.X + EDR, BT 3.X. and BT4.0
- BT for class 1 and class 2 power-level transmissions without requiring an external PA
- UART(Max Baud Rate 3.2Mbps)
- PCM for BT audio


Application

- Home and Building Automation
- Low-Power Video Cameras
- Thermostats
– Access Control and Electronic Locks (E-Locks)
- Asset Tracking and Real Time Location System (RTLS)Tags
- Cloud Connectivity
- Internet Gateway
- Appliances
- Security Systems
- Smart Energy
- Industrial Control
- Smart Plug and Metering
- Wireless Audio
- IP Network Sensor Nodes
- Medical DevicesCar audio and video system


Categories
Features
Implementation
Bluetooth
Bluetooth Standard
Bluetooth V5.0+EDR
Frequency Band
2402MHz~2480MHz
Interface
UART/PCM
WIFI
Frequency Band
2412MHz~2484MHz /4900MHZ~5925MHz
Interface
SDIO
General

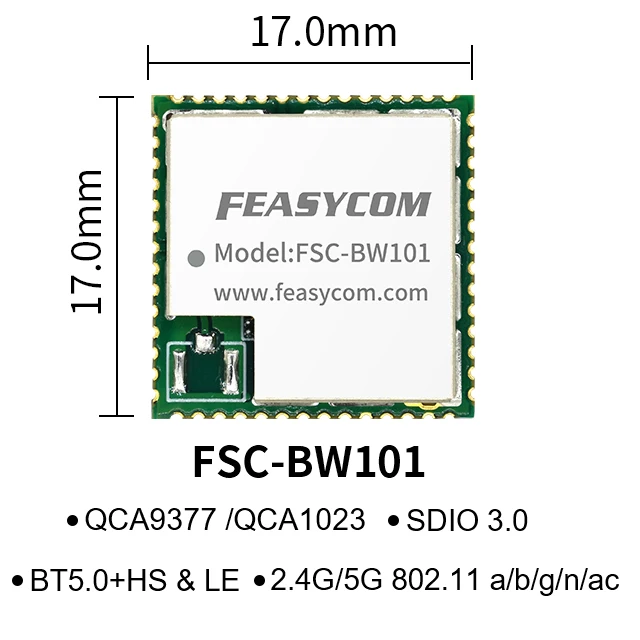

Size
17mm × 17 mm × 2.4mm
Operating temperature
-40°C ~+85°C
Storage temperature
-40°C ~+85°C

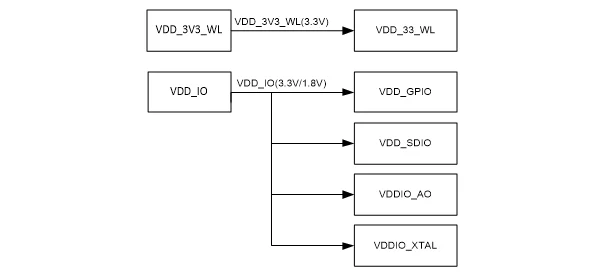

VDD_3V3_WL
3.3V (Typ. )
VDD_IO
1.8V~3.3V (Typ. )
Miscellaneous
Lead Free
Lead-free and RoHS compliant
Warranty
One Year
Humidity
10% ~ 90% non-condensing
MSL grade
MSL 3
ESD grade
Human Body Model: Pass ±2000 V, all pins
Charge device model: Pass ±400 V, all pins














Company Profile


Feasycom focuses on the researching and developing of IoT (internet of things) products, including Bluetooth Modules
,Bluetooth&Wi-Fi modules and beacons. With more than 10-year experiences in the wireless connectivity, which ensure us have the ability of R&D, manufacturing, QC and shortening product customization cycle to thousands of diverse customer worldwide.
Feasycom's engineering and design services include:
* SDK
* APP Support
* PCB Design
* Development Board
* Firmware Development
*Depth Customization
* Certification Request
* Turn-Key Production Testing & Manufacturing
Our products and services mainly apply to Automotive, Point of Sale, Home Automation, Healthcare and Engineering, Banking, Computing, Vending Business, Location,
Lighting and more. Aiming at "Make Communication Easy and Freely", Feasycom is dedicated to design and develop high-quality products, efficient services to customers, for today, and all days to come.






Exhibition




Certifications




Customer Evaluation




Packing & Delivery




FAQ


Q1.Are you a manufacturer or a trading company?
A1: We are a manufacturer.

Q2.Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete
solution according to your requirements.

Q3.What is Bluetooth 5.0?
A4:Two times transmission speed compare with Bluetooth V4.2,Max Trans Speed can reach to 24Mbps.
Effective work distance can be 300m, 4 times of Bluetooth V4.2.

Q4.What is Bluetooth Dual Mode Module?
A5:Bluetooth Dual Mode Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Basic Rate (BR)/Enhanced Data Rate
(EDR)/Low Energy (LE) Functions.

Q5.What payment mothods do you accept?
A6:Paypal,T/T,W/U,Bank Transfering,Credit Card,Trade Assurance Payment,etc.

Q6.Lead time for sample orders/mass production orders?
A7:Samples,within 3 working days; Mass production,within 15 working days usually.

Q7.What shipping methods do you use?
A8:For samples,DHL/UPS/FEDEX/TNT,etc; For bulk orders,Air shipping and others.
