Beok CCT 10 Wired 8 Outputs Electric Hub Controller Box Gas Boiler Pump Room Thermostat for Water Floor Heating System
- Category: >>>
- Supplier: Shanghai Beok Industry Co. Ltd.
Share on (1600995335135):
Product Overview
Description
Product Description

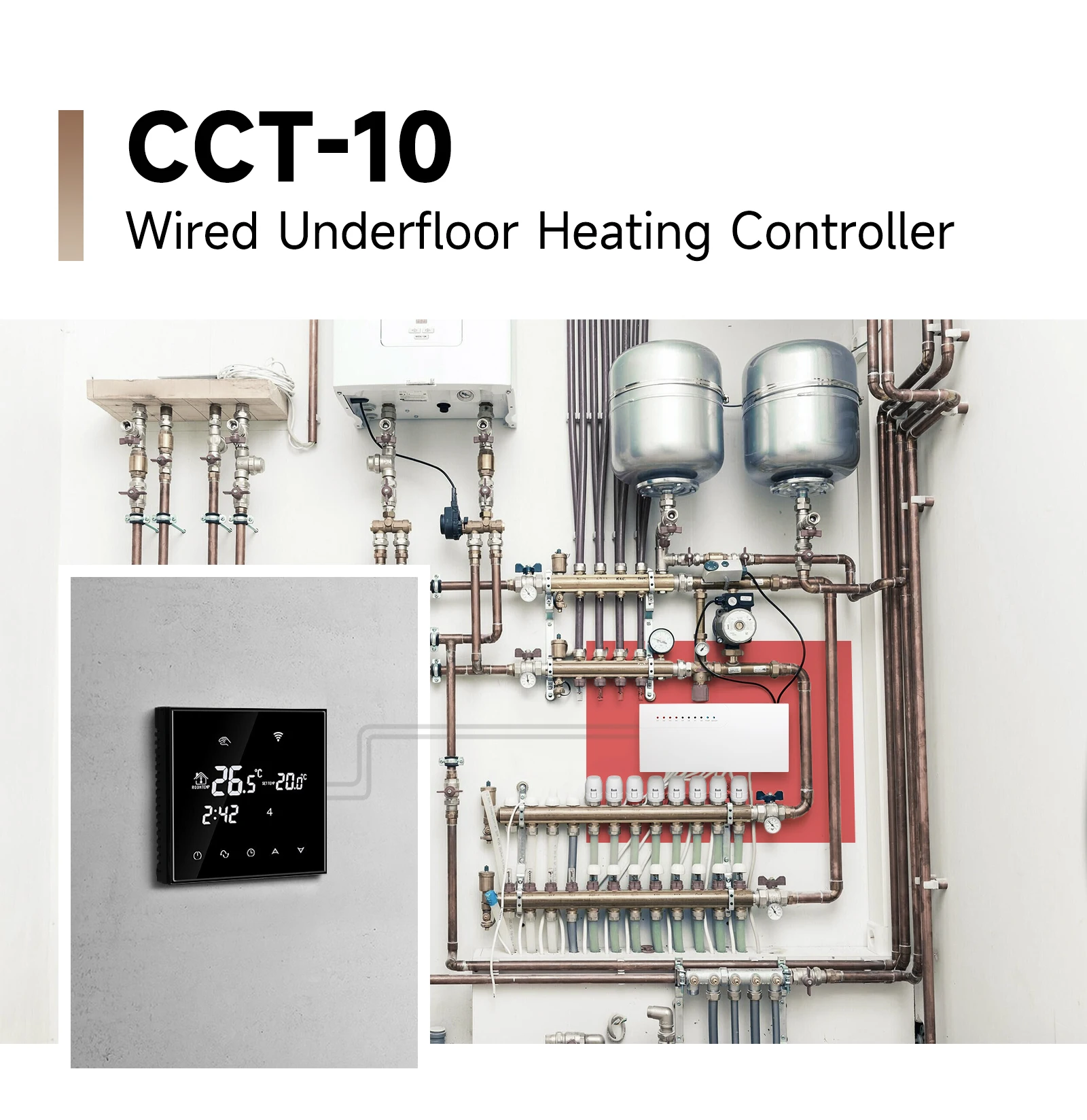

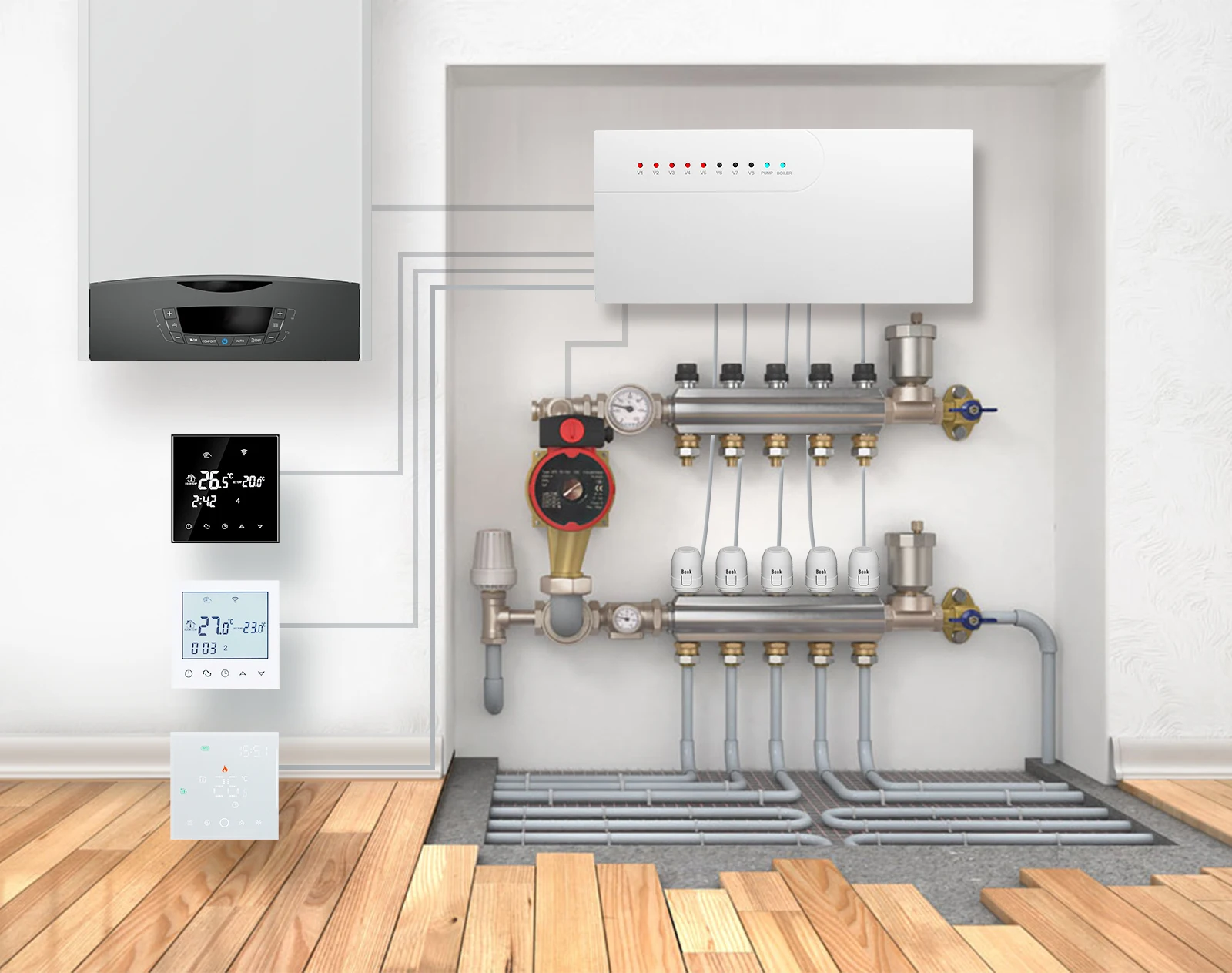

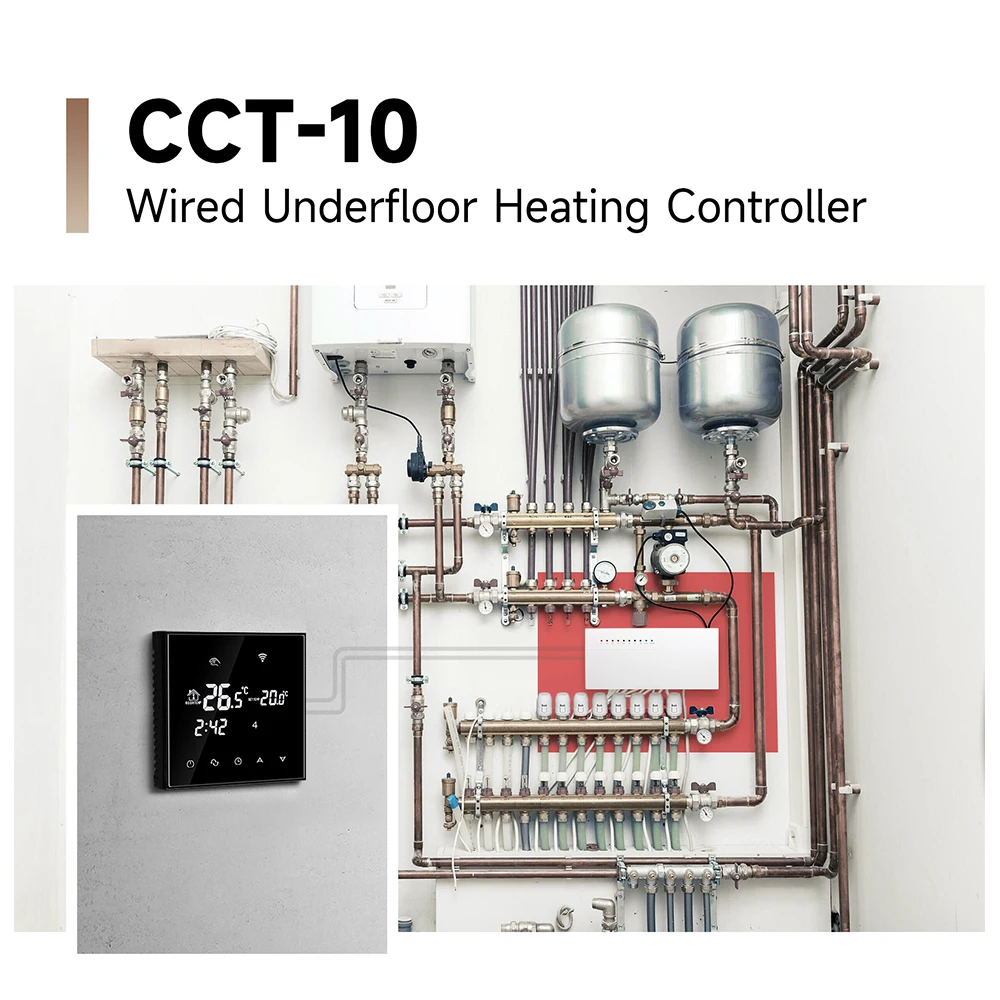

CCT-10 concentrator controllers are used in water floor heating system.

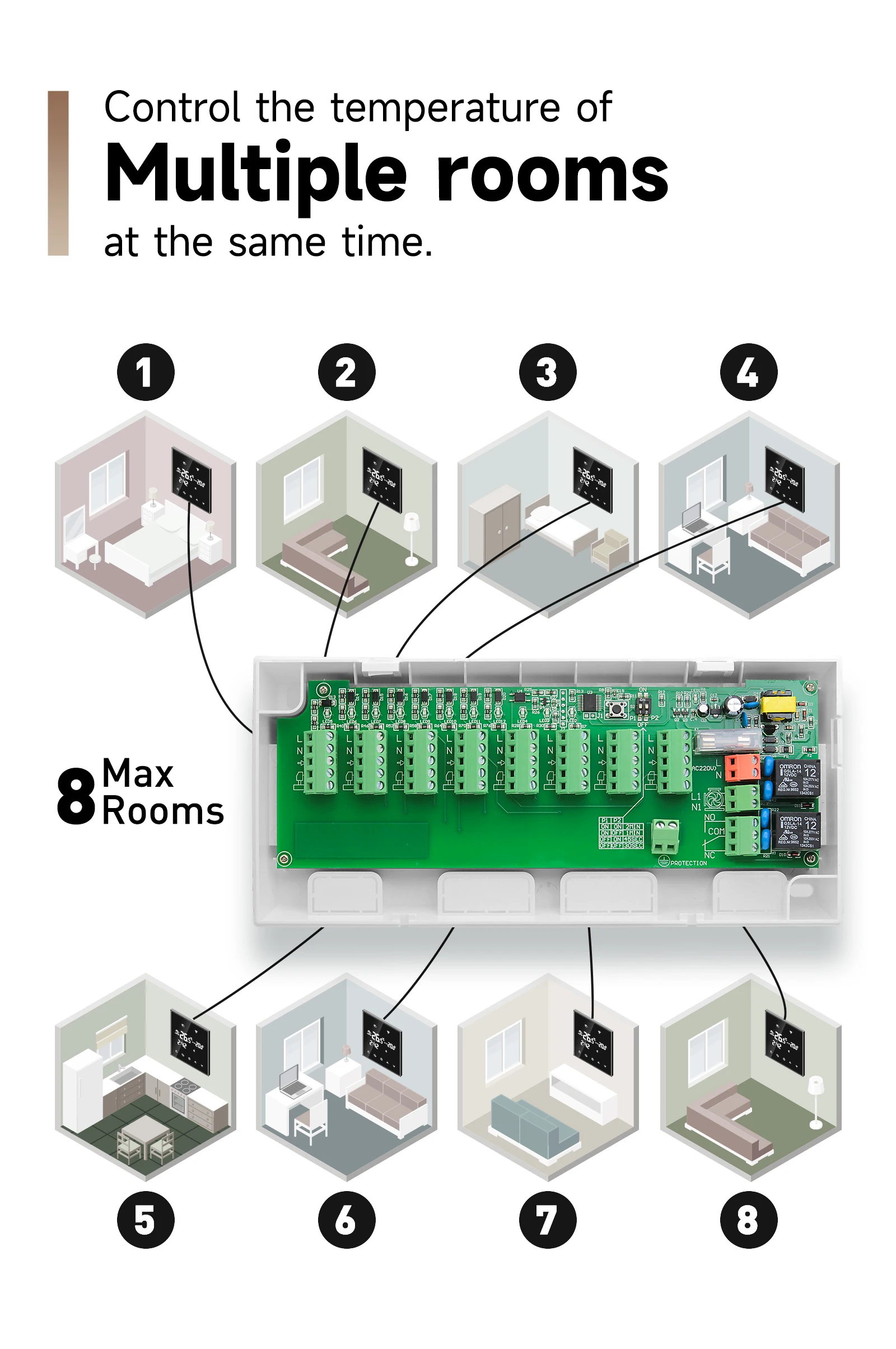

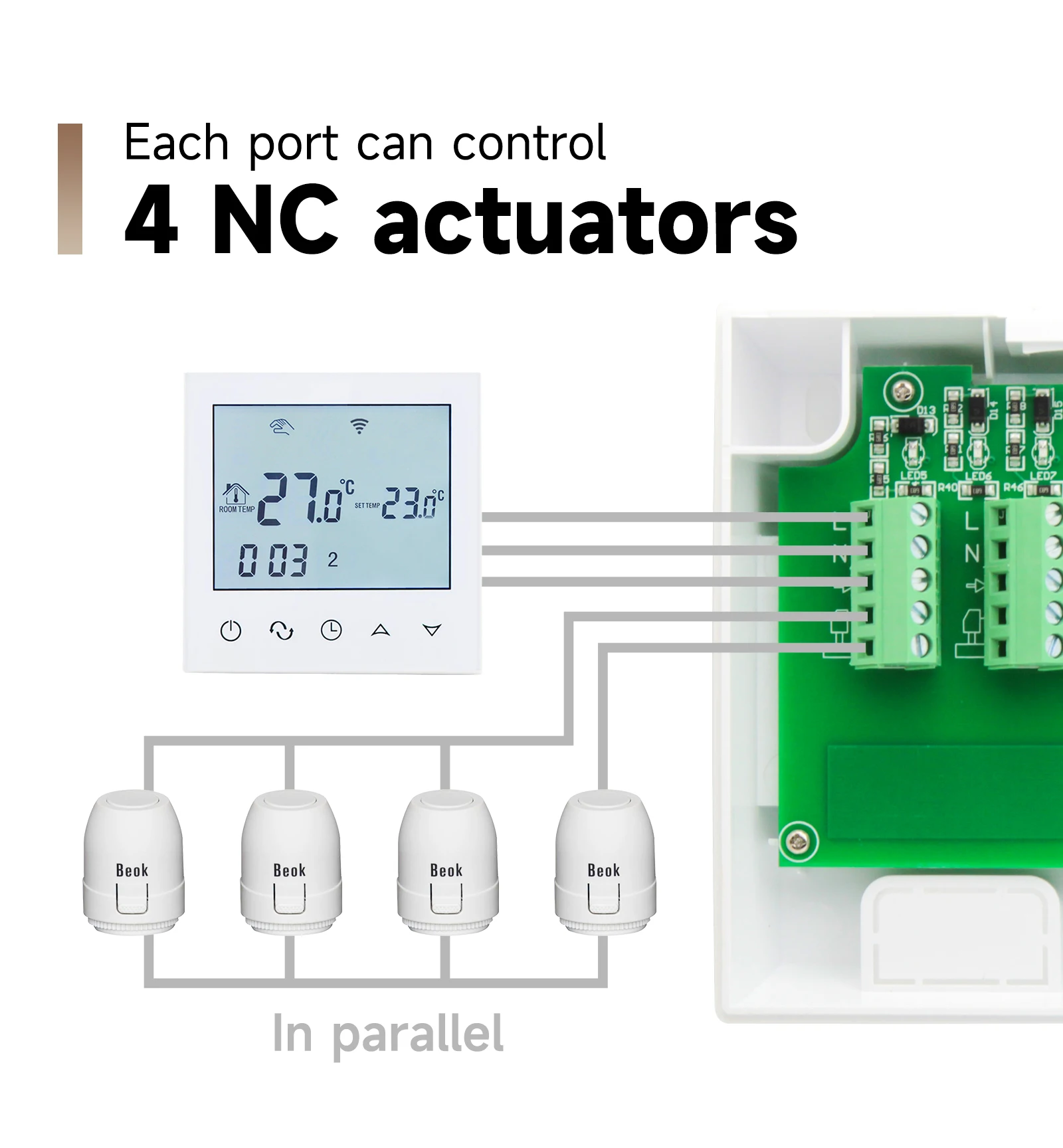

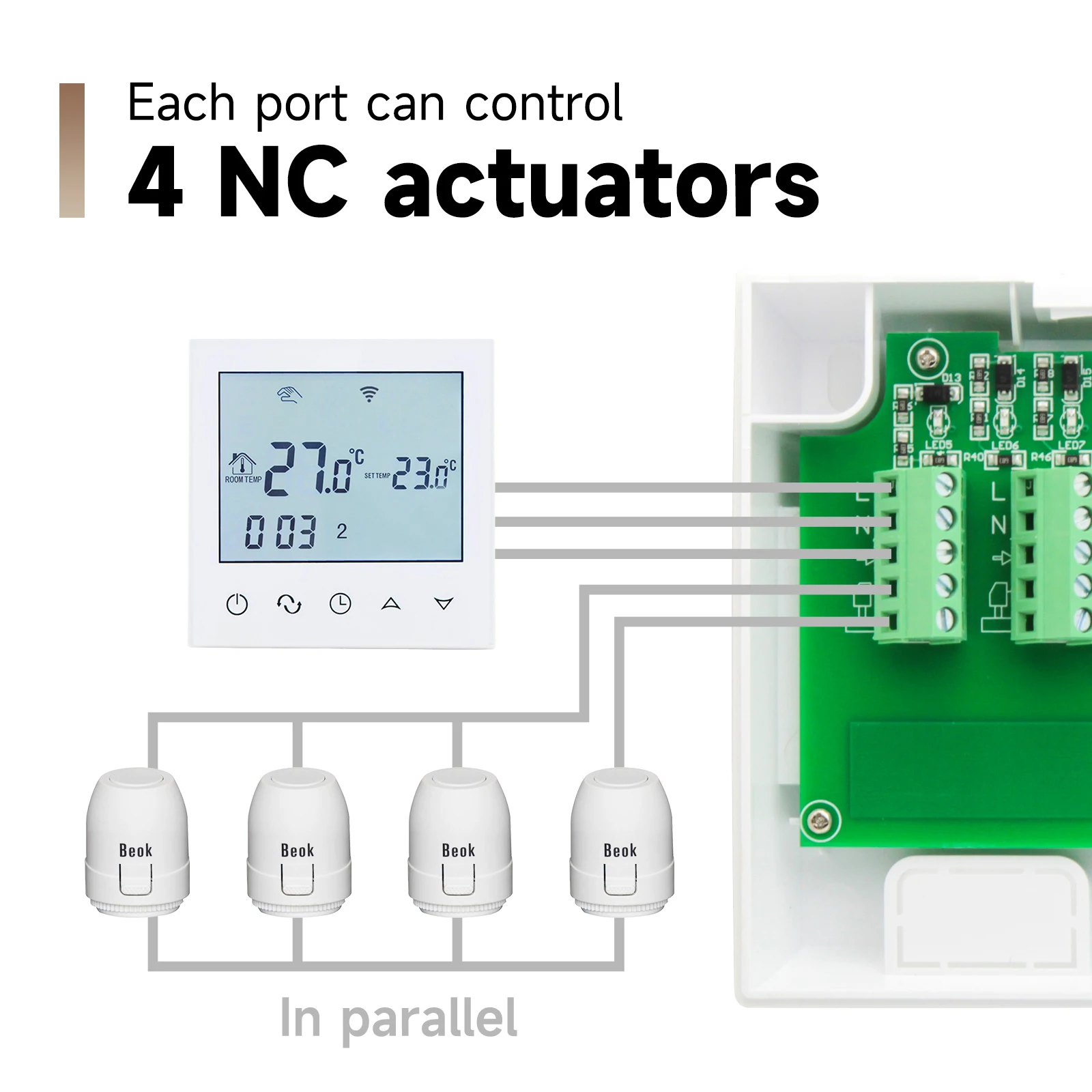

It can control zone valves, or boiler thermostats. As a central control unit, it can also control the boiler and circulation pump.
According to the user's set temperature, the hub controller can control to open or close the boiler, circulation pump and electric actuators, to achieve the goal of comfort and energy saving.
It can control zone valves, or boiler thermostats. As a central control unit, it can also control the boiler and circulation pump.
According to the user's set temperature, the hub controller can control to open or close the boiler, circulation pump and electric actuators, to achieve the goal of comfort and energy saving.
Specification
Power supply: 170-240VAC 50\\60HZ
Load current: 3A
Size: 240mm X 110mm X 42mm
Operating Temperature: -20 - 60 Celsius
Storage Temperature: -20 - 70 Celsius
White color
Logo: Random delivery with and without logo (if you have your needs, please contact us)
Load current: 3A
Size: 240mm X 110mm X 42mm
Operating Temperature: -20 - 60 Celsius
Storage Temperature: -20 - 70 Celsius
White color
Logo: Random delivery with and without logo (if you have your needs, please contact us)
item | value |
Warranty | 2 years |
After-sale Service | Online technical support, Return and Replacement |
Material | Anti-flammable PC +ABS |
Project Solution Capability | Others |
Application | living room |
Design Style | European |
Place of Origin | China |
Brand Name | BEOK |
Model Number | CCT-10 |
Type | Floor Heating Parts |
Function | RECEIVER |
Voltage | 220-240V |
Application | Water Heating System |
Key word | hub controller |
Material | Anti-flammable PC +ABS |
Brand | BEOK |
Type | hub controller |
Package List
CCT-10 hub controller * 1
Product Advantage
1 Easy to connect with power:
CCT-10 hub controller * 1
Product Advantage
1 Easy to connect with power:
user only needs to reserve main supply in the place of manifold before installation, and directly connect one three-wires cable to thermostats. So user do not need professional wiring workers;
2 Easy to connect wires:
user only needs to connect wires according to wire colors;
3 Easy maintenance after installation:
all wires are very clear and neat;
4 To protect boiler or pump:
because hub controller has time delay function, it opens boiler and pump only when water valve is totally opened, and closes boiler when temperature reaches requirements. Time delay to open boiler and pump when heating can realize the purpose of energy-saving;
5 To extend boiler and pump life:
hub controller only start boiler and pump in appropriate temperature,In this way, it will reduce boiler and pump running time, to extend their working life.

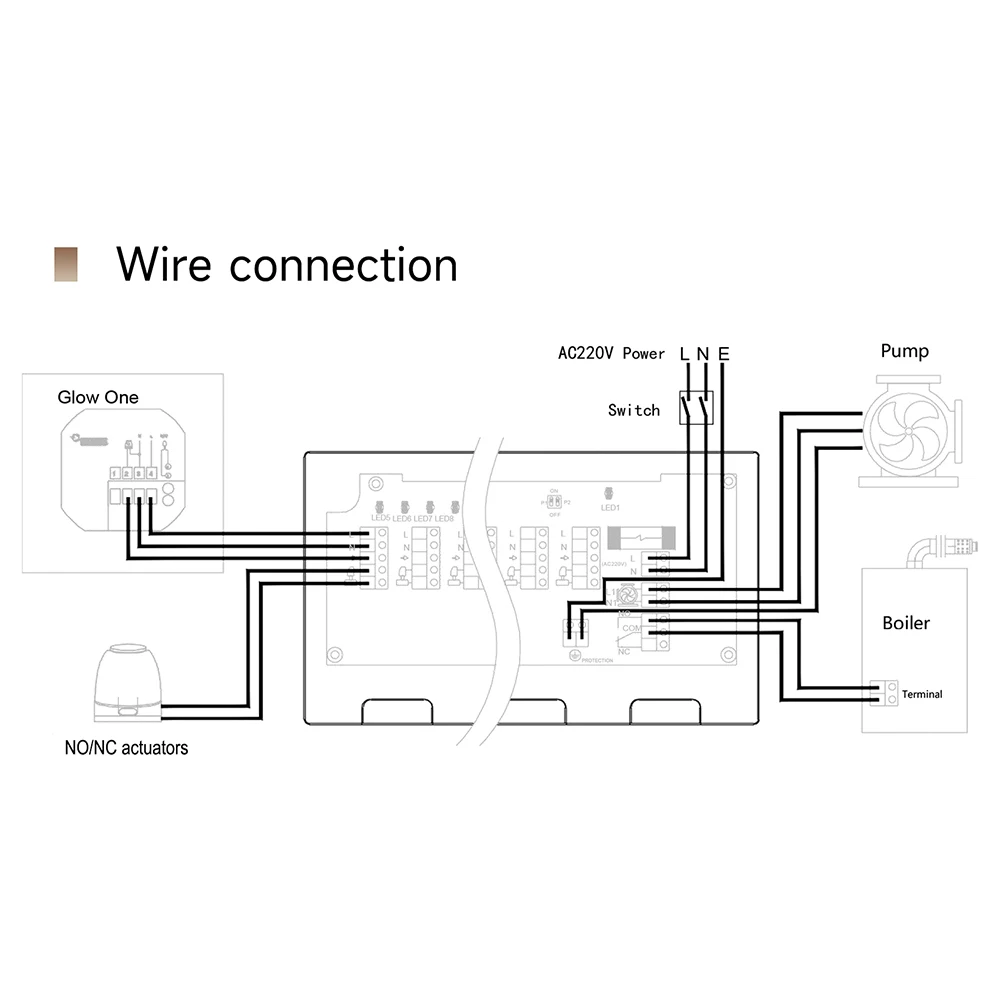

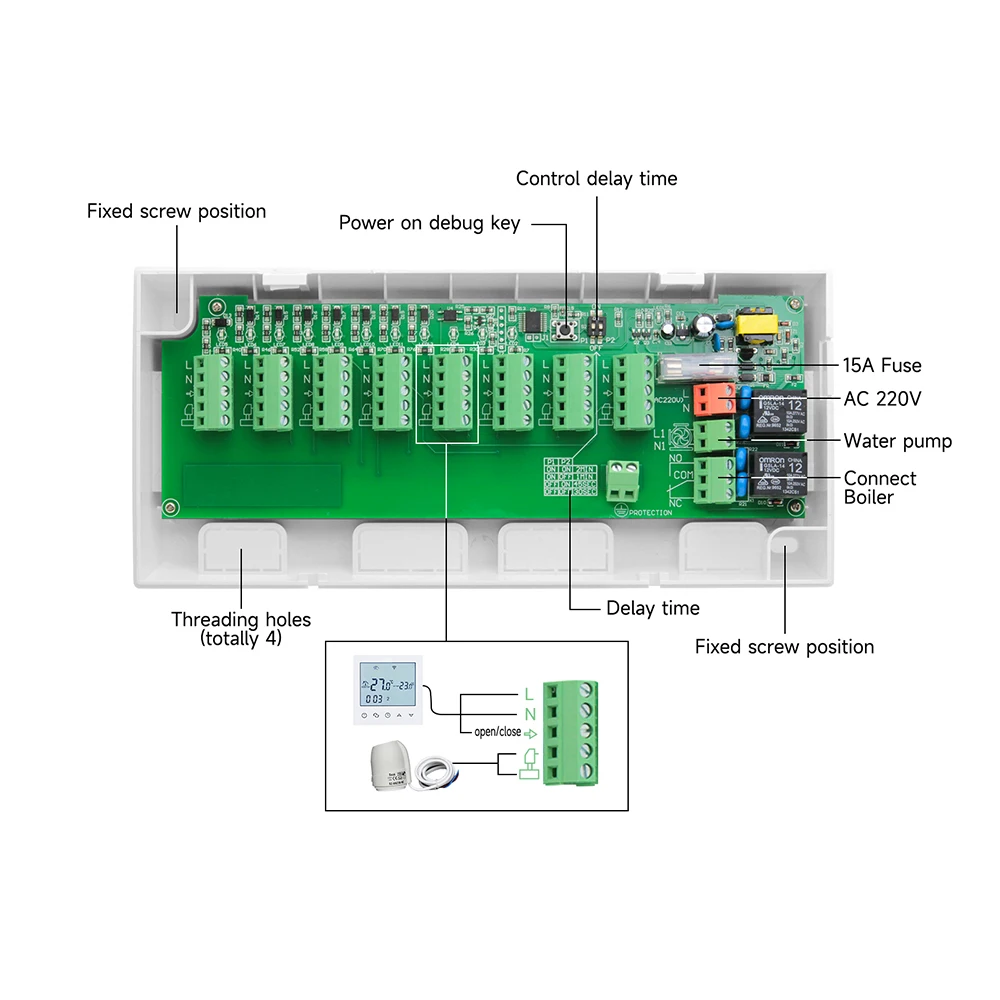

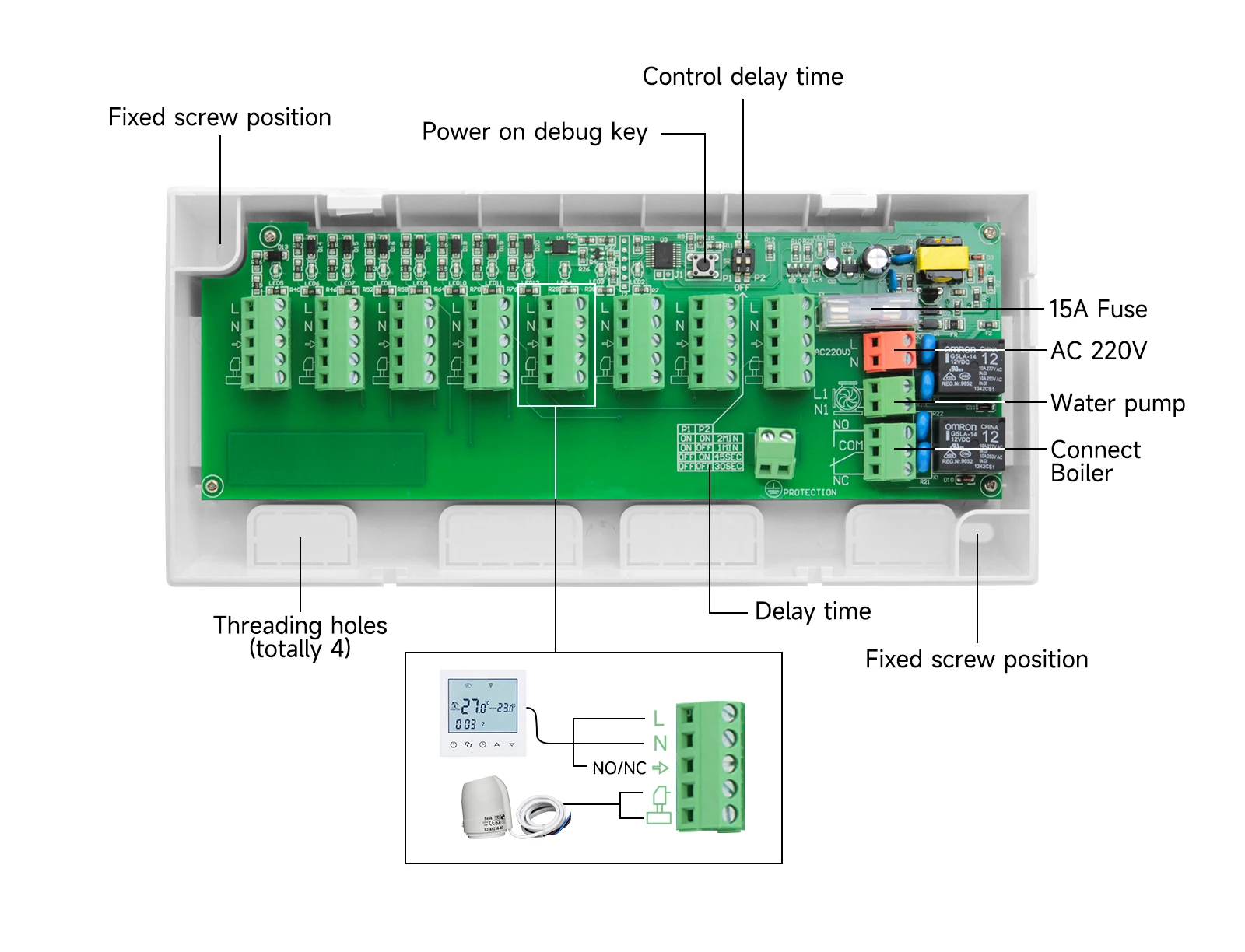

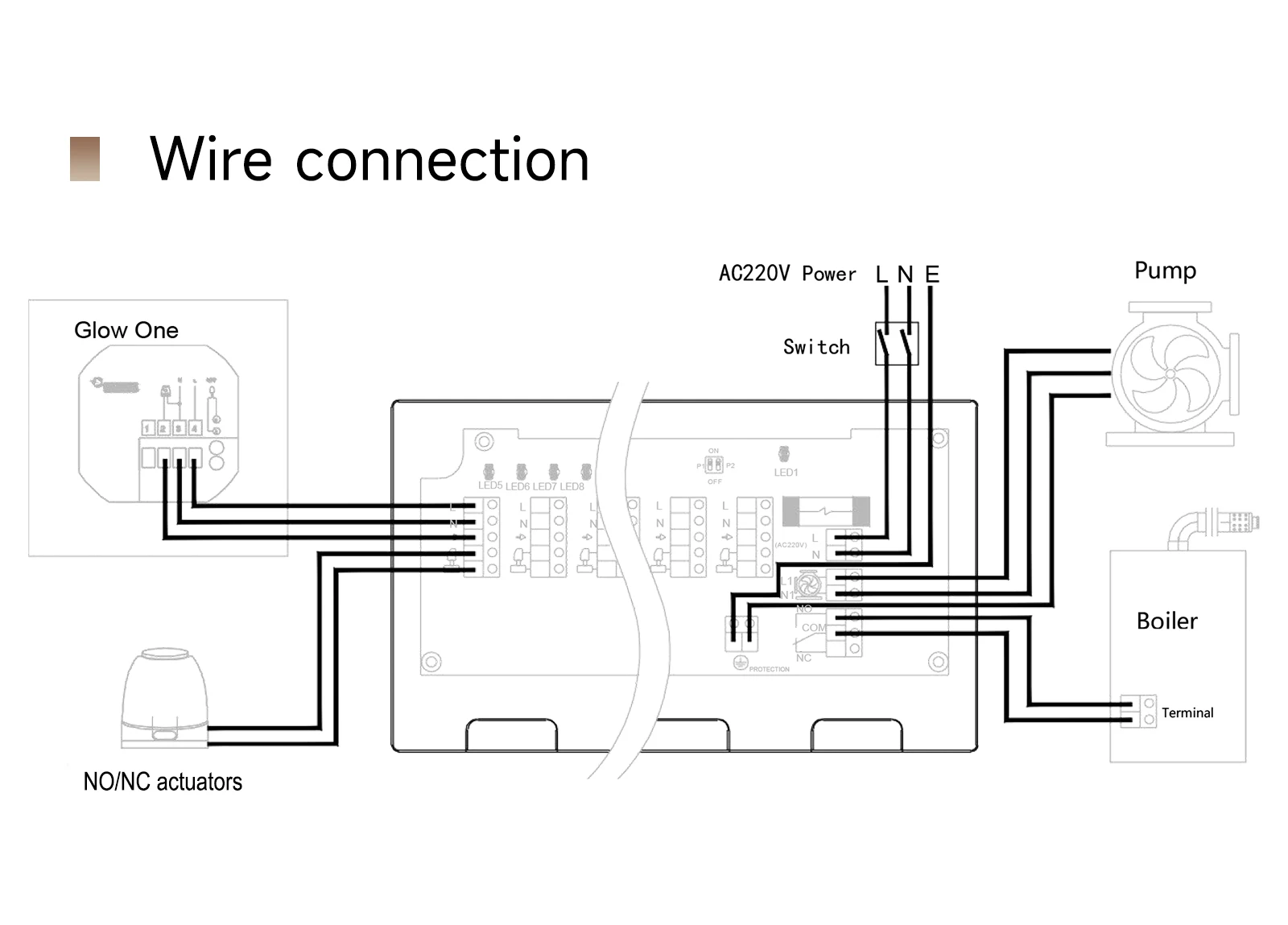

Connection Diagram

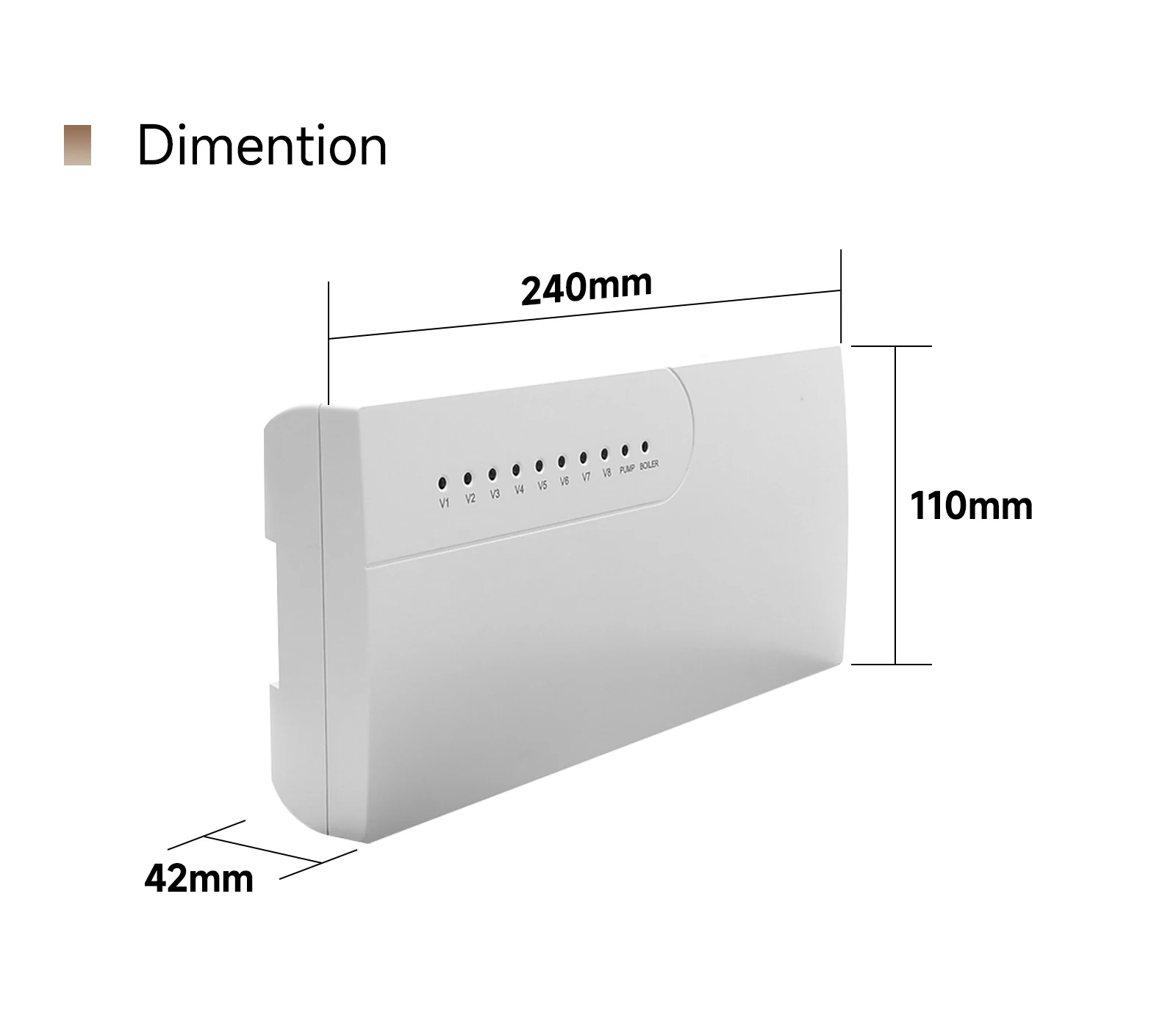

Product Size

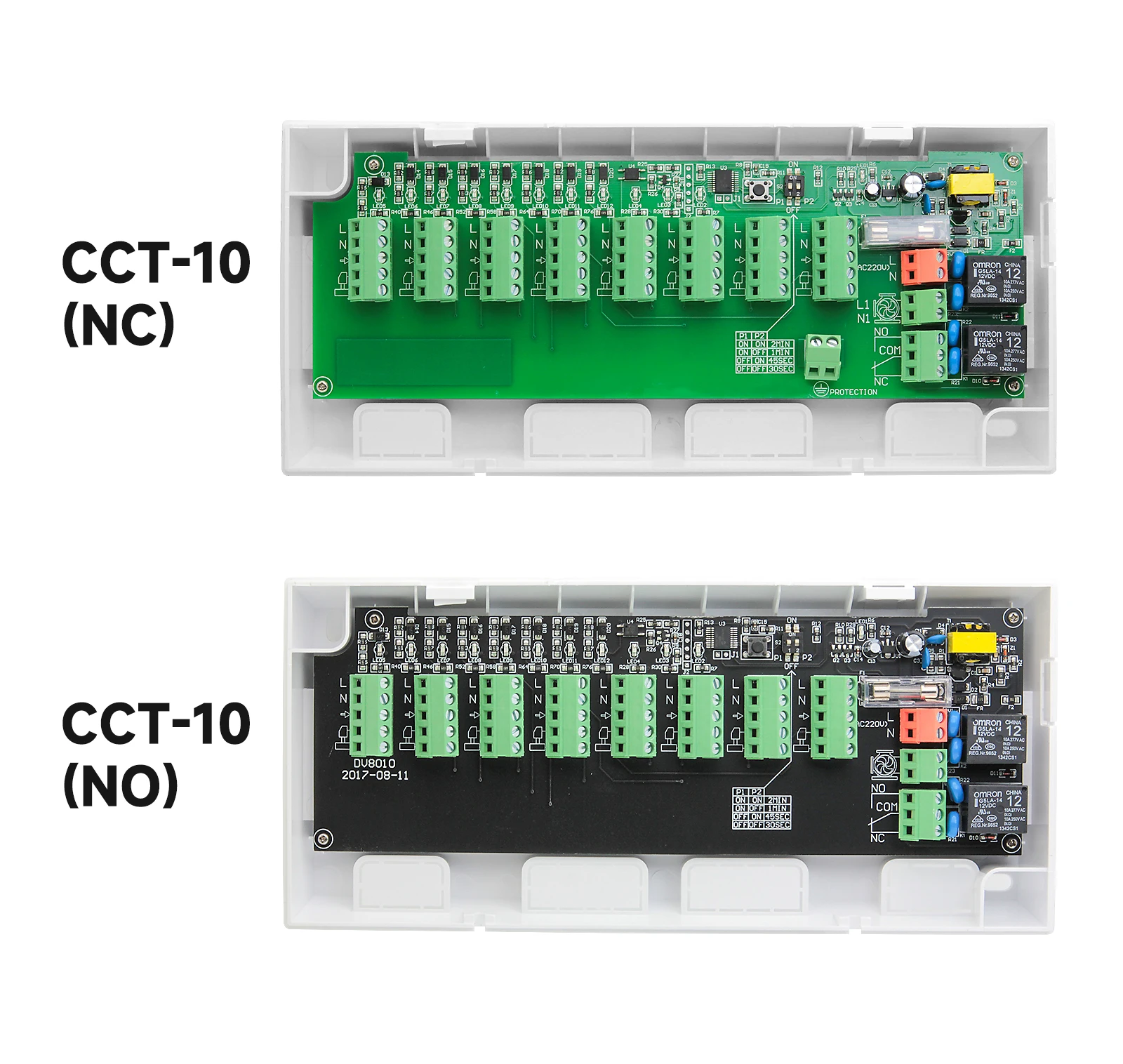

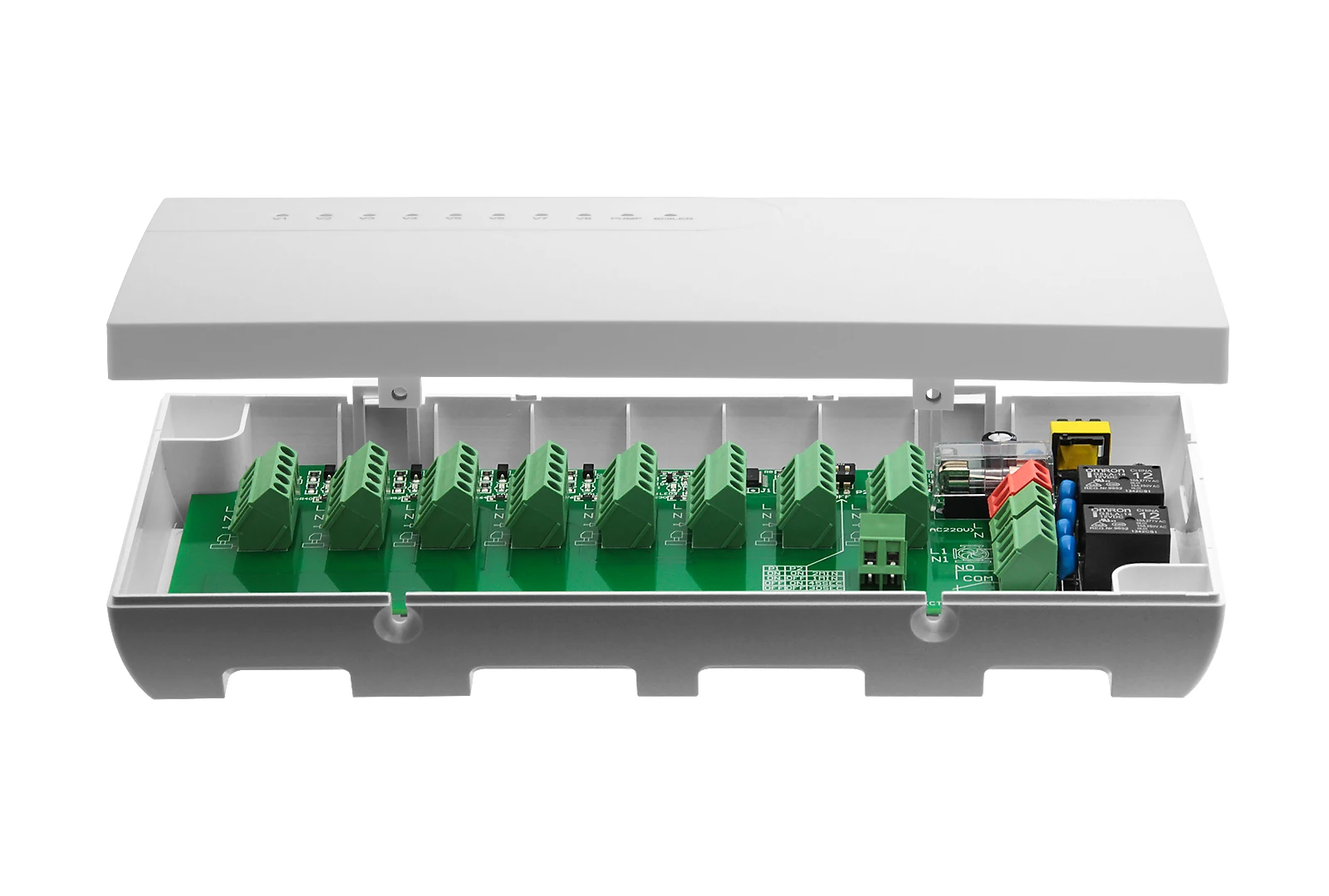

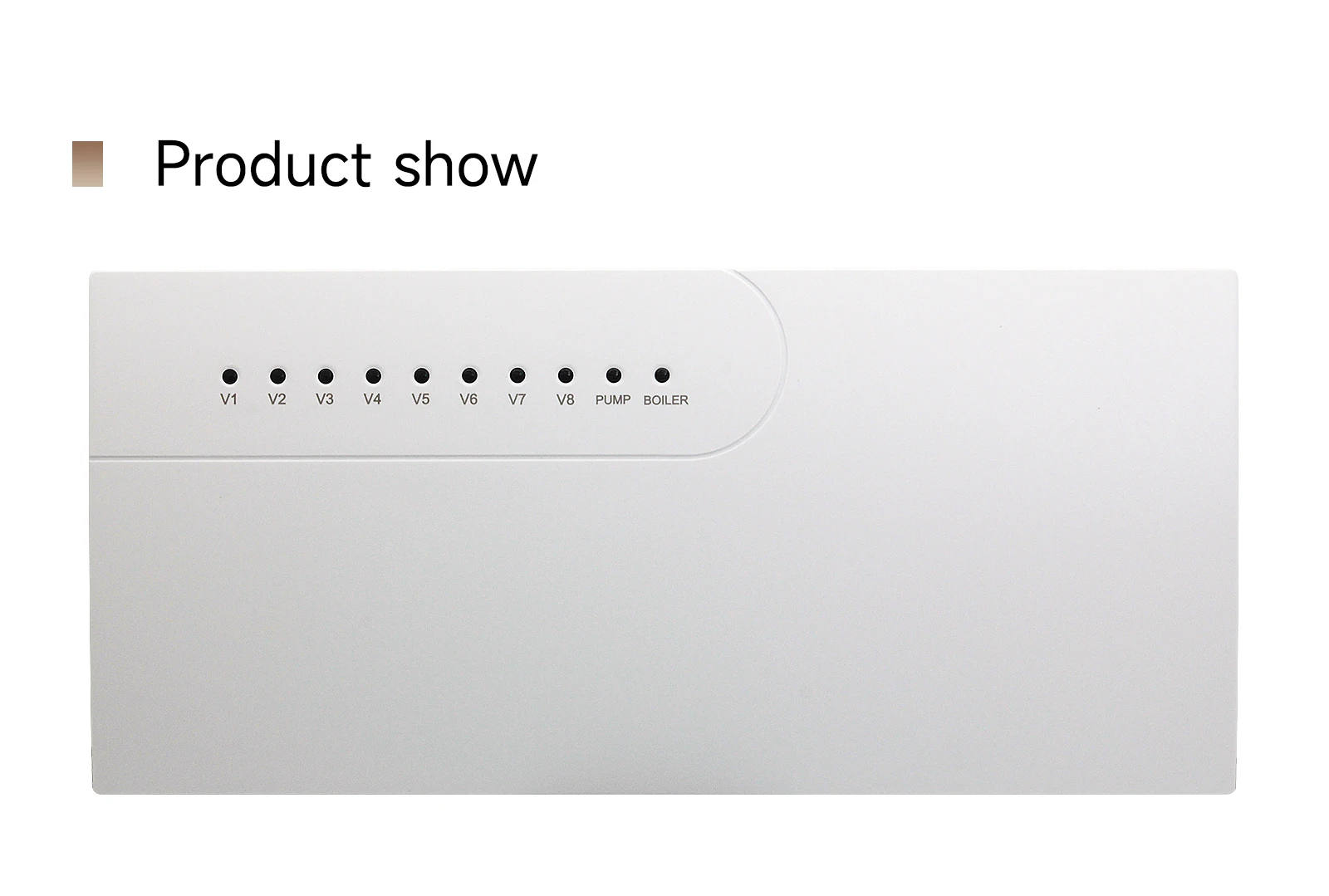

Details Images
