China manufacturing galvanized steel cable tray making punching machine
- Category: >>>
- Supplier: Henan Fantai Machinery Equipment Co. Ltd.
Share on (1600995378367):
Product Overview
Description
Product Description
Cable Tray Roll Forming Machine

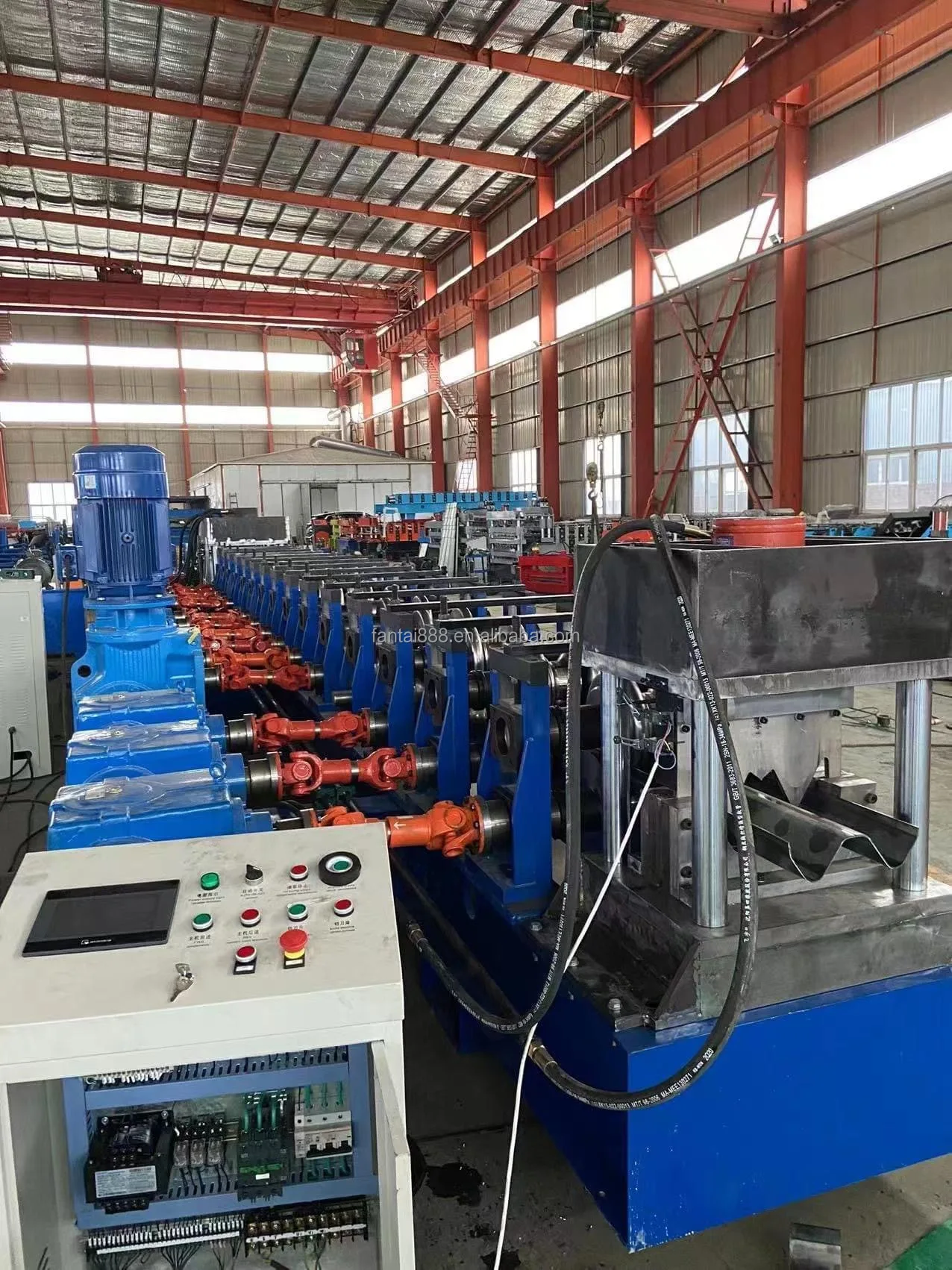

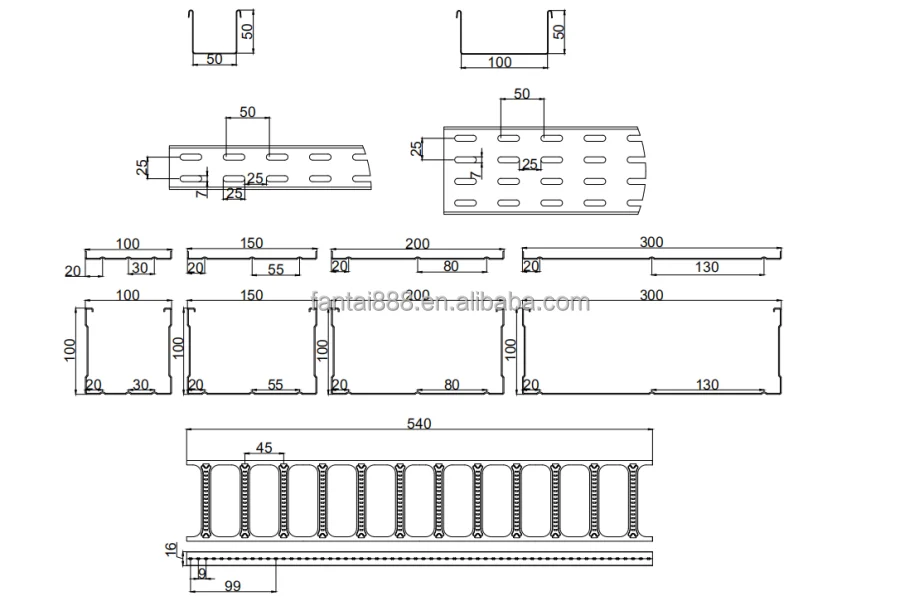

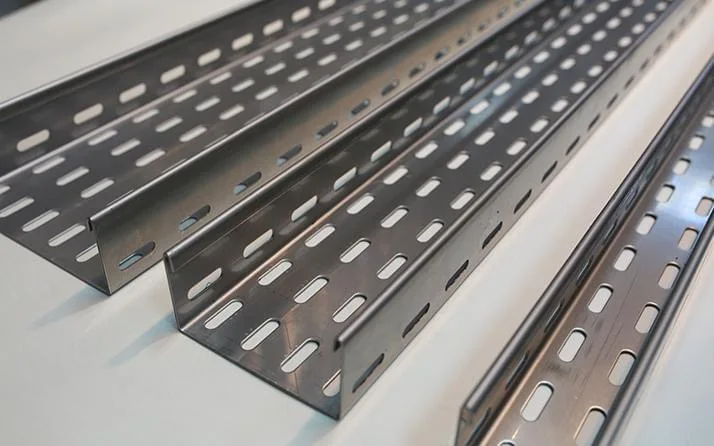

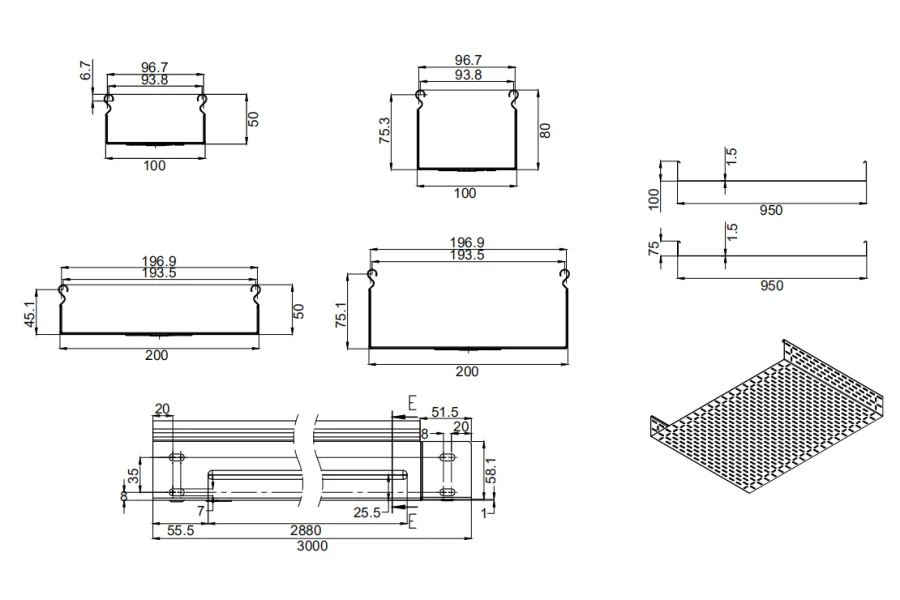

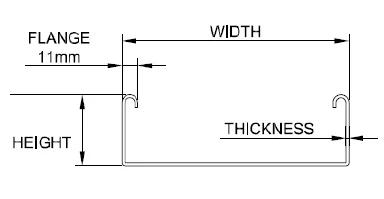

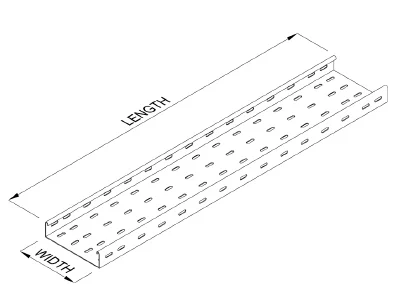

Cable tray roll forming machine is commonly used for cable management in commercial and industrial construction. This intelligent roll former could produce different types of cable trays like Solid bottom cable tray, Trough cable tray, Channel cable tray, Perforated cable tray, Non-perforated cable tray, and Trunking cable tray, etc. with different raw materials: hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel, and aluminum. The thickness range of material is 0.6mm-1.2mm or 1-2mm. You could set up 5-30 different lengths for cable tray. Our roll forming machine could produce a wide range of sizes and automatically change by motors from one size to the other not only at width but also at height. The only step is to put your required data into our touch screen and wait for a few seconds. And otherwise innovation is that one machine could make cable trays and covers of the corresponding size. Change time is only 30 minutes, easy to operate, low-cost and save area.
We make different solutions according to customers’ drawing, tolerance, and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Fantai will ensure you obtain perfectly functional profiles. In Electrical Industries, we are able to manufacture more machines like cable tray roll forming machine, DIN rail roll forming machine and electric box roll forming machine, etc.
Structure of Cable Tray Roll Forming Machine

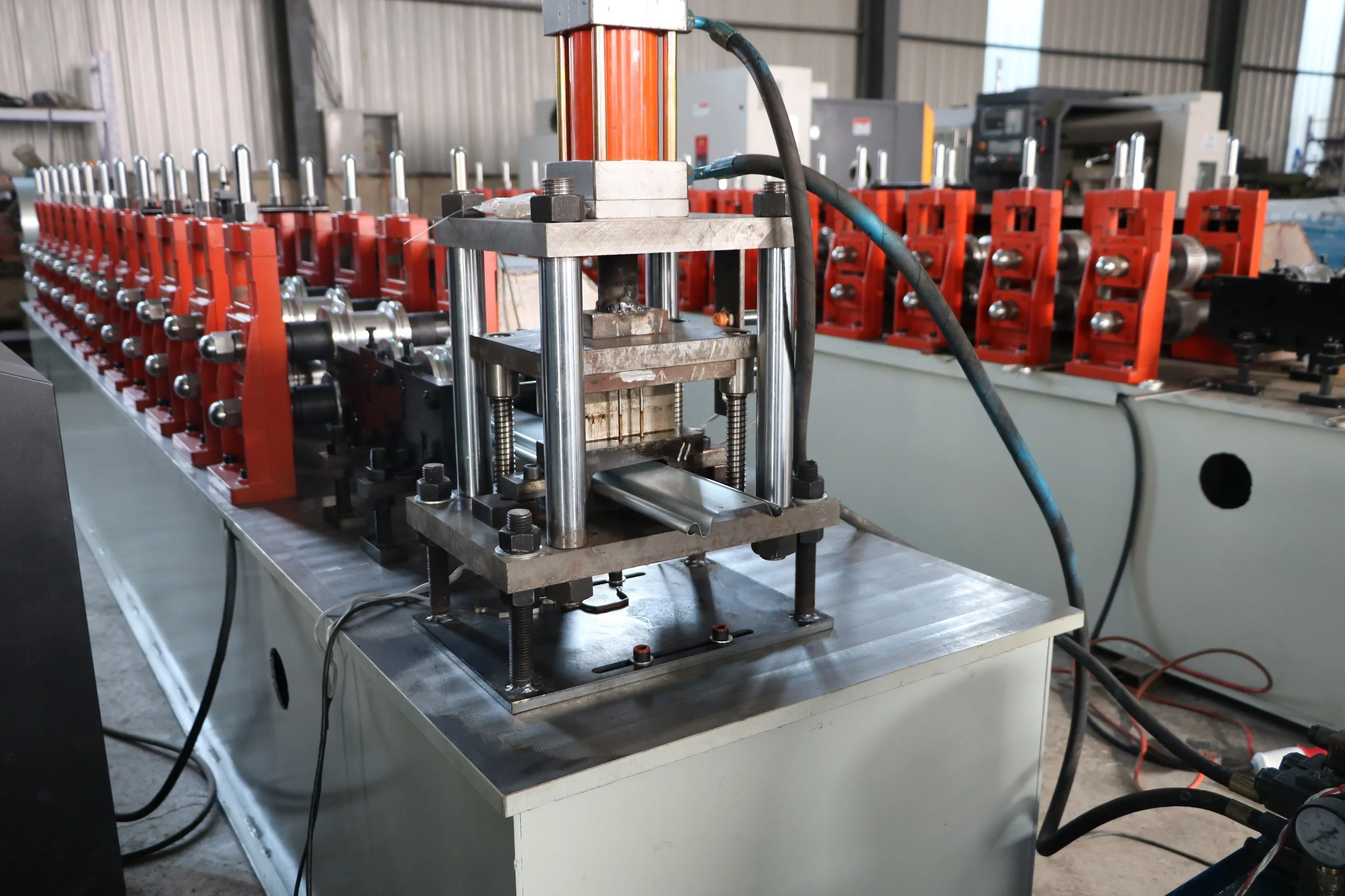

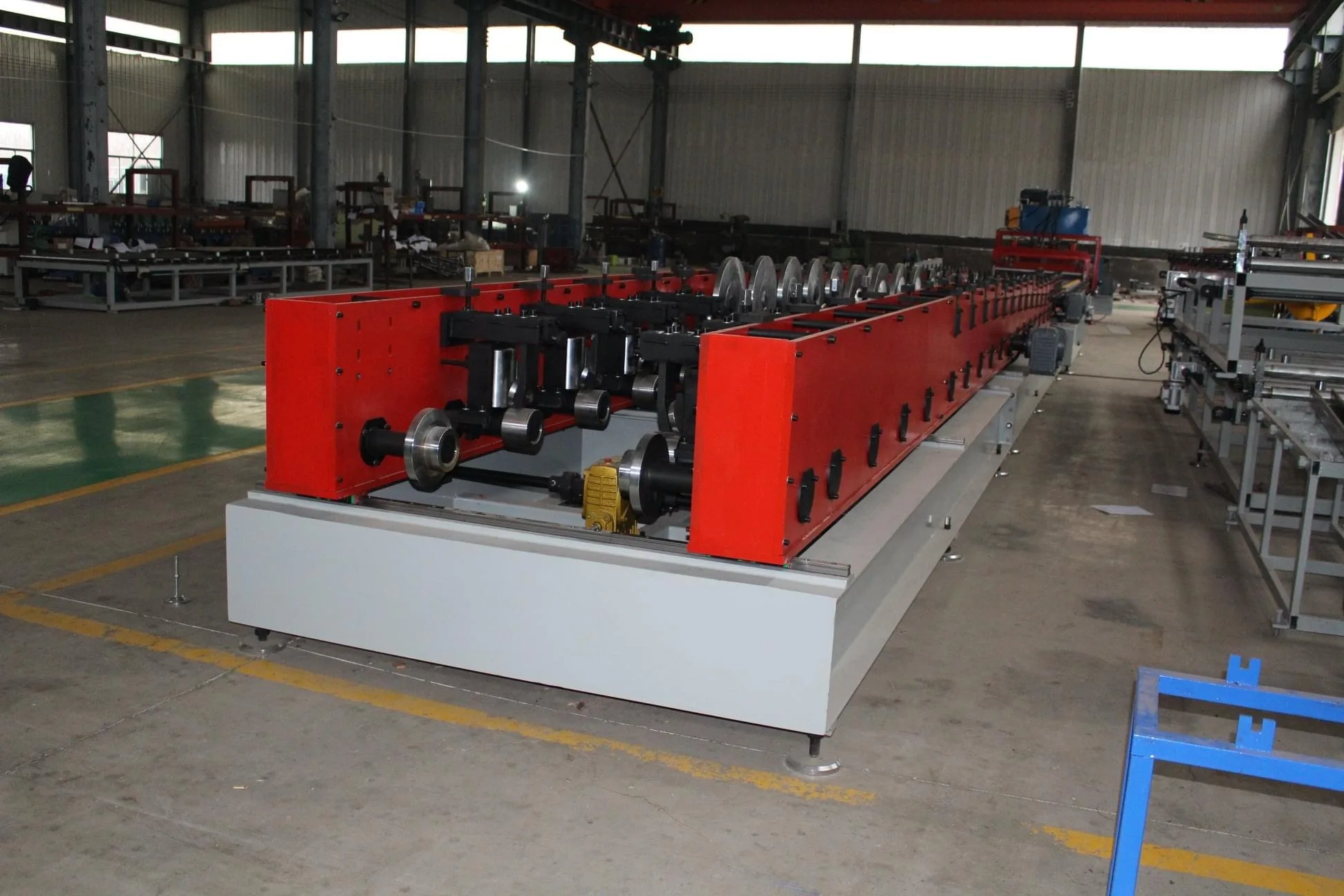

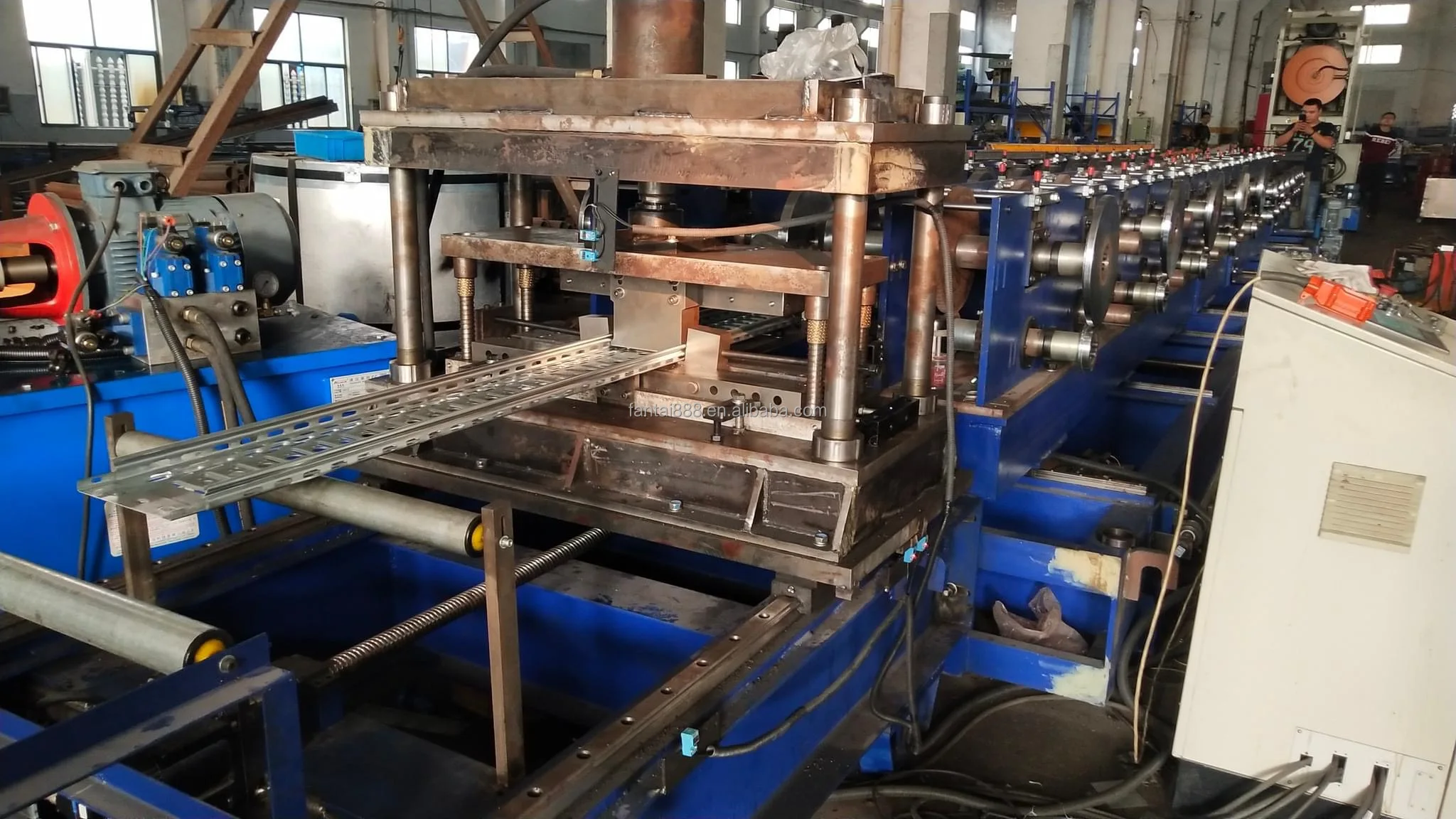

Cable Tray Roll Forming Machine consists of 8 tons uncoiler with servo feeding system, straighten device, high-speed punching machine, forming machine with the individual station, gearbox drive transmission, hydraulic cutter, electric controller, and stacker.
Specification
Main Technical Data of Cable Tray Roll Forming Machine
Product Name | Item | Description |
Cable Tray Roll Forming Machine | Production Material | Thickness 1.0-2.0mm, structural steel cold rolled or hot rolledor aluminum |
Forming speed | 15 m/min | |
Number of stations | 15 stations | |
Number of straightening rollers | 7 rollers | |
Number of delivering stations | 2 stations | |
Main motor power | 15.0KW | |
Power of hydraulic station | 5.5 KW | |
Roller material | GCr15 with heat treatment and hard chrome-plated HRC58-62 | |
Shaft diameter | 80mm | |
Shaft material | JIS S45Csteel quenched and tempered after finishing treatment | |
Servo motor power for delivering | 3.0KW | |
Punching machine capacity | 100-200T (depending on real needs) | |
Punching system | High-speed punching automatically with servo feeding system | |
Electronic controlling system | Full-frequency PLC controlling system, error of cutting length ≤ 2mm | |
Cutting | Hydraulic cutting after formed | |
Warranty | 1 Year | |
Key Selling Points | High Safety Level | |
Product name | China manufacturing galvanized steel cable tray roll forming making machine | |
Usage | Construction Building Material | |
Raw material | PPGI PPGL GI GL | |
Cutting blade material | Cr 12 High Grade Steel | |
Roller station | 12 Stations | |
Cutting type | Automatic Hydraulic Cutting | |
Way of cutting | Hydraulic Mould Cutting(flying Cut | |
Suitable to process | Glazed Steel Coil | |
Color | Client's Request | |
Decoiler | 5 Ton Manual |
Other design for common using
DETAILS IMAGES
PLC FOR TILE MAKING MACHINE
ENGLISH, CHINESE, SPANISH, ALL DIFFERENT LANGUAGE FOR US IS OK FOR YOU. JUST SHARE WITH US IS OK.

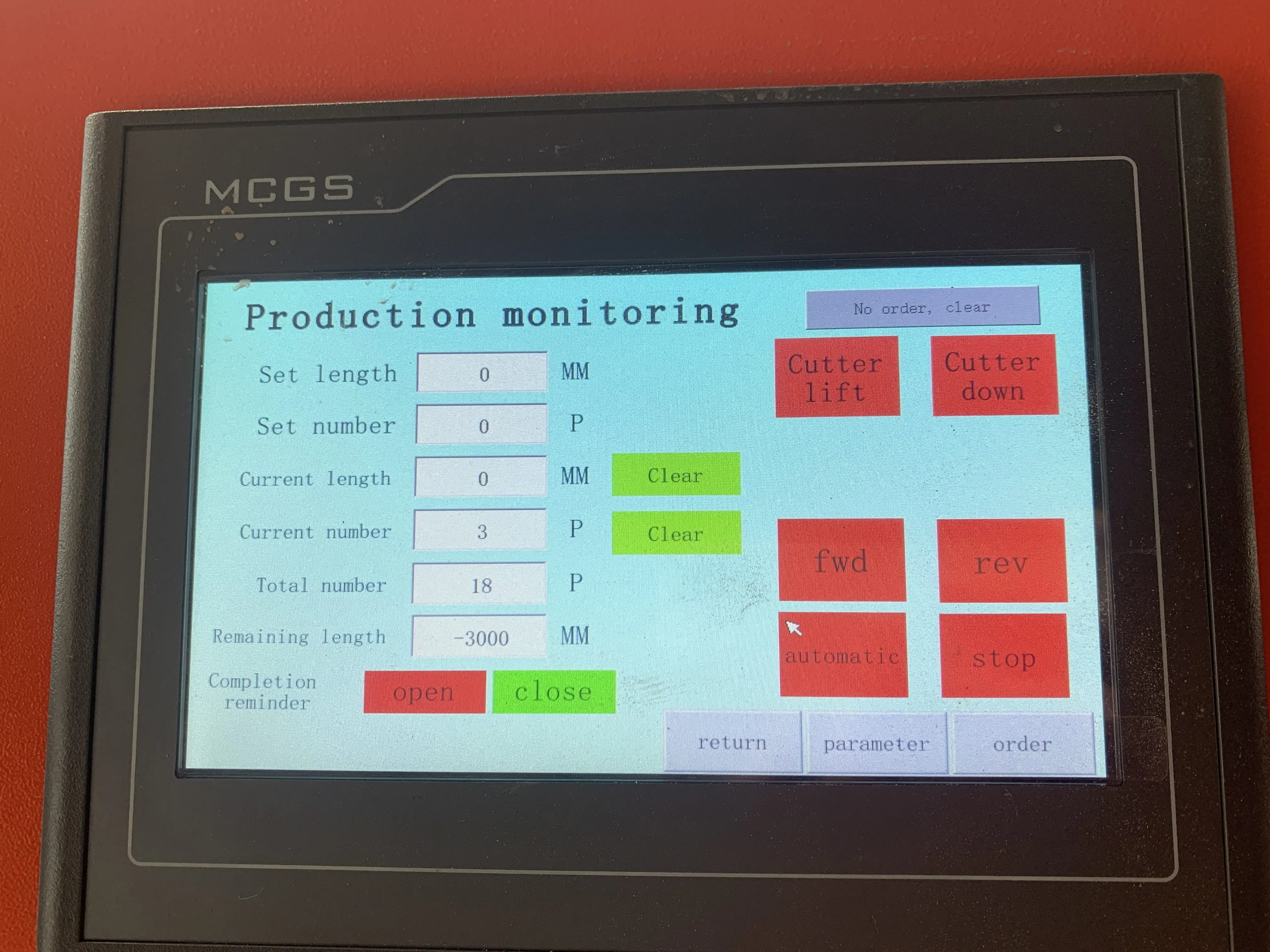

WITH TOUCH SCREEN, MORE CONVENIENT FOR YOU SETTLE THE NUMBER AND USING IN FUTURE.
MACHINE FRAME FOR TILE MAKING MACHINE
H-beam and welded pipe
More thickness plate to make sure machine using for long time.
More thickness plate to make sure machine using for long time.

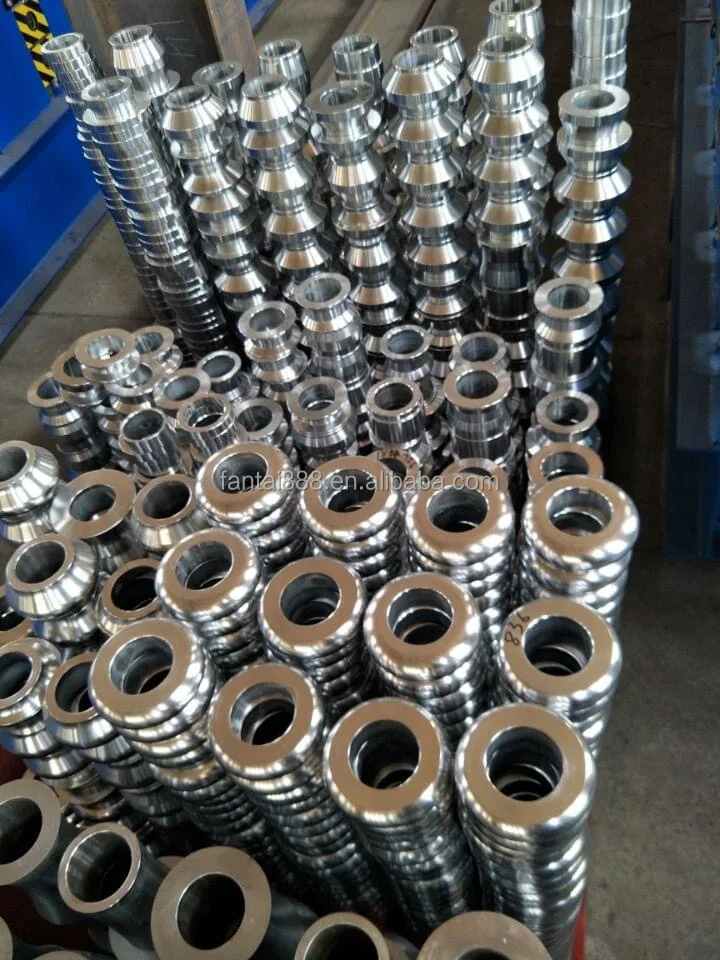

FORMING ROLLERS FOR TILE MAKING MACHINE
Drive mode: 1inch chain
Sidewall:14mm 45# steel plate
Material of rollers: 45# forging steel
Material of shafts: 45# steel with finish turning
Diameter of shafts: φ70mm
Sidewall:14mm 45# steel plate
Material of rollers: 45# forging steel
Material of shafts: 45# steel with finish turning
Diameter of shafts: φ70mm
MOTORS FOR TILE MAKING MACHINE
WITH POWERFUL MORTOR FOR THE MACHINE, SO CONFIRMED IT CAN DRIVEN MORE FASTER.
PUMP FOR TILE MAKING MACHINE
JUST ADD 48# OIL IS OK, IT IS VERY CONVENIENT FOR USING, AND CAN USING FOR OVER 12- 15 DAYS ONE TIMES.
FINISHED PANEL FOR TILE MAKING MACHINE
TILE MAKING MACHINE
ALL WILL BE TESTED BEFORE SHIPPING, WE WILL SHARE DETAILS TESTING PIC AND VIDEO TO YOU, ALSO MEASURE THE PANEL DETAILS SIZE FOR YOU, SO NO WORRIES.
Packing & Delivery
Cable Tray Roll Forming Machine usually shipping by container ,which make sure delivery safty.
Company Profile
Henan Fantai Machinery Equipment Co. Ltd, is a supplier of machinery.We have exported more than 100countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc . Our products provide customer more convenient in their business and expect to have more cooperate in future.What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
FAQ
1. What kinds of experience do you have in producing cable tray roll forming machine?
We have exported cable tray production line to Russia, Australia, Argentina, Malaysia, Indonesia. We have produced perforated cable tray, CT cable tray, ladder cable tray and etc. We are confident to solve your cable tray problem.
2. Can I just use one line to produce cable tray and tray cover?
Yes, you definitely can use one line to produce cable tray and tray cover. The change operation is simple, you can complete it in half an hour. In this way, this will greatly reduce your cost and time.
3. What is delivery time of cable tray machine?
60 days depends on your drawing.
4. What is your machine speed?
Machine’s working speed depends on drawing specially punch drawing. Normally forming speed is around 20m/min. Please send us your drawing and let us know your required speed, we would customize it for you.
5. How could you control your machine’s precision and quality?
Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.
6. What is your after-sales service system?
We don’t hesitate to give you a two-years warranty period for whole lines, five years for motor: If there will be any quality
problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.
We have exported cable tray production line to Russia, Australia, Argentina, Malaysia, Indonesia. We have produced perforated cable tray, CT cable tray, ladder cable tray and etc. We are confident to solve your cable tray problem.
2. Can I just use one line to produce cable tray and tray cover?
Yes, you definitely can use one line to produce cable tray and tray cover. The change operation is simple, you can complete it in half an hour. In this way, this will greatly reduce your cost and time.
3. What is delivery time of cable tray machine?
60 days depends on your drawing.
4. What is your machine speed?
Machine’s working speed depends on drawing specially punch drawing. Normally forming speed is around 20m/min. Please send us your drawing and let us know your required speed, we would customize it for you.
5. How could you control your machine’s precision and quality?
Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.
6. What is your after-sales service system?
We don’t hesitate to give you a two-years warranty period for whole lines, five years for motor: If there will be any quality
problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.
