Tobee Effluent Handling
$12,600
Horizontal vfd inverter controlled High efficiency integrated constant pressure multistage water booster pumps
- Category: >>>
- Supplier: Shanghai Pumping Tech International Co. Ltd.Shanghai Ltd.
Share on (1600995379134):
Product Overview
Description
Product Description
Pump operating conditions:
*Pumping liquids which are thin, clean, non-flammable, non-combustible or non-explosive liquids, not containing solid particles or fibers.
*Maximum ambient temperature: +40 °C
*Maximum altitude above sea level: 1000 m
*Maximum ambient temperature: +40 °C
*Maximum altitude above sea level: 1000 m
Liquid temperature：
Normal temperature pump: -15°C to +70°C
Hot temperature pump: -15°C to +105°C
Hot temperature pump: -15°C to +105°C
Motor：
*Totally enclosed, fan-cooled, 2-pole standard motors
* Enclosure class: IP55
* Insulation class: F
* Voltage: 3x220-240/380-415V 1x220-240V
available with single-phase motors(0.37kW-2.2kW)
* Enclosure class: IP55
* Insulation class: F
* Voltage: 3x220-240/380-415V 1x220-240V
available with single-phase motors(0.37kW-2.2kW)
Pump material
Cast iron
Stainless steel(AISI304, AISI316)
Duplex stainless steel(2205)
Stainless steel(AISI304, AISI316)
Duplex stainless steel(2205)
Pipe connection：G-Thread

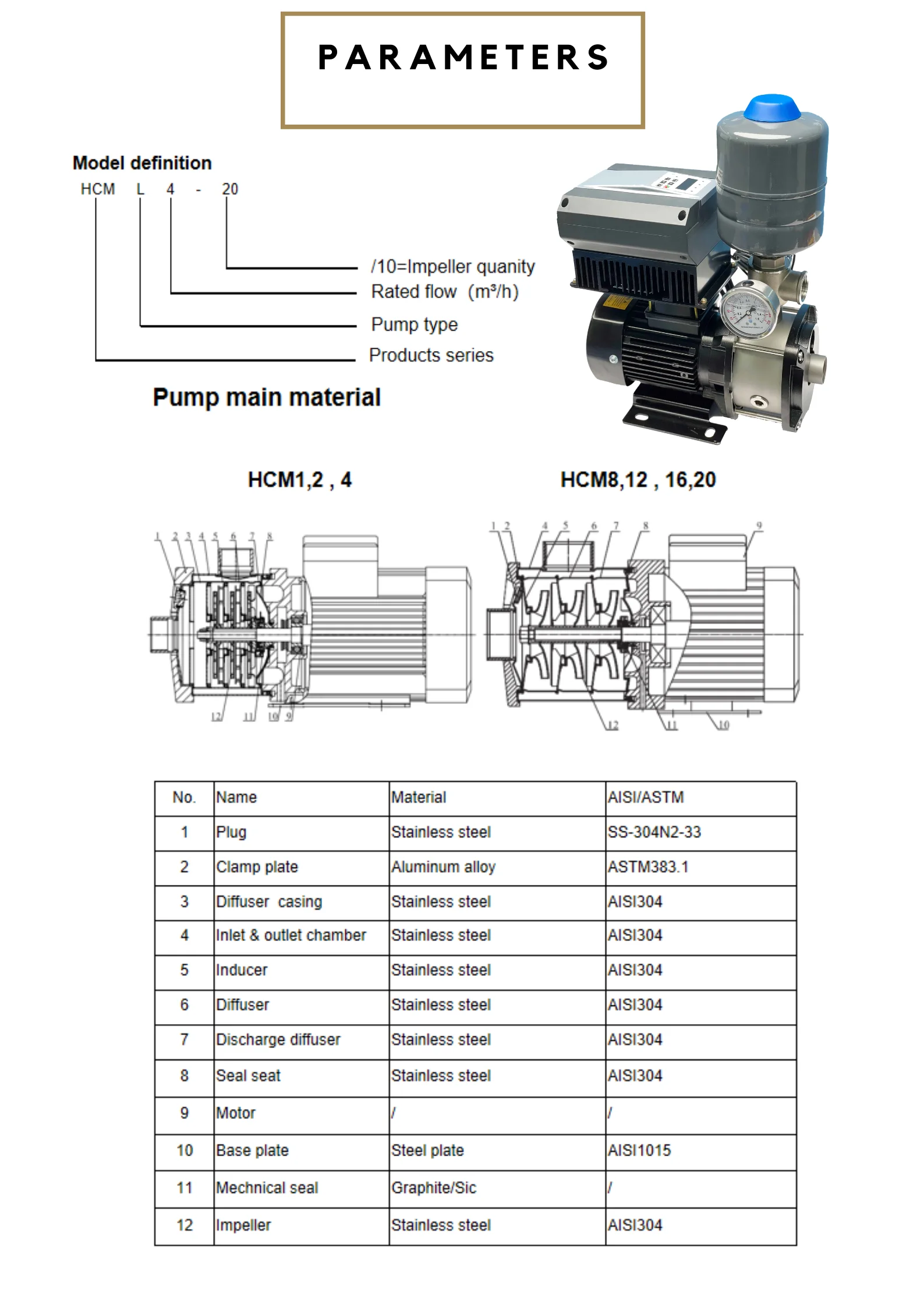

Specification
Component | Construction |
Pump body | Cast iron |
Pump support | Cast iron |
Structure | Single-stage pump |
Voltage | AC 220V±15% /50Hz-60Hz |
Motor housing | Aluminum |
Impeller | AISI304 |
Motor shaft | Carbon steel, AISI304 SS if request |
Mechanical seal | SIC/Graphite |
Bearings | 6201RZ/6201RZ (0.15HP&0.5HP) 6202RZ/6202RZ (0.75HP&1HP) |
Pump | Single-phase,220V/50Hz, 60Hz if request |
Inverter | Single-phase input,Three-phase output |
Company Profile
Our factory
Mission
With constantly innovating and developing, brands that go out of China are no longer inferior to other international mega brands.
We simplify the complexity and push the best to the world. We aim number one.
We simplify the complexity and push the best to the world. We aim number one.
Certifications
Payment and shipping
FAQ
Q:Can you accept customized products?
A:Yes,of course. We provided OEM and ODM services for some internationally top brands.
Q:What’s the terms of payment?
A1:For OEM Orders, we accept 30% deposit,and 70% when goods ready to ship.
A2:For Ready to Ship In- Stock items, we need full payment paid before shipping.
Q : What's the different between inverter and solar inverter?
A:Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept DC input, it can save more power,but they cannot be used as battery.
Q: What should be noticed when installing inverter?
A:Put the product in a place where is well ventilate,cool, dry and water-proof. Do not stress or put foreign objects into the
inverter. Remember to turn on the inverter before turn on the appliance.
Q: Do we need to set the parameter before using ?
A:No need for Solar inverter , our preset parameters have already meet your normal use. And our inverter is AI intelligent
working.
Pump Variable frequency driver need set the target pressure and RS485 communication for multi-pumps.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
Q:what kind of product quality your factory offer?
A:We offer the most competitive prices with best quality.
Q:Can you give me a discount?
A:We mainly do wholesale service,our discount is based on your order quantity.
Q:What is your main market?
A:Our brands are well known in Russia,Europe, Africa, Middle East, Southeast Asia and South America,etc.
Q:What's the cargo ready time?
A: If less than 100 pcs, the delivery is 15 days after the receipt of the payment. If more than 100 pcs, please contact us with more details.
A:Yes,of course. We provided OEM and ODM services for some internationally top brands.
Q:What’s the terms of payment?
A1:For OEM Orders, we accept 30% deposit,and 70% when goods ready to ship.
A2:For Ready to Ship In- Stock items, we need full payment paid before shipping.
Q : What's the different between inverter and solar inverter?
A:Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept DC input, it can save more power,but they cannot be used as battery.
Q: What should be noticed when installing inverter?
A:Put the product in a place where is well ventilate,cool, dry and water-proof. Do not stress or put foreign objects into the
inverter. Remember to turn on the inverter before turn on the appliance.
Q: Do we need to set the parameter before using ?
A:No need for Solar inverter , our preset parameters have already meet your normal use. And our inverter is AI intelligent
working.
Pump Variable frequency driver need set the target pressure and RS485 communication for multi-pumps.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
Q:what kind of product quality your factory offer?
A:We offer the most competitive prices with best quality.
Q:Can you give me a discount?
A:We mainly do wholesale service,our discount is based on your order quantity.
Q:What is your main market?
A:Our brands are well known in Russia,Europe, Africa, Middle East, Southeast Asia and South America,etc.
Q:What's the cargo ready time?
A: If less than 100 pcs, the delivery is 15 days after the receipt of the payment. If more than 100 pcs, please contact us with more details.
