New DMK 200W 300W 500W 1000W MOPA Pulse Fiber Laser Cleaner Laser Cleaning Machine for Rust Paint
- Category: >>>
- Supplier: Wuhan Xionghao Electronics Technology Co. Ltd.
Share on (1600995432460):
Product Overview
Description
Product Description
100W/200W:28KG 300W:56KG 500/1000W:120KG

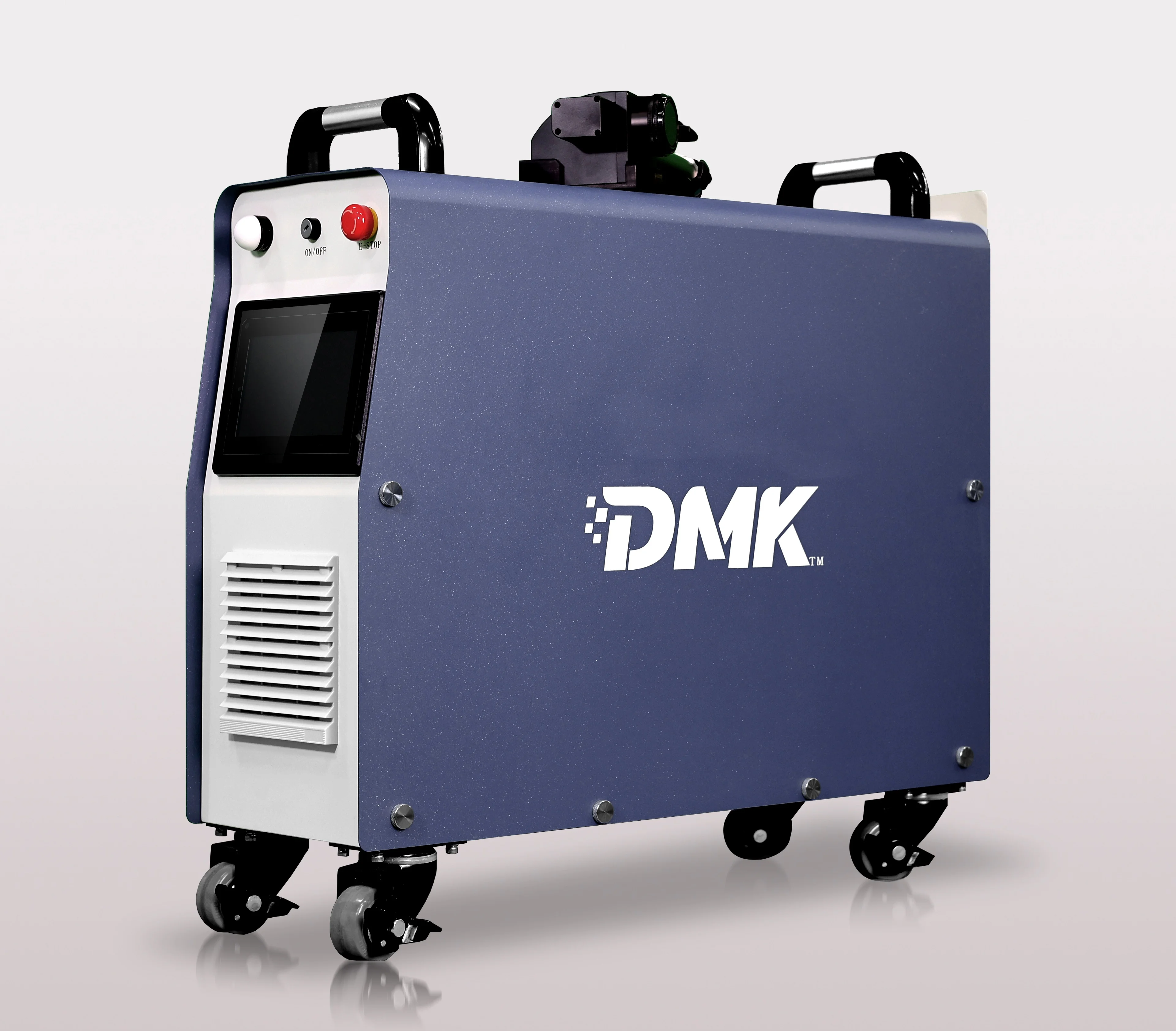

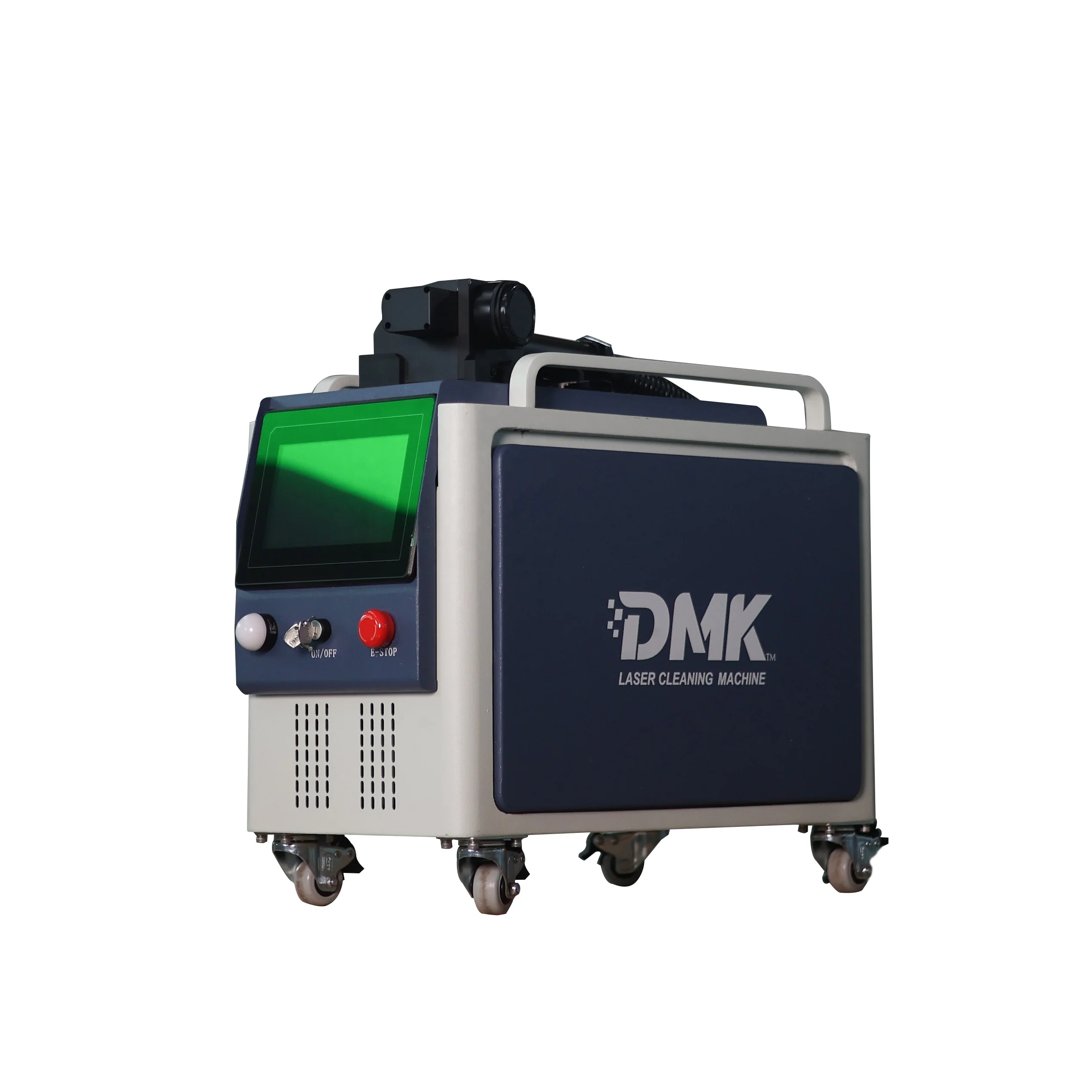

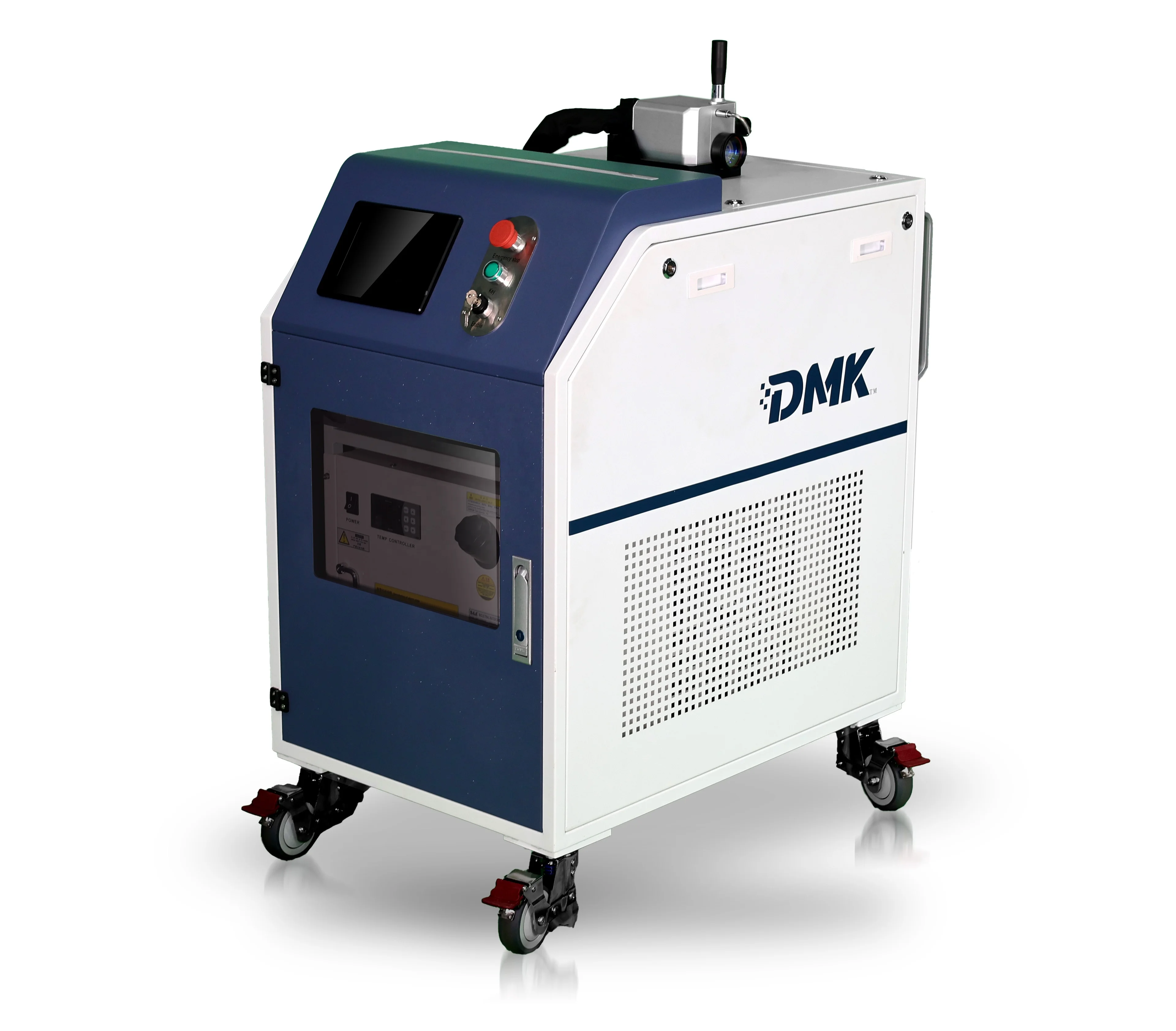

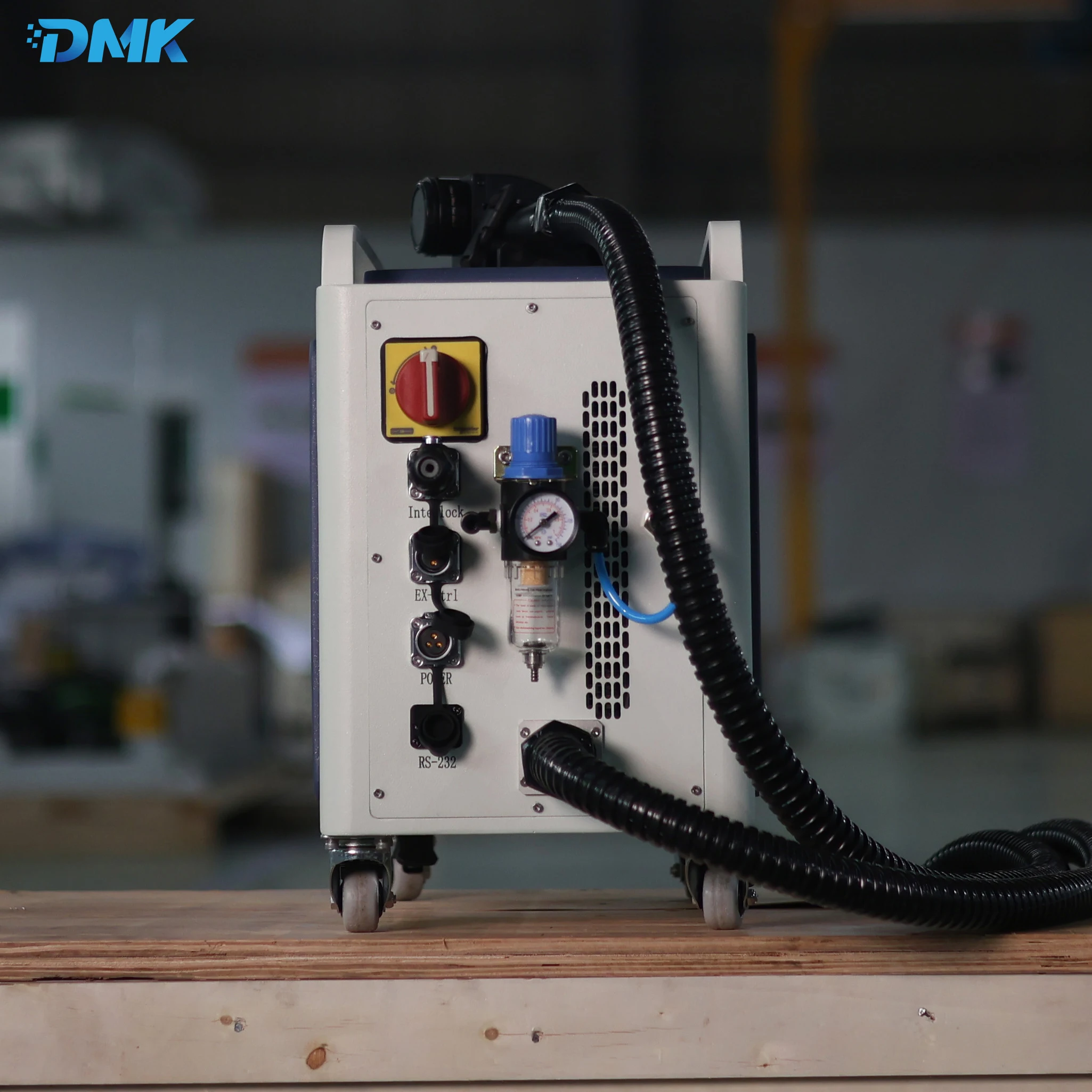

100W/200W/300W/500W handheld nanosecond pulsed fiber laser cleaning system. The equipment adopts the integrated design of water cooling and laser, and the transportation process is very convenient. Turn on the power, take out the laser head from the storage cabinet,and select the appropriate cleaning mode to achieve cleaning.

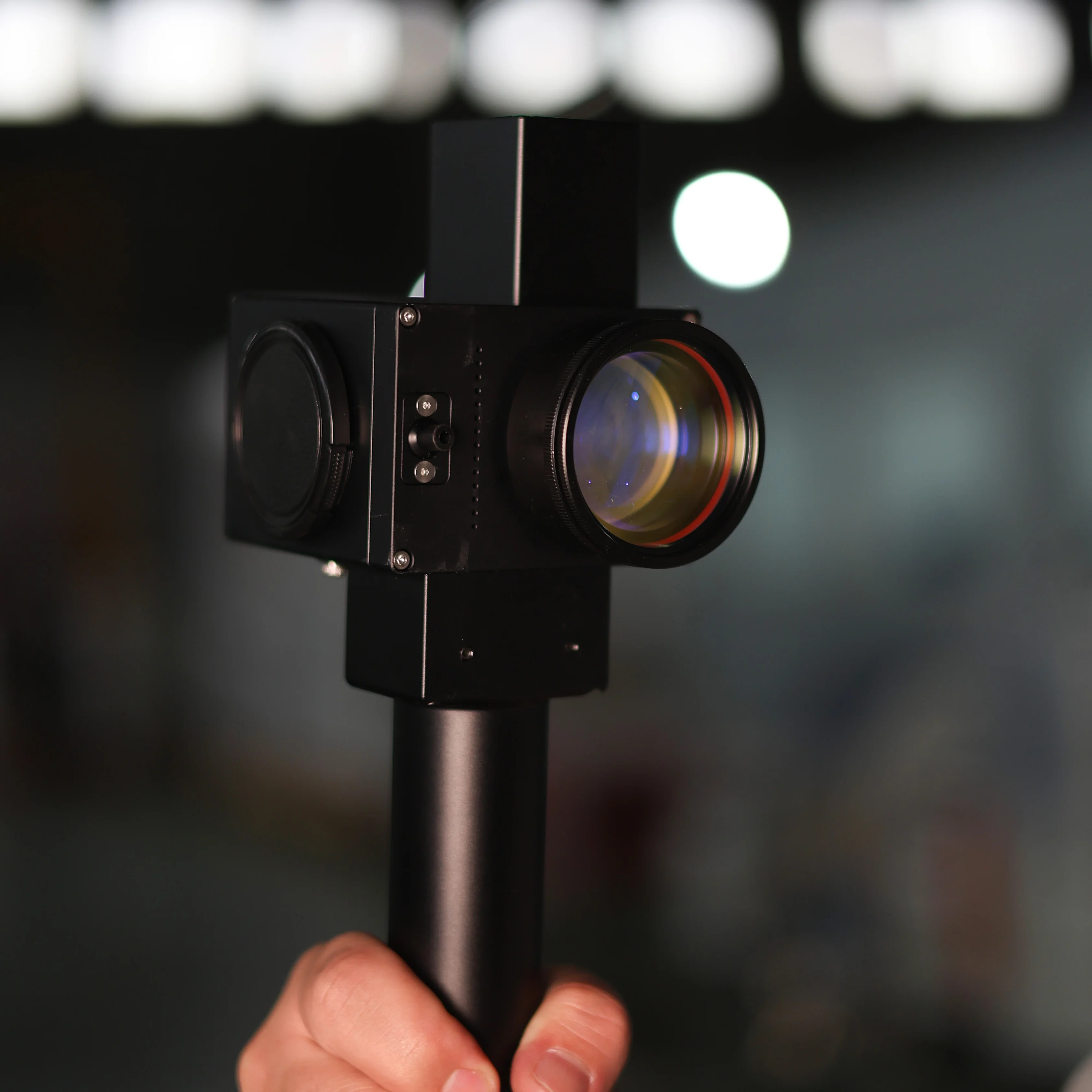

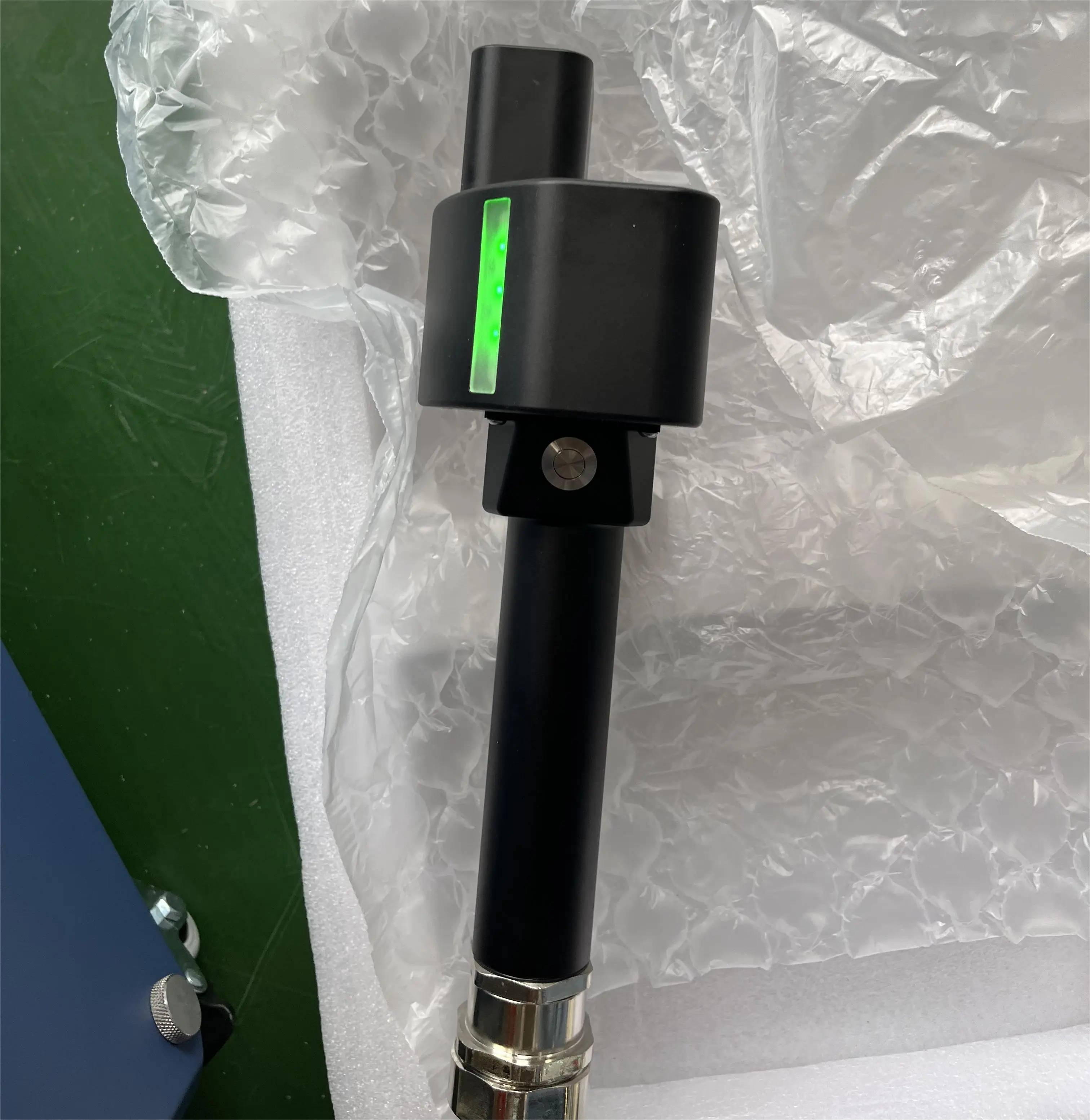

The laser head is small and light, weighing less than 1.2kg, equipped with auxiliary brackets and dust-proof protective mirrors,and can be widely used in various hand-held cleaning scenes. The laser beam quality of this equipment is high, which can easily meet various high-precision cleaning requirements.
The laser head is small and light, weighing less than 1.2kg, equipped with auxiliary brackets and dust-proof protective mirrors,and can be widely used in various hand-held cleaning scenes. The laser beam quality of this equipment is high, which can easily meet various high-precision cleaning requirements.
Production Specification
Dual galvanometer laser cleaning head

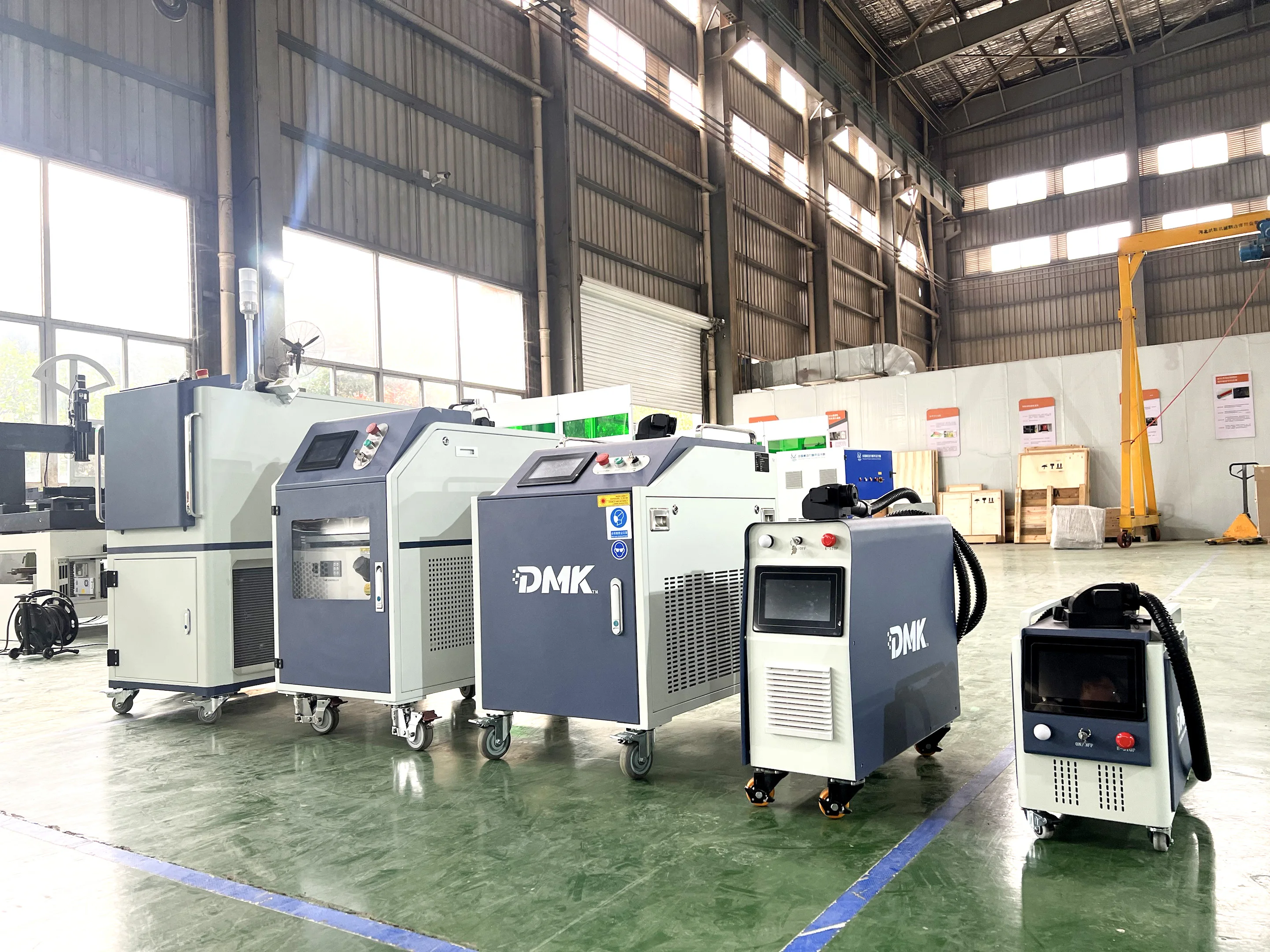

Mass production in physical factory, fast delivery
source, the quality is stable and reliable

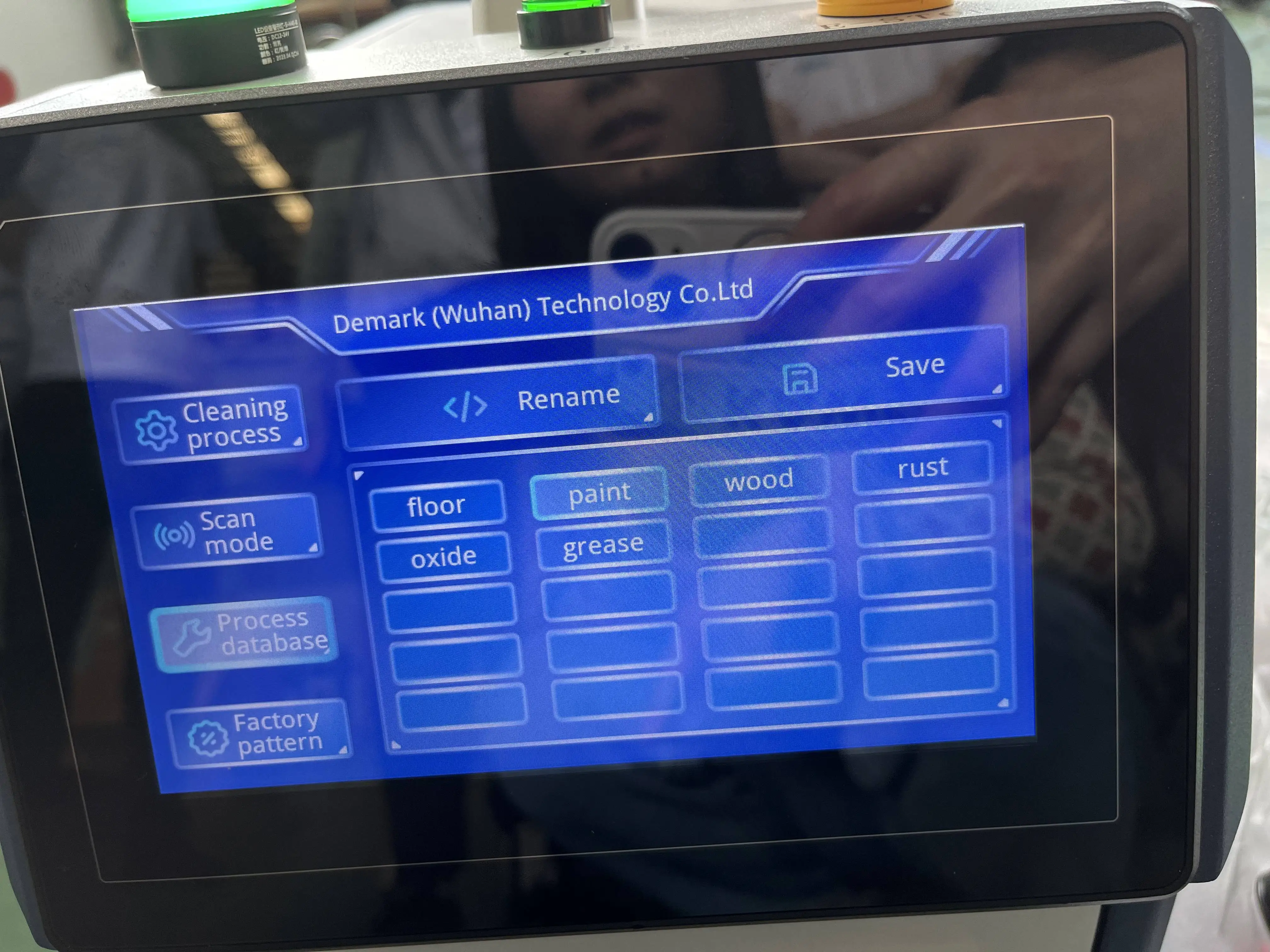

The cleaning head and machine process database have been upgraded based on customer feedback, making overseas customers more worry-free and simpler to operate.
Technical Parameters
Model | DPL-200 | DPL-300 |
Average power | 200w | 300w |
Scan width | 10- 200mm | 10- 200mm |
Corrosion(50um) | 12m2/h | 18m2/h |
Pulse frequency | 10-50KHZ | 10-50KHZ |
Pulse length | 90-130ns | 90-130ns |
Maximum single pulse energy | 1.5/5MJ | 1.5/5/12.5MJ |
Oil(50um) | 15m2/h | 18m2/h |
Paint(50um) | 11m2/h | 14.6m2/h |
Cooling | air- cooling | Water cooling |
Rated voltage | 220V | 220V |
Equipment weight | 56KG | 120KG |
Dimension | 960*380*900mm | 1020*670*1270mm |
Cable length | 5/10M | 5/10M |
Product Applications
Packing & Delivery
Contact Us
Company Profile
Wuhan Xionghao Electronics Technology Co.,Ltd has focused on laser technology for over 20 years in China, including laser marking, laser cleaning, laser welding and laser cutting applications. We started as a small operation, but now have become one of the leading suppliers in the laser industry in China.
Today, Wuhan Xionghao Electronics Technology Co.,Ltd has been one of the top manufacturers of laser machine and laser equipment parts, such as: laser marking machine, laser cleaning machine, laser welding machine and laser cutting machine.
Today, Wuhan Xionghao Electronics Technology Co.,Ltd has been one of the top manufacturers of laser machine and laser equipment parts, such as: laser marking machine, laser cleaning machine, laser welding machine and laser cutting machine.
