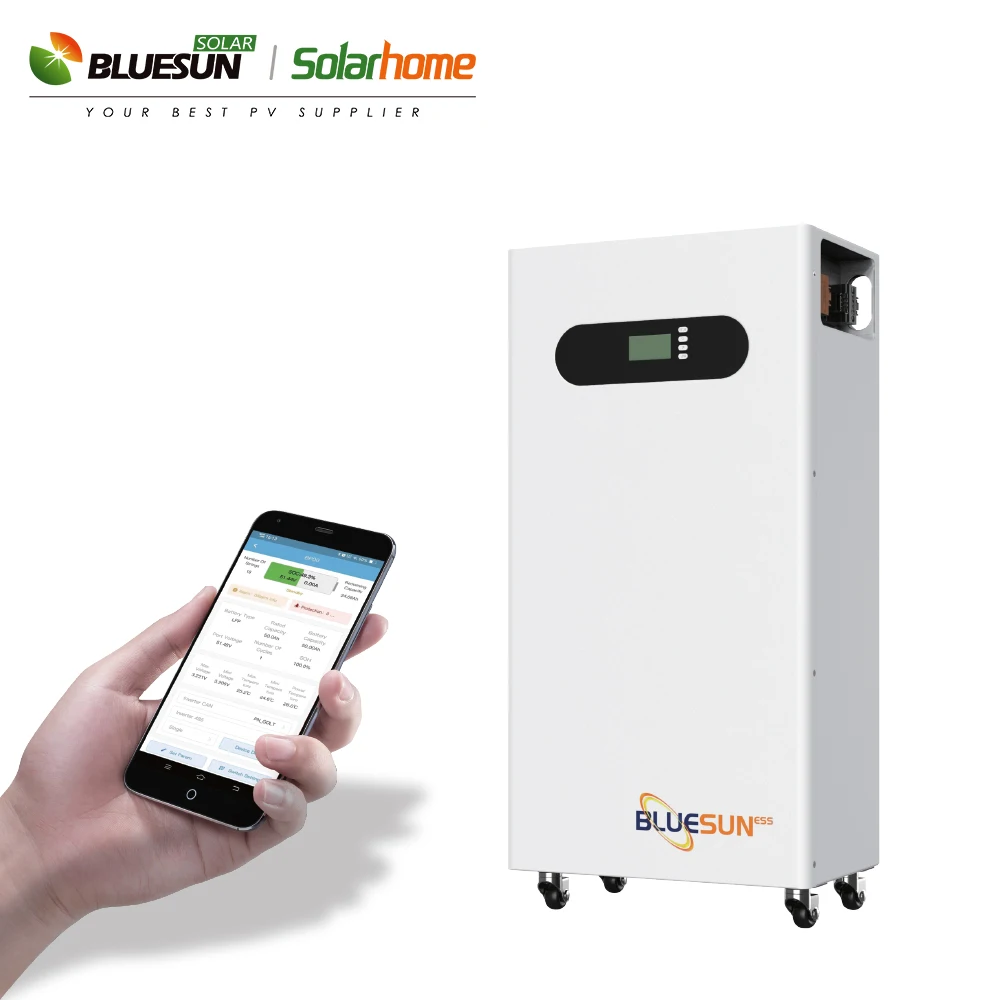

Low voltage best price 10kwh 20kwh 48 volt lithium battery solar storage 51.2V 280ah lithium battery 48v 400ah 300ah 280ah
- Category: >>>
- Supplier: Bluesun Ess Co. Ltd.
Share on (1600995453021):
Product Overview
Description
Product Description

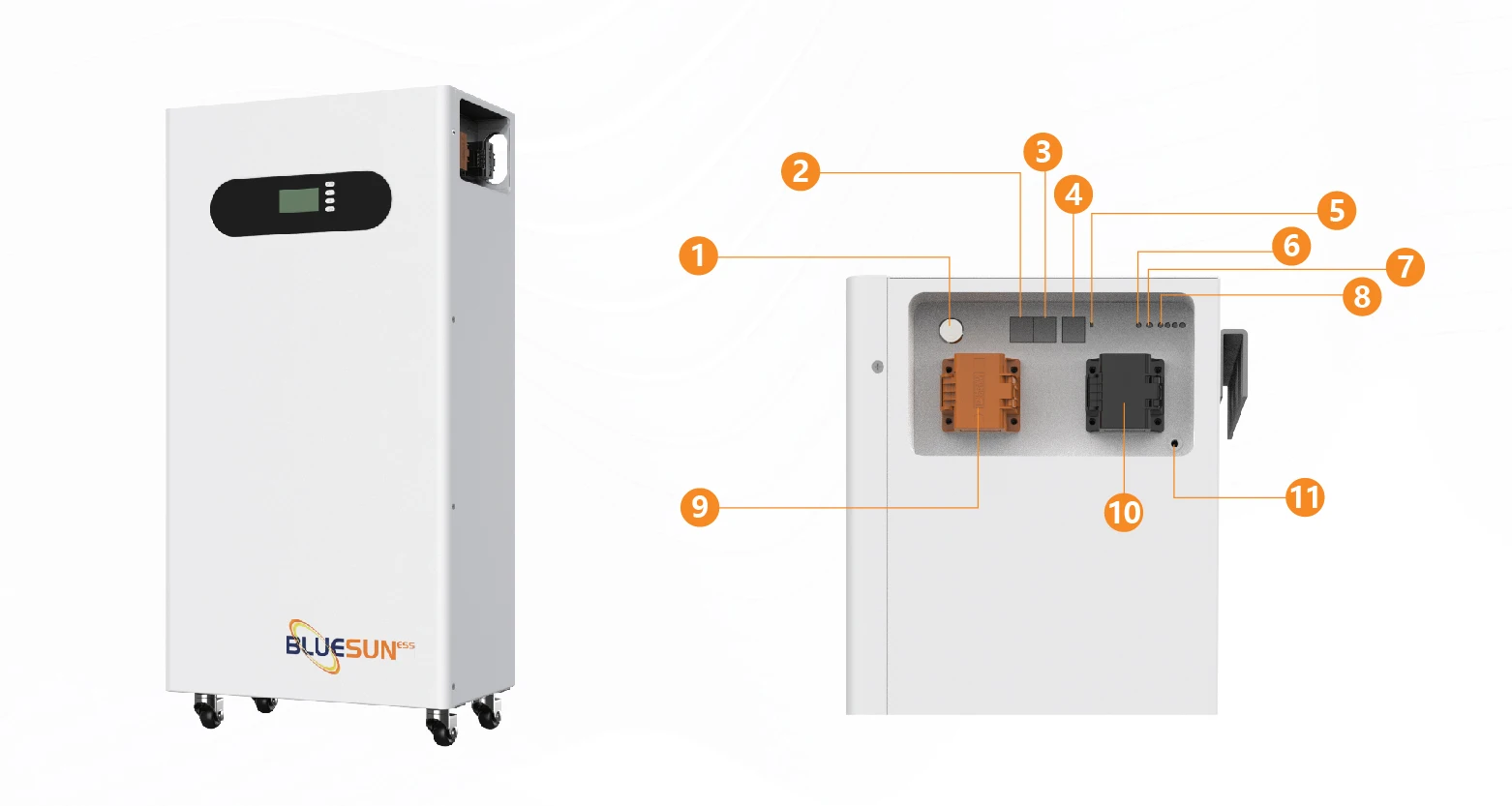

Item | Name | Definition | ||
1 | ON/OFF | Battery start | ||

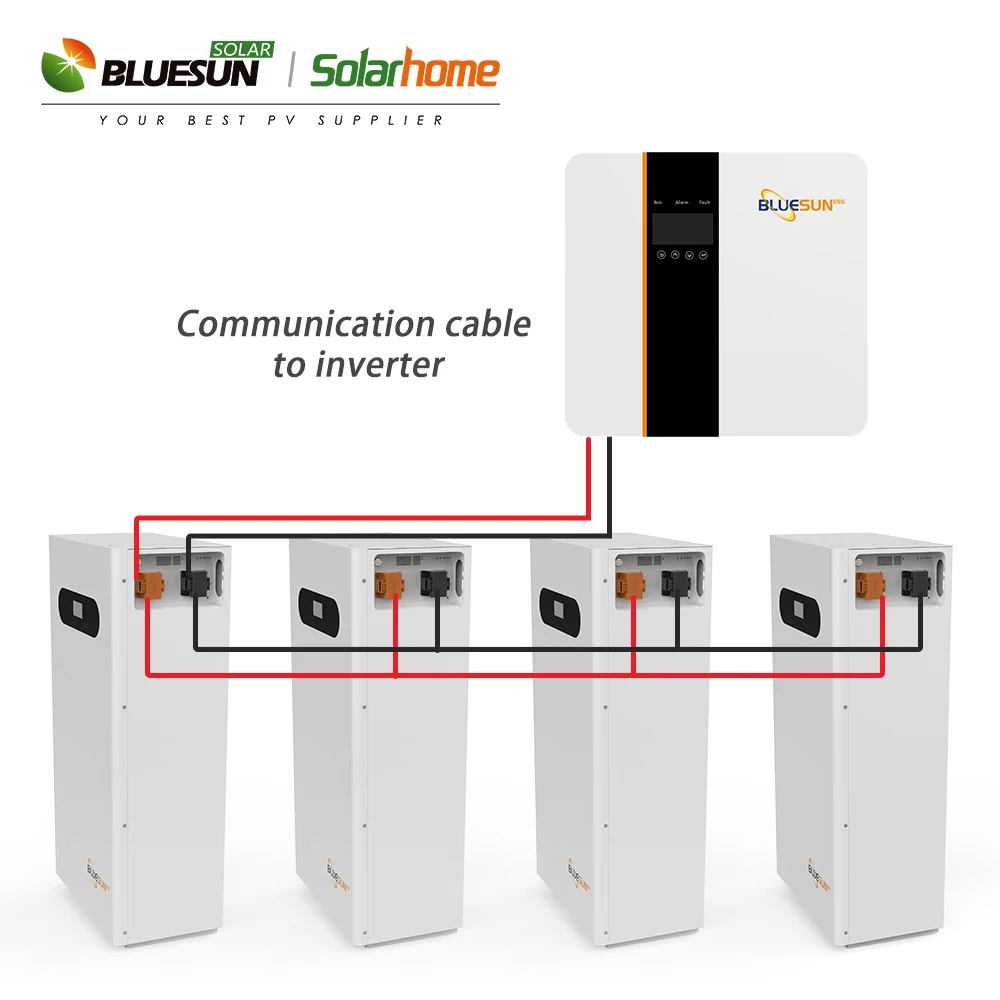

2 | RS4851 | Battery Parallel communication | ||
3 | RS4852 | Battery Parallel communication | ||
4 | RS485/CAN | Communication to inverter | ||
5 | Reset | Reset BMS | ||
6 | Run | Running light | ||
7 | Alm | Alarm light | ||
8 | SOC | SOC light | ||
9 | Negative socket | Battery output negative or parallel negative line | ||
10 | Positive socket | Battery output positive or parallel positive line | ||
11 | Grounding | Shell ground connection | ||
Product Paramenters
BASIC PARAMETERS | BSM48280W | |
Nominal Voltage (V) | 51.2 | |
Nominal Capacity (KWH) | 14.336 | |
Usable Capacity (KWH) | 14.336 | |
Charge Voltage (V) | 58.4 | |
Discharge Voltage (V) | 40 | |
Battery System Discharge Current (Standard) | 100 | |
Battery System Discharge Current (Max) | 200 | |
Peak Charge/Discharge Current(A) | 240(2S) | |
Communicaiton | RS485/RS232/CAN | |
Working Temperature | 0℃~50℃ Charge -10℃ ~50℃ Disharge | |
Shelf Temperature | -20℃~60℃ | |
Certication | CE/IEC/UL/UN38.3/MSDS | |
Design Life | 10 years+ | |
Size(mm) | 440*870*255 | |
Weight(KGS) | 125 | |
Cycle Life[1] | >6000 | |
[1] Test conditions: 0.2C Charging/Discharging,@25℃，80%Dod | ||
More Details Please Send Inquiry to Us | ||

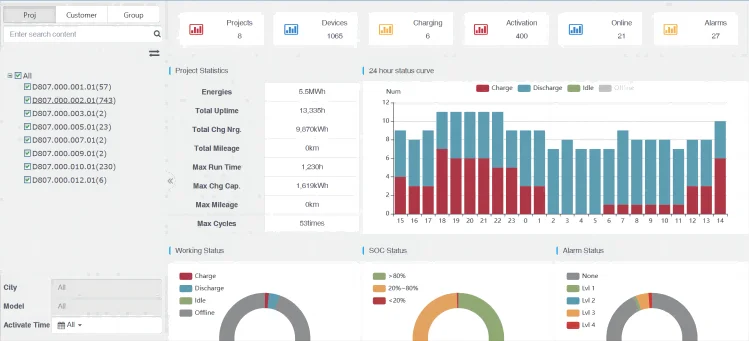

Bluesun-iCloud
From the Bluesun BMS to the cloud, the BMS intelligent battery management system of Bluesun Technology is equipped with the battery data cloud platform Cloud, which will provide you with information.
* Software and hardware information online traceability, real-time reporting of operating data, product status in the master, so that the battery is always online.
* Real-time alarm warning, earlier than the customer to find hidden dangers, prevention.

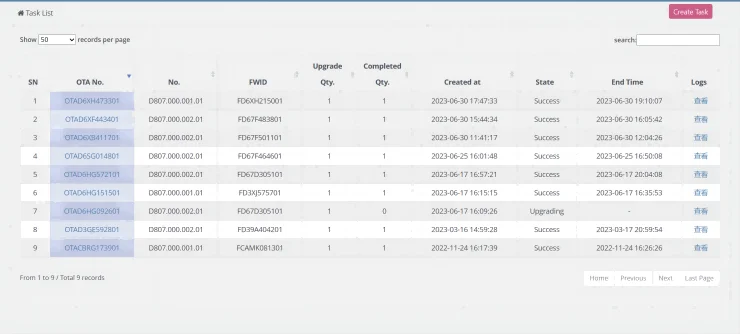

* For the first time in China, the BMS program is upgraded in the air, and the algorithm strategy is continuously updated online.Since then, BMS has life and will grow.
* Massive operation data collection, big data analysis and processing, re-calibration of battery parameters, personalized management of each battery.
* Software and hardware information online traceability, real-time reporting of operating data, product status in the master, so that the battery is always online.
* Real-time alarm warning, earlier than the customer to find hidden dangers, prevention.
* For the first time in China, the BMS program is upgraded in the air, and the algorithm strategy is continuously updated online.Since then, BMS has life and will grow.
* Massive operation data collection, big data analysis and processing, re-calibration of battery parameters, personalized management of each battery.

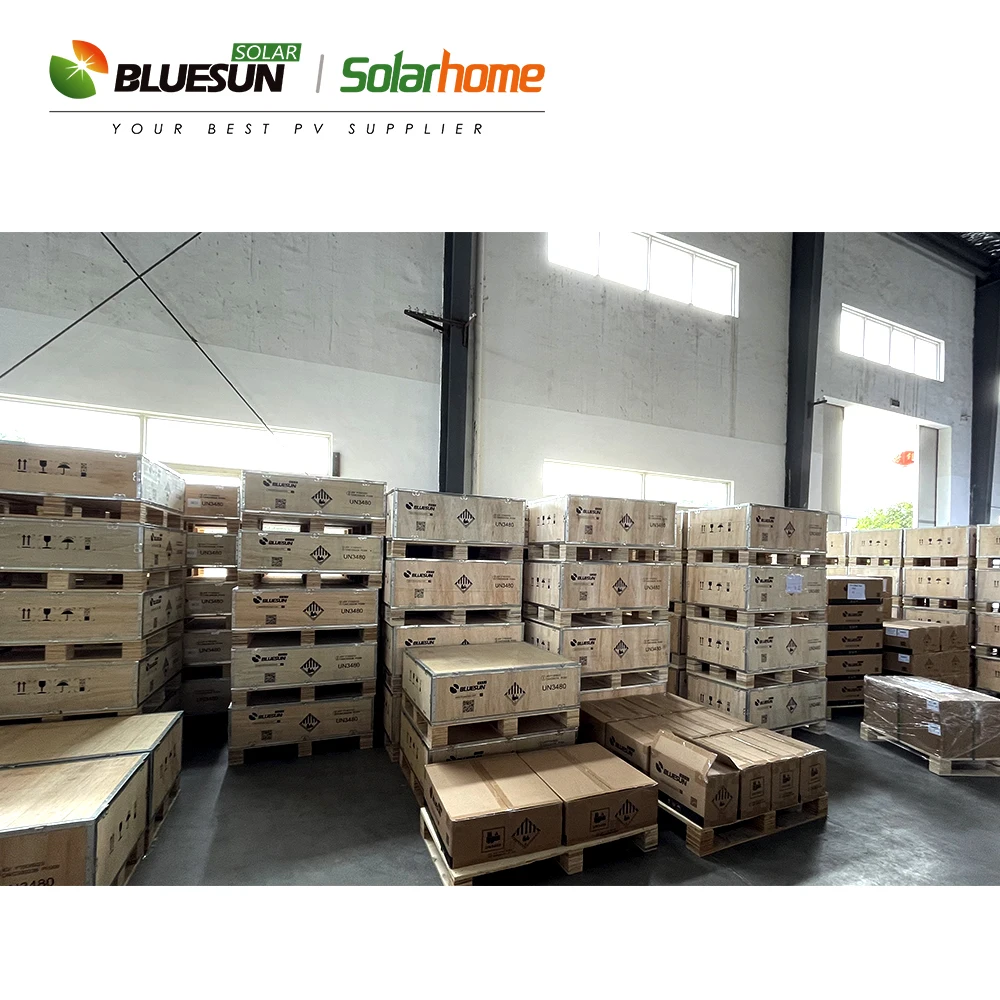

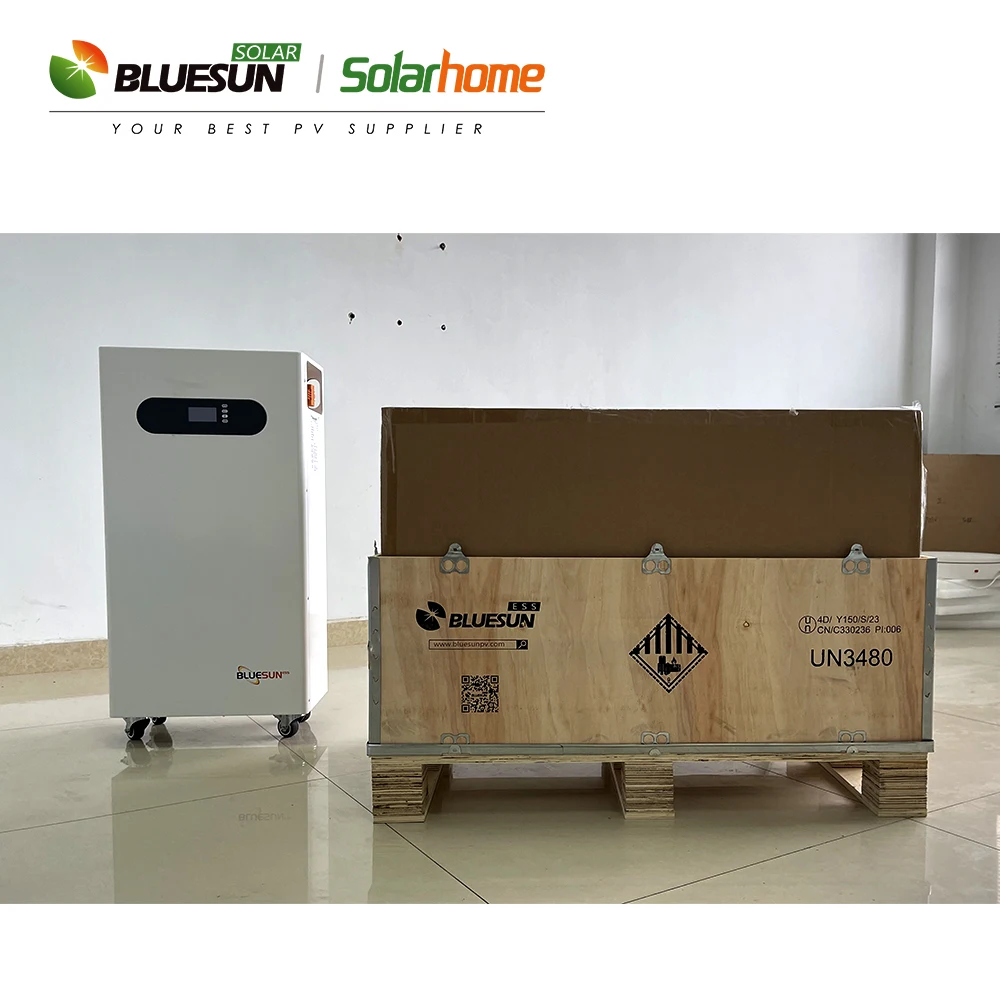

Packing
Global Exhibitions
INTER SOLAR NORTH AMERICA
SOLARTECH INDONESIA
SOLAR SOLUTIONS INT
CANTON FAIR
THE FUTURE ENERGY SHOW PHILIPPINES
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CNF | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
Delivery Time | 7~10days after receiving payment for one container | ||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
