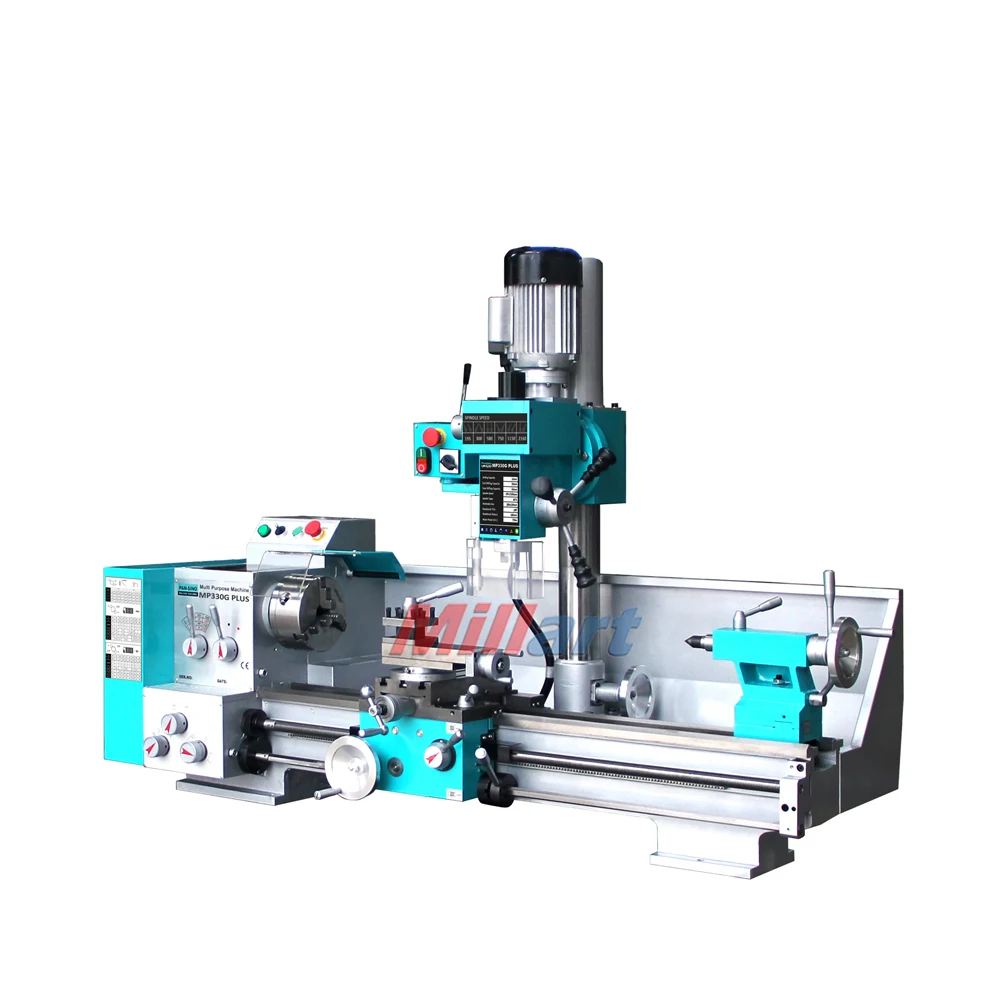

High precision gear head lathe MP330G 1/ 915 ,stepless variable head MP330V 1/915 drilling milling combo lathe mill machine

Share on (1600995686972):


Price:$1,800.00 - $2,200.00

Quantity:


Product Overview

Description



Product Description




.jpg












































































































































Specification



MP330G PLUS


 lathe





Swing Over Bed



330mm



Swing Over Slide



185mm



Distance between Centers



915mm



Bed Width



160mm



Spindle Hole



38mm



Lathe Spindle Speed



65-1800rpm



Lathe Spindle Taper



MT5



Stroke of Small Carriage



100mm



Stroke of Middle Carriage



160mm



Metric Threading



14 / 0.25-6mm



Imperial Threading



18 / 120-4TPI



Stroke of Tailstock



80mm



Tailstock Taper



MT3



Motor Power



1100W / 1500W



 drilling/milling







Max. Drilling Capacitor



16mm



Max. Face Milling Capacitor



63mm



Max. End Milling Capacitor



20mm



Spindle Speed



6 / 190-2200rpm



Spindle Taper



MT3



Stroke of Spindle



180



Distance from Spindle Nose to Table



315



Distance from Spindle Center to Column



210



Diameter of Column



80mm



T-Slot Size



2-10 x 16 x 90



Tilting of Milling Head (Right / Left)



±90º



Rotation of Milling Head (Forward / Backward)



360º



Motor Power



900W / 1100W



Machine Weight



520kg



Machine Size



1660x780x1150mm









Random Standard accessories:


MT 3# Dead Center


Change Gear Z:45


Change Gear Z:70


MT 3# B12 + M12 Threading


Drilling Chuck MT 3# 1 - 13mm B12 Arbor Bolt


M12 Draw Bar


Straight Driver


Cross Driver


Allen Wrench 3,4,5,6


Dead Wrench 8 - 10mm; 12 - 14mm; 17 - 19mm


160mm Three-Jaw Chuck


Socket M10


Limited Switch


Extension Leadscrewd Cover


Chasing Dial


Oiling Can





Optional accessories;


LED Light


Cooling Pump System


Machine Stand with Oil Tray (Normal)


Machine Stand with Oil Tray (Drawer)


Steady Rest & Follow Rest


Face Plate


200mm 4-Jaw Chuck with Back Plate


Set of End Milling Cutter 2,3,4,5,6,8,10


MT 3# Face Milling Cutter 50mm


Carbide Turning Tool 16x16mm (9pcs/set)


Clamping Tool Set (58PCS - M10)


Bracket 90° - Size 5”


Machine Vise 100mm


Threading Cutting Device M2 - 8 / MT 3#

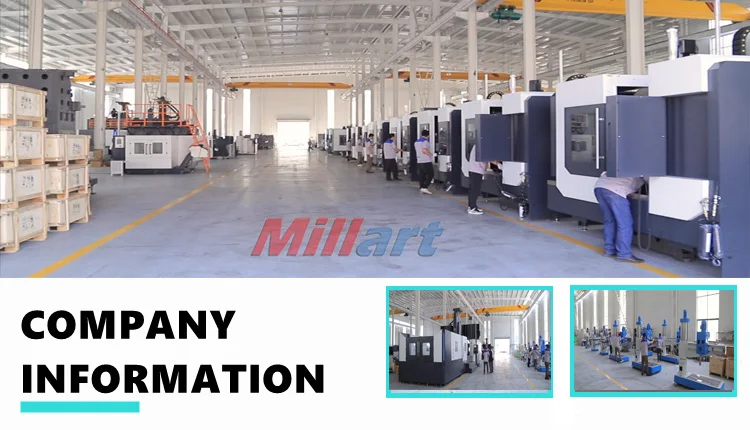

Company Information





.jpg











Certification


.jpg





Company Exhibition







Customer Photos







Packaging & Shipping







FAQ


Q1: What are your main products of your company?


A1 : We are specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe


Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .


Q2:What kind of controls do you use on machines?


A2 :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .


Q3. What is your trade terms?


A3 : FOB, CFR and CIF all acceptable.


Q4 : How can I choose the most suitable machines ?


A4 : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.You can also send us product pictures and we will choose the most suitable machine for you.


Q5 : Do we receive any updates while machine is in the manufacturing process?


A5: Of course. The progress of the machine will be updated regularly and sent to you.
