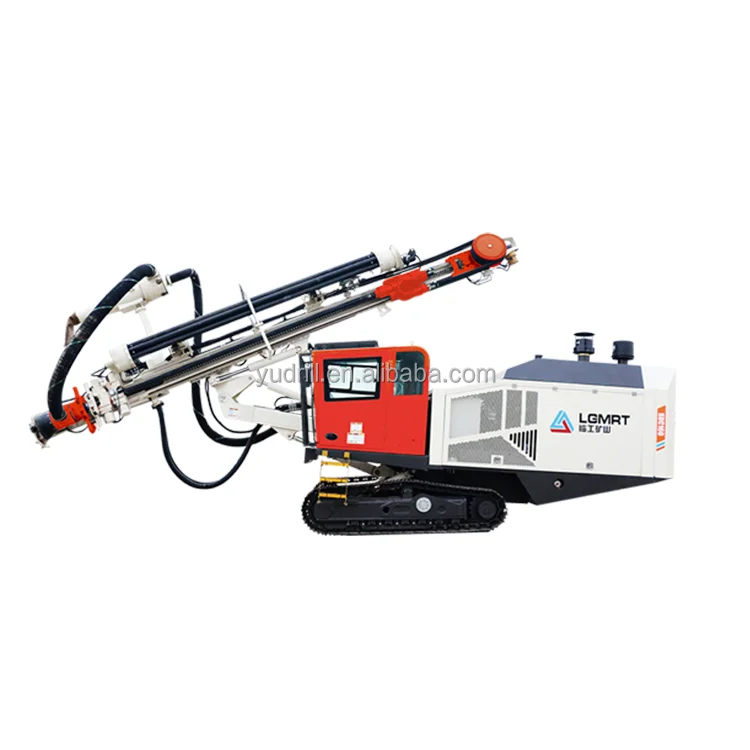

SDC170 Crawler Mounted Hydraulic Down-The-Hole Surface Drilling Rig Borehole Drilling Machine For Sale
SDC170 is a diesel powered, self-contained crawler mounted drilling rig, the design and the lay-out are all originated from classic design.The drill rig is equipped with air compressor on board, an operator’s cabin, drill pipe changer and dust collector. Specific for DTH blasthole drilling in the mining, quarry and construction industries, the drilling hole diameter is wide and can be applied to various complex applicaton.

* UNSPARING IN DRILLED METERS
Strong power output from engine and high pressure air compressor to ensure perfect drilling penetration.
* SCROOGE IN FUEL CONSUMPTION
The precise alignment of the power system and the hammer size enables the drill rig uniquely productivity, keeping fuel
consumption and operating costs as low as possible.
*EASY MAINTENANCE
Open layouts are easy maintenance and can reduce downtime. All daily maintenance points are located at ground level to simplify the process and improve the safety of service staff.
* SAFETY AND ENVIRONMENTAL PROTECTION
The design concept of “SAFETY FIRST”and“ENVIRONMENTAL PROTECTION”ensures the construction of green mines.



Hole diameter
138 - 178 mm
Hole cleaning method
compressed air
DTH impactor
5”, 6”
Drill pipe length
5000 mm
Engine output
335 kW (Tier 3)
Maximum drilling depth
40m
Air compressor exhaust flow and pressure
24,6 m³/min @ 24 bar 869 cfm @ 348 psi
Turning head stroke
5990 mm
Drill pipe
 102 / 114 mm 4”/4½”
Drill pipe length
5000 mm
Hydraulic motor
OMVS 400
Push/lift force
32 kN
Working pressure
180 bar
Propulsion beam swing
-30/+95°
Rotation speed
0…80 rpm
Propulsion beam pitch
-35/+93°
Rotary torque (drilling/unloading rod)
4300/7000Nm
Ground length
2510 mm
Impactor lubrication
air/oil mist (electronic pulse)
Ground clearance
420 mm






Company Profile




With more than 30 years experience in underground heavy machinery, Chongqing Ug Heavy Machinery Co., Ltd. focuses on the aftermarket of mine drilling rigs, and is an enterprise capable of sales, maintenance and remanufacturing, application technology training, leasing, and operation services of rock drilling rigs. Cooperating with kinds of world-renowned brands , we not only provide sales, leasing, maintenance, and training services for underground drilling rigs, shotcrete machine, surface drilling rigs, underground loaders(lhd) and underground trucks, but also provide spare parts accessories and consumables, such as rock drills, drill bits, drill pipes, shanks adapter, etc.

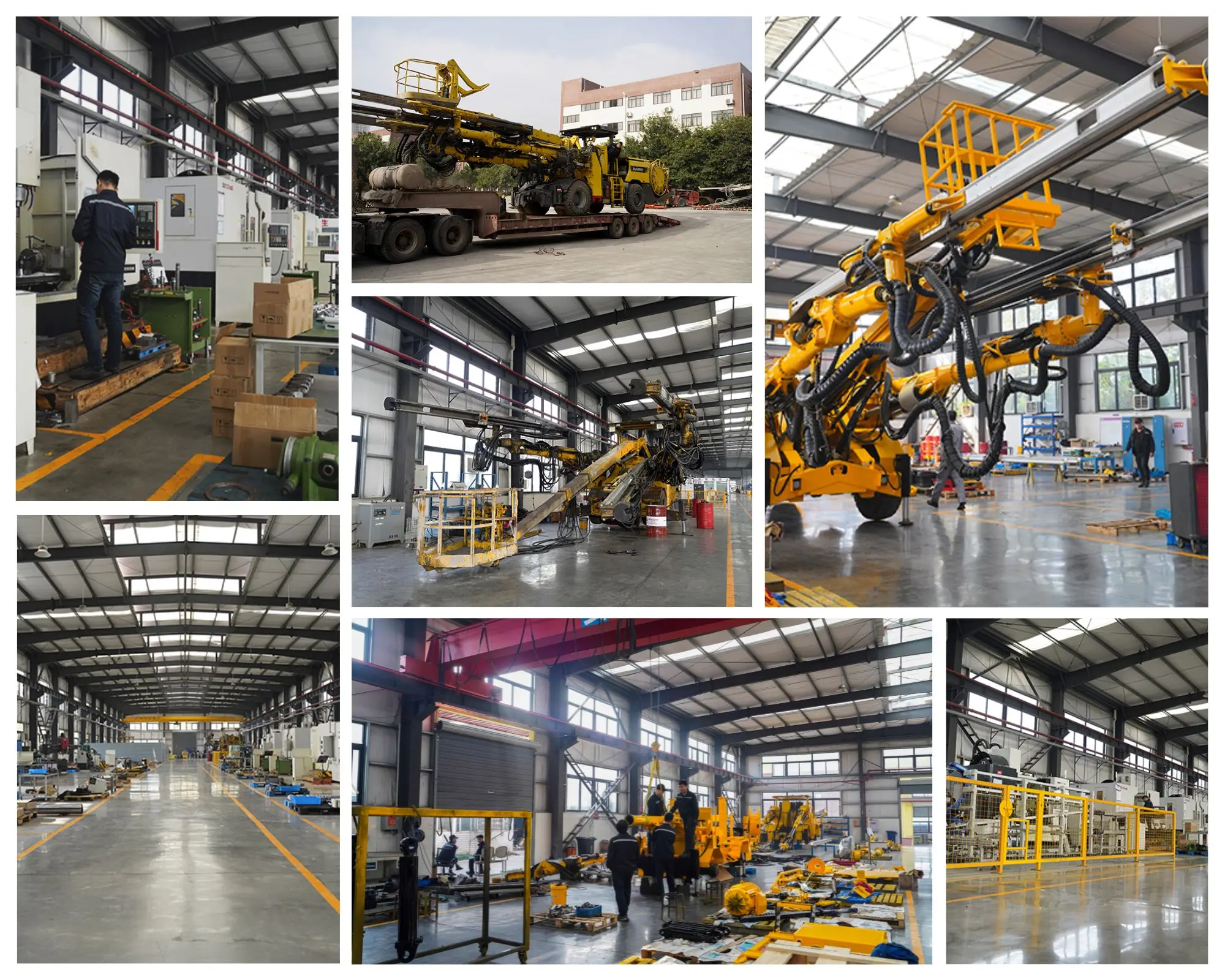

Workshop Show

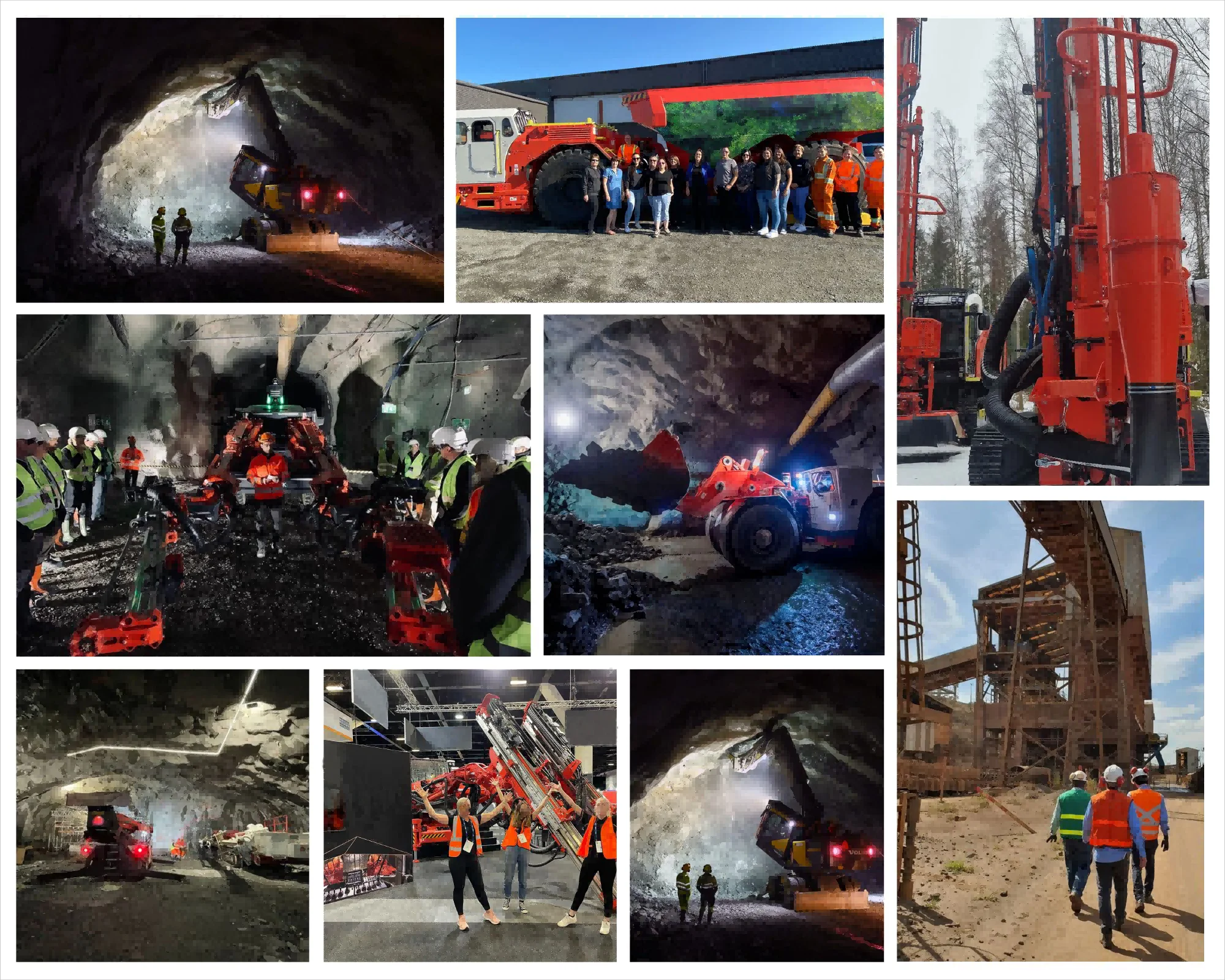

Project Show




Certifications

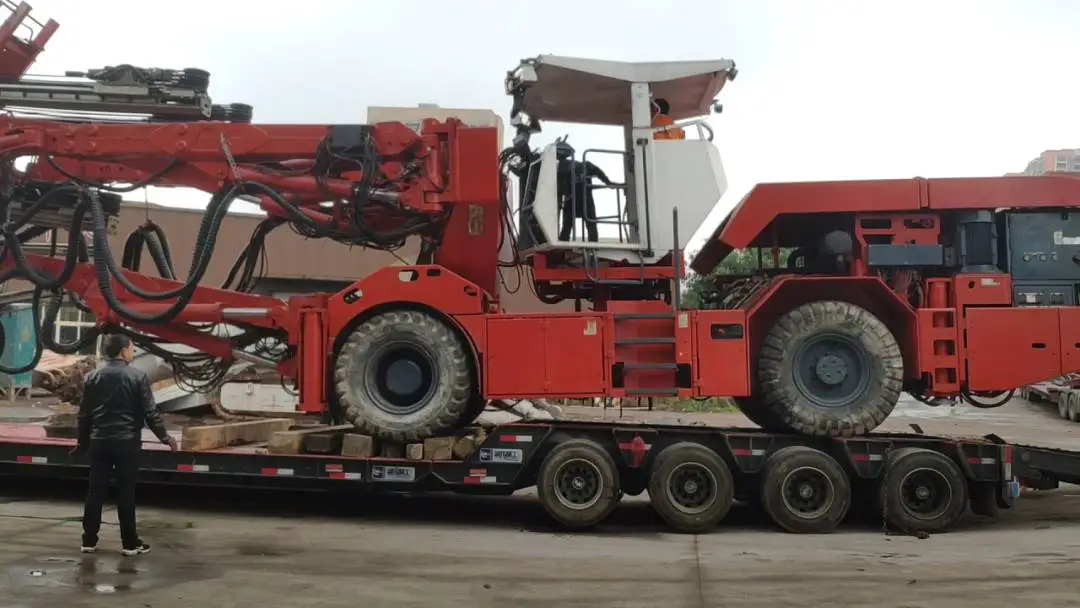

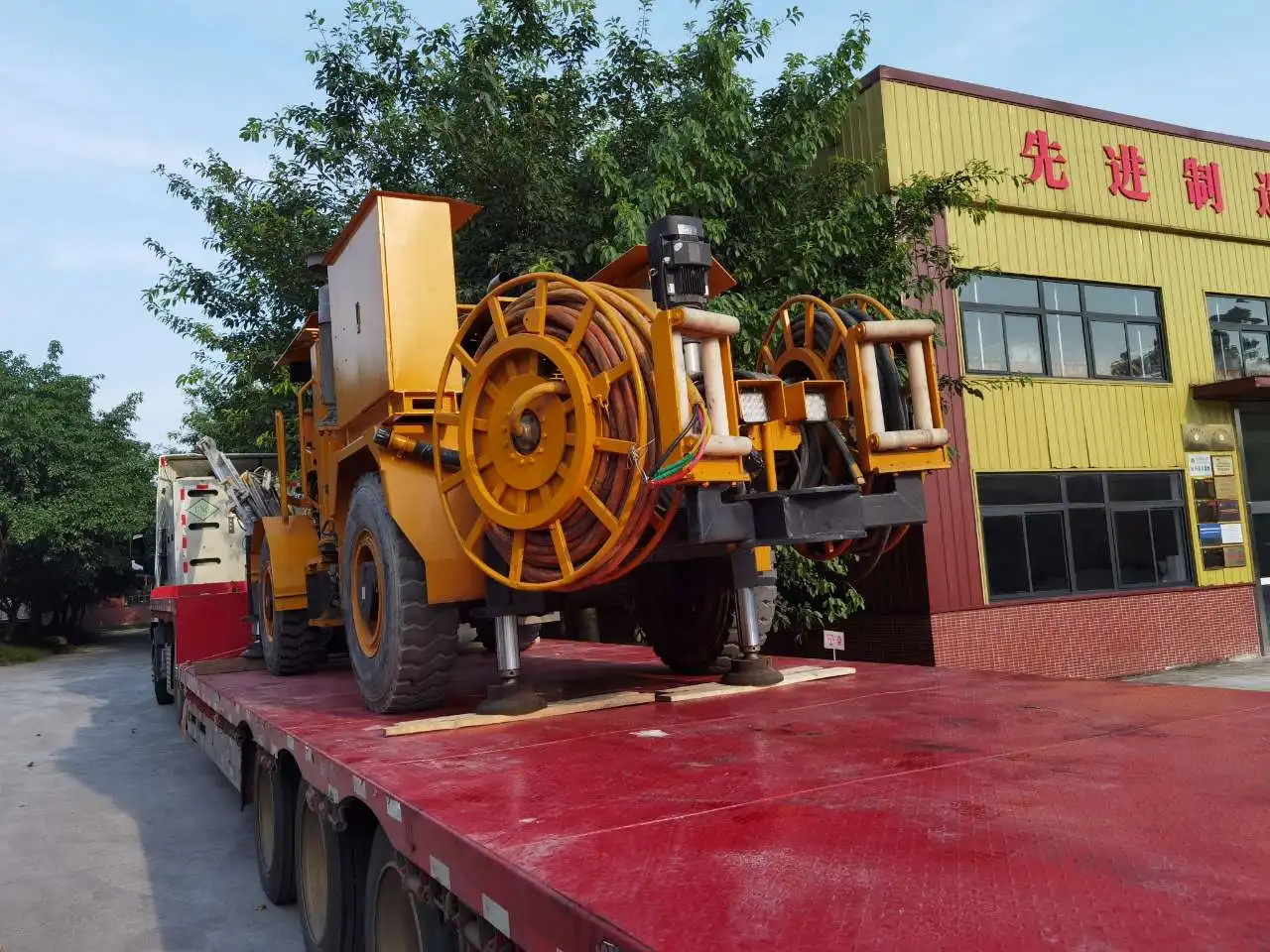

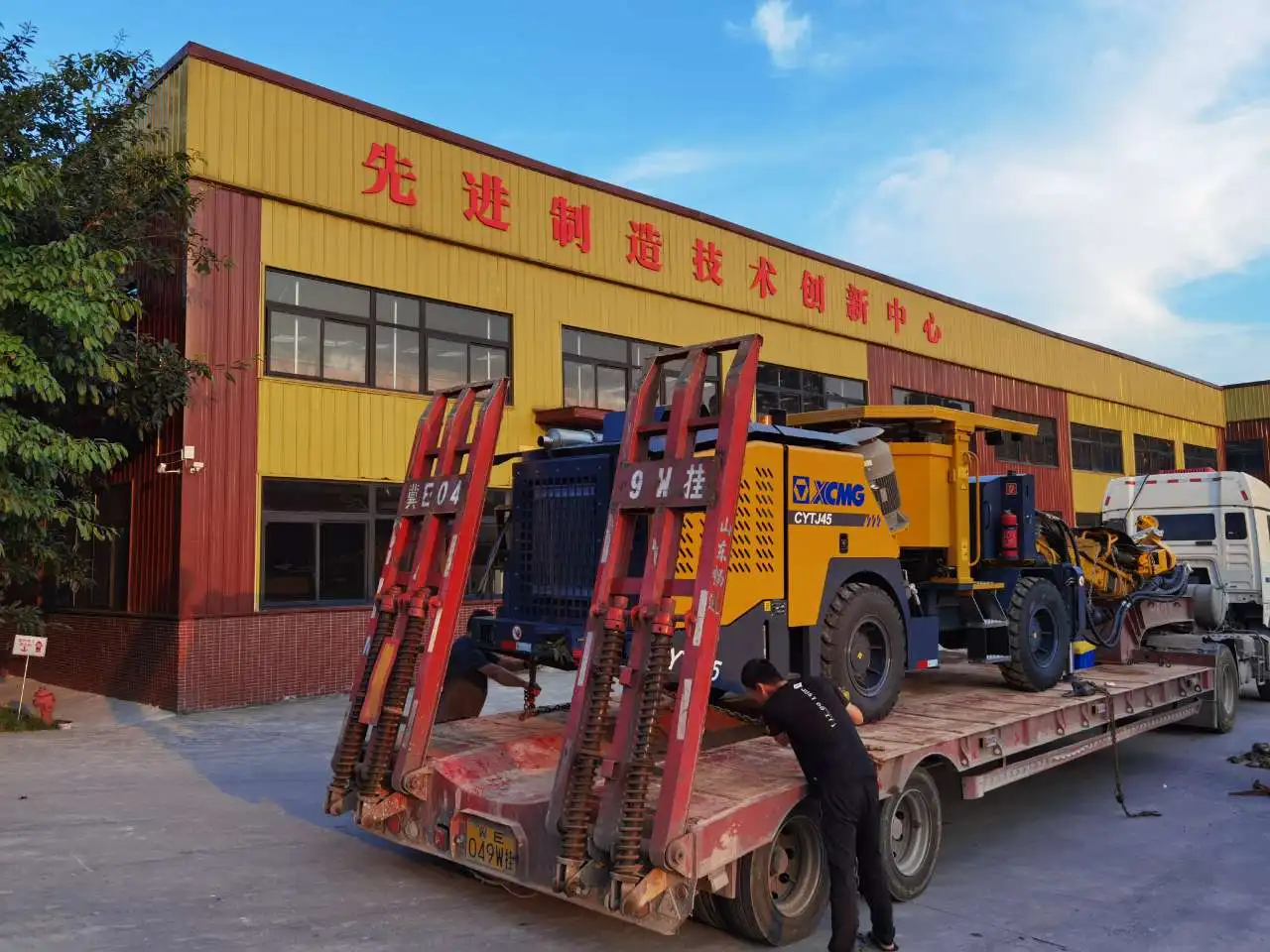

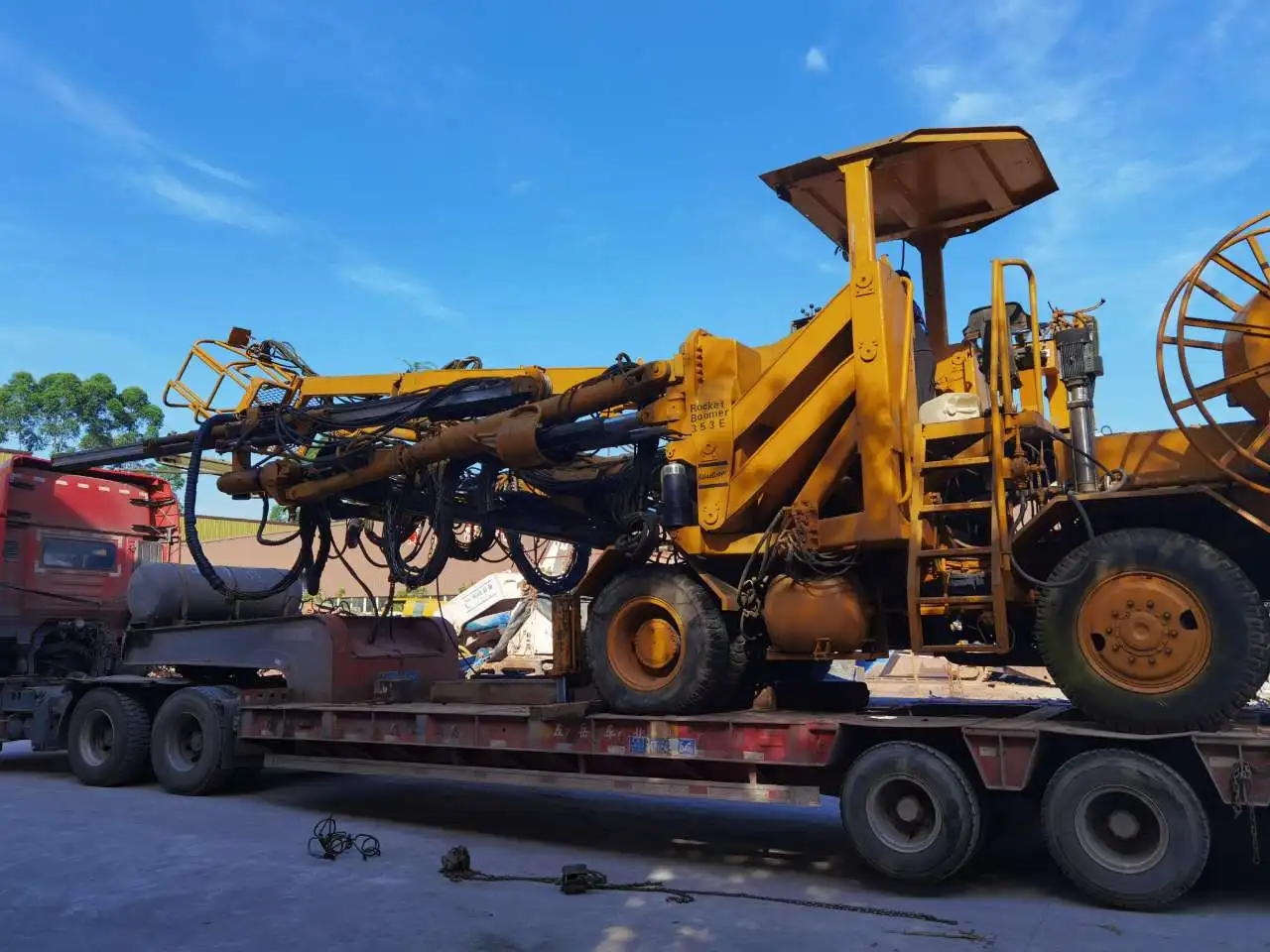

Packing & Delivery
