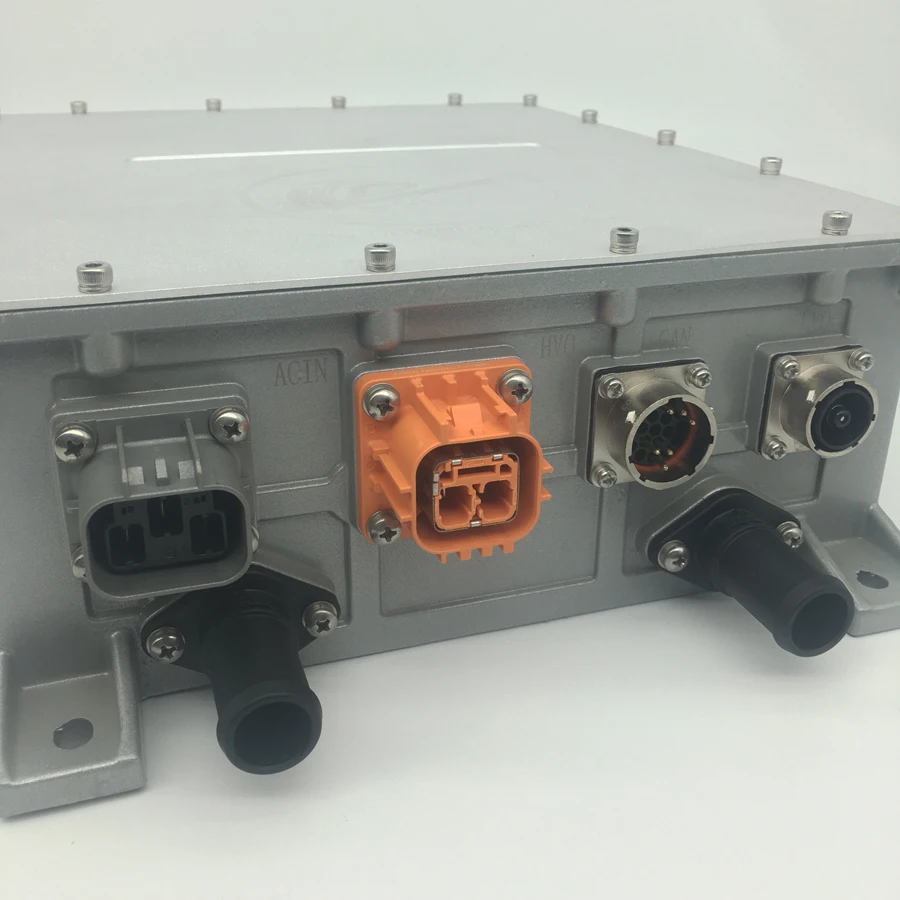

Dilong 6.6KW 1.2KW combo unit of OBC and dcdc CAN bus control
- Category: >>>
- Supplier: Dilong New Energy Technology Hebei Co. Ltd.
Share on (1600995724596):
Product Overview
Description
Product Overview

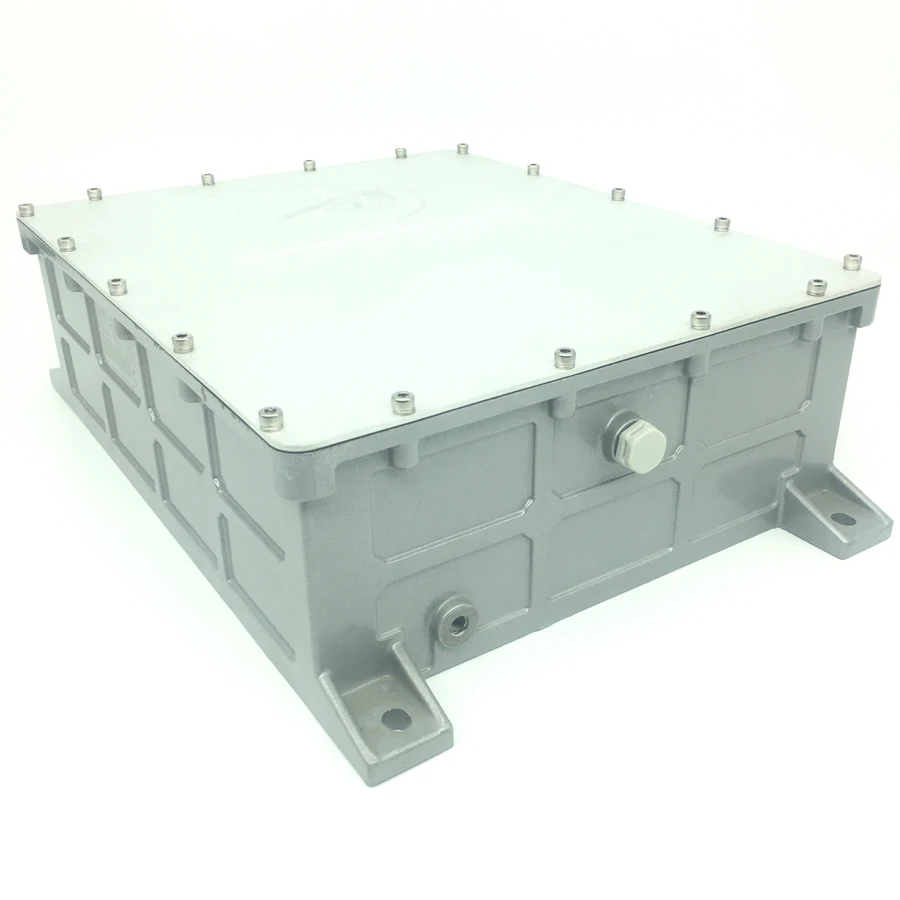

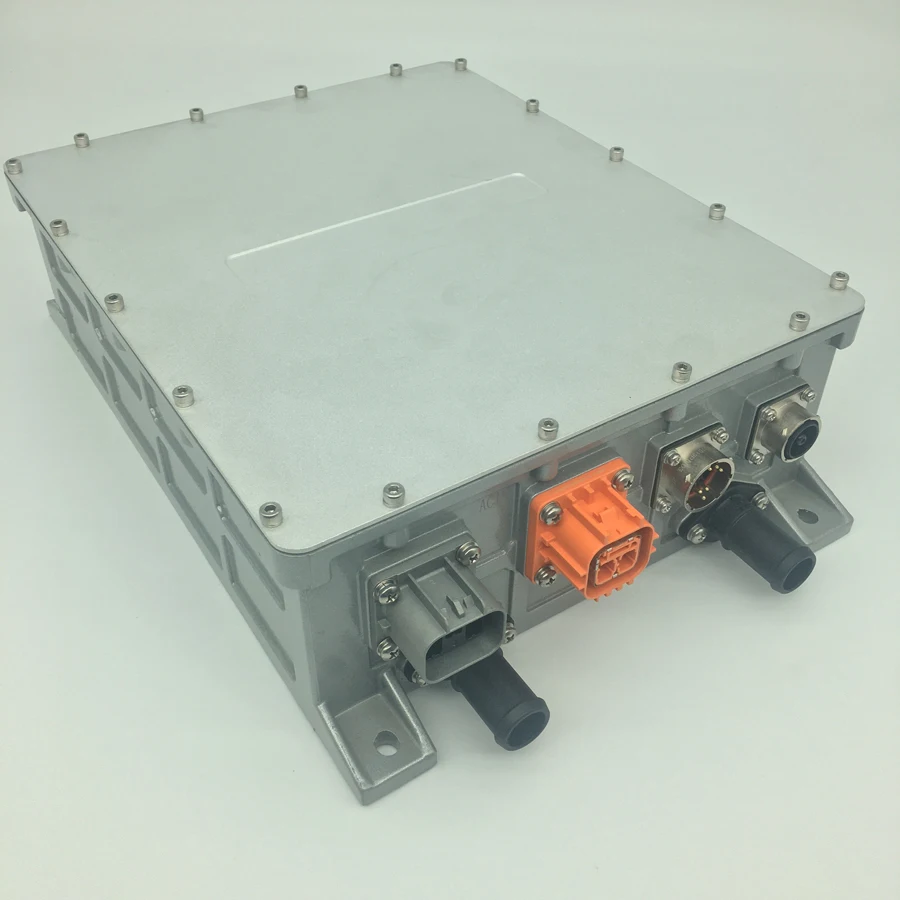

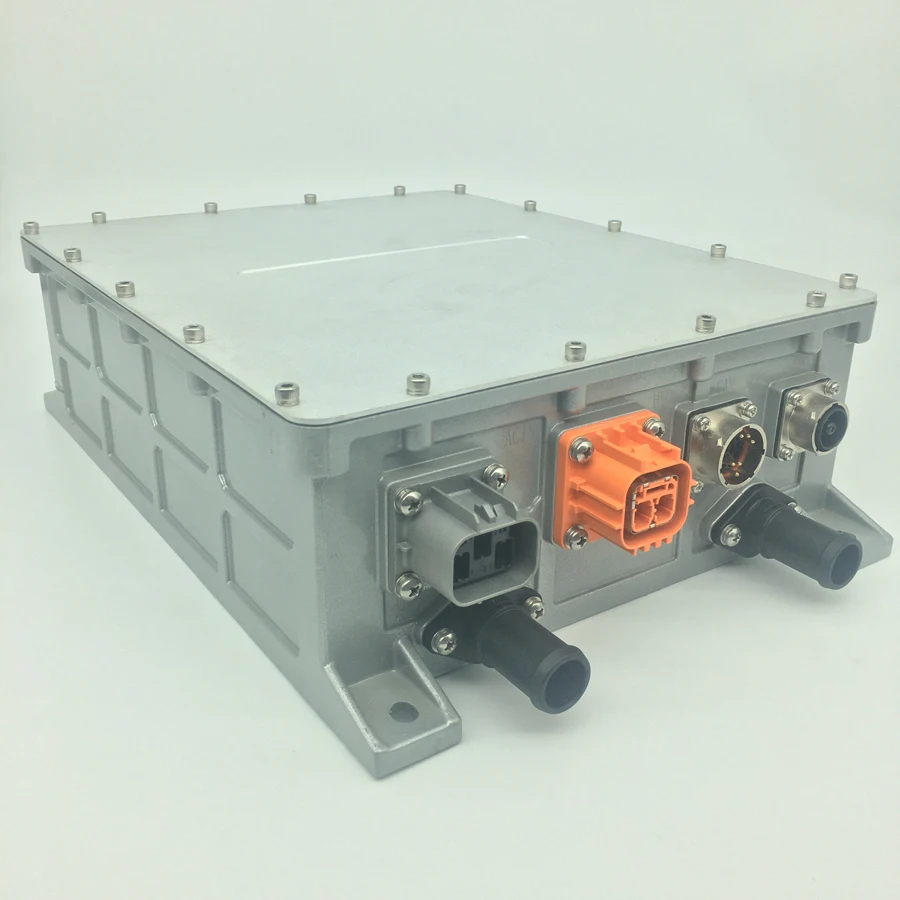

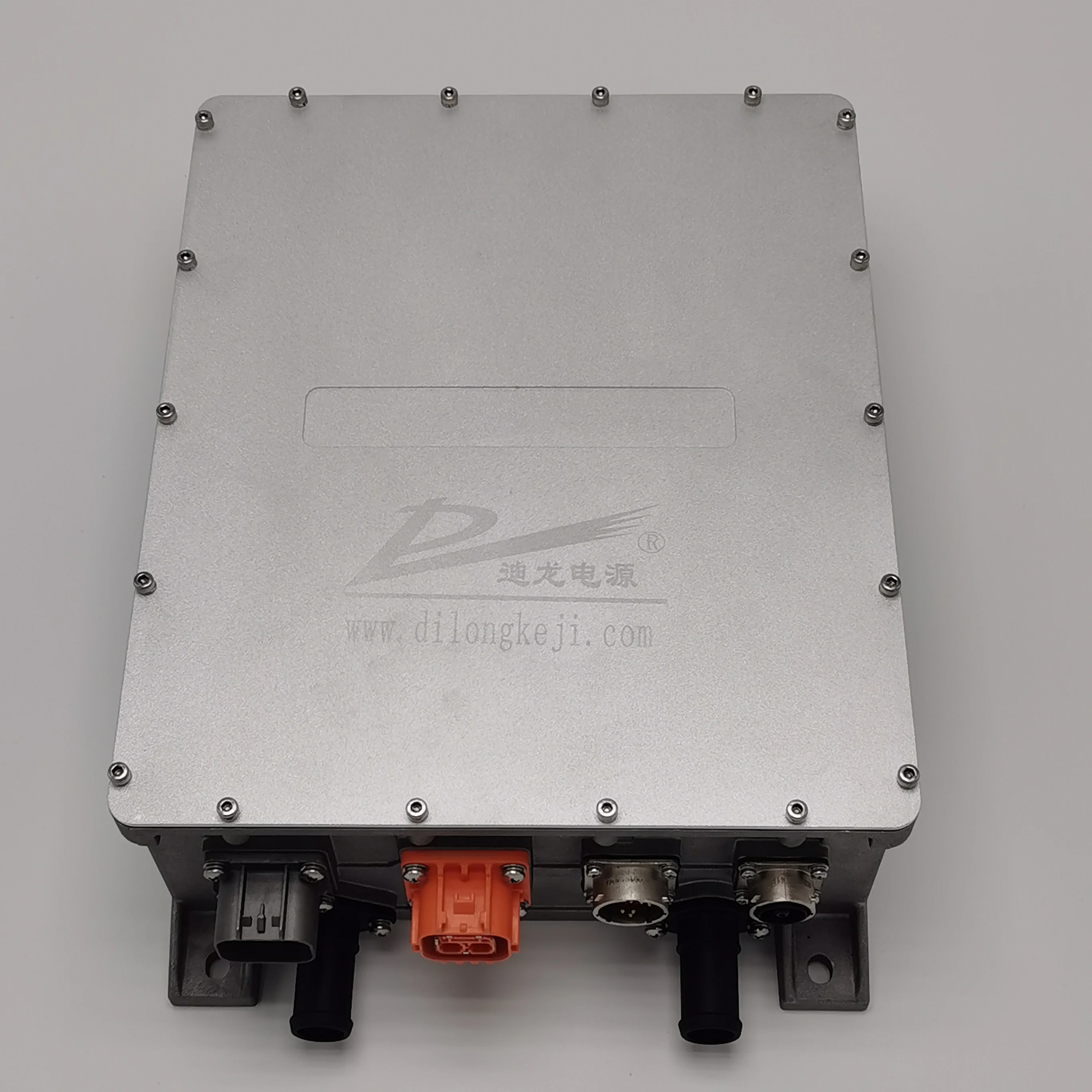

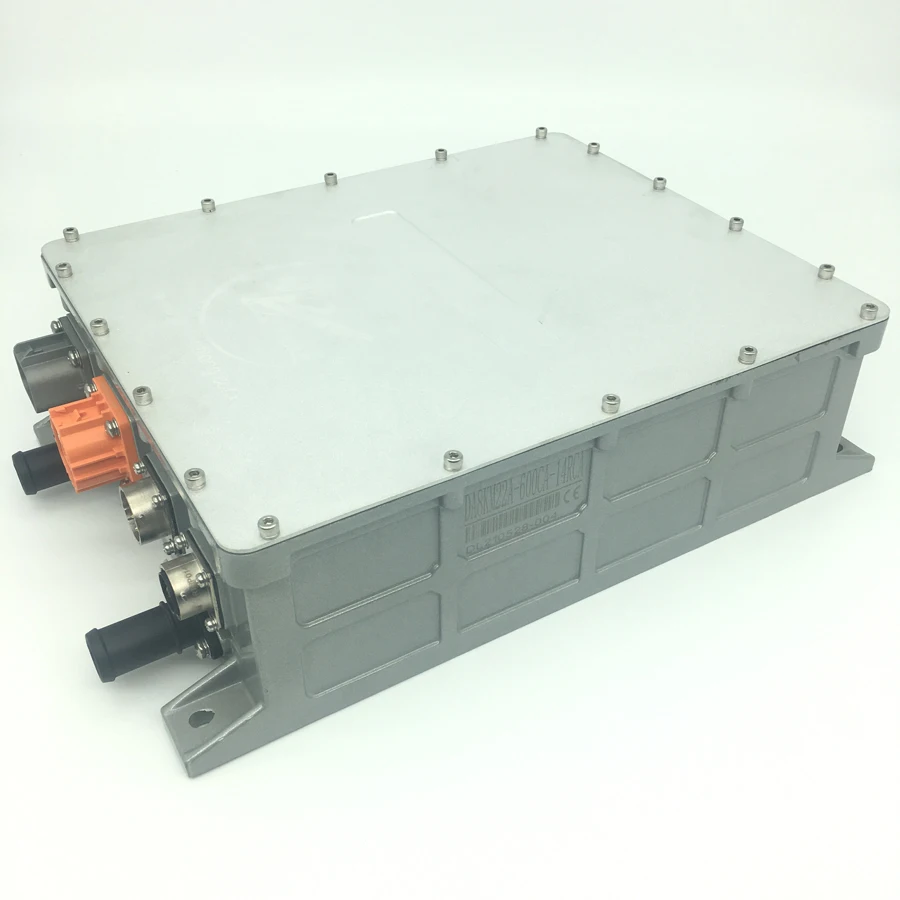

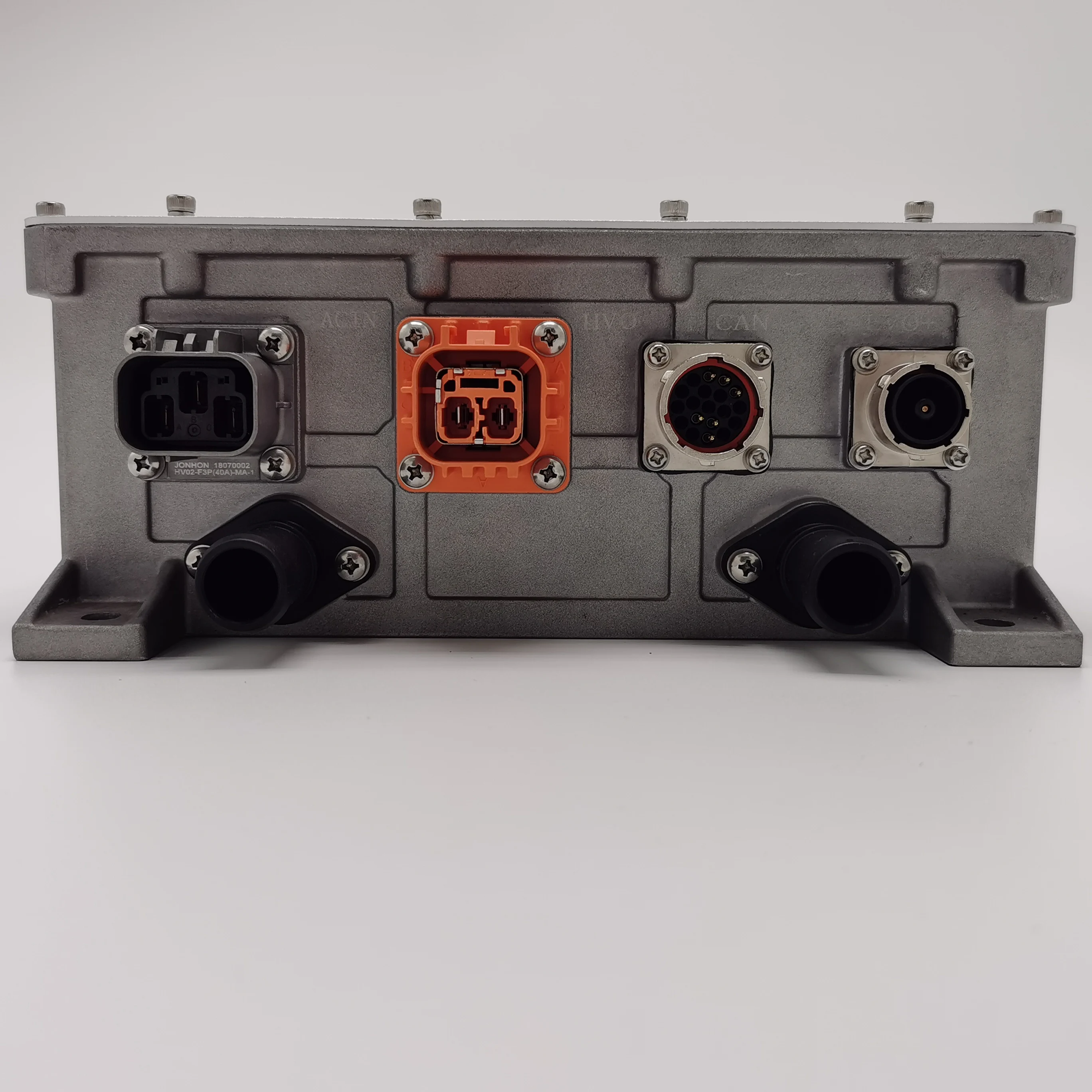

DA8KM22A-360CA-14RCA
DA8KM22A-360CA-14RCA is a liquid-cooled, specifically designed for pure electric vehicles, can freely combine OBC and DC-DC , conversion switching power converter. OBC charger adopts advanced resonance technology, high efficiency, high power, small size, reliable work, charging mode using constant power and constant voltage automatic state transition, effectively saving the charging time. Wide input and output voltage range with active power factor correction, zero pollution to the grid. Using CAN2.0B communication protocol, with intelligent charging function, intelligent monitoring fault alarmprotection function, Built-in 12V battery management system wake-up signal to power for BMS. DC-DC high voltage input and low voltage output adopts advanced fully digital technology, high power density, small size, reliable working method, with constant current and constant pressure automatic state conversion. Using CAN2.0B communication protocol, with intelligent charging function, with intelligent monitoring fault alarm and protection function.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Power(OBC) | 6.6KW |
2 | Input Voltage Range | 85~264Vac |
3 | Rated Input Voltage | 220Vac |
4 | Frequency range | 45Hz~63Hz |
5 | Output Voltage Range | 250-450Vdc |
6 | Rated Output Voltage | 360Vdc |
7 | Power(DCDC) | 1.2KW |
8 | Input Voltage Range | 250-450Vdc |
9 | Rated Output Voltage | 14Vdc |
10 | Cooling Method | Liquid cooled |
