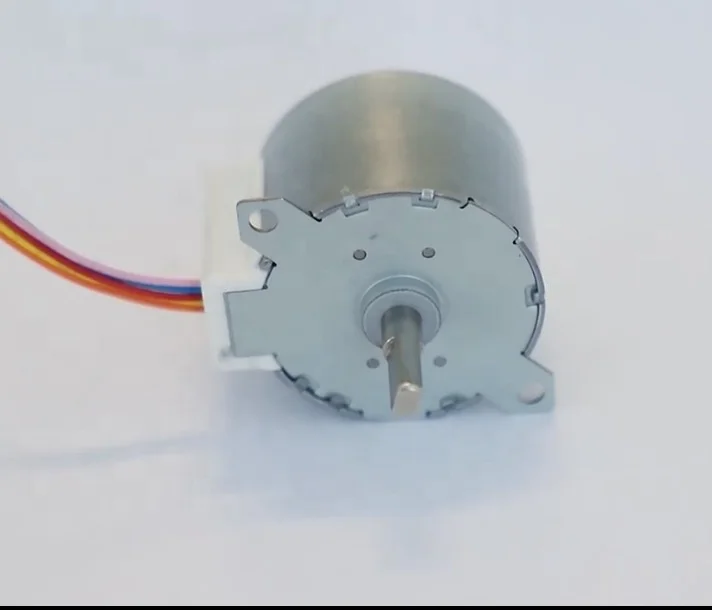

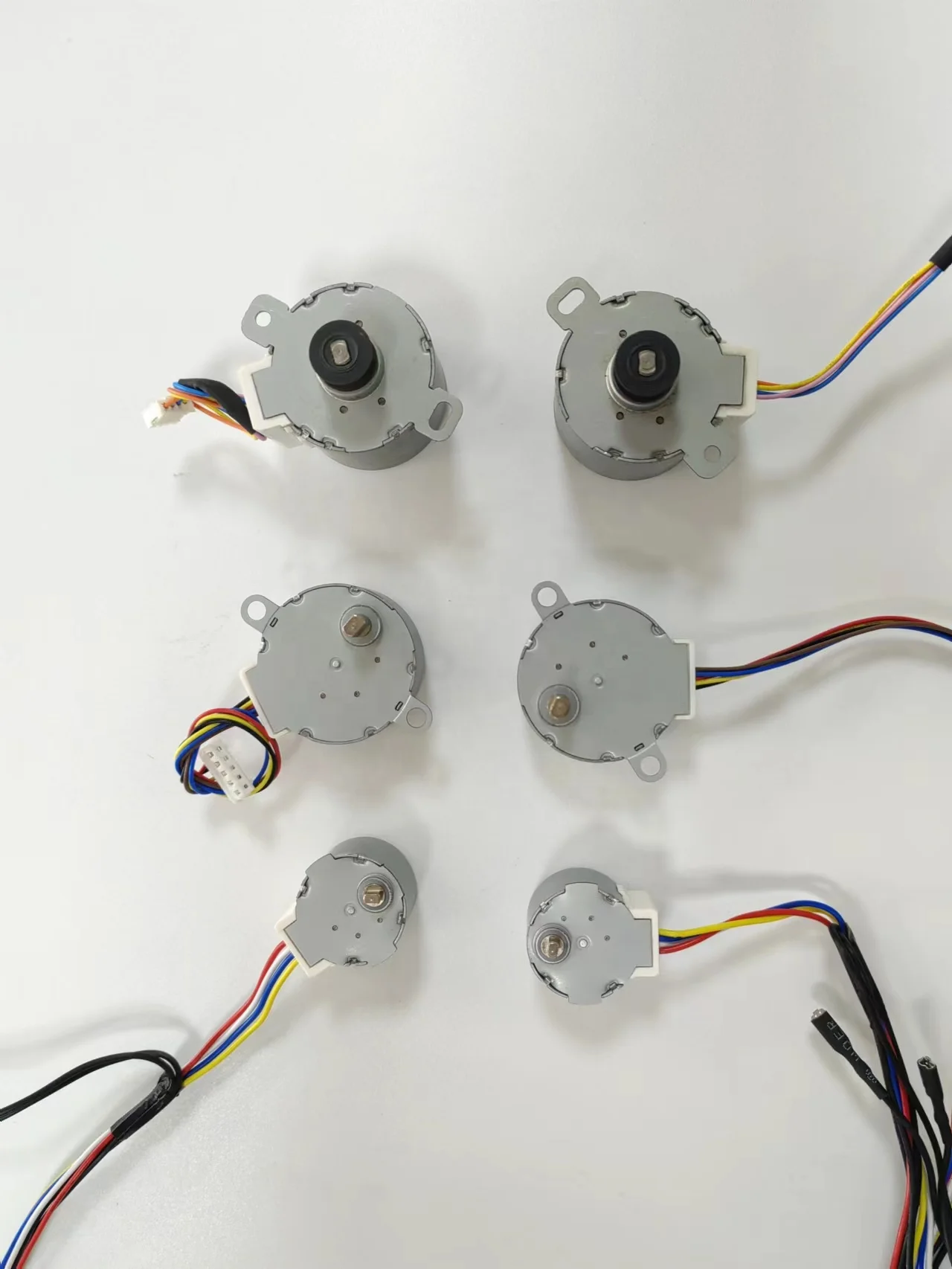

28BYJ48 micro PM Geared Stepper Motor 7.5 degree 5V 24V multiple reducing ratio for sanitary ware/valve control
- Category: >>>
- Supplier: Changzhou Goot Motor-Tech Co. Ltd.
Share on (1600995889891):
Product Overview
Description
Products Description
Advantages of PM stepper motor :
Excellent open loop control - No encoders necessary
Digitally controlled - Easy to use with a micro processor
Cost effective - compact design, lower integration cost
Maintenance free - brushless structure, long service life
Winding possibilities - Bipolar, Unipolar
Digitally controlled - Easy to use with a micro processor
Cost effective - compact design, lower integration cost
Maintenance free - brushless structure, long service life
Winding possibilities - Bipolar, Unipolar
General Specification: | ||||||
Item | Specification | |||||
Step Angle Accuracy | ±7%(full step, no load) | |||||
Resistance Tolerance | ±10% | |||||
Inductance Tolerance | ±20% | |||||
Temperature Rise | 60.C Max.(rated current,2 phase on) | |||||
Ambient Temperature | -20.C~+50.C | |||||
Insulation Resistance | 100MΩMin. ,500VDC | |||||
Dielectric Strength | 600VAC , 1s , 1mA | |||||
Technical Specification: | ||||||||||||||||
Model | Step Angle (Deg.) | No. of Phase | Rated Voltage (VDC) | Current/Phase (A) | Resistance /Phase(Ω） | Max Starting Frequency（pps) | Detent Torque (gf.cm) | Pull-in Torque (gf.cm) | ||||||||
28BYJ48-01 | 5.625/64 | 4 | 5 | 0.08 | 60 | 500 | 350 | 350(at 100pps) | ||||||||
28BYJ48-02 | 5.625/64 | 4 | 12 | 0.09 | 130 | 600 | 350 | 450(at 100pps) | ||||||||
28BYJ48-03 | 5.625/64 | 4 | 12 | 0.06 | 200 | 600 | 350 | 350(at 100pps) | ||||||||
28BYJ48-04 | 5.625/64 | 4 | 12 | 0.04 | 300 | 600 | 350 | 350(at 100pps) | ||||||||

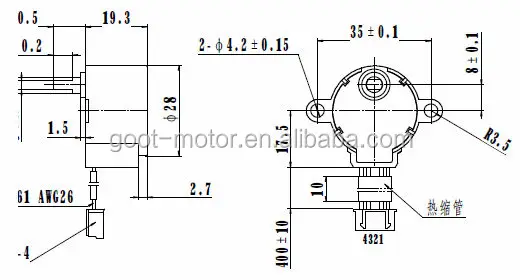

Machenical Dimensions:

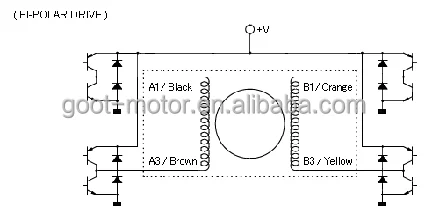

Cirtcuit:
Bi-polar c Unipolar
Customization On Call:
Coil Modifications - Resistance and Inductance.
Magnets - to yield higher linear force or reduced detent levels.Higher Strength Plastics for higher impact forces.
Reduced or increased Detent Force to suit the application.
Screw - metric or imperial tips, length.
Special Flanges, Connectors, End of motion detection sensors.
Wire Harness - connectors, pins, lead length, shrink tubing.
Application
Application :
HVAC/R Valve Actuation
Office Automation Printers, Copiers, Data storage
Medical Applications Pill dispensing Analysers
Telecommunication Antennae positioning Switching lines
Other Industries & Applications Robotics
HVAC/R Valve Actuation
Office Automation Printers, Copiers, Data storage
Medical Applications Pill dispensing Analysers
Telecommunication Antennae positioning Switching lines
Other Industries & Applications Robotics
