torno lathe machine for metal manual lathe KD CDL660 factory supplier
- Category: >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (1600995911468):
Product Overview
Description
FEATURES AT A GLANCE
Product Features
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings. The spindle system is high in rigidity and accuracy.
3. There is no need for change gears. The machine can turn about 150 kinds of metric, inch, module and D.P. threads.
4.An automatic stopping device is used to realized automatic stop for the machining of a work piece of a certain length.
5. Easy operating speed change levers.
6. Removable gap is provided for larger diameter work.
Right elevation
Left elevation

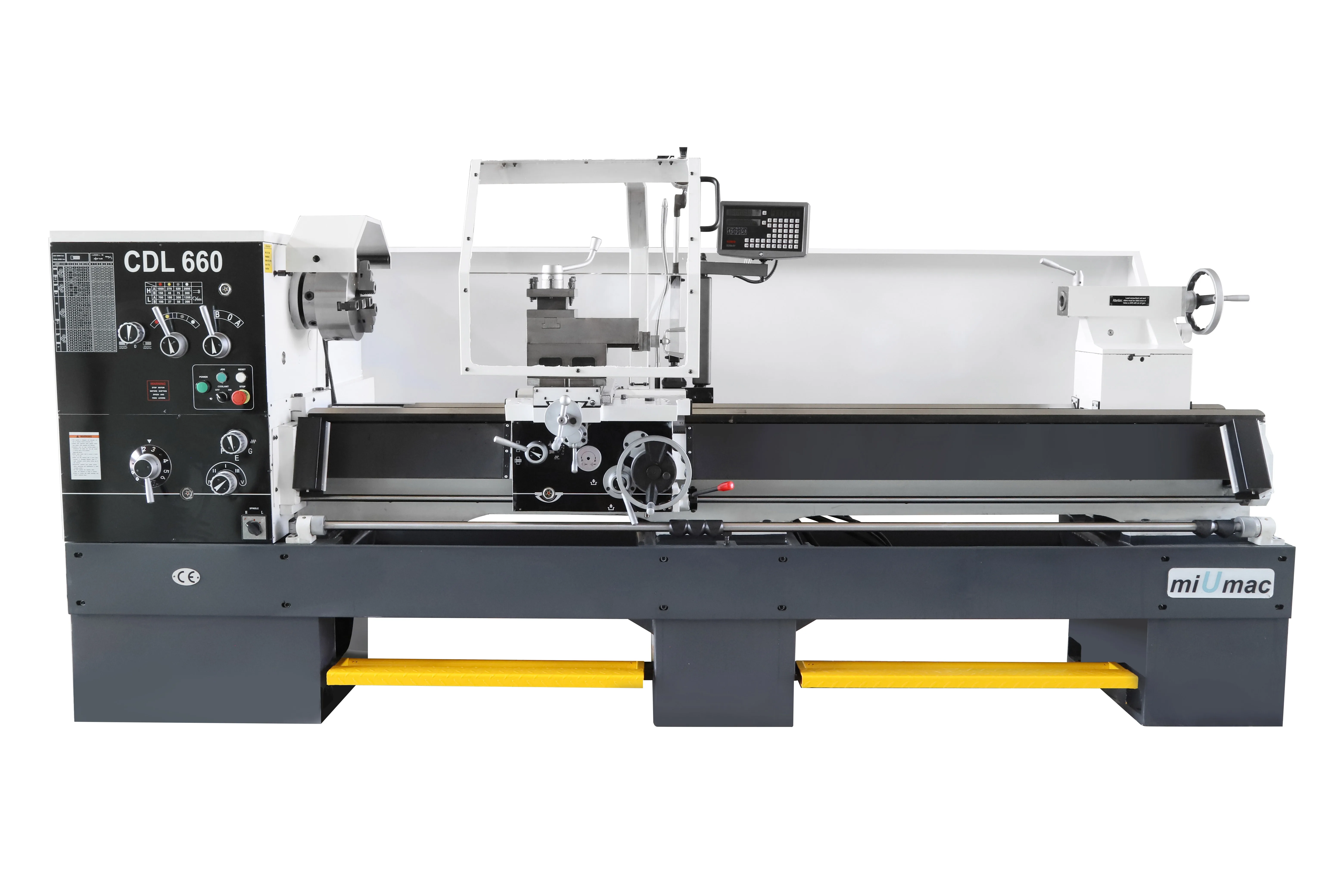

Front elevation
PRODUCT SPECIFICATIONS
MODELS | CDL400 | CDL500 | CDL660 | |||||||||
CAPACITY | ||||||||||||
Max.swing over bed | Ф400mm | Ф540mm | Ф660mm | |||||||||
Max.swing over carriage | Ф255mm | Ф335mm | Ф460mm | |||||||||
Max. swing over gap | Ф570mm | Ф700mm | Ф820mm | |||||||||
Width of bed | 312mm | |||||||||||
Max.length of workpiece | 1000mm | 1500mm | 2200mm | |||||||||
Effective gap length | 200mm | |||||||||||
SPINDLE | ||||||||||||
Spindle nose | D6 | |||||||||||
Spindle bore | Ф52mm | |||||||||||
Taper bore of spindle | M.T.NO.6 | |||||||||||
Steps of spindle speed | 12 | 16 | 16 | |||||||||
Range of spindle speed | 40~1800rpm | 27~2000rpm | 27~2000rpm | |||||||||
THREAD RANGE/NUMBER | ||||||||||||
Metric pitch threads | 0.5~20mm/ 24 | |||||||||||
Inch threads | 72~1-5/8 TPI/ 61 | |||||||||||
Module threads | 0.25~10M.P/ 20 | |||||||||||
D.P.Threads | 96~3-1/4 D/ 45 | |||||||||||
FEED | ||||||||||||
Range of longitudinal feeds | 0.04~2.46 (0.0015″~0.0913″)mm | |||||||||||
Range of cross feeds | 0.03~1.23 (0.0006″~0.0365″)mm | |||||||||||

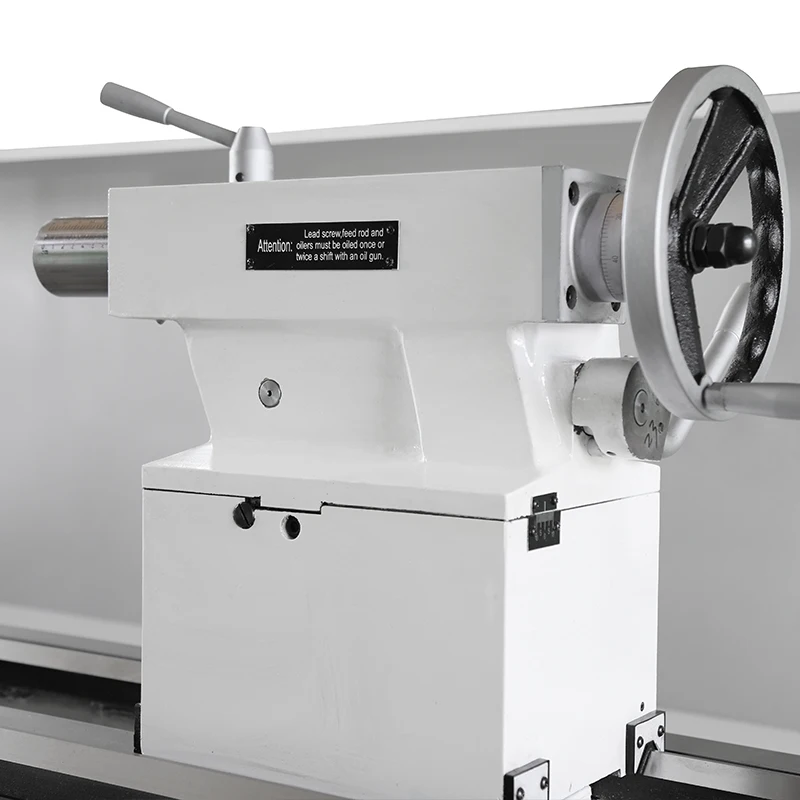

TAILSTOCK SLEEVE | ||||||||||||
Taper bore | M.T.NO.4 | |||||||||||
Max.travel | 120mm | |||||||||||
External diameter | Ф60mm | |||||||||||
OTHERS | ||||||||||||
Size of tool shank | 20×20mm | 25×25mm | 25×25mm | |||||||||
Max travel of cross slide | 240mm | 350mm | 350mm | |||||||||
Max.travel of compound rest | 100mm | |||||||||||
Main motor power | 4/5.5kw | |||||||||||
PRODUCT CONFIGURATION
Chuck cover, tool post cover and leadscrew cover are optional.

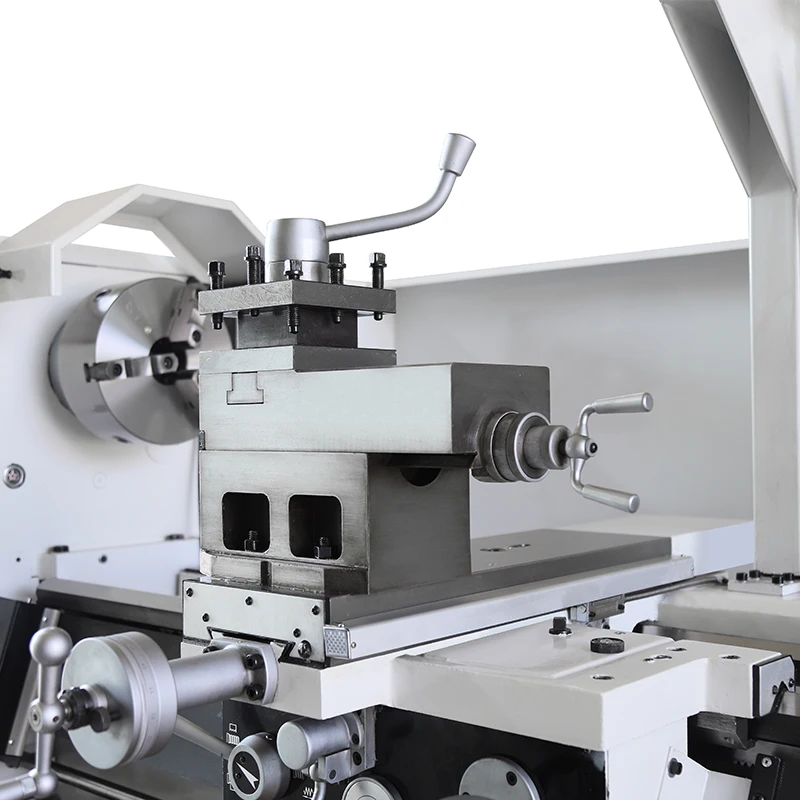

Standard 4-way tool post.
Left or right side handwheel.
European or American type quick change tool post.
Manual tailstock
Tool box with accessoires.
