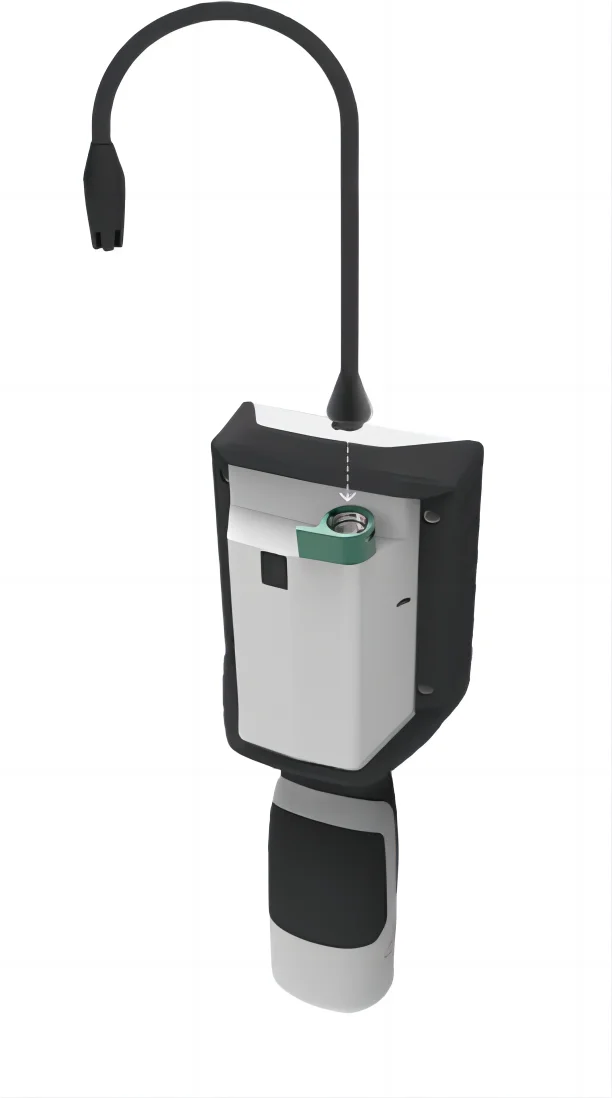

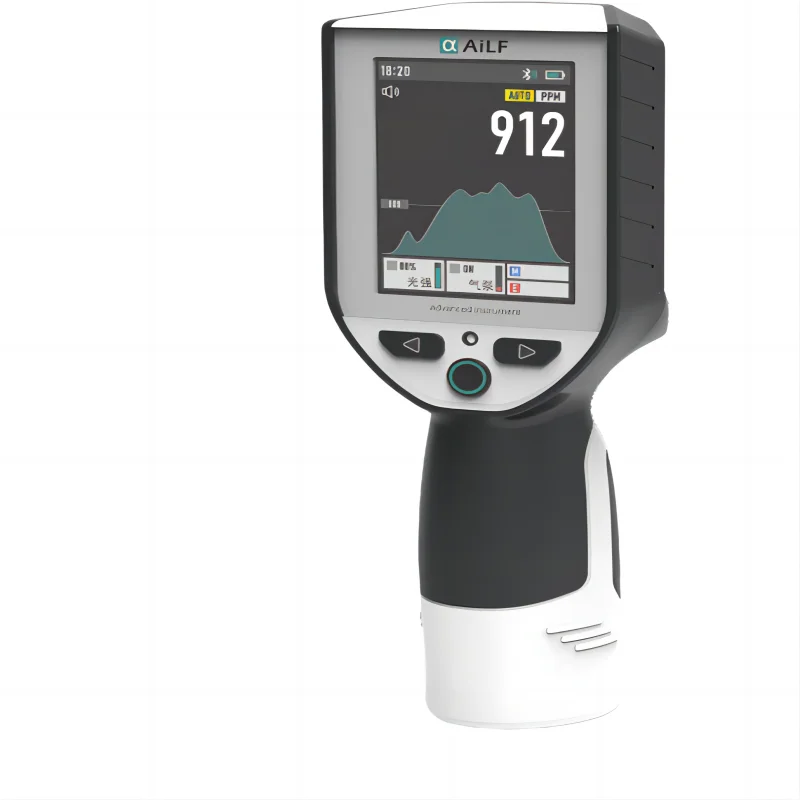

ZETRON C10F Personal Carbon Monoxide Laser Monitor with The Built in Gas Reference and Water and Dust Resistant, Grade IP66
- Category: >>>
- Supplier: Beijing Zetron Technology Co. Ltd.
Share on (1600995962744):
Product Overview
Description
Overview

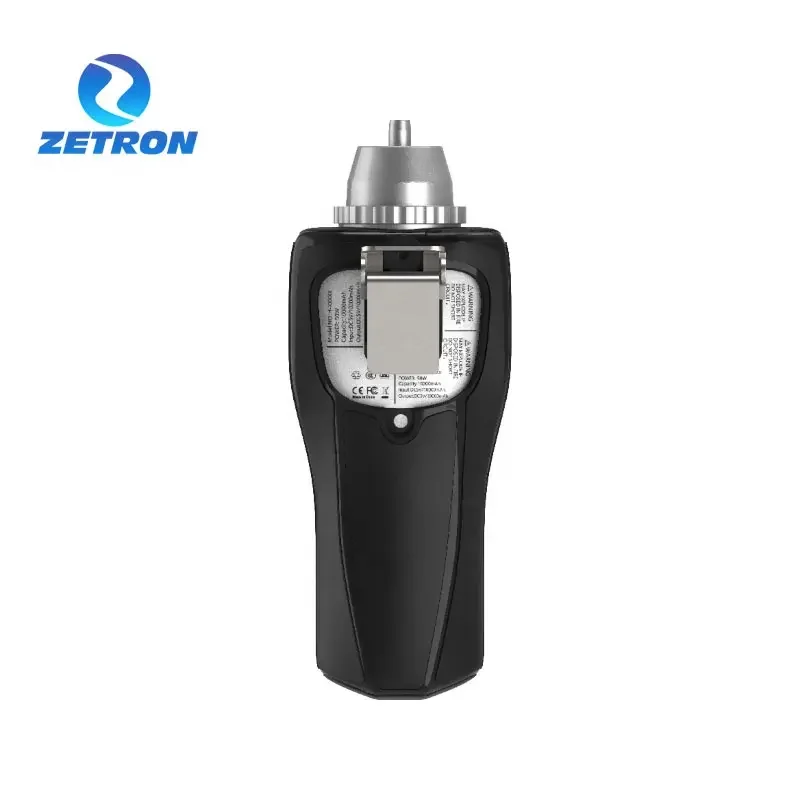

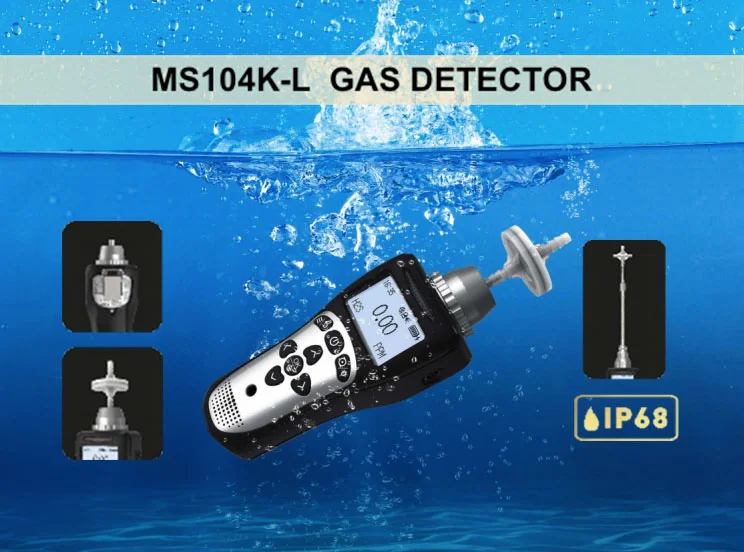

MS104K-L Single Gas Detector
The main functions of MS104K-L portable gas detector are for The main functions of the MS104K-L portable gas detector are to quickly and accurately detect gas leaks or gas concentration exceeding the alarm limit. The main detection principles of gas detection are: electrochemical, infrared, catalytic combustion, thermal conductivity, PID photoionization, etc. The MS104K-L is widely used in firefighting, emergency rescue, confined space, petroleum, chemical industry, metallurgy, refining, gas, storage, medicine, environmental protection, air treatment and other occasions.
Product Feature
● Built-in pump suction measurement, can be switched to diffusion, diffusion + pump suction detection mode
● Pump clogging alarm
● LED lighting (optional)
● Unit free switching, unit optional: umol/mol, ppm, pphm, ppb, mg/m3, ug/m3, %Vol, %LEL
● 8-key operation, quick one-key calibration function
● Data storage, storage capacity of not less than 100,000 items
● Communication interface: TYPE-C, option: BluetoothFall alarm
● Data recovery function, part or all of the factory data recovery
● Maximum value, minimum value, weighted average value display
● Alarm mode setting
Alarm mode: sound and light alarm, vibration alarm, voice alarm
Alarm type: Concentration alarm, under pressure alarm, fault alarm, pump blockage alarm.
Alarm mode: low alarm, high alarm, interval alarm, TWA/STEL alarm
● Misoperation recognition function, concentration calibration misoperation is automatically recognized and blocked
● Zero point auto-tracking, avoiding zero point drift.
● Multi-level calibration of target point
● Intrinsically safe circuit design, explosion-proof, shock-proof, anti-static, anti-radiation.
● Protection class IP68, rain and immersion, dustproof, anticorrosive
● Pump clogging alarm
● LED lighting (optional)
● Unit free switching, unit optional: umol/mol, ppm, pphm, ppb, mg/m3, ug/m3, %Vol, %LEL
● 8-key operation, quick one-key calibration function
● Data storage, storage capacity of not less than 100,000 items
● Communication interface: TYPE-C, option: BluetoothFall alarm
● Data recovery function, part or all of the factory data recovery
● Maximum value, minimum value, weighted average value display
● Alarm mode setting
Alarm mode: sound and light alarm, vibration alarm, voice alarm
Alarm type: Concentration alarm, under pressure alarm, fault alarm, pump blockage alarm.
Alarm mode: low alarm, high alarm, interval alarm, TWA/STEL alarm
● Misoperation recognition function, concentration calibration misoperation is automatically recognized and blocked
● Zero point auto-tracking, avoiding zero point drift.
● Multi-level calibration of target point
● Intrinsically safe circuit design, explosion-proof, shock-proof, anti-static, anti-radiation.
● Protection class IP68, rain and immersion, dustproof, anticorrosive

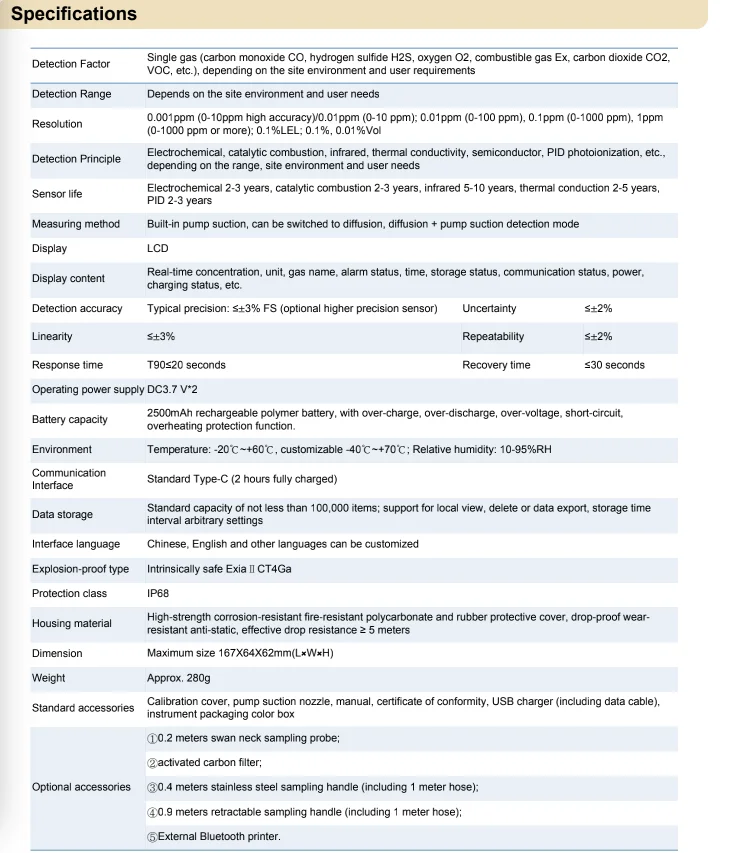

Product Paramenters
Detection Factor | Single gas (carbon monoxide CO, hydrogen sulfide H2S, oxygen O2, combustible gas Ex, carbon dioxide CO2, VOC, etc.), depending on the site environment and user requirements | ||||
Detection Range | Depends on the site environment and user needs | ||||
Resolution | 0.001ppm (0-10ppm high accuracy)/0.01ppm (0-10 ppm); 0.01ppm (0-100 ppm), 0.1ppm (0-1000 ppm), 1ppm (0-1000 ppm or more); 0.1%LEL; 0.1%, 0.01%Vol | ||||
Detection Principle | Electrochemical, catalytic combustion, infrared, thermal conductivity, semiconductor, PID photoionization, etc., depending on the range, site environment and user needs | ||||
Sensor life | Electrochemical 2-3 years, catalytic combustion 2-3 years, infrared 5-10 years, thermal conduction 2-5 years, PID 2-3 years | ||||
Measuring method | Built-in pump suction, can be switched to diffusion, diffusion + pump suction detection mode | ||||
Display | LCD | ||||
Display content | Real-time concentration, unit, gas name, alarm status, time, storage status, communication status, power, charging status, etc. | ||||
Detection accuracy | Typical precision: ≤±3% FS (optional higher precision sensor) | Uncertainty | ≤±2% | ||
Linearity | ≤±3% | Repeatability | ≤±2% | ||
Response time | T90≤20 seconds | Recovery time | ≤30 seconds | ||
Operating power supply | DC3.7 V*2 | ||||
Battery capacity | 2500mAh rechargeable polymer battery, with over-charge, over-discharge, over-voltage, short-circuit, overheating protection function. | ||||
Environment | Temperature: -20℃~+60℃, customizable -40℃~+70℃; Relative humidity: 10-95%RH | ||||
Communication Interface | Standard Type-C (2 hours fully charged) | ||||
Data storage | Standard capacity of not less than 100,000 items; support for local view, delete or data export, storage time interval arbitrary settings | ||||
Interface language | Chinese, English and other languages can be customized | ||||
Explosion-proof type | Intrinsically safe ExiaⅡCT4Ga | ||||
Protection class | IP68 | ||||
Housing material | High-strength corrosion-resistant fire-resistant polycarbonate and rubber protective cover, drop-proof wear-resistant anti-static, effective drop resistance ≥ 5 meters | ||||

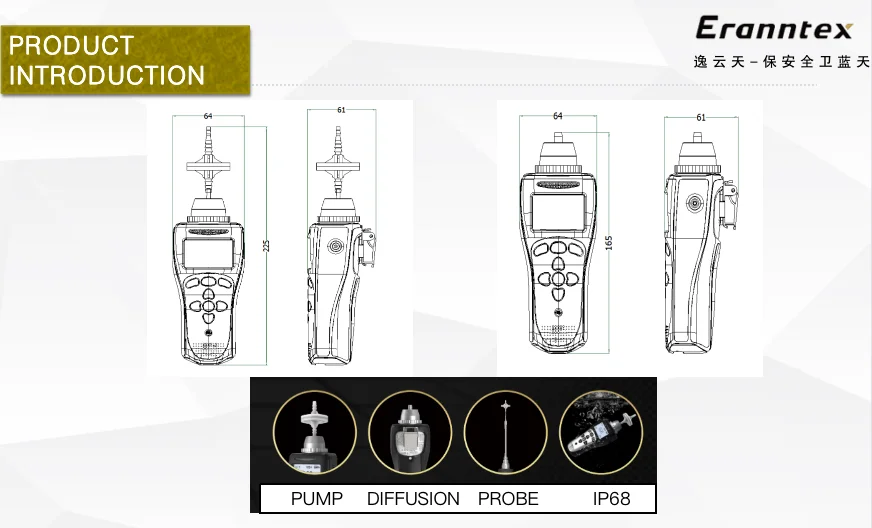

Dimension | Maximum size 167X64X62mm(L×W×H) | ||||
Weight | Approx. 280g | ||||
Standard accessories | Calibration cover, pump suction nozzle, manual, certificate of conformity, USB charger (including data cable), instrument packaging color box | ||||
Optional accessories | ① 0.2 meters swan neck sampling probe; | ||||
② activated carbon filter; | |||||
③ 0.4 meters stainless steel sampling handle (including 1 meter hose); | |||||
④ 0.9 meters retractable sampling handle (including 1 meter hose); | |||||
⑤ External Bluetooth printer. | |||||
Detected Gases | Range | Minimum Reading | Detected Gases | Range | Minimum Reading |
VOCs(VOC) | 0-20ppm | 0.01ppm | Ethylene oxide (ETO) | 0- 100%LEL | 0. 1%LEL |
VOCs(VOC) | 0-200ppm | 0. 1ppm | Phosgene(COCL2) | 0- 1ppm | 0.001ppm |
VOCs(VOC) | 0-2000ppm | 1ppm | Phosgene(COCL2) | 0- 10ppm | 0.01ppm |
VOCs(VOC) | 0- 10000ppm | 1ppm | Silane(SiH4) | 0- 1ppm | 0.001ppm |
Gas (EX) | 0- 1000ppm | 1ppm | Silane(SiH4) | 0-50ppm | 0.01ppm |
Gas (EX) | 0- 100%LEL | 0. 1%LEL | Fluorine gas (F2) | 0- 1ppm | 0.001ppm |
Gas (EX) | 0- 100%VOL | 0.01%VOL | Fluorine gas (F2) | 0- 10ppm | 0.001ppm |
Methane (CH4) | 0- 100%LEL | 0. 1%LEL | Fluorine gas(F2) | 0- 100ppm | 0.01ppm |
Methane (CH4) | 0- 100%VOL | 0.01%VOL | Hydrogen Fluoride (HF) | 0- 10ppm | 0.01ppm |
Oxygen (O2) | 0-30%VOL | 0.01%VOL | Hydrogen Fluoride (HF) | 0-50ppm | 0.01ppm |
Oxygen (O2) | 0- 100%VOL | 0.01%VOL | Hydrogen Bromide(HBr) | 0-50ppm | 0.01ppm |
Carbon Monoxide (CO) | 0- 100ppm | 0.01ppm | Ethylborane(B2H6) | 0- 10ppm | 0.001ppm |
Carbon Monoxide (CO) | 0- 1000ppm | 0. 1ppm | Arsine(AsH3) | 0- 1ppm | 0.001ppm |
Carbon Monoxide (CO) | 0-2000ppm | 1ppm | Arsine(AsH3) | 0- 10ppm | 0.001ppm |
Carbon Monoxide (CO) | 0-5000ppm | 1ppm | Germanium(GeH4) | 0- 1ppm | 0.001ppm |
Carbon Monoxide (CO) | 0- 10000ppm | 1ppm | Germanium(GeH4) | 0- 10ppm | 0.001ppm |
Carbon dioxide (CO2) | 0-5000ppm | 1ppm | Germanium(GeH4) | 0-50ppm | 0.01ppm |
Carbon dioxide (CO2) | 0-50000ppm | 1ppm | Hydrazine, hydrazine hydrazide (N2H4) | 0- 1ppm | 0.001ppm |
Carbon dioxide (CO2) | 0-5%VOL | 0.01%VOL | Hydrazine, hydrazine hydrazide (N2H4) | 0-300ppm | 0. 1ppm |
Carbon dioxide (CO2) | 0-20%VOL | 0.01%VOL | Tetrahydrothiophene (THT) | 0-50mg/m3 | 0.01 mg/m3 |
Carbon dioxide (CO2) | 0- 100%VOL | 0.01%VOL | Bromine (Br2) | 0- 10ppm | 0.01ppm |
Formaldehyde (CH2O) | 0- 10ppm | 0.01ppm | Bromine gas (Br2) | 0-50ppm | 0.01ppm |
Formaldehyde (CH2O) | 0-50ppm | 0.01ppm | Sulfur dioxide (SO2) | 0-20ppm | 0.01ppm |
Formaldehyde (CH2O) | 0- 100ppm | 0.01ppm | Sulfur dioxide (SO2) | 0- 100ppm | 0.01ppm |
Formaldehyde (CH2O) | 0- 1000ppm | 1ppm | Sulfur Dioxide(SO2) | 0- 1000ppm | 0. 1ppm |
Ozone (O3) | 0- 1ppm | 0.001ppm | Sulfur dioxide (SO2) | 0-5000ppm | 1ppm |
Ozone (O3) | 0- 10ppm | 0.01ppm | Nitric oxide (NO) | 0-20ppm | 0.01ppm |
Ozone (O3) | 0- 100ppm | 0.01ppm | Nitric Oxide (NO) | 0- 100ppm | 0.01ppm |
Ozone (O3) | 0-2000ppm | 1ppm | Nitric Oxide (NO) | 0- 1000ppm | 0. 1ppm |
Hydrogen Sulfide (H2S) | 0- 10ppm | 0.01ppm | Nitric Oxide (NO) | 0-5000ppm | 1ppm |
Hydrogen sulfide (H2S) | 0- 100ppm | 0.01ppm | Nitrogen Dioxide (NO2) | 0-20ppm | 0.01ppm |
Hydrogen sulfide (H2S) | 0-500ppm | 0. 1ppm | Nitrogen dioxide | 0- 100ppm | 0.01ppm |
Hydrogen sulfide (H2S) | 0-2000ppm | 1ppm | Nitrogen dioxide | 0- 1000ppm | 0. 1ppm |
Hydrogen Cyanide(HCN) | 0- 100ppm | 0.01ppm | Nitrogen Dioxide (NO2) | 0-2000ppm | 1ppm |
Hydrogen Chloride(HCL) | 0-20ppm | 0.01ppm | Nitrogen Oxides (NOX) | 0- 100ppm | 0.01ppm |
Hydrogen chloride (HCL) | 0-200ppm | 0. 1ppm | Nitrogen Oxides (NOX) | 0-500ppm | 0. 1ppm |
Phosphine (PH3) | 0-5 ppm | 0.001ppm | Nitrogen oxides (NOX) | 0-2000ppm | 1ppm |
Phosphine (PH3) | 0-20 ppm | 0.01ppm | Chlorine (CL2) | 0-20ppm | 0.01ppm |
Phosphine(PH3) | 0-2000 ppm | 1ppm | Chlorine (CL2) | 0-200ppm | 0. 1ppm |
Chlorine dioxide (CLO2) | 0- 1ppm | 0.001ppm | Ammonia (NH3) | 0- 10ppm | 0.01ppm |
Chlorine dioxide (CLO2) | 0- 10ppm | 0.01ppm | Ammonia (NH3) | 0- 100ppm | 0.01ppm |
Chlorine dioxide (CLO2) | 0- 100ppm | 0.01ppm | Ammonia(NH3) | 0- 1000ppm | 0. 1ppm |
Ethylene oxide (ETO) | 0- 100ppm | 0.01ppm | Ammonia gas (NH3) | 0-5000ppm | 1ppm |
Ethylene oxide (ETO) | 0- 1000ppm | 0. 1ppm | Ammonia(NH3) | 0- 100%LEL | 0. 1%LEL |
Application Scenes
Gas Station
Metallurgical Industry
Oil Exploitation
Shipping
Gas Pipeline
Chemical Medicine
