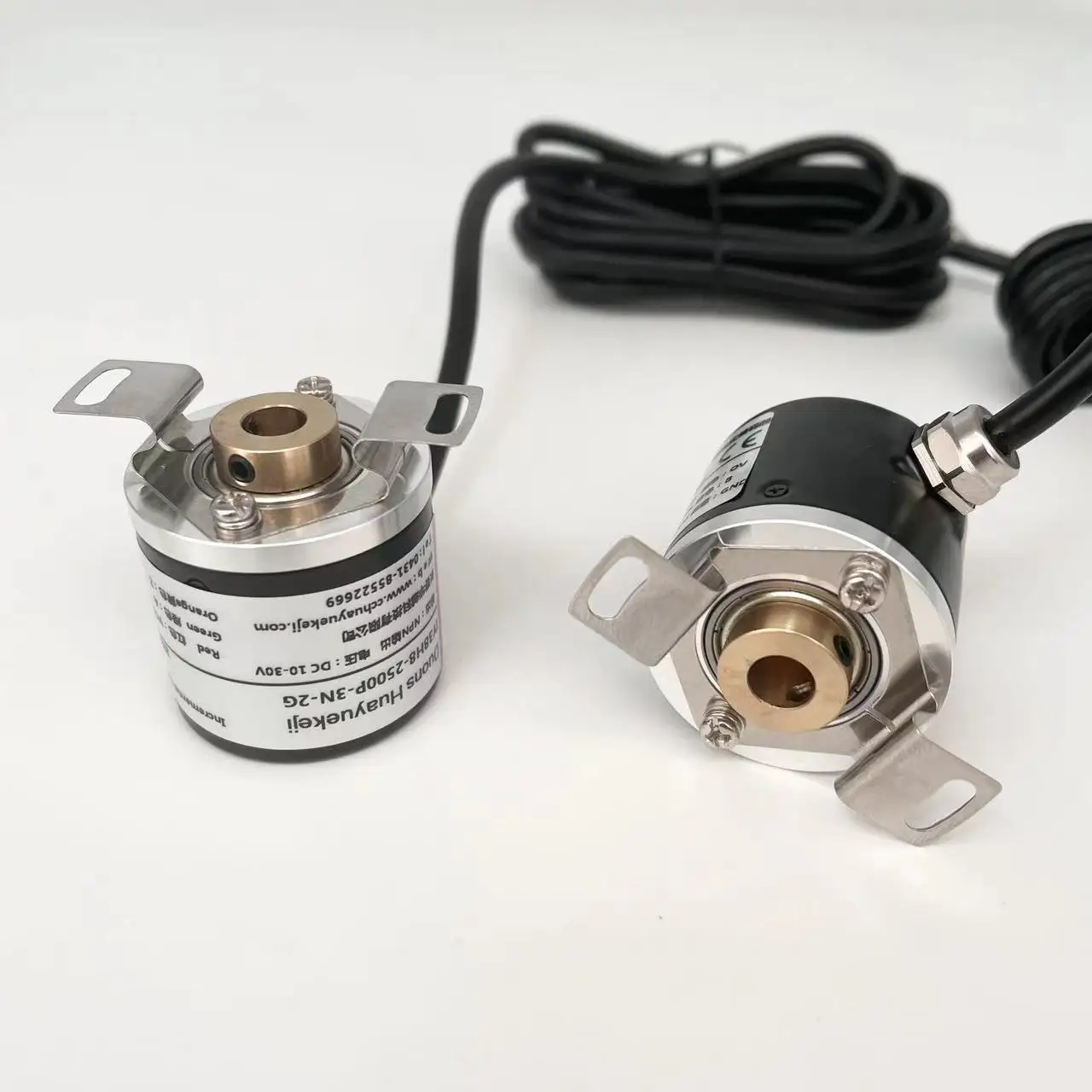

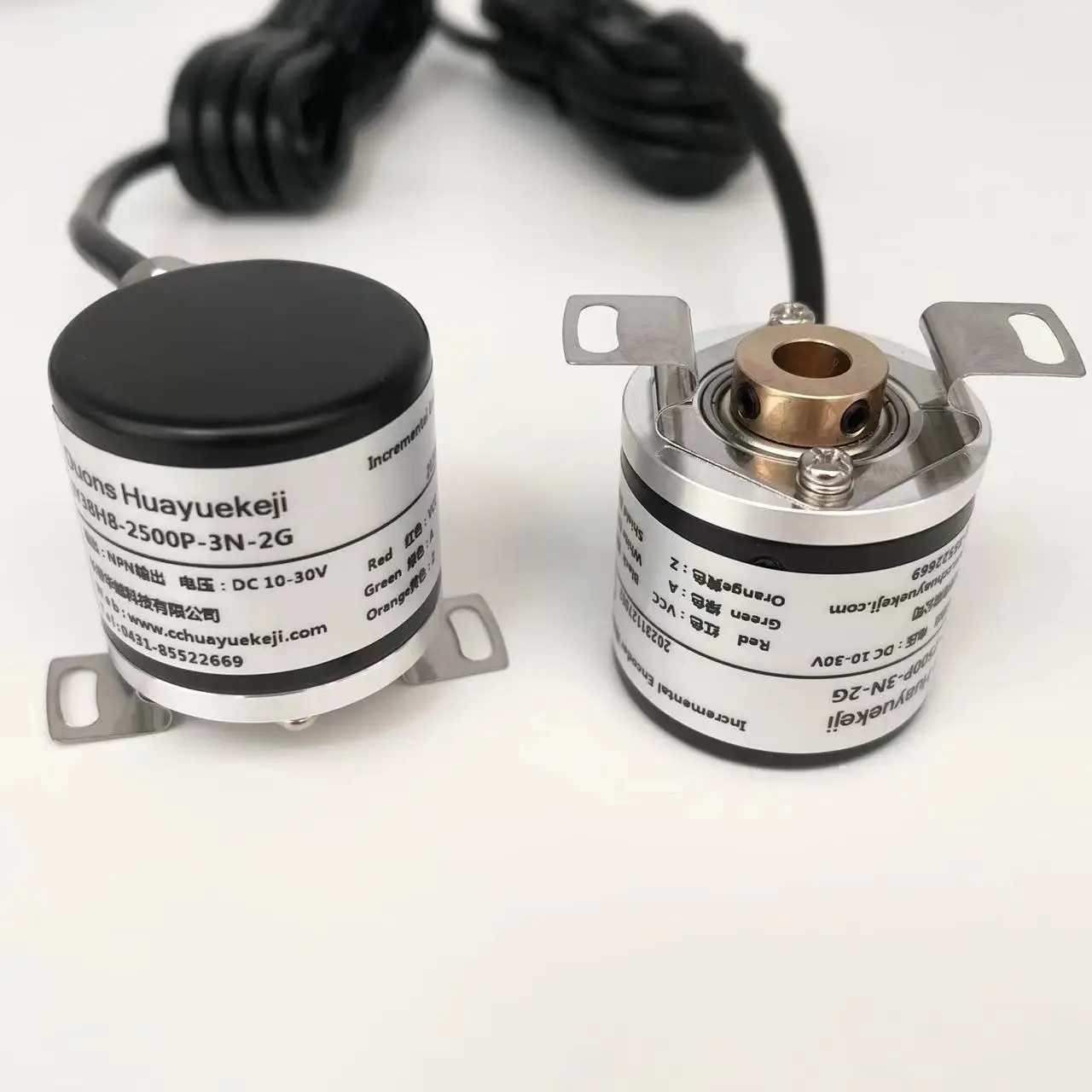

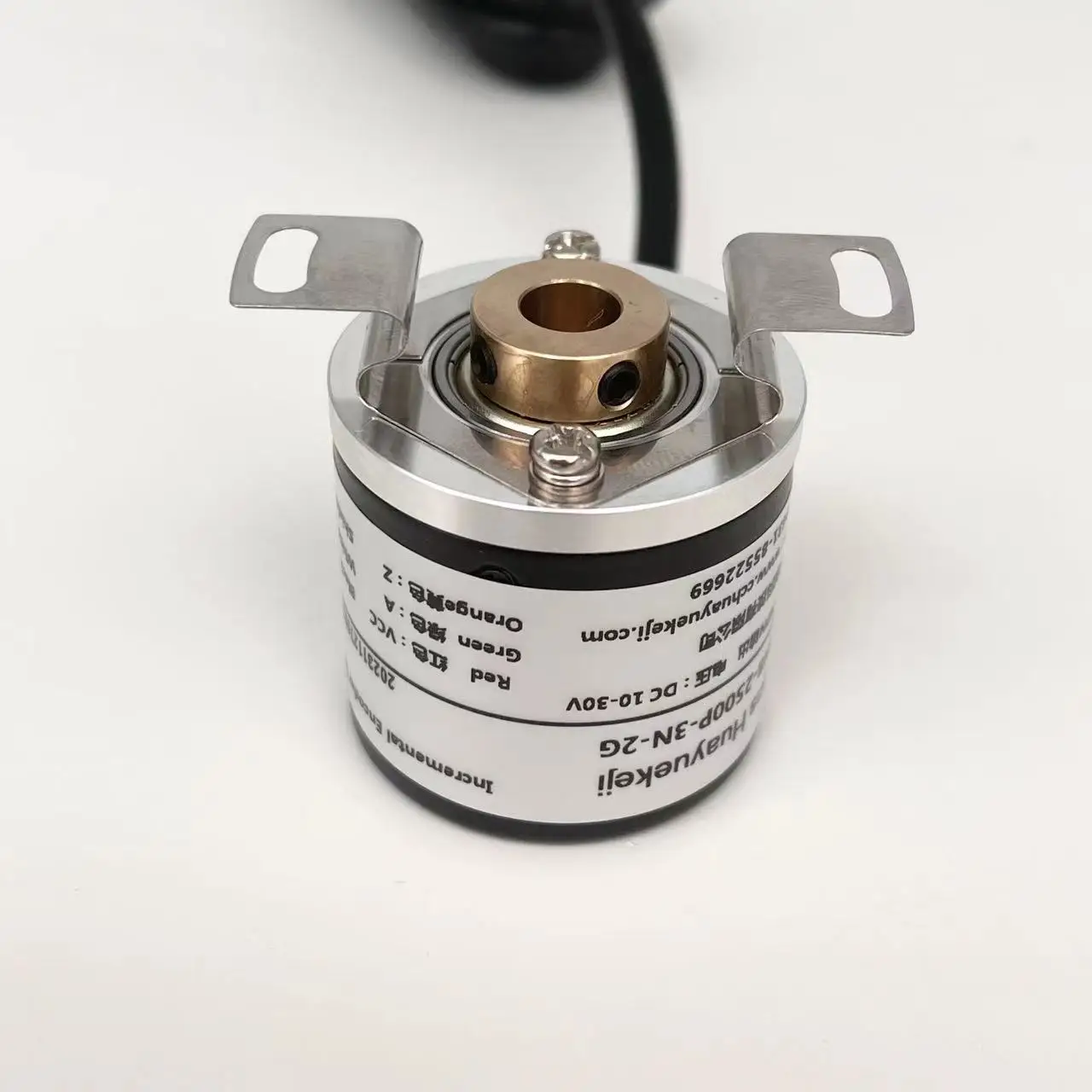

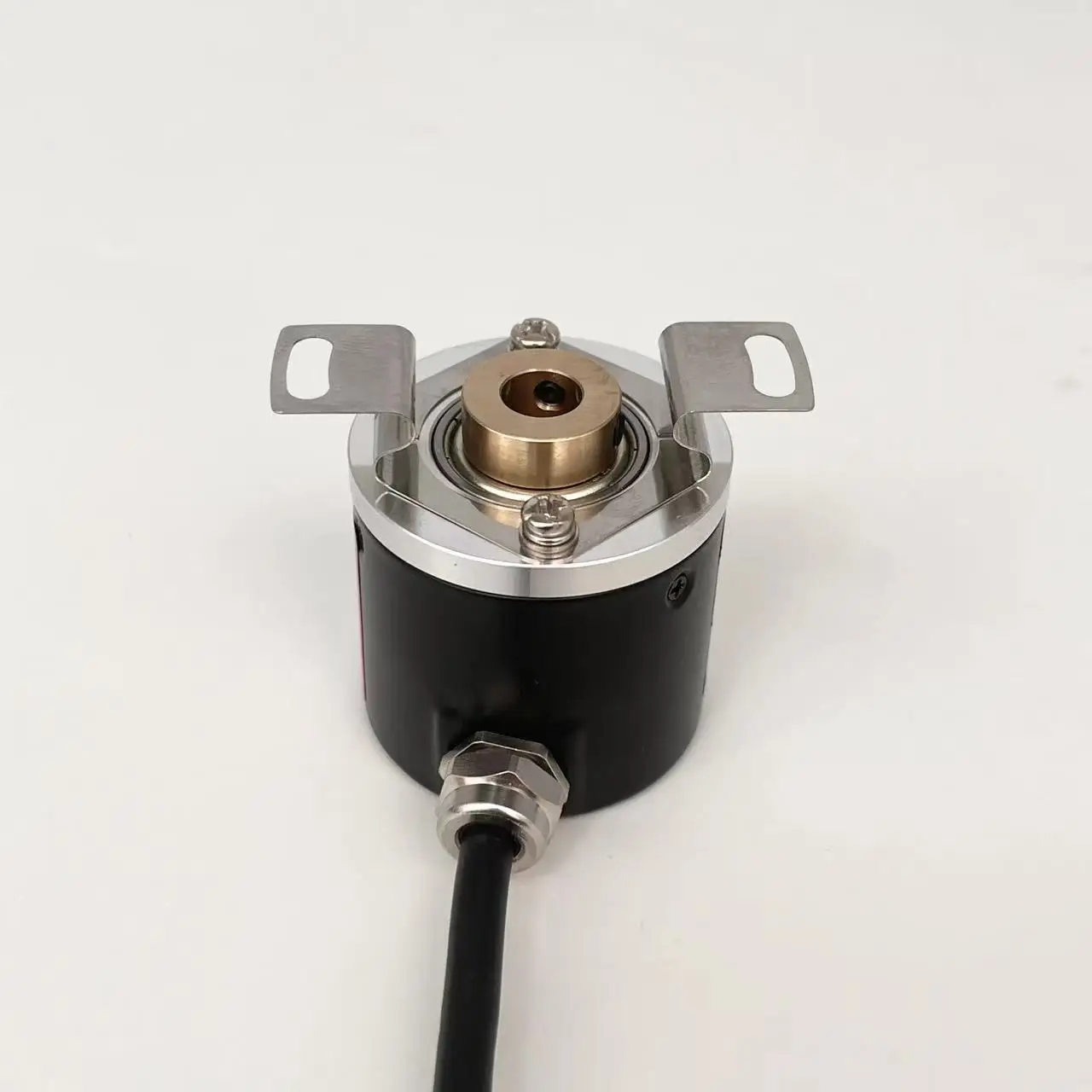

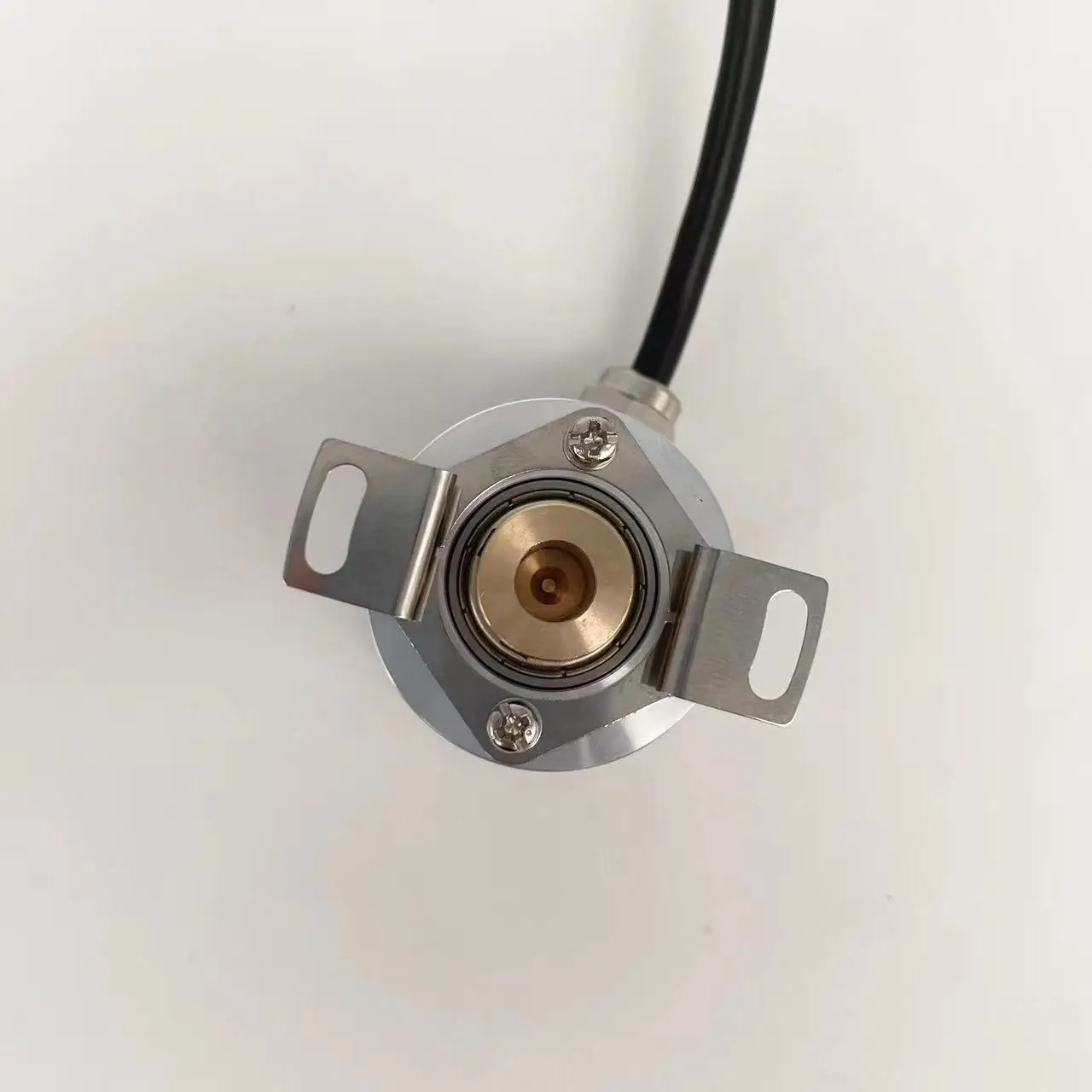

Blind Shaft Rotary Encoder 10 5000ppr 38mm Shaft Hole 8mm Embroidery Machine Encoder
- Category: >>>
- Supplier: Changchun Huayue Technology Co. Ltd.
Share on (1600995986758):
Product Overview
Description

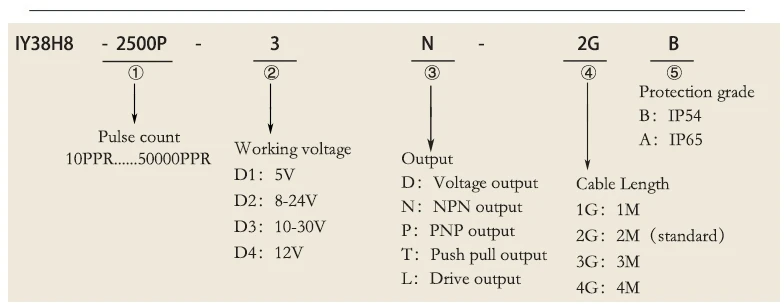

Model Code
Technical parameter
Shaft diameter | 6mm ; 8mm Shaft hole | ||||||
Mains Voltage | 5V ; 8-24V ; 10-30V ; 12V | ||||||
Output | D: Voltage output N: Open collector NPN output P: PNP output T: push-pull/complementary output L: drive output A: wide voltagedrive output | ||||||
Consumption current | ≤120mA | ||||||
Maximum speed | 6000 r/min | ||||||
Starting torque(25℃)（N·M） | 1*10-3 | ||||||
Maximum Load(N) | Axial：20 Radial：30 | ||||||
Moment of inertia（kgm2） | 4*10-6 | ||||||
Operating temperature (℃) | -20~+85 | ||||||
Relative humidity (℃) | 35%~+85% RH without condensation | ||||||
Impact resistance (m/s²) | 50 (3 times in x, y, and z directions, each lasting for 6ms) | ||||||
Vibration resistance (m/s²) | 20 (10~200HZ, 2 hours each in x, y, and z directions) | ||||||
Protection grade | Universal IP54 ; Preferred IP65 | ||||||
Product Introduction
Original NMB bearing, pulse stable Good performance, high rotational speed, and long product life
Stainless steel spindle
Oil proof imported bearings
Zinc alloy shell, aluminum body
Fine craftsmanship

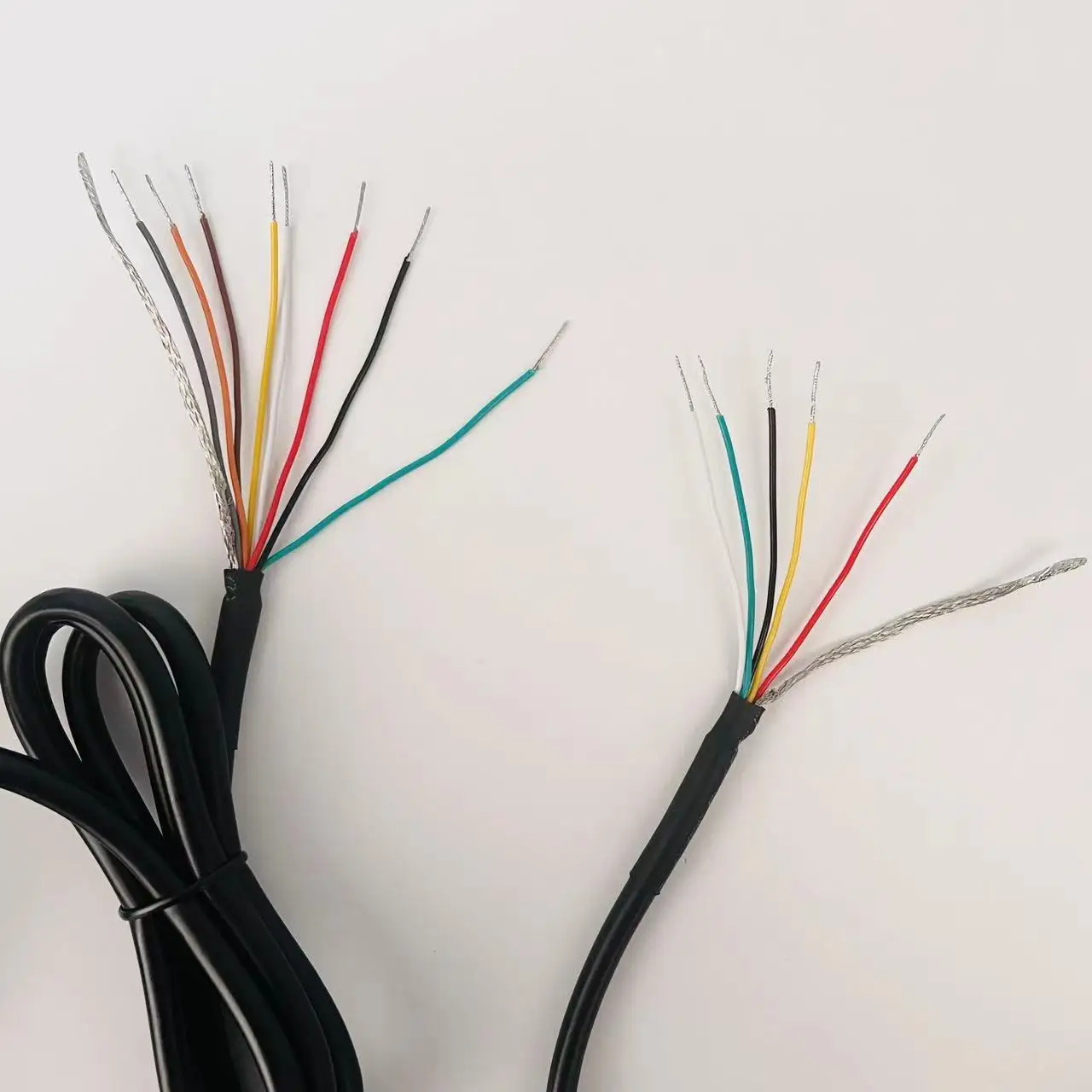

Stable current transmission with shielded wires Stronger anti-interference ability, without causing disturbances

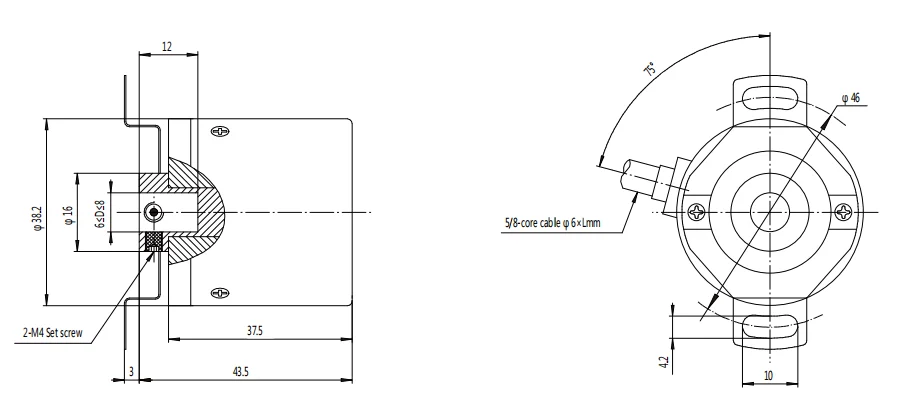

Product drawings
Hot products
Solid shaft encoder, outer diameter 58mm, shaft diameter 8mm
Pulse: 10-50000ppr
Output signals: voltage output, NPN collector open circuit output, PNP output, totem pole output (push pull output), drive output
Working voltage: 5V, 8-24V, 10-30V,12V
Output signals: voltage output, NPN collector open circuit output, PNP output, totem pole output (push pull output), drive output
Working voltage: 5V, 8-24V, 10-30V,12V
Encoder with display meter bracket, wheel display speed or distance
Pulse: 10-20000ppr
Output signals: voltage output, NPN collector open circuit output, PNP output, totem pole output (push pull
output), drive output
output), drive output
Working voltage: 5V, 8-24V, 10-30V,12V

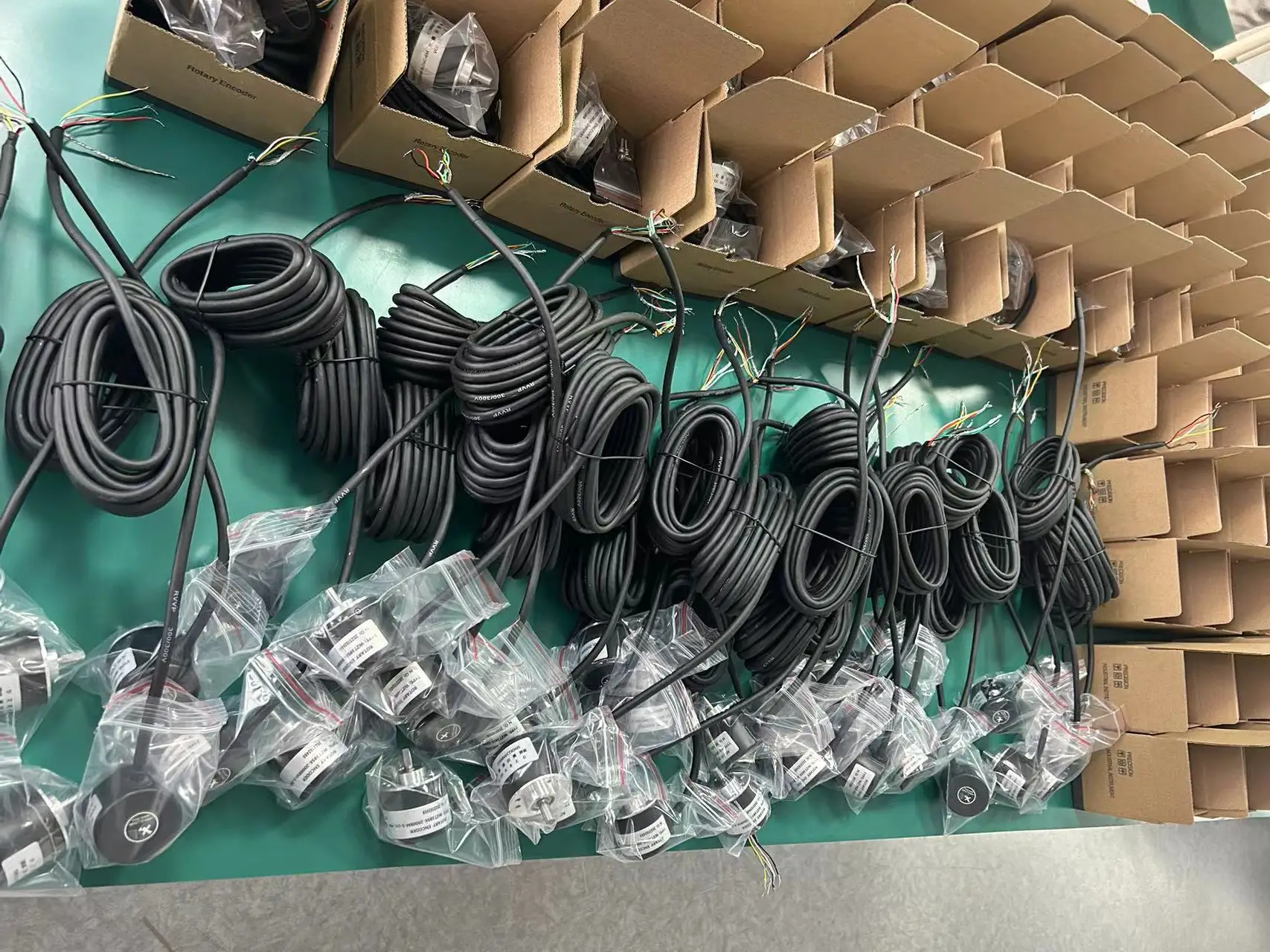

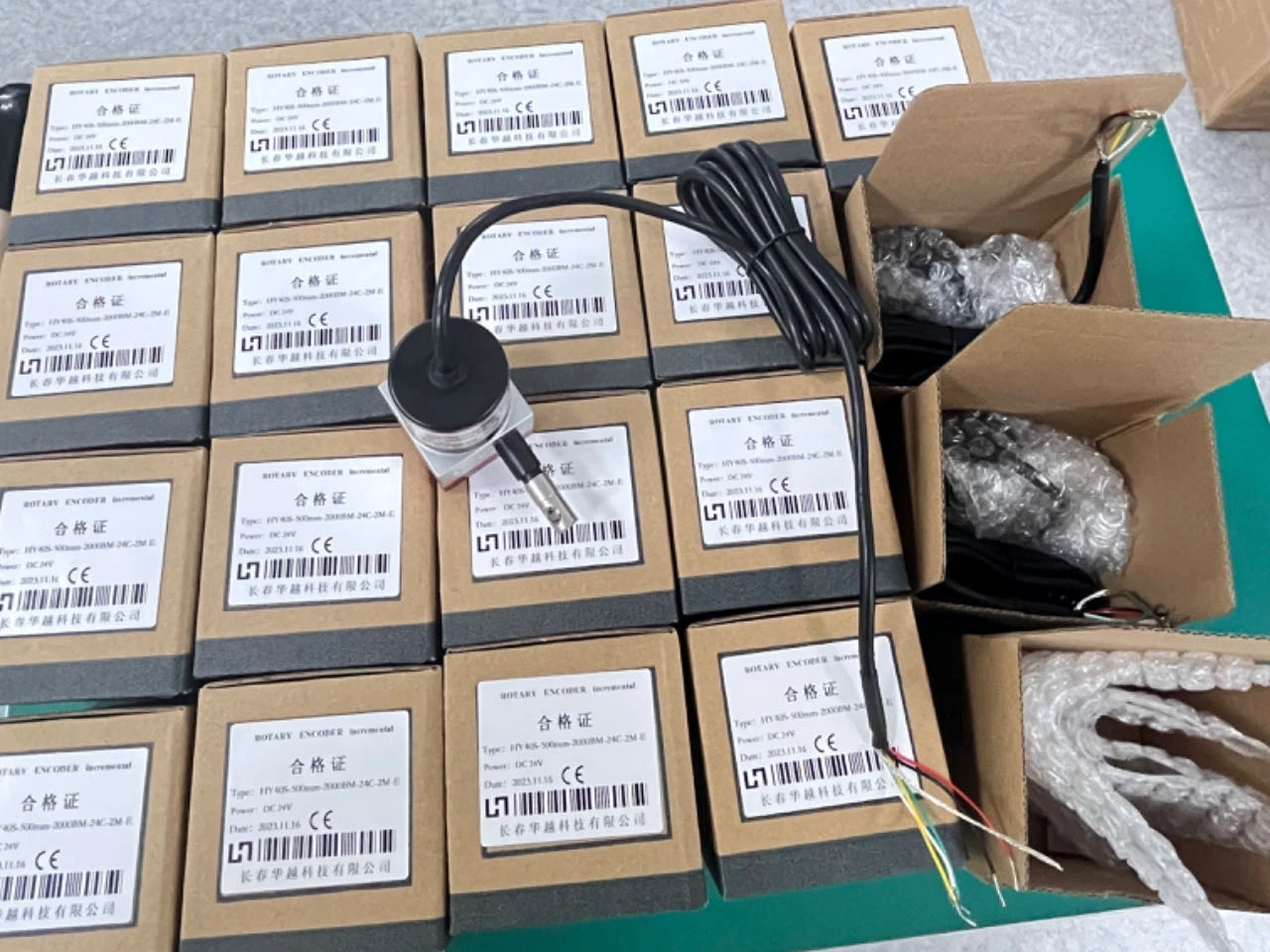

Production environment and packaging

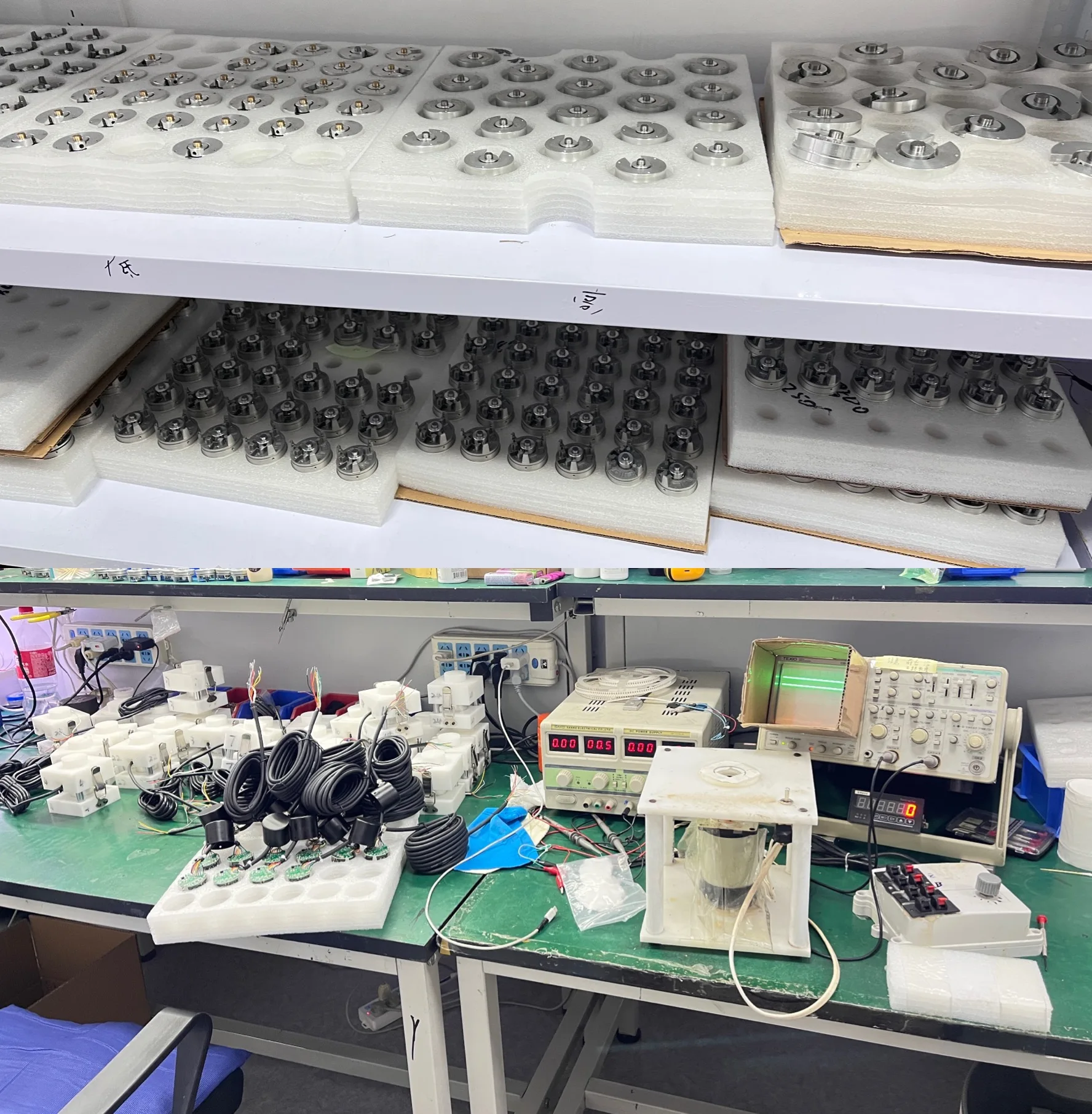

Factory
