Product Overview
Description
Product Description
WTDS Optics provides various options of thermal core to build module, include most popular brand and models on the market. And we will also recommend the most cost -effective thermal core according to customer application.
In addition, we also offers various options of thermal lenses, include athermalized lens, fixed lens, manual lens, fish eyes lens, continuous zoom lens, dual FOV lens. Customers can flexibly configure the module according to their requirement. Customization is supported to fulfill any special requirement of different application.
In addition, we also offers various options of thermal lenses, include athermalized lens, fixed lens, manual lens, fish eyes lens, continuous zoom lens, dual FOV lens. Customers can flexibly configure the module according to their requirement. Customization is supported to fulfill any special requirement of different application.
Feature
* Power Supply: 12VDC (3~18VDC)
* NETD: <40mk for standard, <30mk for optional
* Output (640x512): Analog(PAL), USB, LVDS, LVCOMS, Ethernet(h264), BT656, BT1120, Cameralink
* Output(1280x1024): LVDS, LVCOMS, Ethernet(h264), BT1120, Cameralink, HDMI, SDI
* Other Function: Auto focus, Sunshine protection, High voltage protection
* Protection level: IP67 (Front panel)
* NETD: <40mk for standard, <30mk for optional
* Output (640x512): Analog(PAL), USB, LVDS, LVCOMS, Ethernet(h264), BT656, BT1120, Cameralink
* Output(1280x1024): LVDS, LVCOMS, Ethernet(h264), BT1120, Cameralink, HDMI, SDI
* Other Function: Auto focus, Sunshine protection, High voltage protection
* Protection level: IP67 (Front panel)
Specification

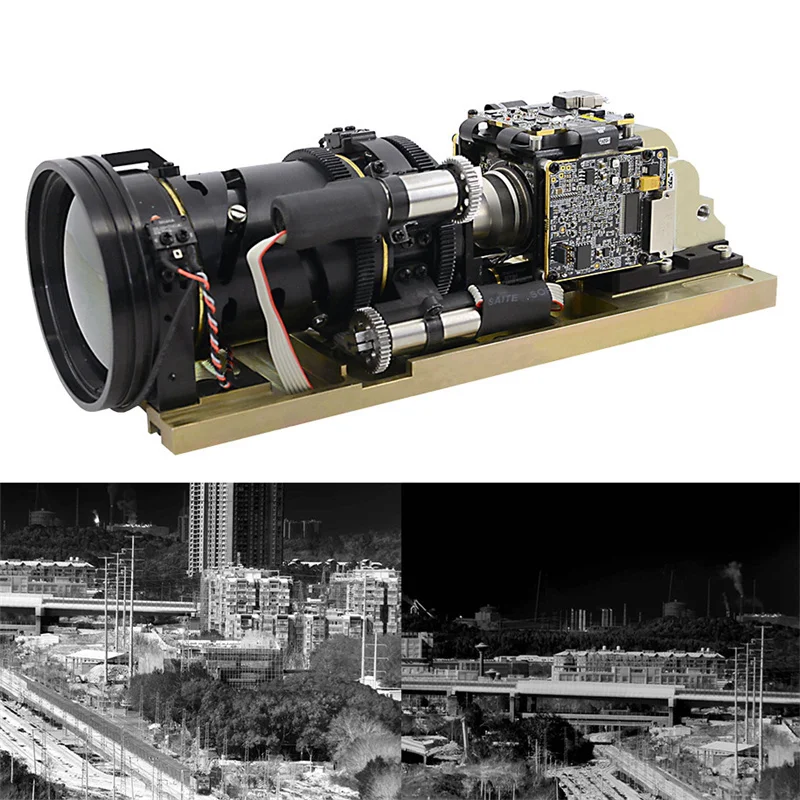

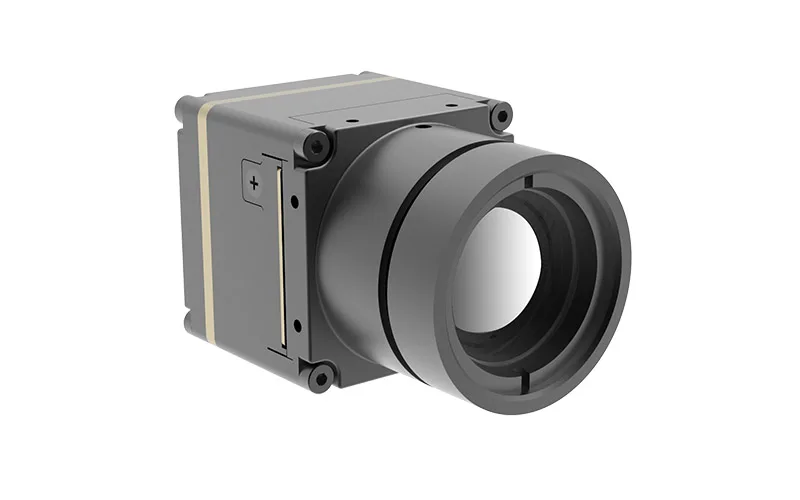

Uncooled LWIR Module | ||||||
Model | Optical | IR core | FOV | |||
TM5P8A | 5.8mm, f1.0, Athermalized | VOx, 640×512, 12µm | 67°×55.8° | |||
TM13A | 13mm, f1.0, Athermalized | VOx, 1280×1024, 12µm | 61.1°×50.6° | |||
TM19A TM19AH | 19mm, f1.0, Athermalized | VOx, 640×512, 12µm VOx, 1280×1024, 12µm | 22.8°×18.4° 44°×35.8° | |||
TM35A TM35AH | 35mm, f1.0, Athermalized | VOx, 640×512, 12µm VOx, 1280×1024, 12µm | 12.5°×10° 24.8°×19.9° | |||
TM75E | 75mm, f1.0, Motorized | VOx, 640×512, 12µm | 5.8°×4.7° | |||
TM100E | 100mm, f1.2, Motorized | VOx, 640×512, 12µm | 4.4°×3.5° | |||
TM150E | 150mm, f1.2, Motorized | VOx, 640×512, 12µm | 2.9°×2.3° | |||
TM25/75 TM25/75H | 25~75mm, 1.2 | VOx, 640×512, 12µm VOx, 1280×1024, 12µm | 5.9°×4.7°~17.5°× 14° 11.7°×9.4°~17.5°× 14° | |||
TM20/100 TM20/100H | 20~100mm, f1.2 | VOx, 640×512, 12µm VOx, 1280×1024, 12µm | 4.4°×3.5°~21.7°× 17.5° 8.8°×7°~42°×34° | |||
TM25/150 | 25~150mm, 1.4 | VOx, 640×512, 12µm | 2.9°×2.4°~17.5°× 14° | |||
TM30/150 TM30/150H | 30~150mm, 1.2 | VOx, 640×512, 12µm VOx, 1280×1024, 12µm | 2.9°×2.4°~14.6°× 11.7° 5.9°×4.7°~28.7°×23.1° | |||
TM30/180 | 30~180mm, f1.4 | VOx, 640×512, 12µm | 2.4°×2°~14.6°× 11.7° | |||
TM25/225 TM25/225H | 25~225mm, f1.2~1.5 | VOx, 640×512, 12µm VOx, 1280×1024, 12µm | 1.9°×1.5°~17.5°× 14° 3.9°×3.1°~42°×34.1° | |||

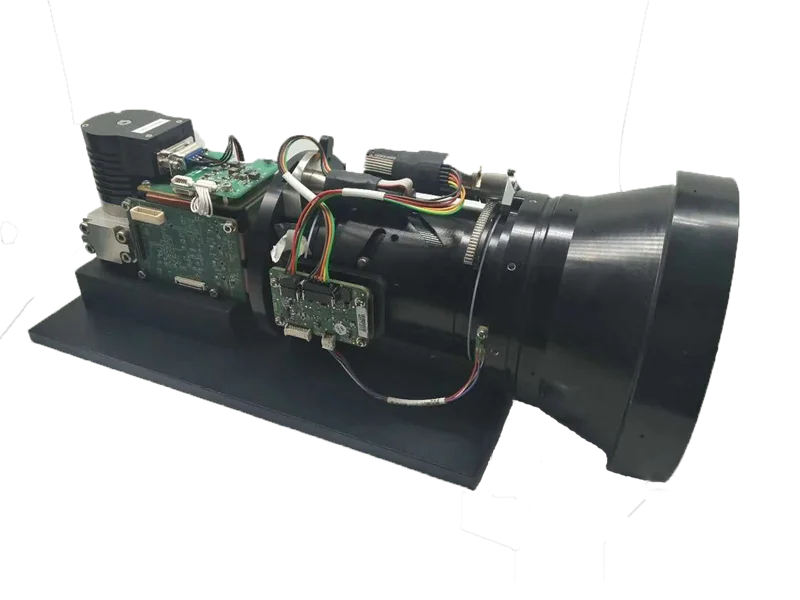

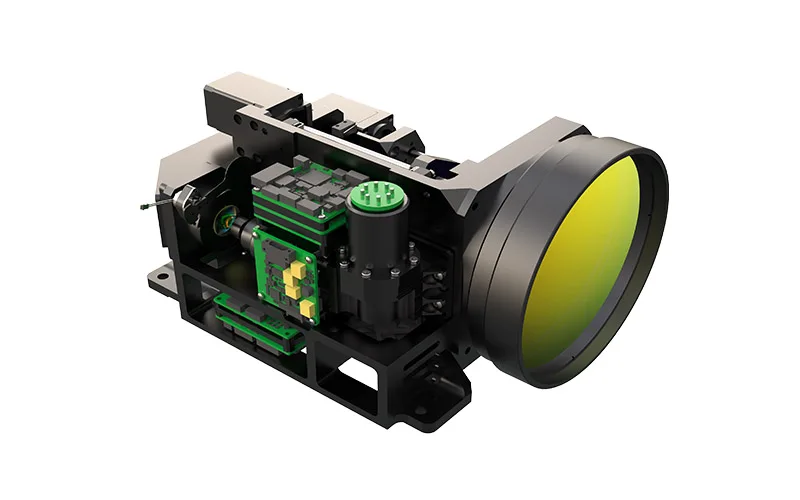

Cooled MWIR Module | ||||||
Model | Optical | Cooled Detector | FOV | |||
CMW15/300 CMW15/300P | 15~300mm, f4 | MCT/, 640×512, 15µm, MTTF 6500h InSb/, 640×512, 15µm, MTTF10000h | 1.83°×1.46°~35.5°× 28.7° | |||
CMW40/600 CMW40/600P | 40~600mm, f4 | MCT/, 640×512, 15µm, MTTF 6500h InSb/, 640×512, 15µm, MTTF10000h | 0.91°×0.73°~13.7°×10.9° | |||
CMW40/800 CMW40/800P | 40~800mm, f4 | MCT/, 640×512, 15µm, MTTF 6500h InSb/, 640×512, 15µm, MTTF10000h | 0.68°×0.55°~13.7°×10.9° | |||
CMW40/1100 CMW40/1100P | 40~1100mm, f5.5 | MCT/, 640×512, 15µm, MTTF 6500h InSb/, 640×512, 15µm, MTTF10000h | 0.5°×0.4°~13.7°×10.9° | |||
