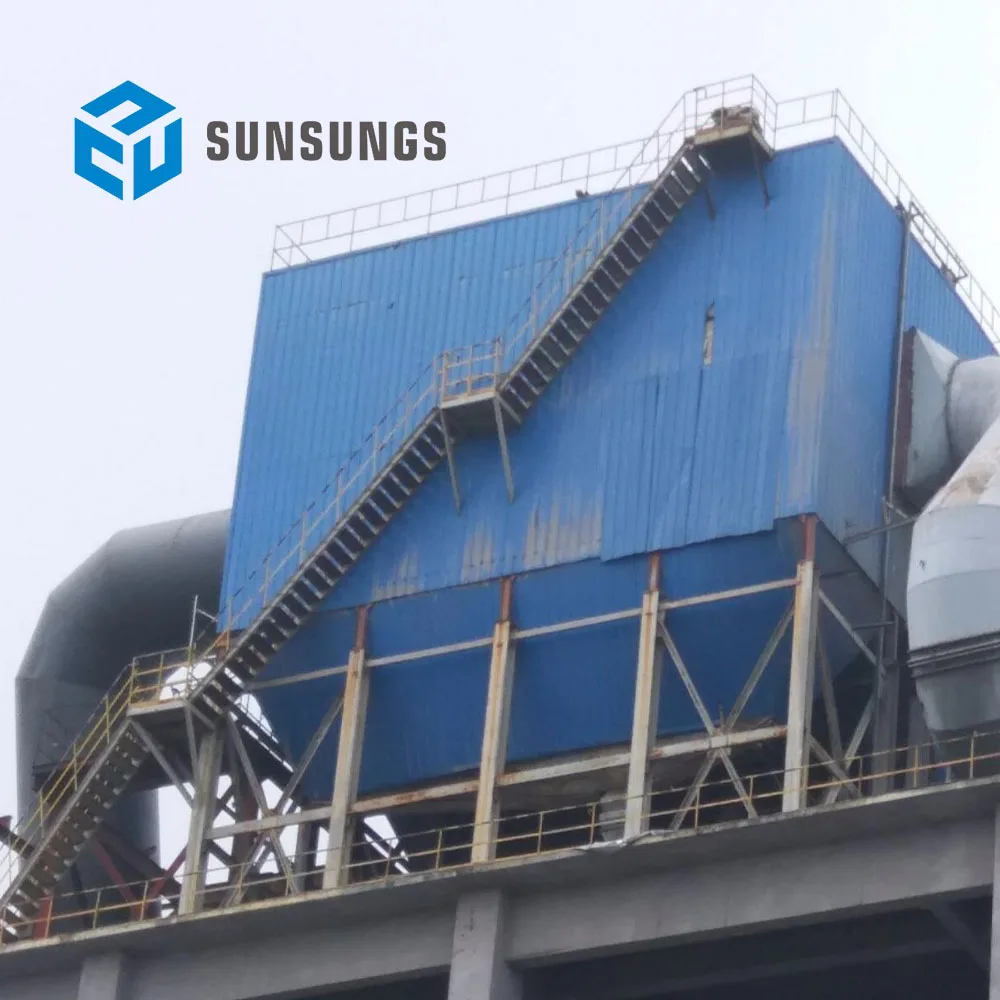

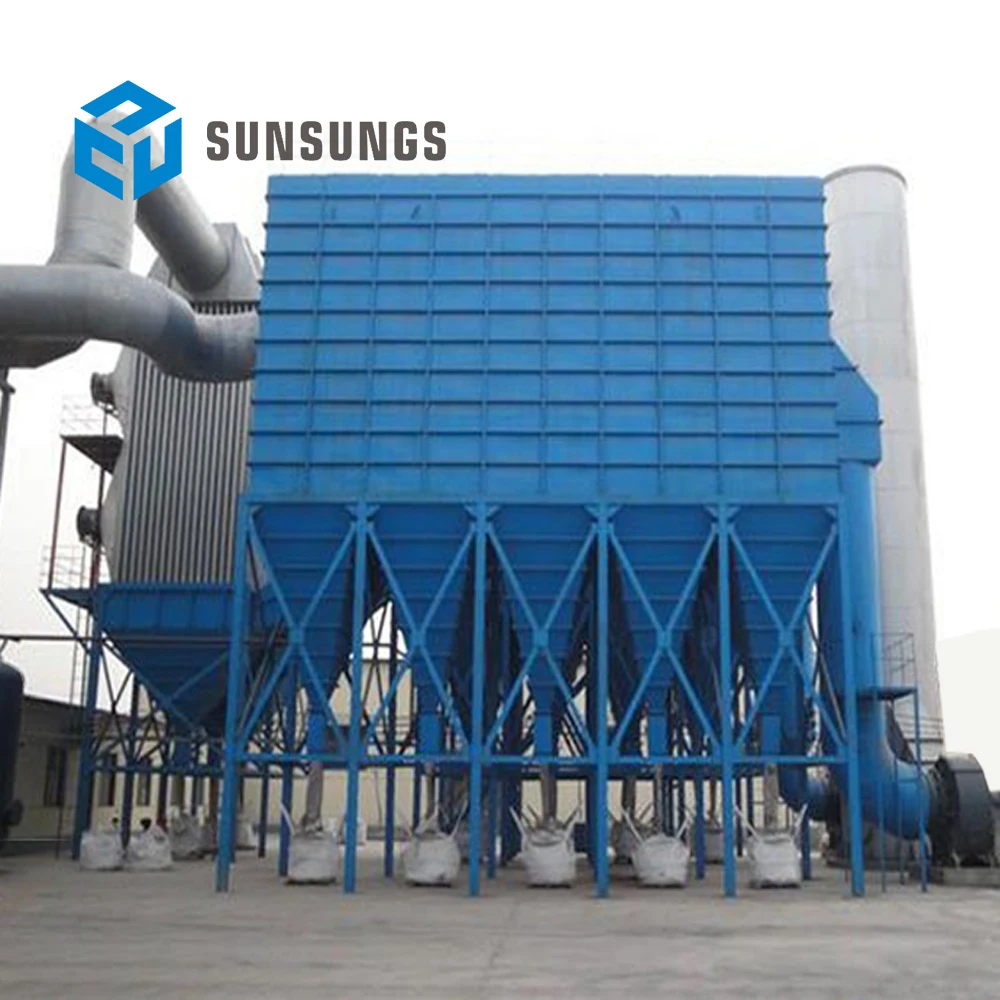

Low Price Industrial Dedusting System Jet Pulse Long Bag Type Workshop High Temperature Dust Collector Used in Cement Plant

Product introduction

High temperature bag filter dust collector

High temperature bag filter adopts high temperature resistant filter bag (glass fiber, Metas, PPS material). After adding PTFE coating, it can significantly improve the heat resistance, flame retardant, acid and alkali resistance of the filter bag, and improve the high temperature smoke Applicability of gas types. High temperature resistant silicon carbide spray cage and insulation system can ensure the stable operation of the equipment in the temperature range of about 260 ° C.

We design and produce high-temperature bag type dust collectors, which can add various monitoring and control systems based on actual conditions, monitor the equipment's operating environment in real time, and automatically respond to various unexpected conditions to achieve safe and stable operation of the equipment under complex working conditions and reduce accidents loss. At the same time, various monitoring data can be displayed in real time to achieve intuitive and efficient monitoring and management.

working principle

When the dust flue gas is at a high temperature, generally a cooling system (air-cooled or water-cooled) is required. When the temperature drops below 240 ° C, it enters a dust collector for dust filtration and purification.

The high-temperature dust flue gas enters the upper box of the dust collector from the specific flue air duct of the dust collector. Under the action of the wind deflector and the air distribution system, the air flow velocity is reduced, and it is evenly distributed to each dust removal chamber for filtering and purification. During the flow of the flue gas, some large particles of dust were separated due to their own gravity and inertial forces and fell into the ash hopper. The flue gas entering the dedusting chamber, in which the dust is trapped on the outer surface of the filter bag, the clean gas filtered by the filter bag enters the clean room through the filter bag mouth, and is discharged from the dust collector through the air outlet. As the dust on the surface of the filter bag continuously increases, when the dust collector's running resistance reaches the set value, the control system issues a dust cleaning instruction, and the dust cleaning system starts to work.

When the dust collector is cleaning, the clean high-pressure gas is instantly released into the dust removal chamber, the filter bag is blown up from top to bottom, and then quickly contracted to recover, so that the dust attached to the surface of the filter bag is shaken off, and the dust collector is restored to its previous working state The dust falling into the ash bucket was finally collected and cleaned up.

Under the control of the electronic control system, the dust collector circulates the above operations in sequence under different conditions, thereby achieving long-term stable filtering and purification of dust and flue gas, so that the discharged flue gas always meets national environmental protection requirements.

Performance characteristics

1. High temperature resistant filter bag (glass fiber, PPS or Fermax material);

2. High temperature resistant cage bone (silicon carbide spray);

3. All high temperature resistant materials including box insulation are selected with superior materials and the equipment has a long service life;

4. Unique design and tailor-made according to the actual situation, good governance effect and high cost performance;

5. The equipment section is equipped with various safety precautions to prevent unexpected accidents and ensure the stable operation of the equipment;

6. High degree of equipment automation, safe operation and convenient management;

 Want to know more, contact me!

The main technical parameters

  Want to know more details to contact me!

Application field

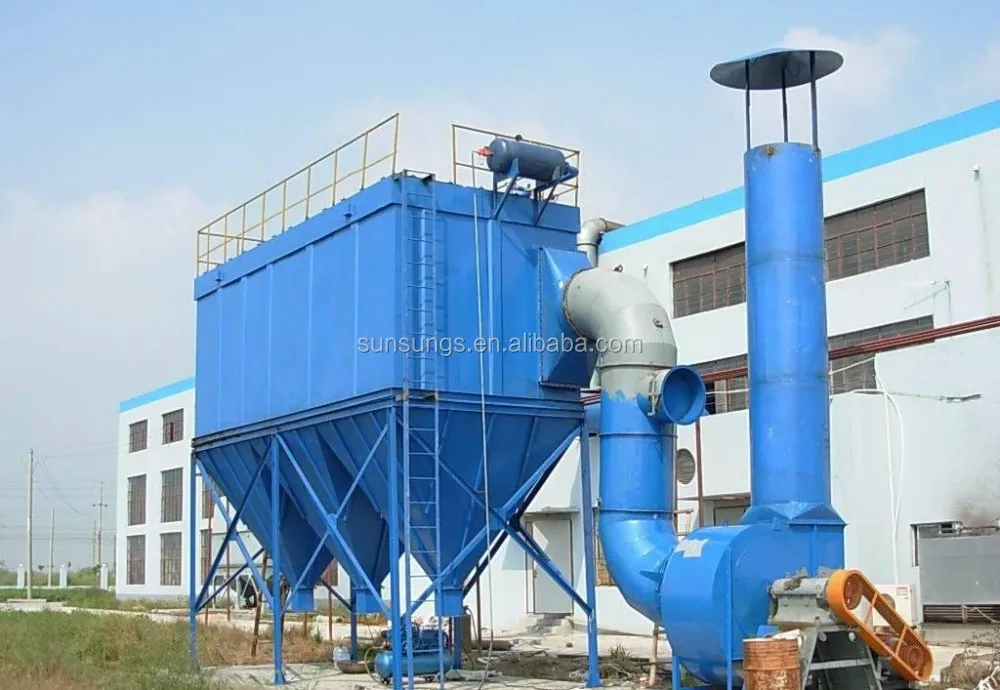

PPC air box pulse bag filter series can be widely used in metallurgy, mining, power, materials building machinery manufacturing, food processing, chemical industry, boiler, cement crushing, packaging, library, clinker cooling machine and all kinds of grinding machine, etc. When it used in the coal mill dust, flameproof explosion-proof measures should be added.

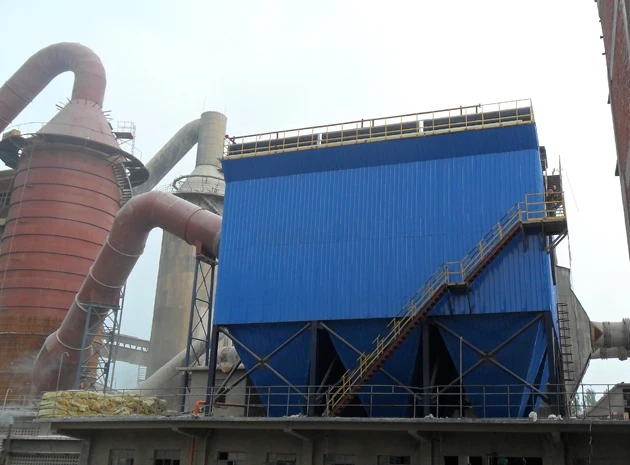

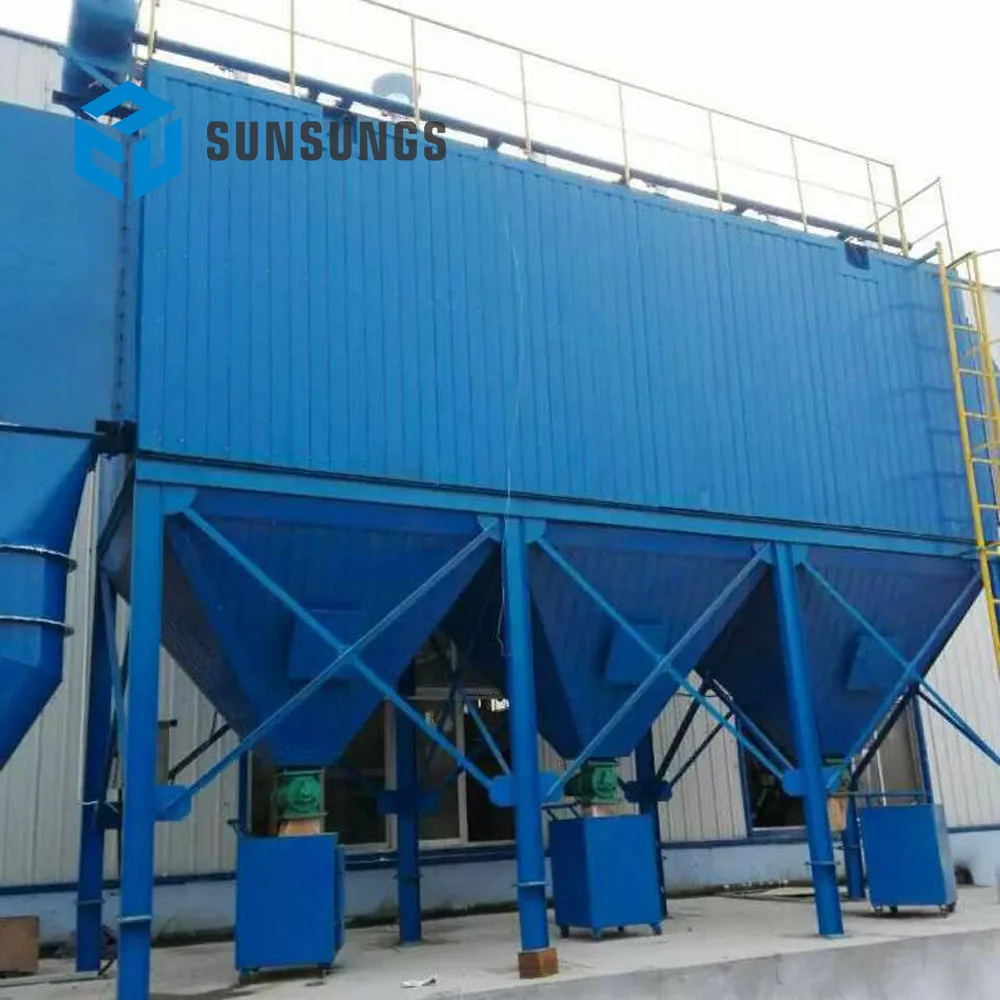

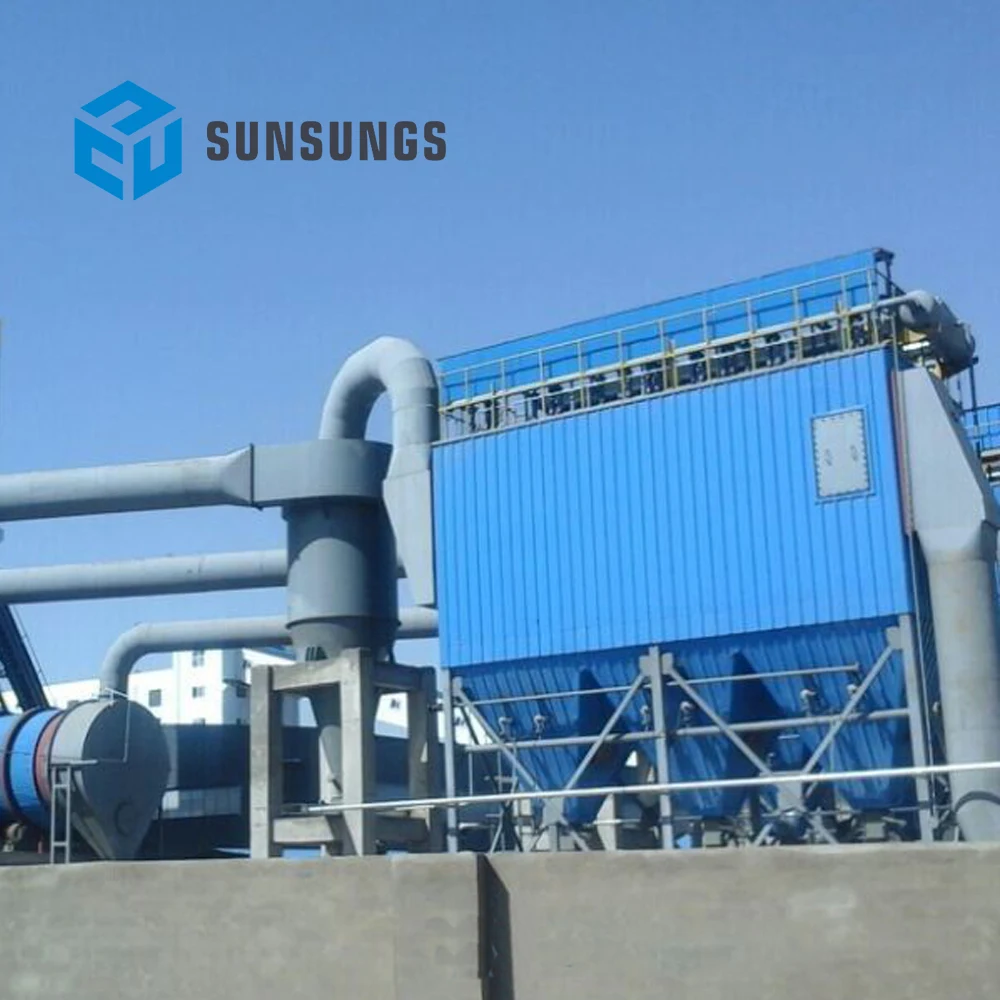

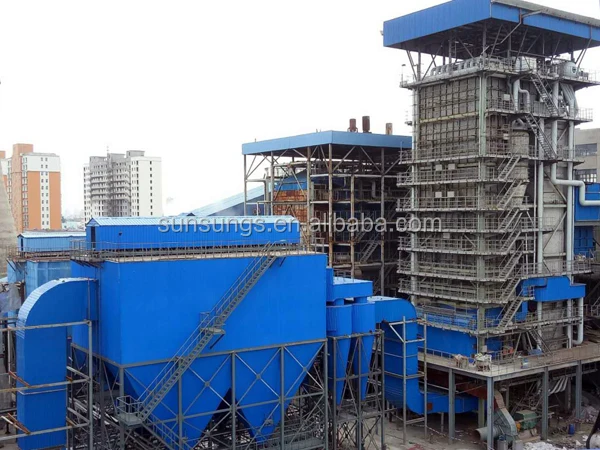

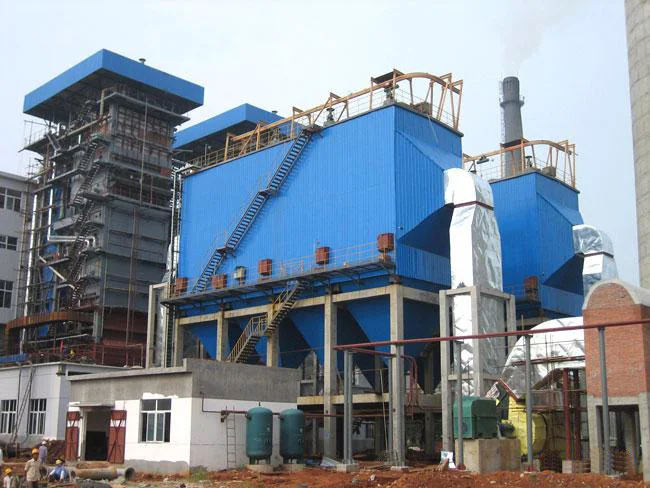

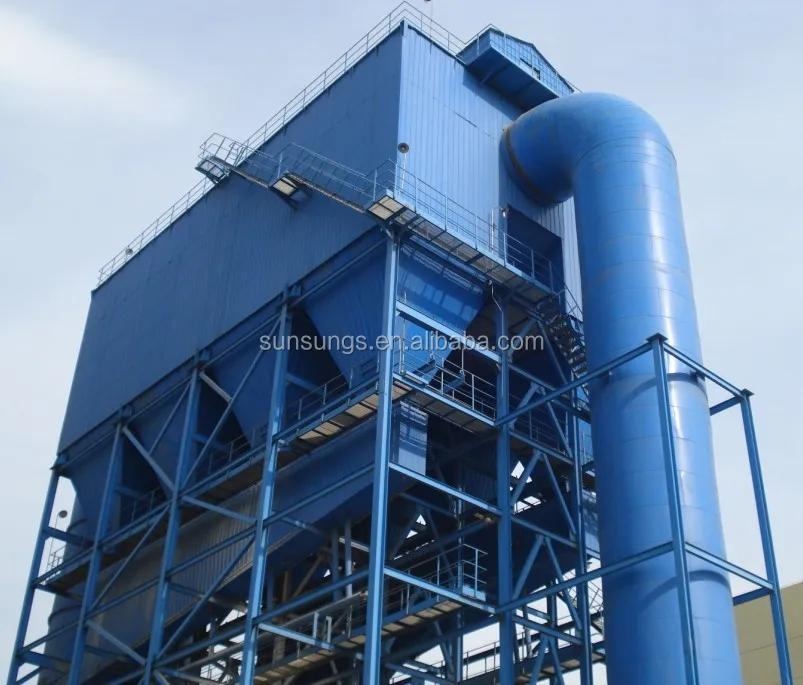

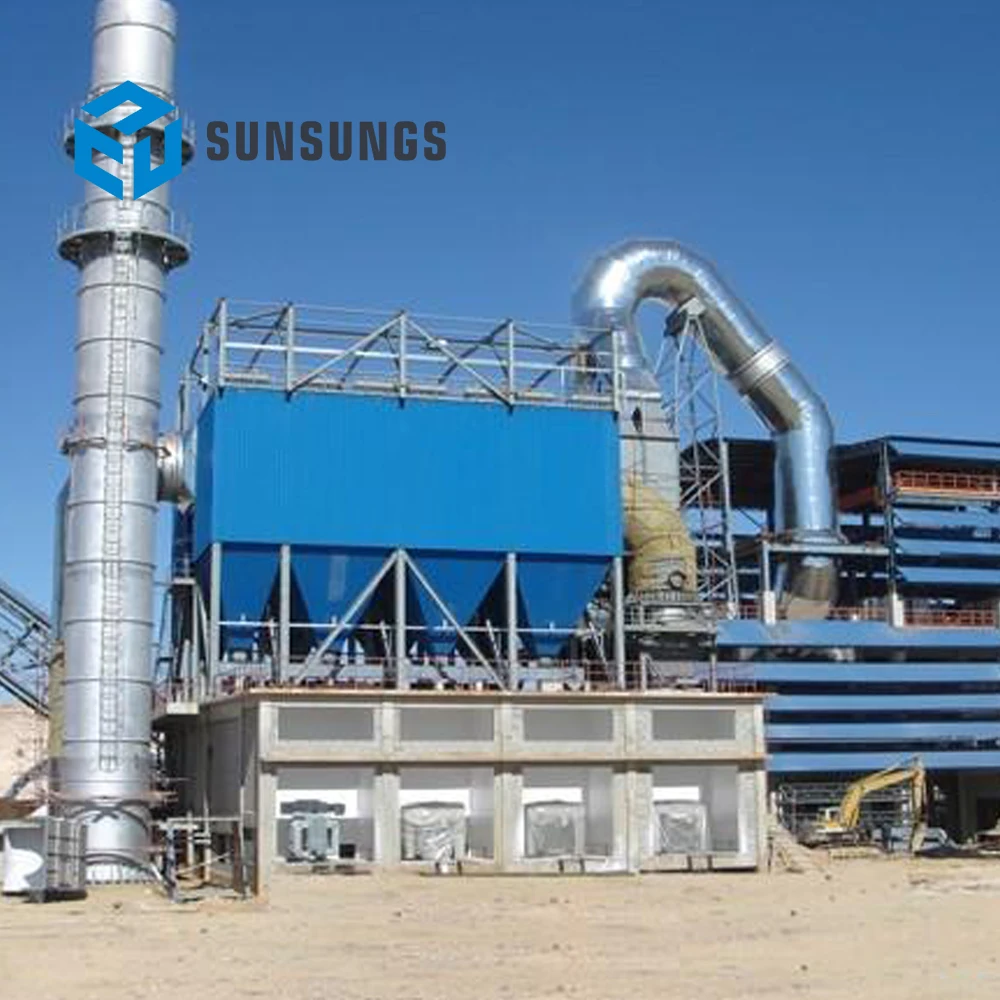

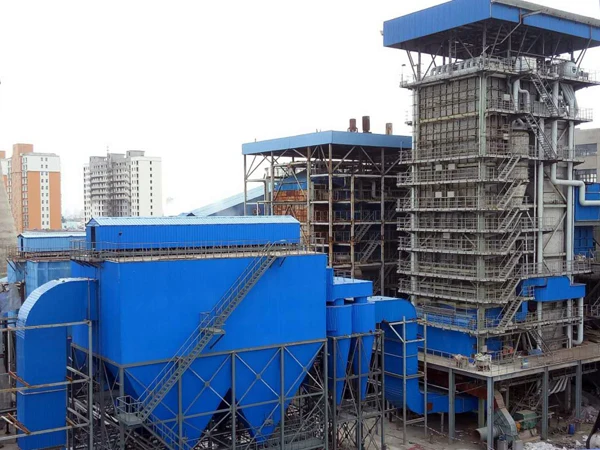

  product drawing
