UCS1903ic led pixels light 30mm point price dmx serial smart rgb 12v smd5050 led pixel lights

Specification of  30mm led pixel lights :

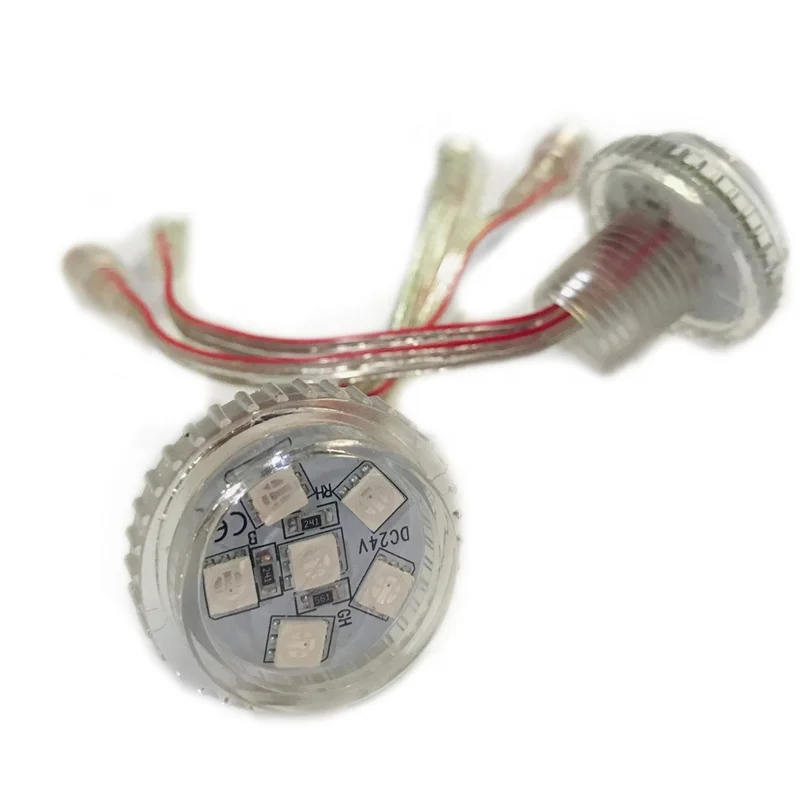

(1) CP-IC306 is a combination of a plastic (thermostability, cold-resistant, resistant to UV) shell and PCB board, also 3 spell line with blue, white, red color. Contain 6PCS SMD 5050 RGB LED and 1pcs UCS1903 IC.
(2) With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline and colorful.
(3) 30mm led pixel lights can carry out full-color running water, chasing and scanning effects and etc.
(4) Different installation methods may compose different dynamic effect of different color's character and design.
(5) Widely used in amusement rides, hotel, disco and other entertainment place for indoor and outdoor decoration lighting.
(6) 30mm led pixel lights has already passed the CE and RoHS certifications.

	Model Name	CP-IC306
	IC Chip	UCS1903
	Led Chip	smd5050 led chip
	Led Qty	6PCS
	Voltage	DC12V
	Watt	1.44W
	Punching hole	20mm
	Warranty	2 Years
	Certification	CE ROHS

30mm led pixel lights description :

	30mm led pixel lights detail
	combination of a plastic . (thermostability,cold-resistant,resistant to UV) shell and PCB board, also 3 spell line with blue,red ,white color,contain 6 PCS waterproof 5050RGB SMD LED and 1 pcs UCS1903 IC inside Red=DC12V Blue=ground White=data . yellow =V- red= V+

30mm led pixel lights detail

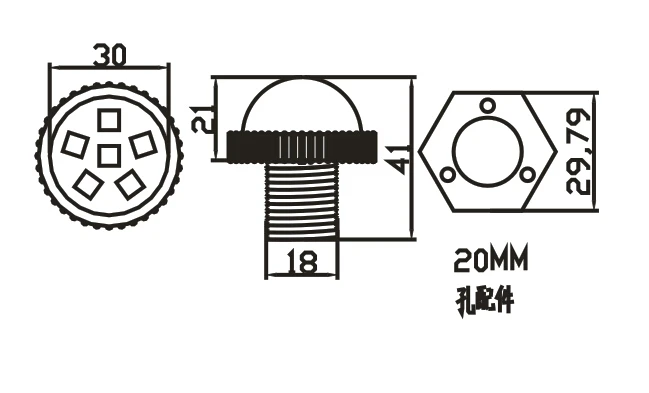

Front cap size approx 30mm   punching  hole size 20mm 6 leds smd5050

	30mm led pixel lights detail

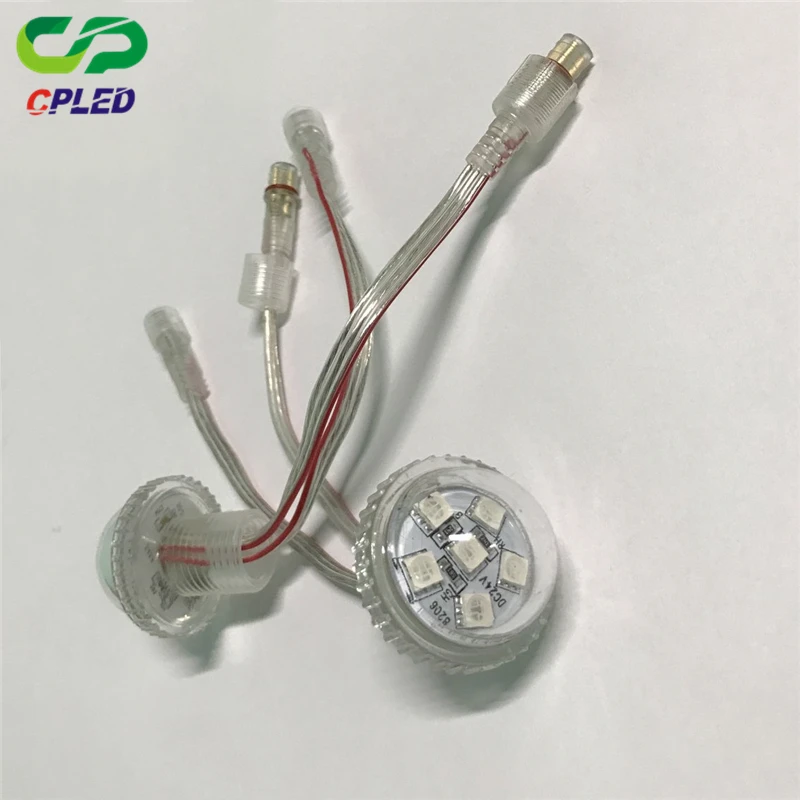

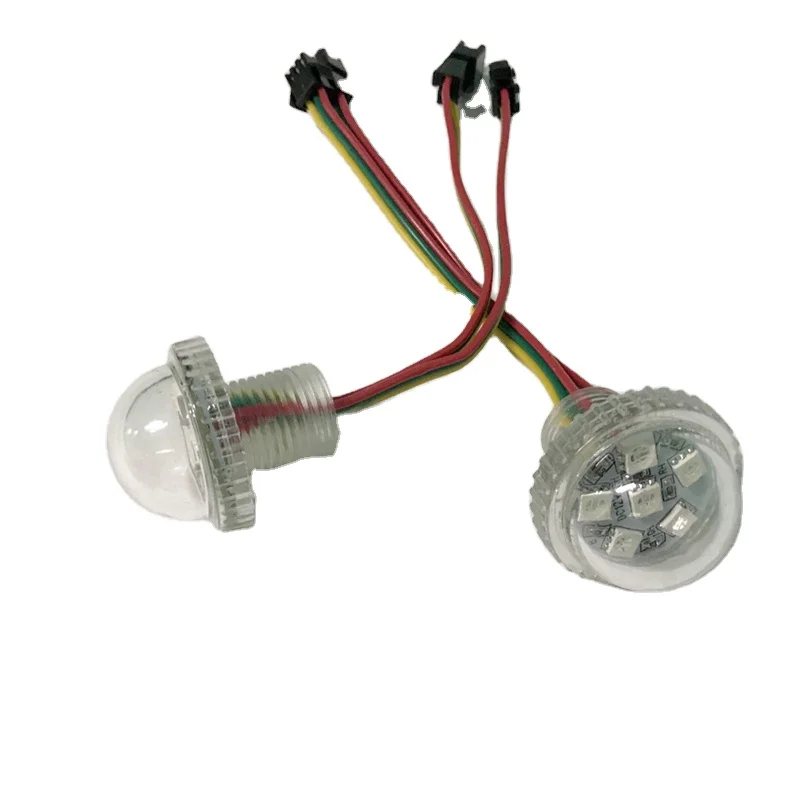

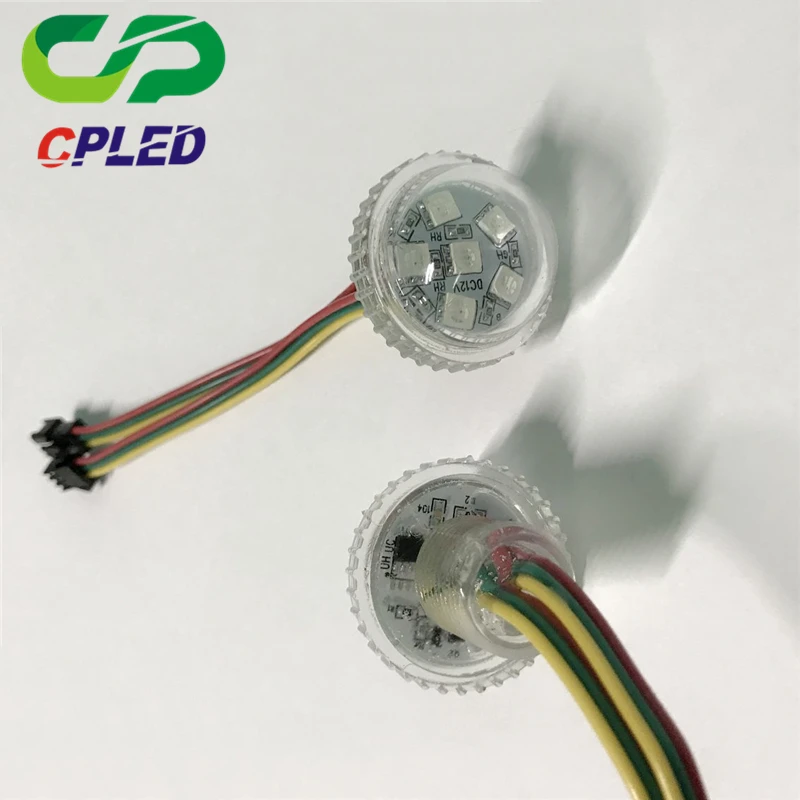

	have two type connector . waterproof  plug  & common plug  .two cover : Convex cover & flat cover

30mm led pixel lights detail
Work with Controller . Can make any effect you want . if you don't know make program , we can do that for you with free .

30mm led pixel lights useually application for :

1. channel letter
2. Advertisements sign
3. KTV,Disco
4. LOGO, advertising billboard,exposed luminous characters,
5. LED display screen, painted screen
6. Stage, Disco
7. amusement project , Roller Coaster and Theme Park
8. amusement rgb pixel led point light lunapark ferry fairground ride

Q1. Can I have a sample order for 30mm led pixel lights ?

A: Yes, we welcome  30mm led pixel lights order to test and check quality. Mixed samples are acceptable.

Q2. What about the 30mm led pixel lights  lead time?

A: 30mm led pixel lights Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 100000 pieces

Q3. Do you have any MOQ limit for 30mm led pixel lights?

A: Low MOQ, 100 pc 30mm led pixel lights for sample checking is available

Q4. How do you ship the 30mm led pixel lights  and how long does it take to arrive?

A: We usually ship the  30mm led pixel lights by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for 30mm led pixel lights ?

A: Firstly let us know your requirements or application of the 30mm led pixel lights.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on 30mm led pixel lights?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the 30mm led pixel lights?

A: Yes, we offer 2 years warranty to our 30mm led pixel lights .

Q8: How to deal with the 30mm led pixel lights faulty?

A: Firstly, Our 30mm led pixel lights are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
