10 38mm 0.5 2inch fiber Braided Manufacturers PVC pipe machine Flexible Ventilation duct Conduit soft PVC Pipe Production Line

Share on (1600996262021):


Price:

Quantity:


Product Overview

Description



Product Description

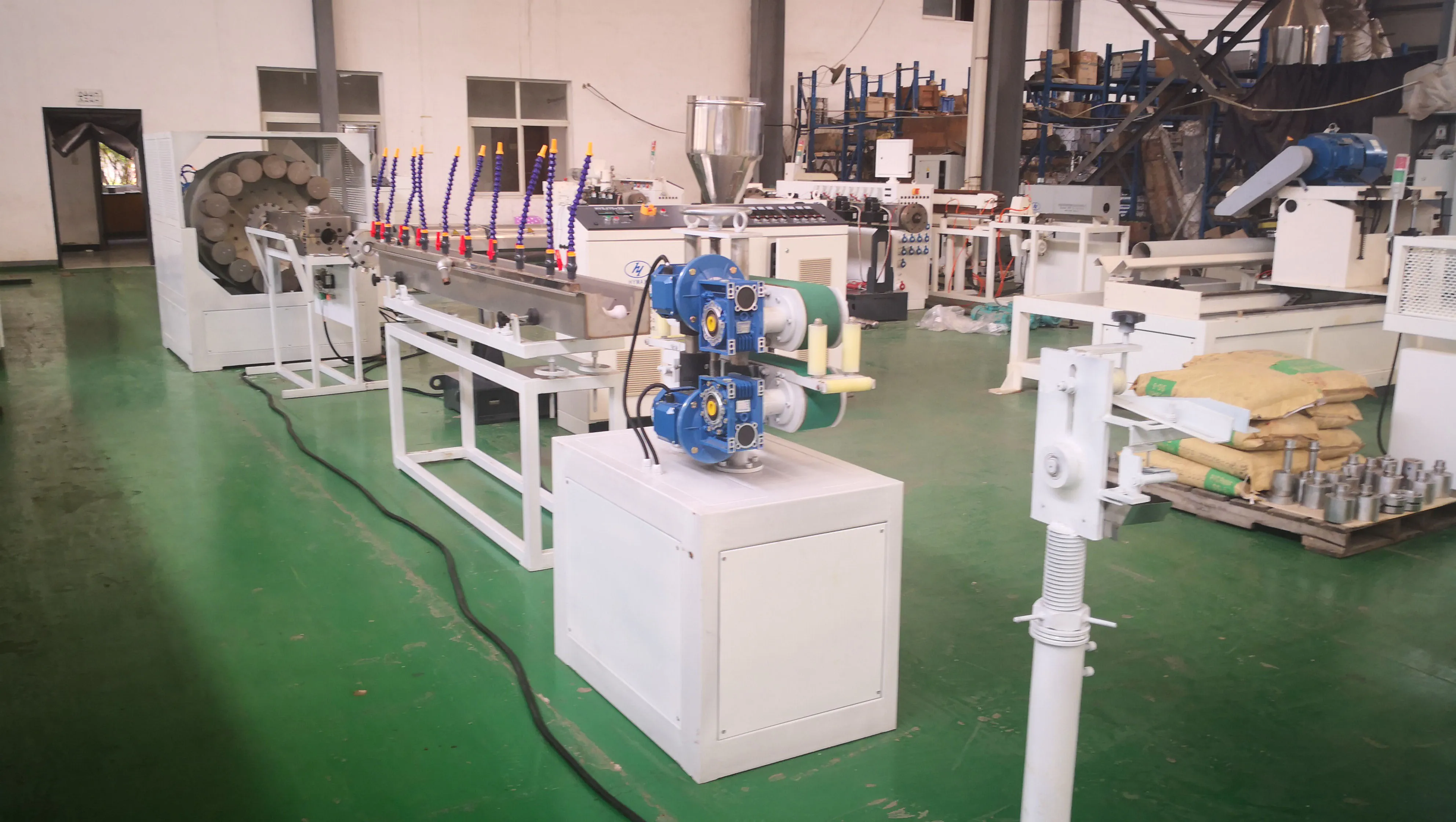

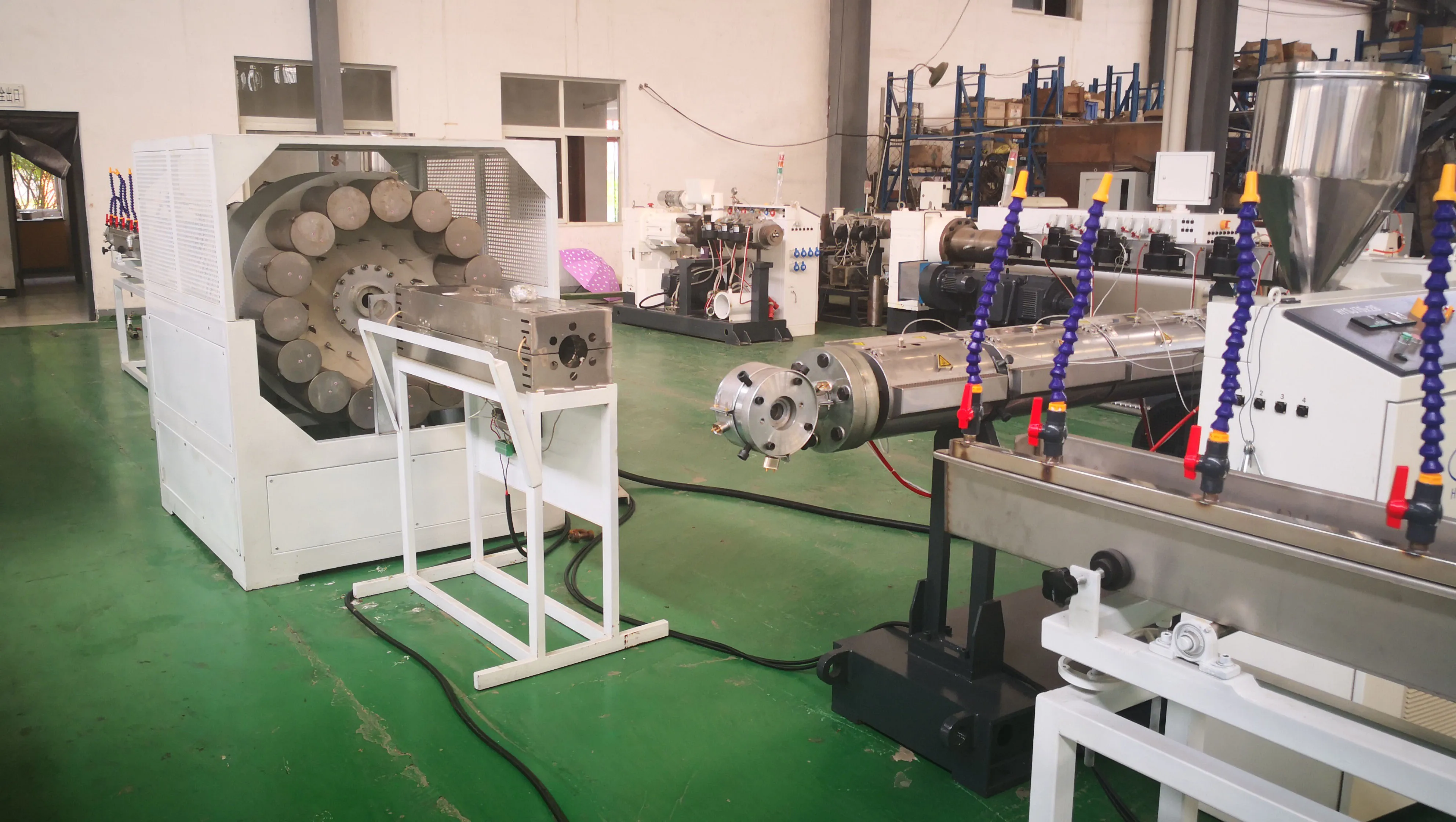

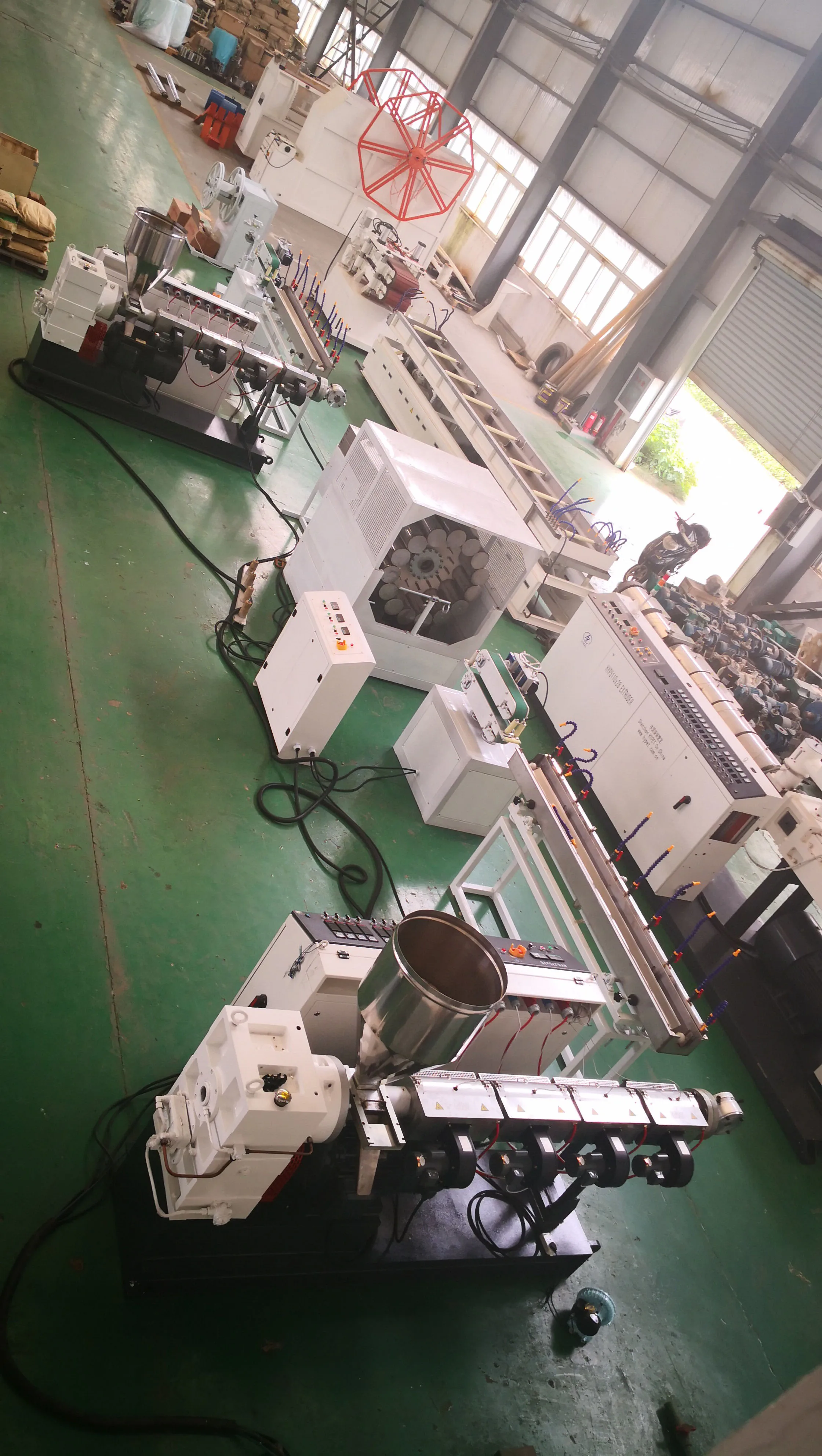

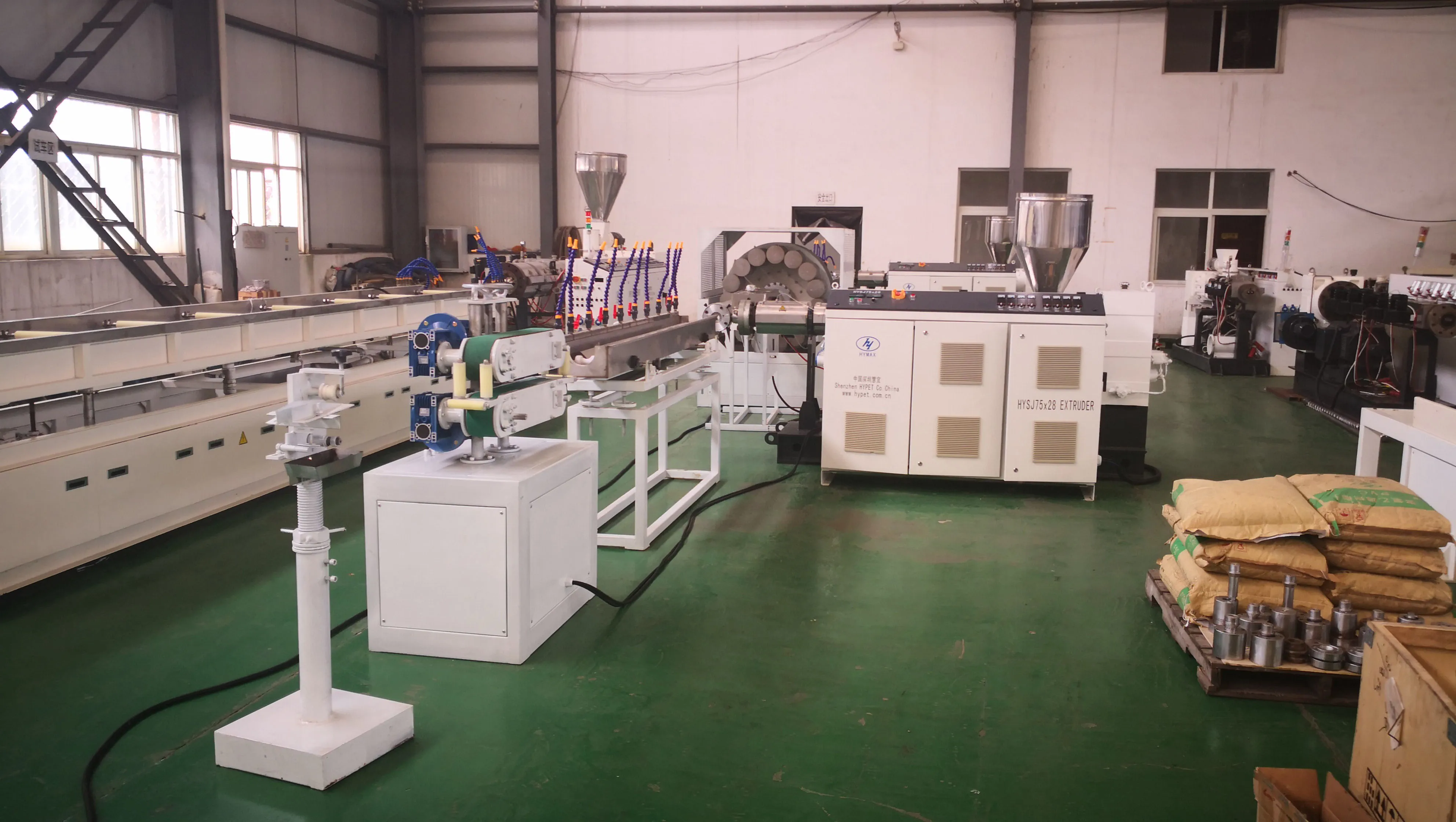

10-38mm soft pvc pipe or reinforce production line
1. High output: Ensure you the highest output as compared with other supplier.
2. New technology gear box: High torque gear box, one body design, two cooling system.
3. Screw and barrel: Bi-metal material ensure longer working life, ensuring running non-stop 24 hours /day.
4. Energy saving heater: Heater on the barrel is energy saving type by 15%.
5. Electric elements and box: In detachable, with world famous brand such ABB, Siemens, Schneider, Delta, well organized.
6. HYPET PLC control system: With operation easy, management full, energy saving and counting, and intelligent control system.
7. Pipe brighten device: To make the pipe shining and smoothing.
8. Vacuum tank stainless steel 304: Water level and temperature controlled automatically.




Series Lines & Data


Item
Fiber reinforced hose
Steel wire reinforced hose
Transparent Garden Hose
Transparent Garden Hose
Layers
2 PVC+ 1 fiber
2 PVC+1steel wire
1  from PVC pellets
1 from PVC Powder
Pipe range
10-38mm
10-50mm
10-38mm
10-38mm
Output
80-120kg/h
40-70kg/h
40-70kg/h
70-120kg/h
Extruder
SJ65/30-18.5kw *2
SJ65/30-18.5kw *2
SJ75/30-22kw *1
PS65/26-22Parallel
Die head
2
1
1
1
Braider
Fiber Braider
Spiral steel wire forming unit
0
0
Cool tank
2
1
1
1
Bake oven
1
0
0
0
Haul Off
0.8-16m/min 1.5kw *2
0.8-16m/min 1.5kw
0.8-16m/min 1.5kw
0.8-16m/min 1.5kw
Winder
1.5kw motor manual
1.5kw motor manual
1.5kw motor manual
1.5kw motor manual
Price
34800
27800
19500
31450


Cooperative brands




Auxiliary machine for option


Puliverizer
Recycled scraps into powder
Mixer
Mixing PVC, filler, chemical agent
Crusher
Recycle the bad final product into scrap


Shredder
Recycle big pipe into small pieces
Chiller
Produce cooling water
Air compressor
Produce pressed air
