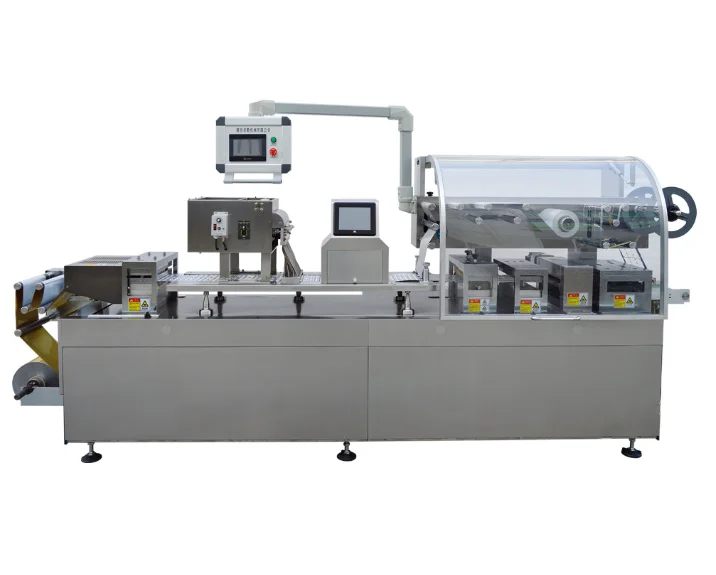

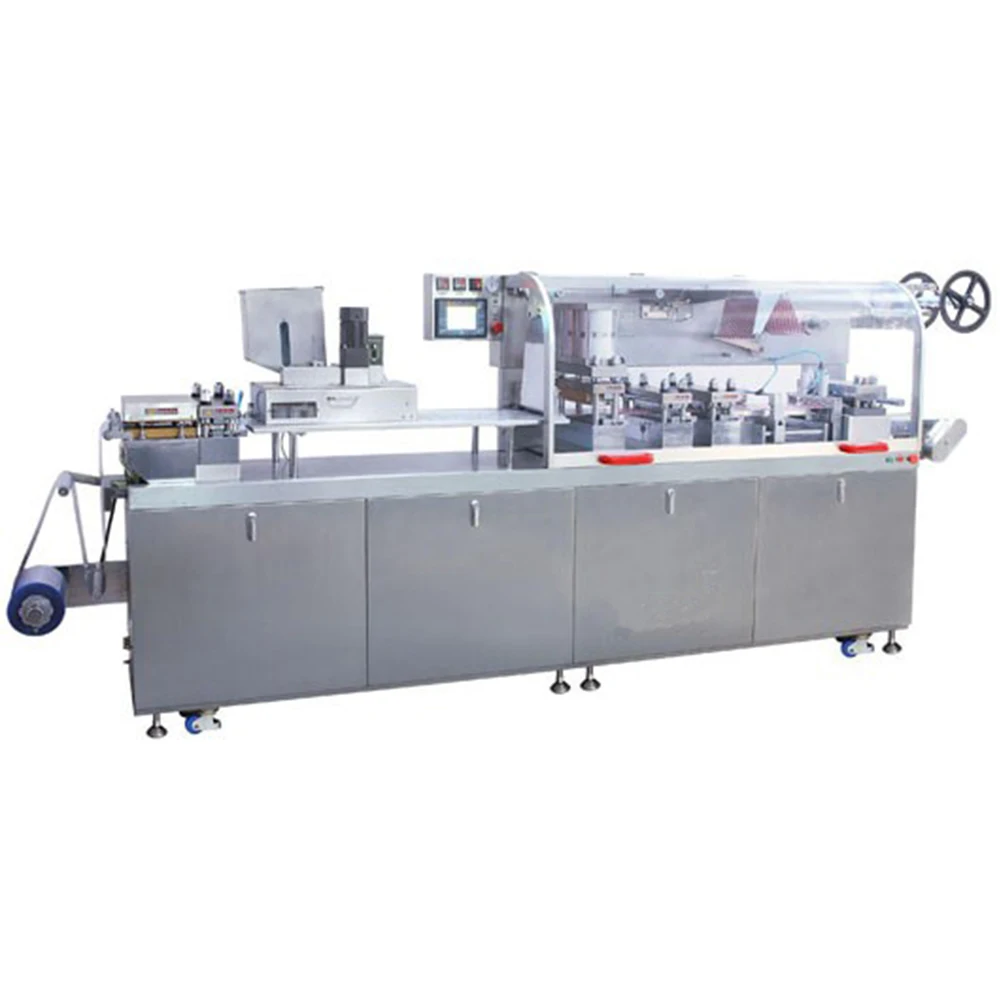

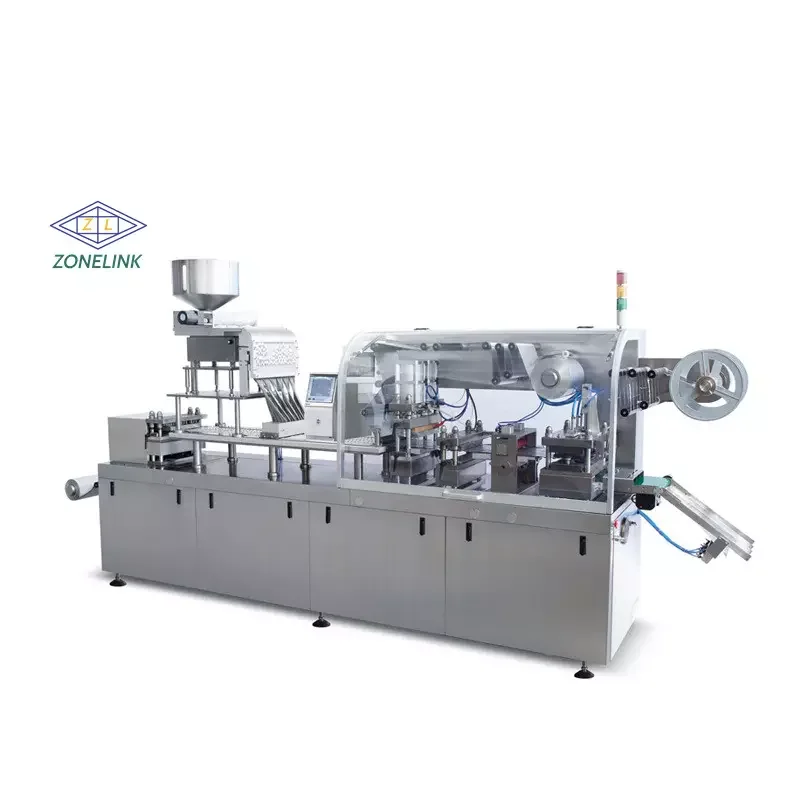

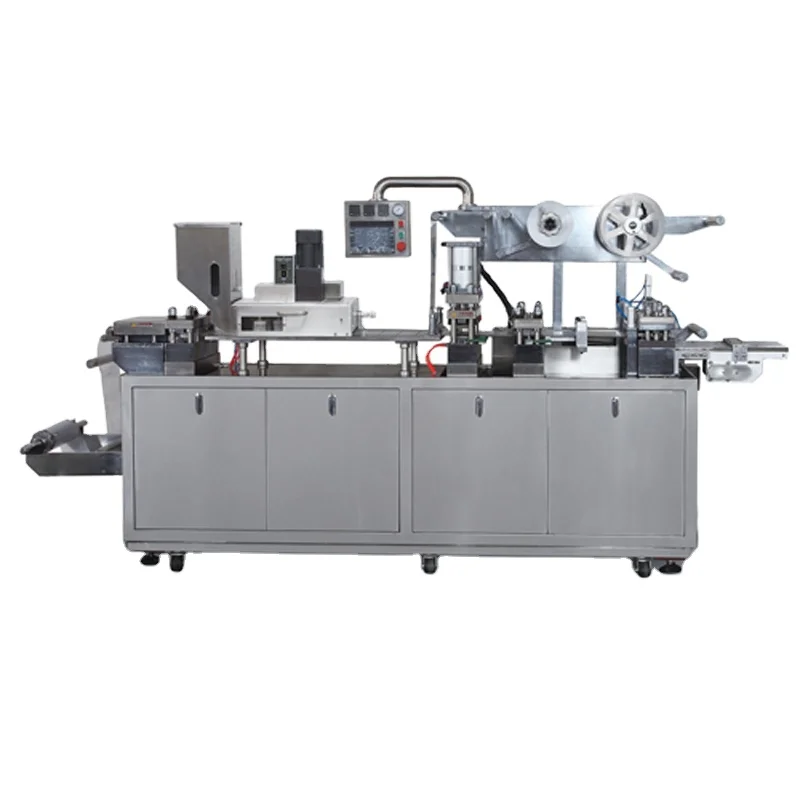

DPP 260 Pack Forming For Cosmetics Small Food rotary high frequency PVC blister packing machine
- Category: >>>
- Supplier: Liaoning Zonelink Trading Co. Ltd.
Share on (1600996487672):
Product Overview
Description
Product Overview
FEATURES AT A GLANCE
DPP Blister packing machine is of flat-plate structure, with molding, meshes heat-sealing, adjustable travel range, for small size of body and ease of operation. It is applied to Al-Al, Al-PVC, Al-plastic packaging for table,candy, healthcare, small hardware etc. It is widely used in small factory, preparation-room of hospital institute laboratory, mini-motor test workshop. The machine reaches advanced level in China. It is suitable for tablet, honey,candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and paper-plastic composite sealing packing in healthcare, food, cosmetics equipment industry etc.
PRODUCT SPECIFICATIONS
Cutting Frequency(times/min) | aluminum and aluminum : 40 aluminum and plastic : 70 |
Capacity( strip/h ) | 280 standard 50*80 |
Max shaping areas and depth(mm) | 300X160X26 |
Stroke(mm) | 20-120(can be manufactured as user's requirements) |
Standard Sheet(mm) | 80X57(can be manufactured as user's requirements) |
Air Pressure(kw) | 0.4-0.6 |
Total power | 380V/220V 50Hz 8kw |
total power | 1.5 |
PVC hard pieces(mm) | 0.15-0.5X260 |
PTP Aluminum Foil(mm) | 0.02-0.035X260 |
Dialysis Paper(mm) | 50-100gX260 |
Mould Cooling | Tap water or Back water |
Overall Dimensions(mm) | 3900*730*1600 |
weight(kg) | 1600 |

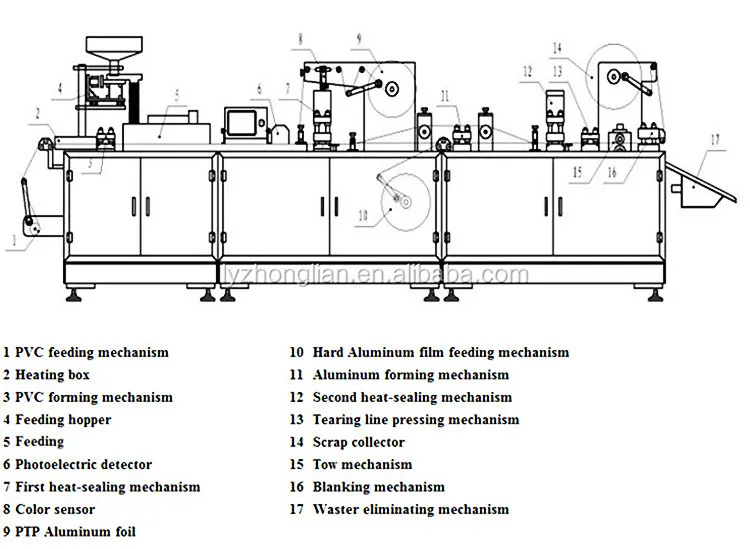

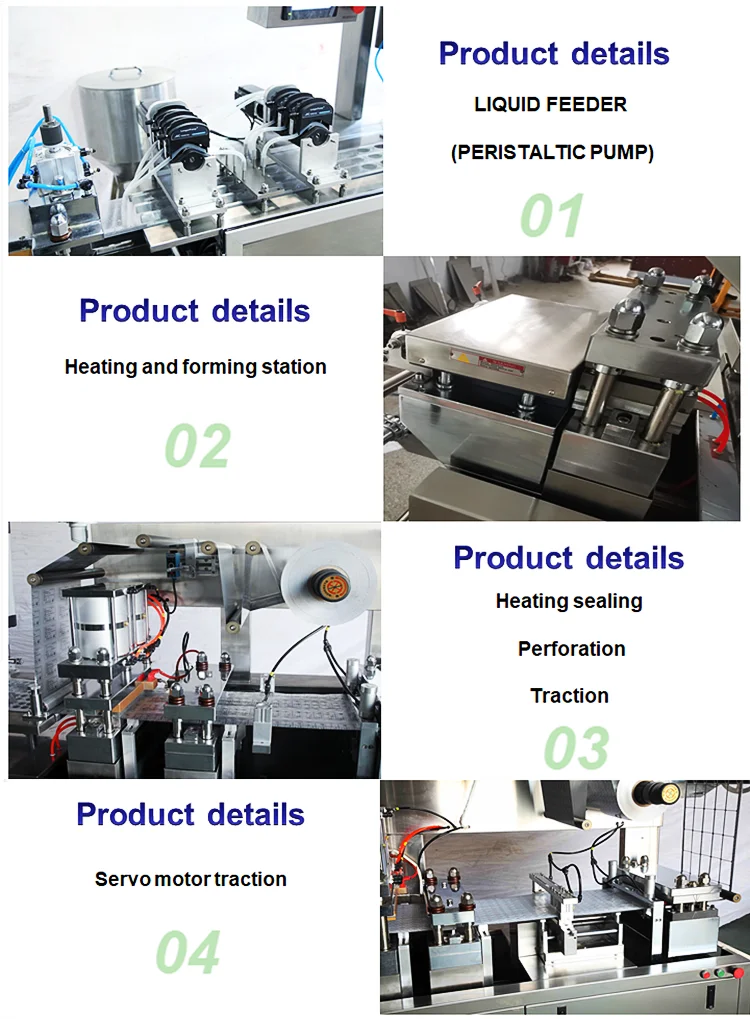

Machine Details
SIMILAR PRODUCTS
Company Information
We are one of the world's leading manufacturers of machinery.Group was founded in 2001, The factory covers an area of ten thousand square meters, production workshop seven thousand square meters. The factory own a professional r&d team and after-sales service team. In the same industry take the lead through the ISO9001:2008 international quality system certification, and get the certification of CE, CE and so on. we are equipped with complete testing,inspection,analysis control system,advanced testing machines.We have export to U. S. A, Canada, Australia,Russia, England, Sweden, Norway Argentina, Singapore, Brazil, Thailand, Vietnam, Malaysia and so on totally 50 countries.Welcome all who are engaged in the machine to work with us,and we are also looking for the qualified world wide agents to provide better service and deep marketing.
