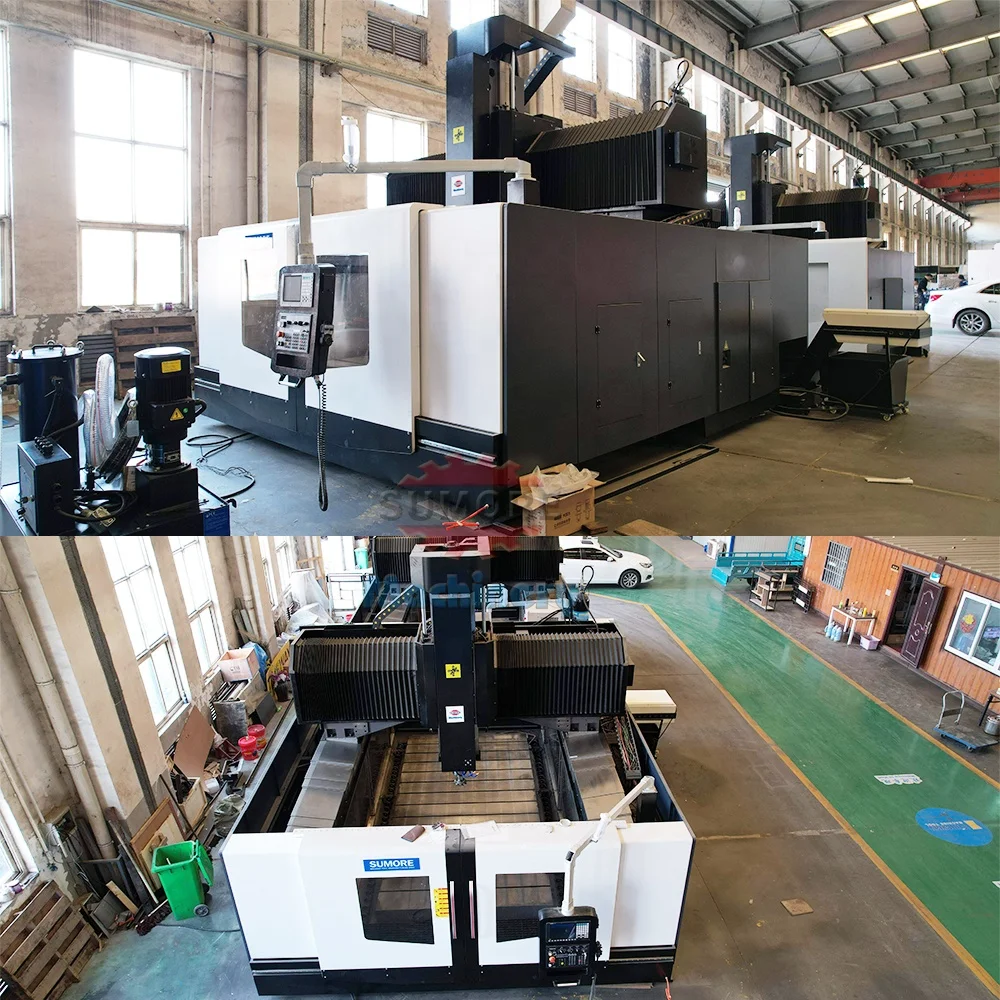

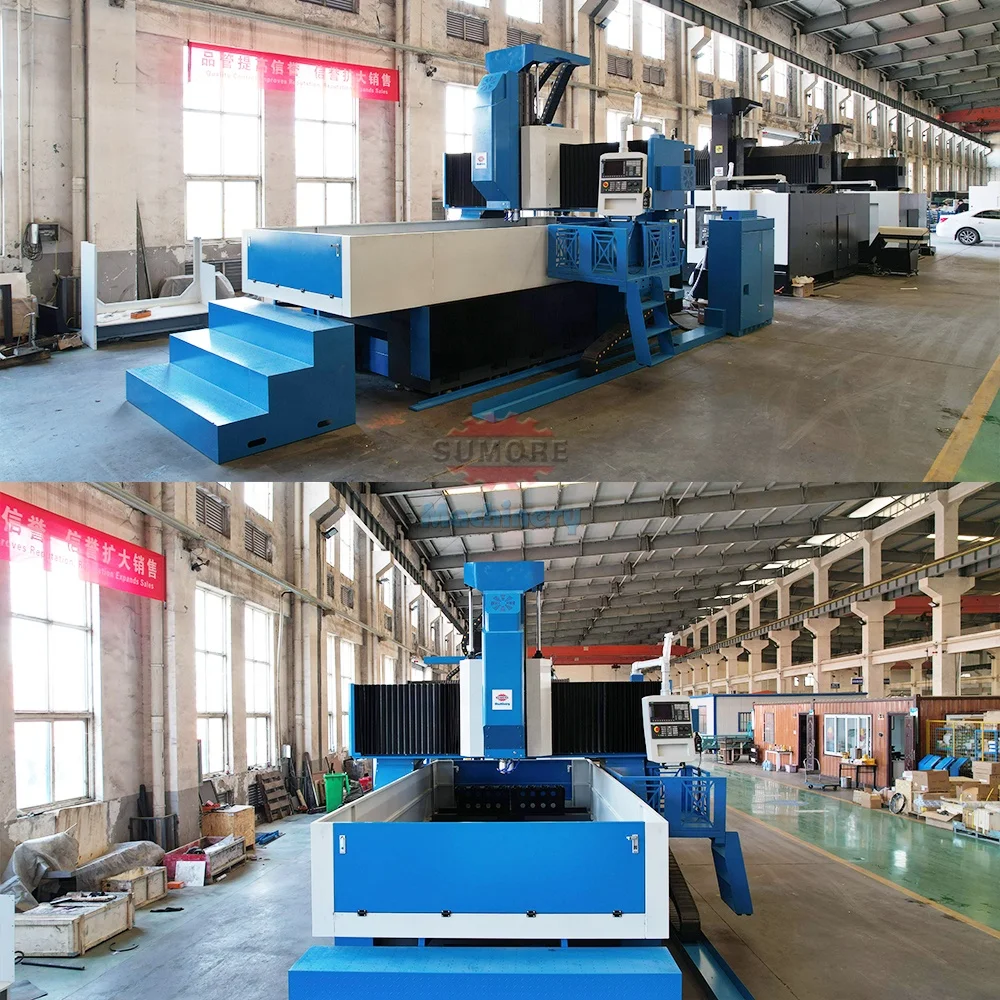

SUMORE OEM Fanuc Control Cnc Gantry Milling Machining Center Horizontal 5 Axis Gantry Cnc Milling Machine for Sale
- Category: >>>
- Supplier: Shanghai Sumore Industrial Co. Ltd.
Share on (1600996508733):
Product Overview
Description
Product Description
OEM ODM CNC Gantry Milling Machine/Machine Center Gantry Type Horizontal Machining Center GMC1210/GMC1400/GMC1600 SUMORE For Sale !!!
SUMORE Gantry Machining Center Gantry Machine Center Cnc Gantry Milling Machine cnc milling machine machining center equipment (optional: 3-axis, 4-axis and 5-axis gantry machining centers) manufacturer, we can also customize according to your requirements.
Parameters:
X/Y/Z axis max travel: 1000*1250*600mm
Gantry width: 1050mm
Table size WXL: 820*1300mm
Parameters:
X/Y/Z axis max travel: 1000*1250*600mm
Gantry width: 1050mm
Table size WXL: 820*1300mm

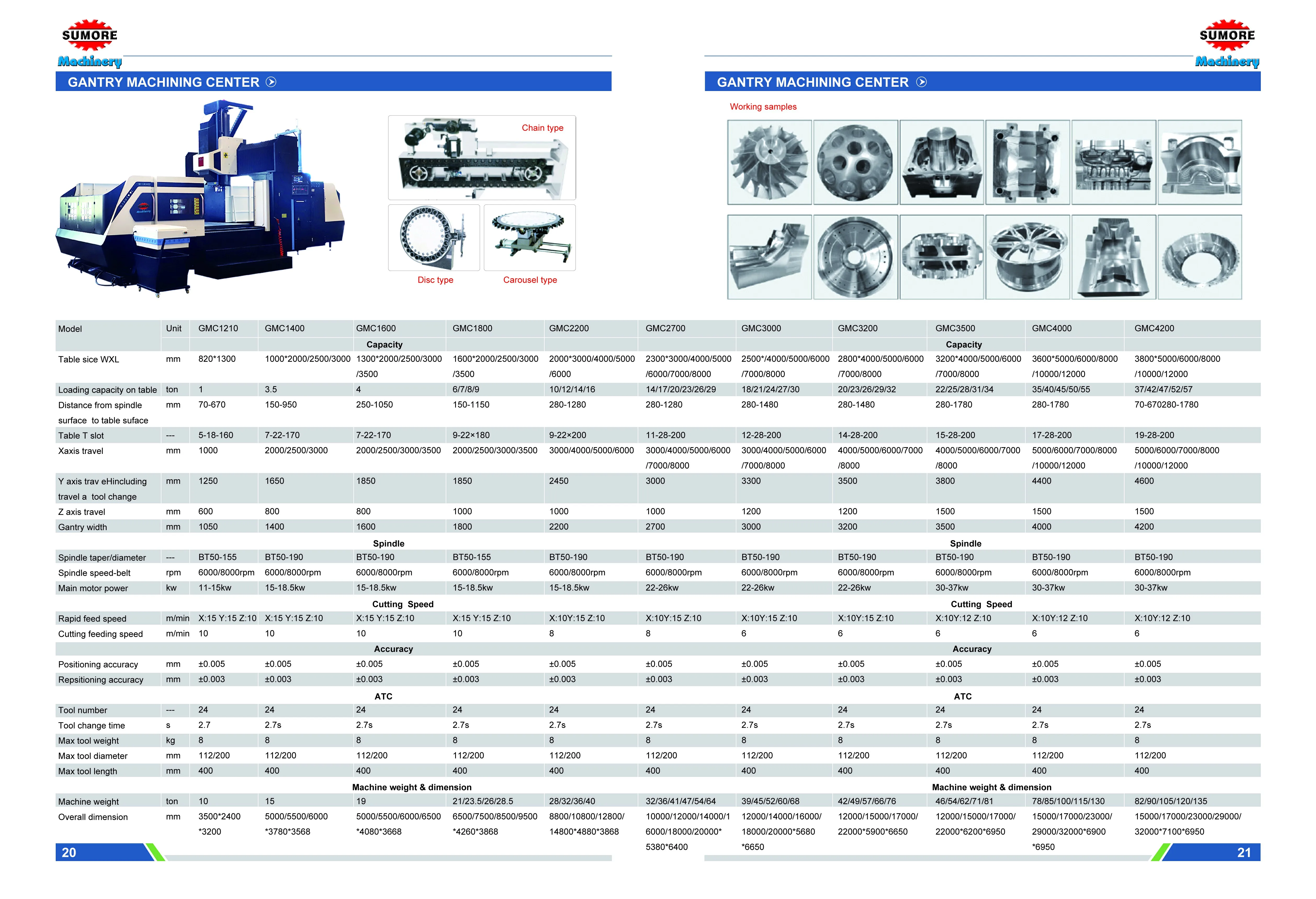

Specification
Model | Unit | GMC1210 | GMC1400 | GMC1600 | |||
Capacity | |||||||
Table size WXL | mm | 820*1300 | 1000*2000/2500/3000 | 1300*2000/2500/3000/3500 | |||
Loading capacity on table | ton | 1 | 3.5 | 4 | |||
Distance from spindle surface to table surface | mm | 70-670 | 150-950 | 250-1050 | |||
Table T slot | - | 5-18-160 | 7-22-170 | 7-22-170 | |||
X axis travel | mm | 1000 | 2000/2500/3000 | 2000/2500/3000/3500 | |||
Y axis travel-including travel of tool change | mm | 1250 | 1650 | 1850 | |||
Z axis travel | mm | 600 | 800 | 800 | |||
Gantry width | mm | 1050 | 1400 | 1600 | |||

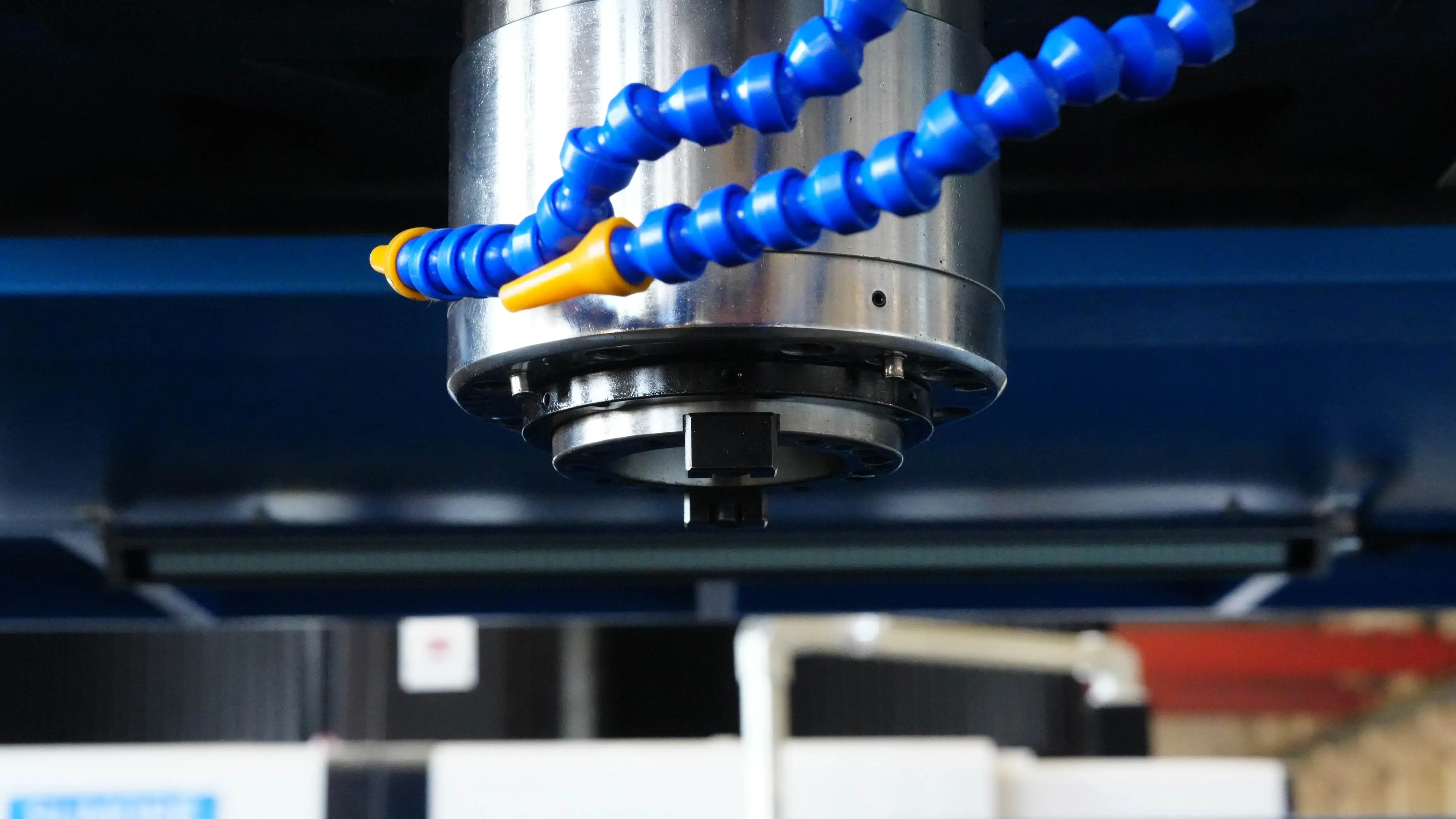

Spindle | |||||||
Spindle taper/diameter | - | BT50-155 | BT50-190 | BT50-190 | |||
Spindle speed - belt | rpm | 6000/8000rpm | 6000/8000rpm | 6000/8000 | |||
Main motor power | kw | ‘11-15 | 15-18.5 | 15-18.5KW | |||
Cutting Speed | |||||||
Rapid feed speed | m/min | X:15 Y:15 Z:10 | X:15 Y:15 Z:10 | X:15 Y:15 Z:10 | |||
Cutting feeding speed | m/min | 10 | 10 | 10 | |||
Accuracy | |||||||
Positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 | |||
Repositioning accuracy | mm | ±0.003 | ±0.003 | ±0.003 | |||

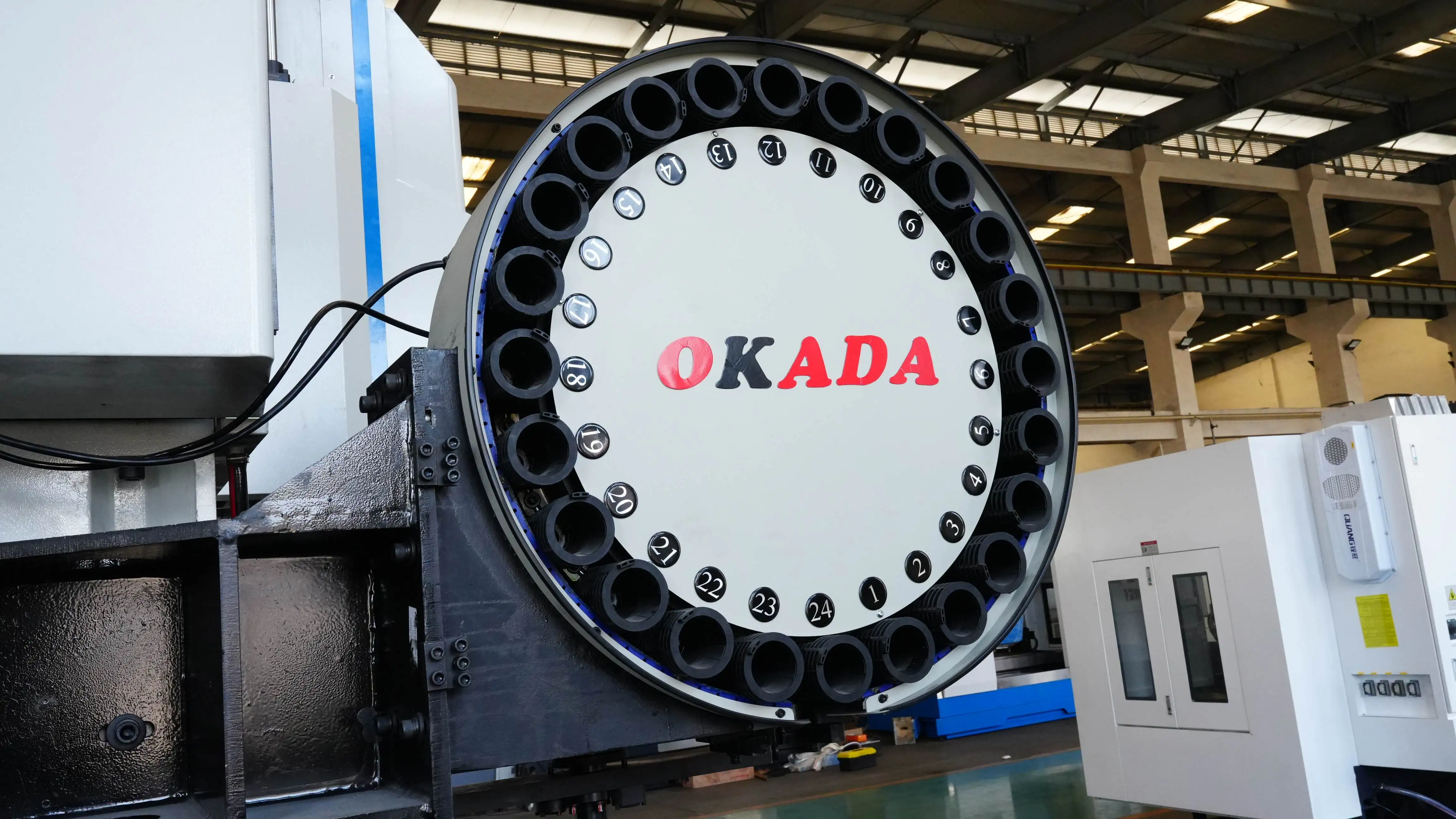

ATC | |||||||
Tool number | - | 24 | 24 | 24 | |||
Tool change time | s | 2.7 | 2.7 | 2.7s | |||
Max tool weight | kg | 8 | 8 | 8 | |||
Max tool diameter | mm | 112/200 | 112/200 | 112/200 | |||
Max tool length | mm | 400 | 400 | 400 | |||
Machine weight & dimension | |||||||
Machine weight | ton | 10 | 15 | 19 | |||
Overall dimension | mm | 3500*2400*3200 | 5000/5500/6000*3780*3568 | 5000/5500/6000/6500*4080*3668 | |||
Packaging & Shipping
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , CSA ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
We have got the certificates of CE, GS ,Rohs , CSA ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
FAQ
1.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
2.Q: What is your delivery time?
A:Usually, one machine takes 20-40 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.
3.Q:Where is your factory?Can we go to your factory and learn how to use the machine?
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.
4.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.
5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
2.Q: What is your delivery time?
A:Usually, one machine takes 20-40 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.
3.Q:Where is your factory?Can we go to your factory and learn how to use the machine?
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.
4.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.
5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.
