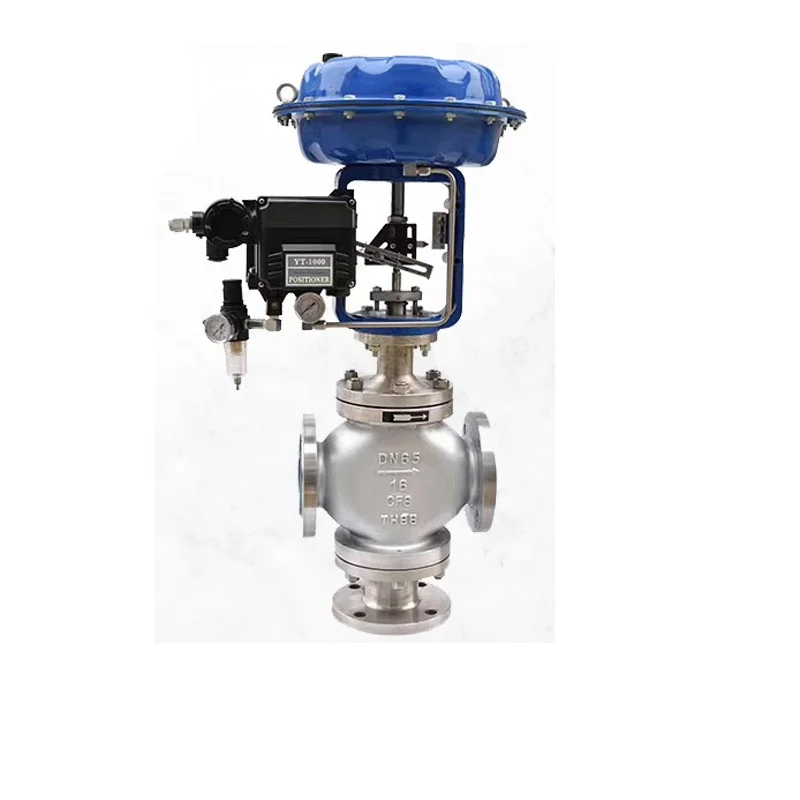

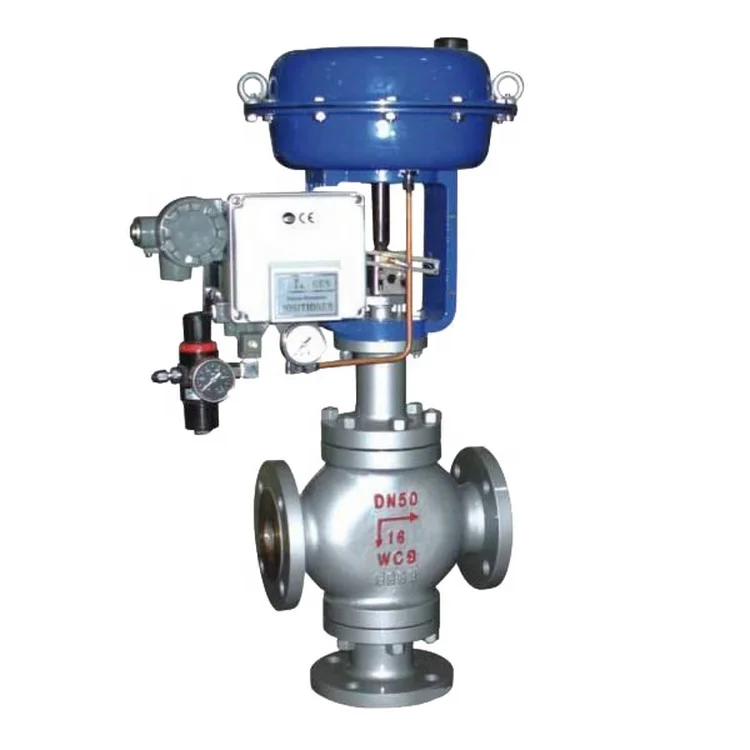

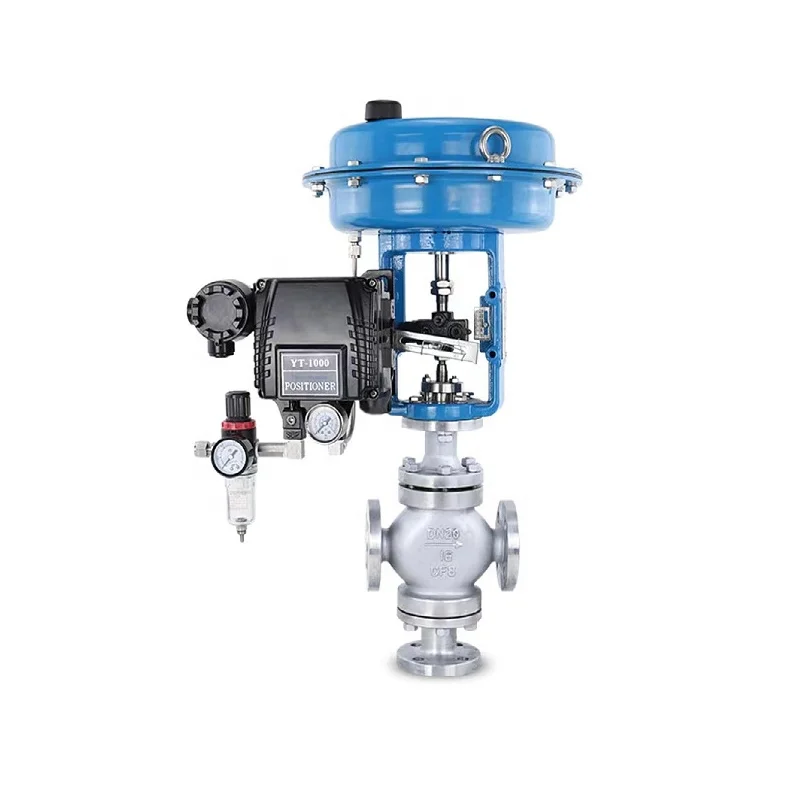

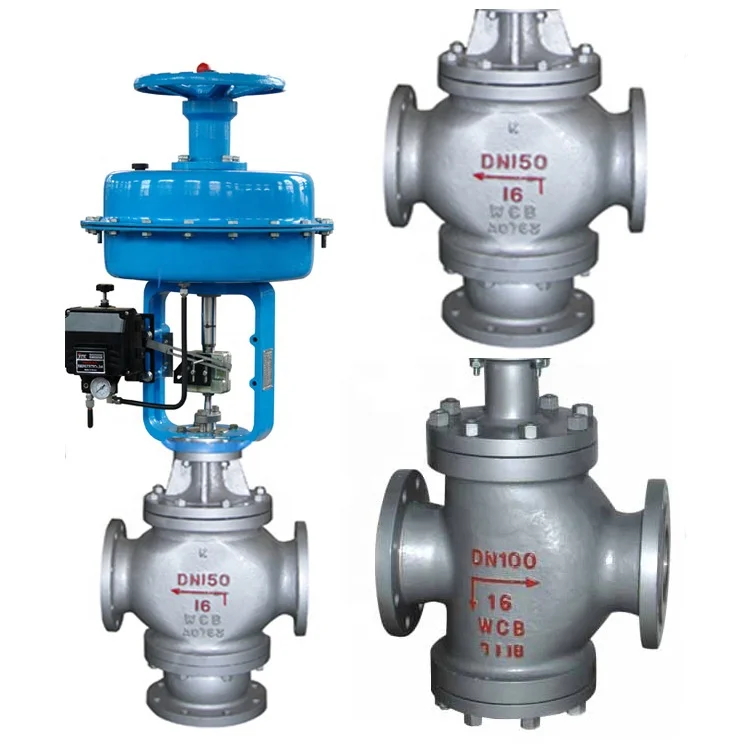

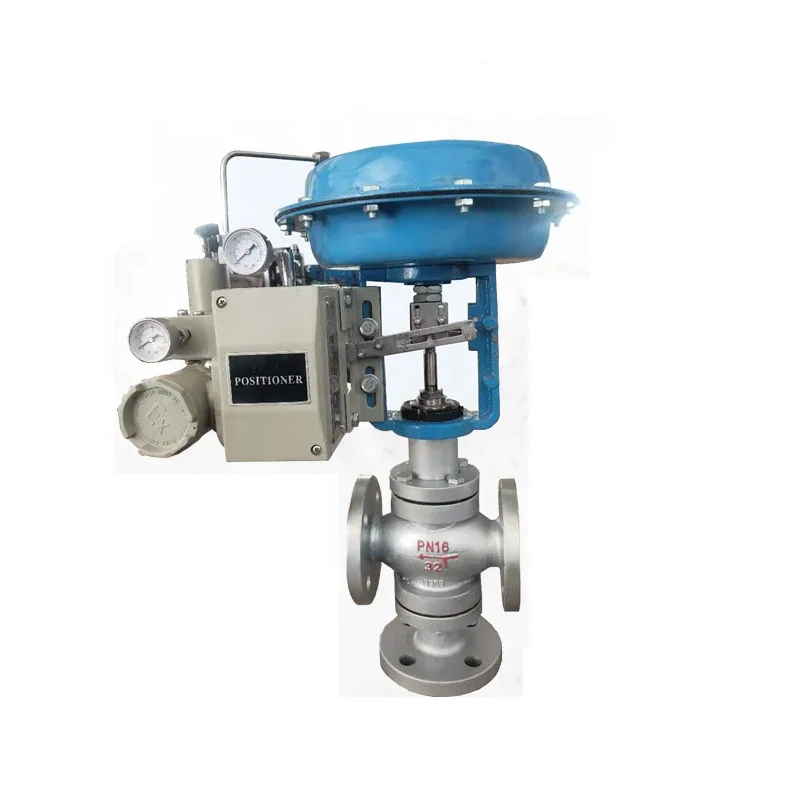

4 20mA Pneumatic Control Valve Modulating Valve Pneumatic Diaphragm Three Way Regulating Valve With Positioner
- Category: >>>
- Supplier: Nanjing Bang Win Imp & Exp Co. Ltd.
Share on (1600996536588):
Product Overview
Description
Products Description

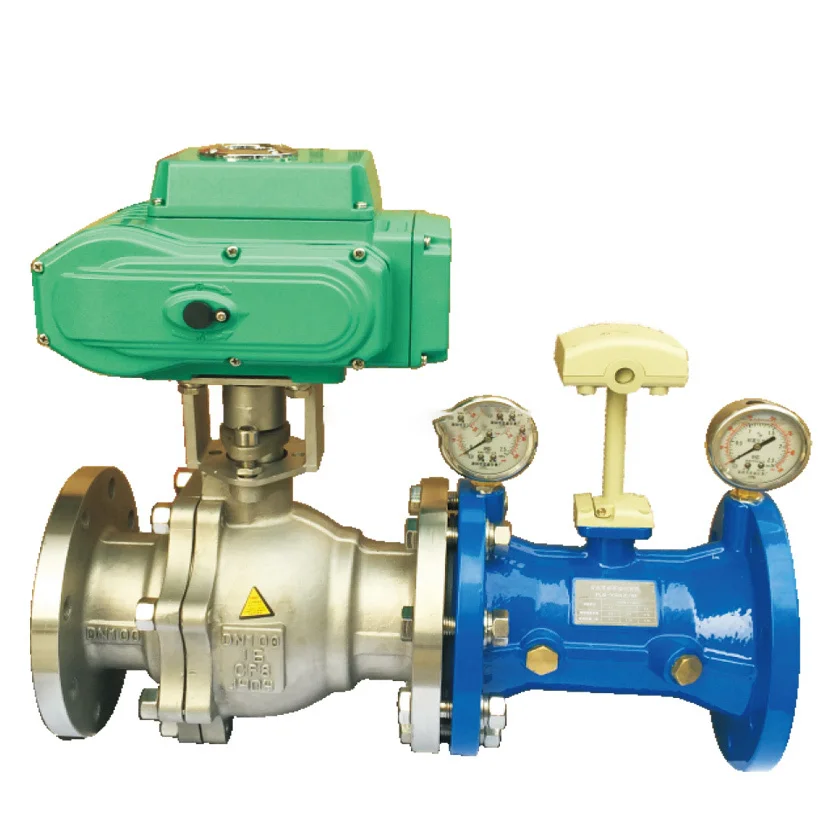

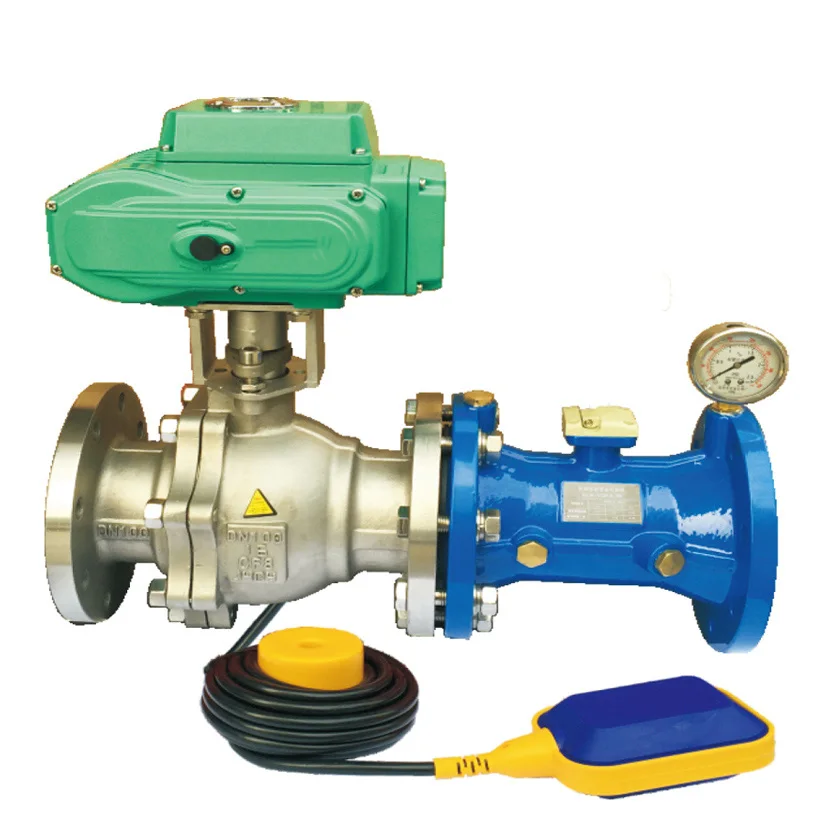

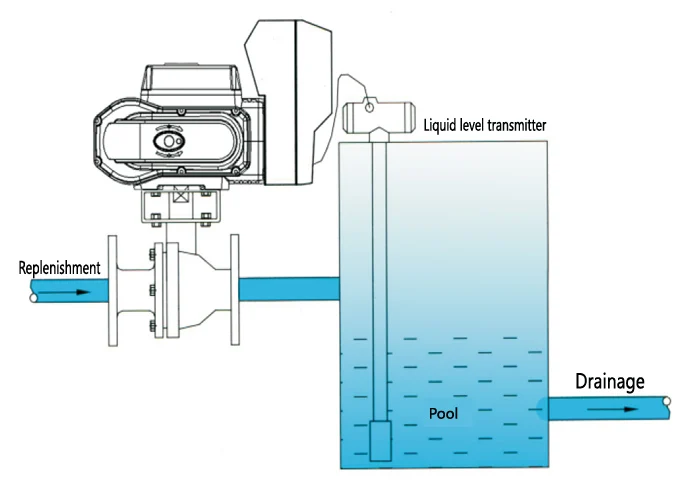

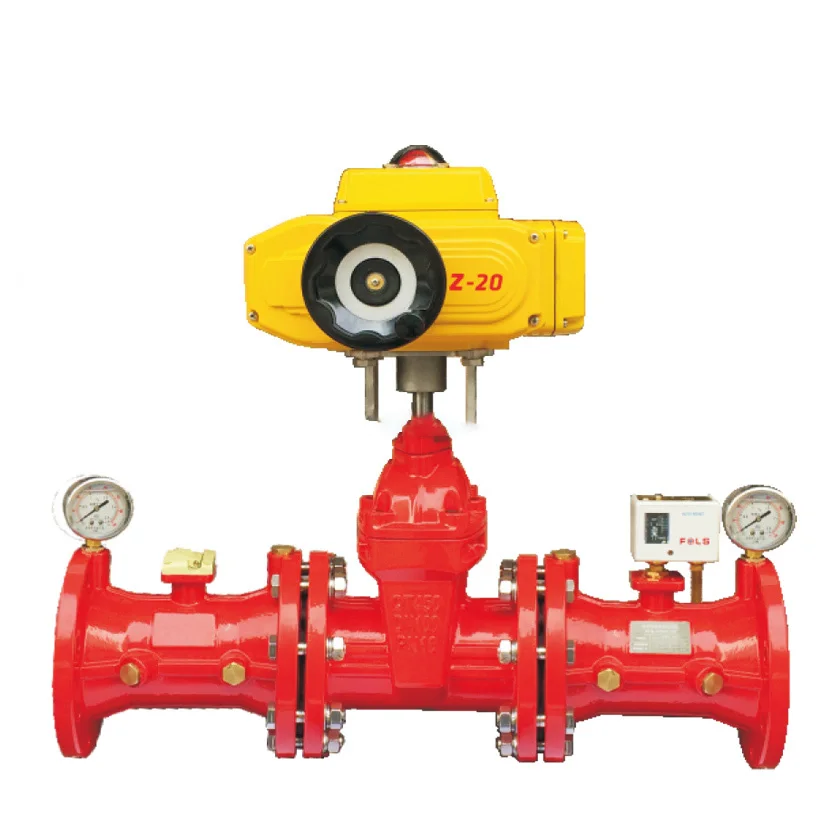

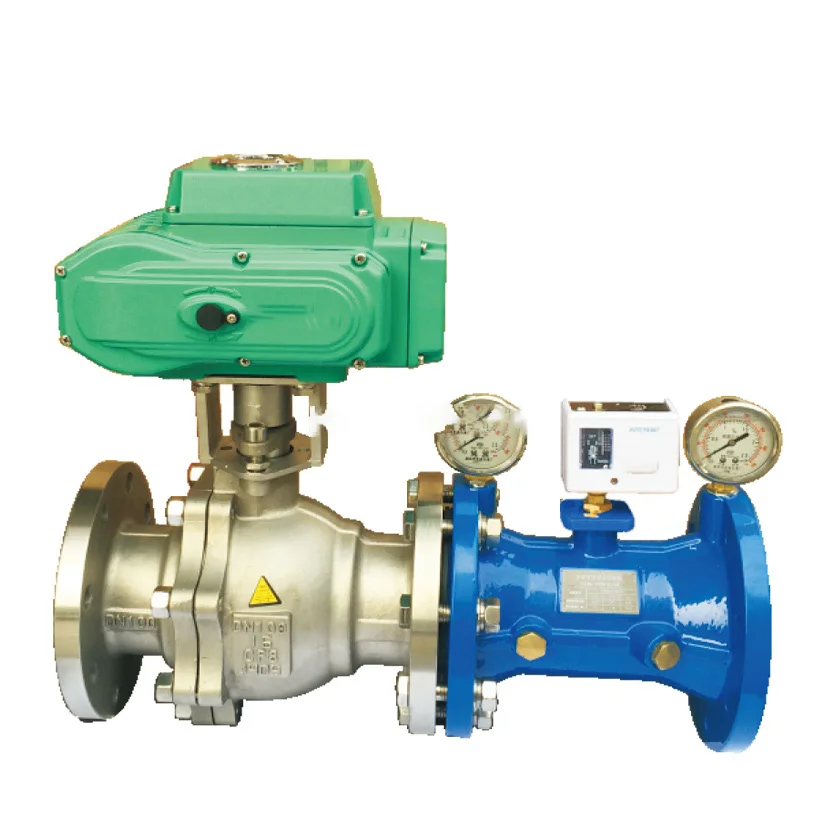

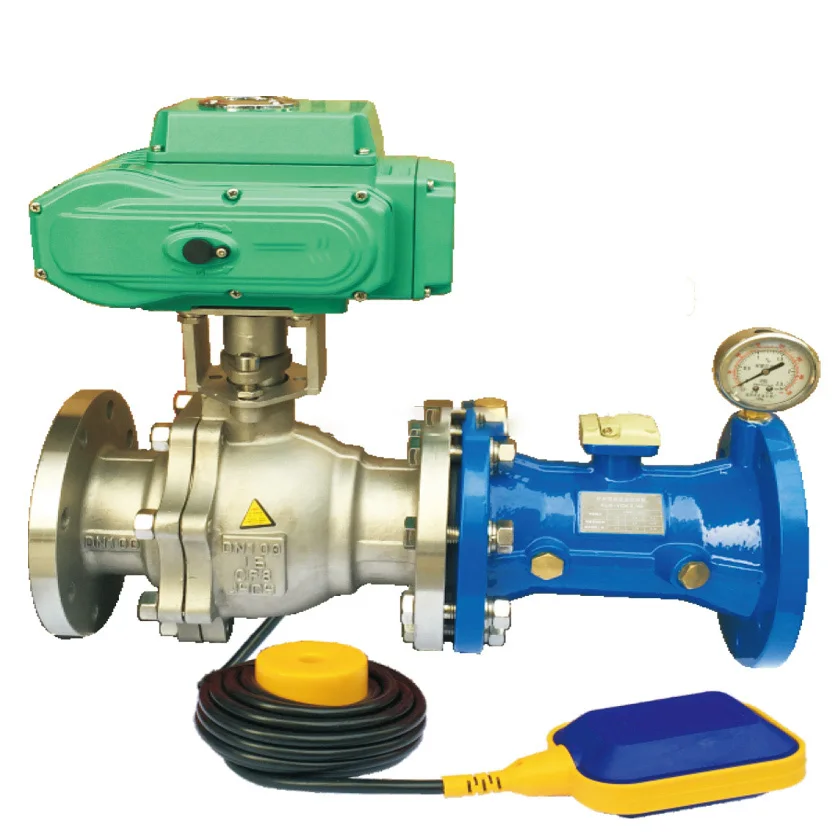

01 series of intelligent liquid level control valves are composed of liquid level sensor, intelligent actuator and regulating ball valve. It is mainly used for liquid level control of liquid tank.The liquid level can be set, adjusted, and the liquid level can display the setting and current value on the LCD screen. Can set high level valve, low level development two stage control, and the lowest level, the highest level of liquid alarm output. Or set as the base business control mode, automatically adjust the opening of the valve, and keep the liquid level near the reference level.The intelligent liquid level control valve adopts the integrated design of valve, actuator and sensor. It is easy to choose, easy to install and easy to debug. Only need to determine the caliber of the valve and the level of total depth selection, sensor,controller and electric valve at a selection with trouble. It is also a new replacement product of the traditional mechanical valve, which is more stable, reliable and wider than the mechanical floating ball valve.
Main connecting dimensions
DN(MM | Connecting dimension | Actuator model | ||||||||||
D | D1 | D2 | C | F | n-Ød | |||||||
40 | 150 | 110 | 84 | 18 | 3 | 4-Ø18 | FOSD-10 | |||||
50 | 165 | 125 | 99 | 20 | 3 | 4-Ø18 | FOSD-10 | |||||
65 | 185 | 145 | 118 | 20 | 3 | 4-Ø18 | FOSD-16 | |||||
80 | 200 | 160 | 132 | 20 | 3 | 8-Ø18 | FOSD-30 | |||||
100 | 220 | 180 | 156 | 22 | 3 | 8-Ø18 | FOSD-30 | |||||
125 | 250 | 210 | 184 | 22 | 3 | 8-Ø18 | FOSD-60 | |||||
150 | 285 | 240 | 211 | 24 | 3 | 8-Ø22 | FOSD-125 | |||||
200 | 340 | 295 | 266 | 24 | 3 | 12-Ø22 | FOSD-250 | |||||

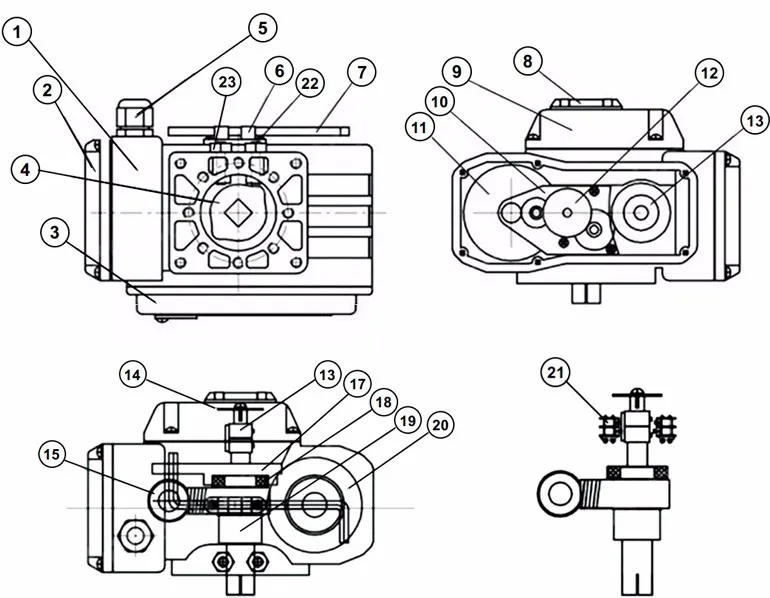

NO | Component | Material | Qty | NO | Component | Material | Qty |
1 | Main Body | Aluminum Alloy | 1 | 13 | oil Seal | Rubber | 2 |
2 | wiring Cover | Aluminum Alloy | 1 | 14 | Dial Plate | Auminum Alloy | 1 |
3 | Gear Cover | Aluminum Alloy | 1 | 15 | Trans mission Worm Steam | 40CR | 1 |
4 | Mechanical Block | Aluminum Alloy | 1 | 16 | Limit Cam | Auminum Alloy | 2 |
5 | Waterproof Connector | Plastic | 1 | 17 | worm Gear Cover | Auminum Alloy | 1 |
6 | wrench Buckle | Plastic | 1 | 18 | shafi | steel | 10 |
7 | Manual Handle | CR12 | 1 | 19 | Trans mission Worm Gear | Auminum Alloy | 1 |
8 | Indicate wWindow | Aluminum Alloy | 1 | 20 | Motor Set | copper | 1 |
9 | Upper Cover | Aluminum Alloy | 1 | 21 | SPDT Switches | Plastic | 4 |
10 | Gearbox | Plastic | 1 | 22 | Nut | SS | 2 |
11 | Motor Cover | Aluminum Alloy | 1 | 23 | screw | SS | 2 |
12 | Trans mission worm Set | 40CR | 1 |
