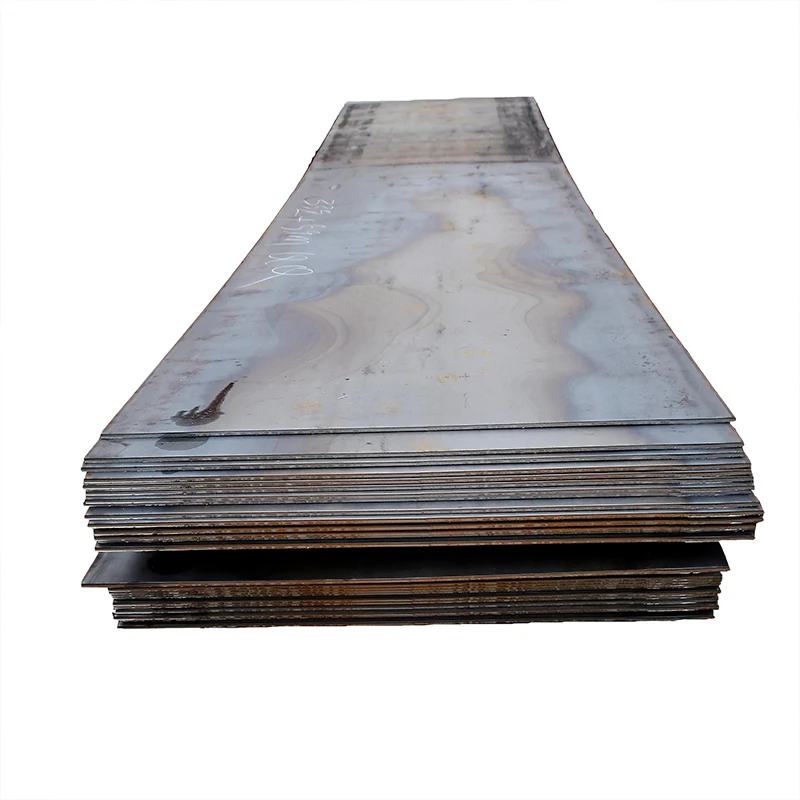

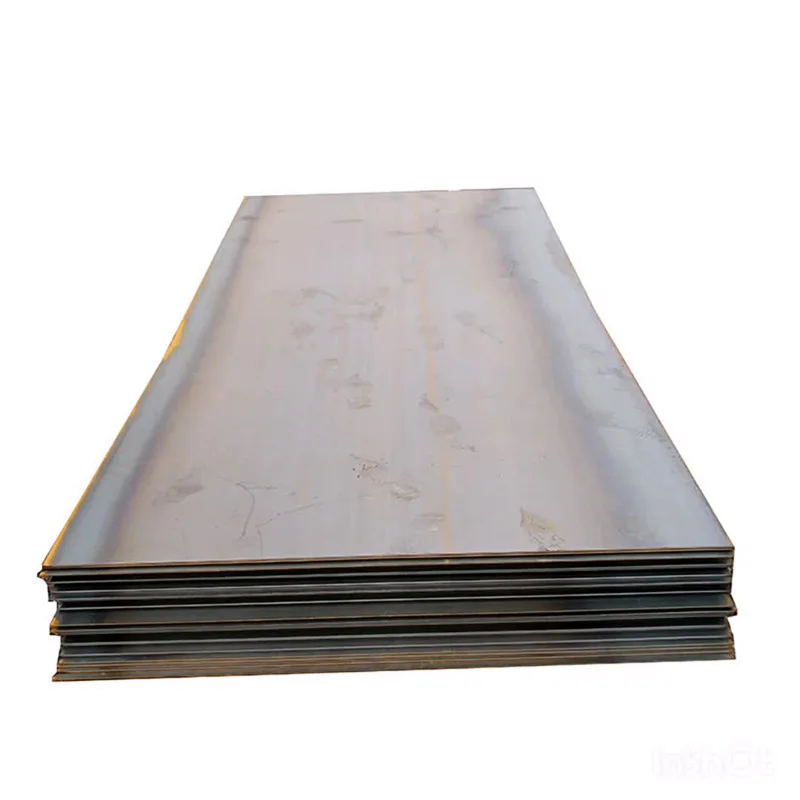

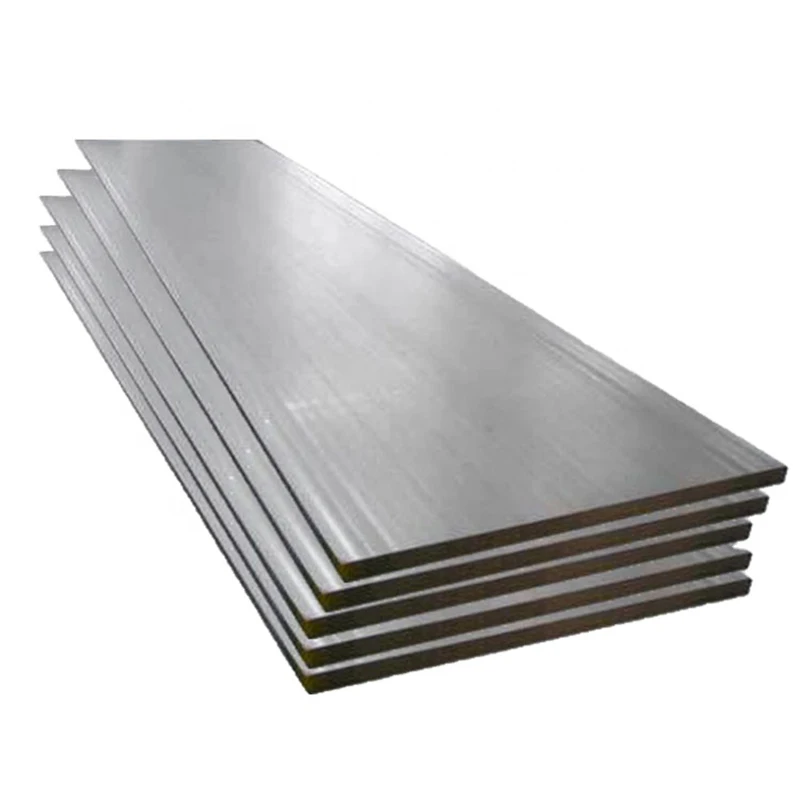

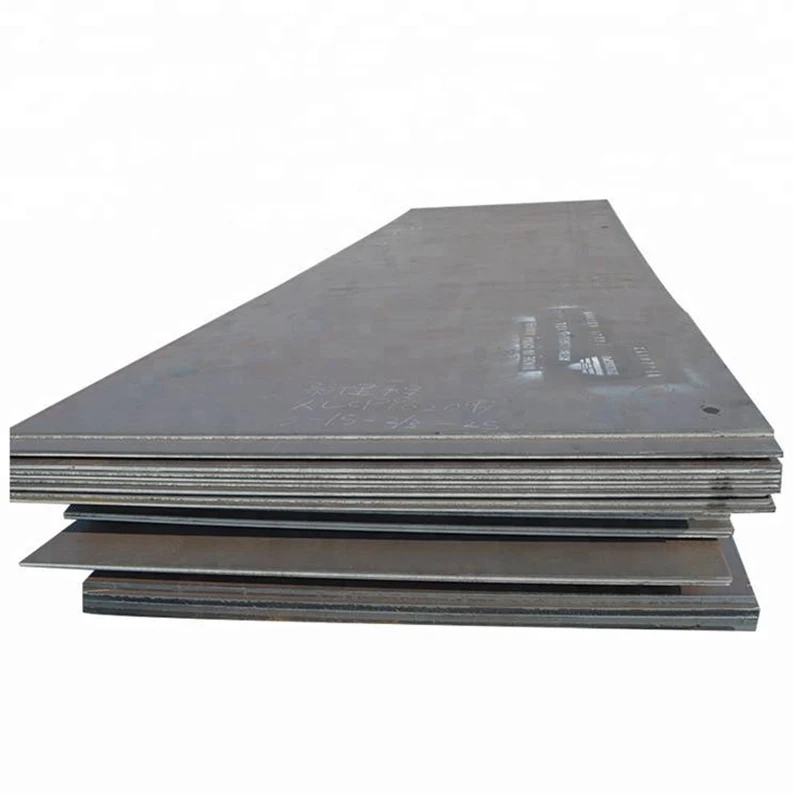

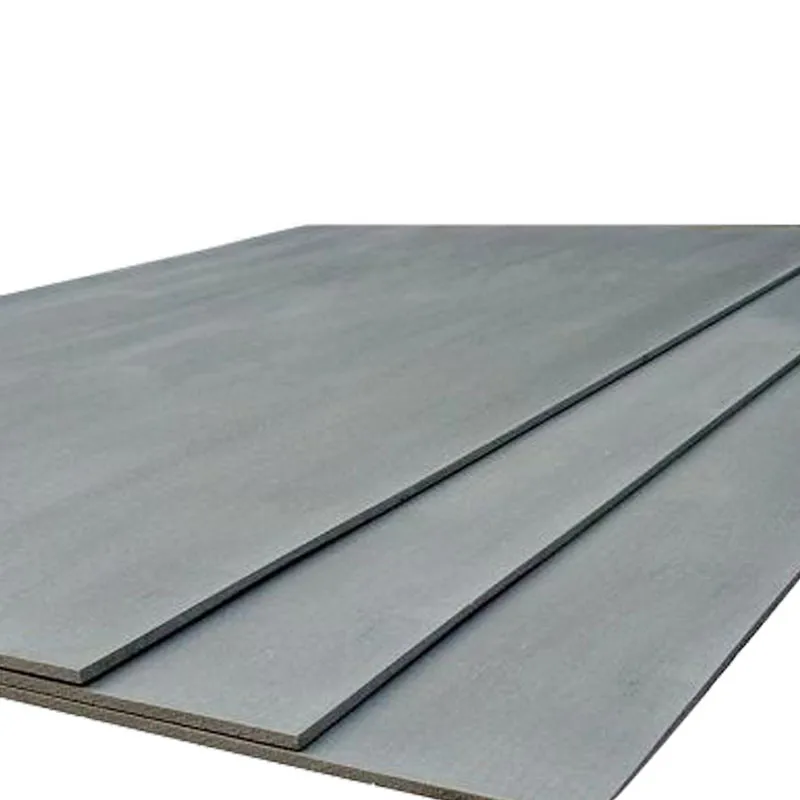

ASTM A515 Grade 55 65 70 P355gh P265gh Alloy High Strength Pressure Vessel Steel Plate
- Category: >>>
- Supplier: Shandong Kunda Steel Co. Ltd.
Share on (1600996569935):
Product Overview
Description
Product Description
Carbon Steel Plates are a type of iron-carbon alloy that can contain up to 2.1 percent carbon by weight. Although there is no minimum content of other alloying elements in carbon steels, they frequently contain manganese. Manganese, silicon, and copper concentrations.Low-Carbon Steel Plates (or mild-carbon steel), medium-carbon steel, and high-carbon steel are the three classifications of carbon steel based on their carbon content.
Product name | Boiler and Pressure Vessel Steel Plate 16Mo3 Wugang |
Standard | ASTM ,JIS,DIN,EN,GB. |
Material | GR55,GR60,GR65,GR70 Q245R,Q345R,Q370R 15CrMoR,15MnNiDR,15Mo3,15CrMoG 09MnNiDR,12MnNiVR,13MnNiMoR,Gr70,18MnMoNbR,19Mn6 12Cr2Mo1R,12Cr1MoVR,12CrMo1R,14Cr1MoR |
thickness : 1-500mm | |
width: 300-3000mm | |
length : 1000~12000mm or as request | |
Technique | Hot-rolled, controlled rolling, normalizing or as required |
Surface | Mill Finished or as per required |
Certification: | BV, ISO, SGS, CE |
Payment terms | T/T , L/C, West union and Other |
Delivery time | 15-20 days after your deposit and depend on quantity |
Upon the final quantity you demand | |
MTC will be handed on with shipping documents | |
We accept the third party certification test |
High Pressure Vessel Steel Plate Chemical Component and Mechanical Properties( %) | ||||||||||||||||||
No. | Grade | C | Mn | S | P | Si | YS | TS | EI | |||||||||
1 | Q245R | ≤0.2 | 0.5-1.0 | ≤0.015 | ≤0.025 | ≤0.35 | ≥235 | 400-520 | ≥25 | |||||||||
2 | Q345R | ≤0.2 | 1.2-1.6 | ≤0.015 | ≤0.025 | ≤0.55 | ≥325 | 490-620 | ≥21 | |||||||||
3 | Q370R | ≤0.18 | 1.2-1.6 | ≤0.015 | ≤0.025 | ≤0.55 | ≥270 | 520-630 | ≥20 | |||||||||
4 | 16MO3 | 0.12-0.20 | 0.40-0.80 | ≤0.010 | ≤0.030 | 0.10-0.35 | ≥270 | 450-600 | ≥20 | |||||||||
5 | A515 GR60 | ≤0.24 | 0.90 | ≤0.035 | ≤0.035 | 0.15-0.40 | ≥220 | 415-550 | ≥21 |
A515 GR65 | ≤0.28 | 0.90 | ≤0.035 | ≤0.035 | 0.15-0.40 | ≥240 | 450-585 | ≥19 | |
A515 GR70 | ≤0.31 | 1.20 | ≤0.035 | ≤0.035 | 0.15-0.40 | ≥260 | 485-620 | ≥17 | |
6 | A516 GR55 | ≤0.18 | 0.60-0.90 | ≤0.035 | ≤0.035 | 0.15-0.40 | ≥205 | 380-515 | ≥23 |
A516 GR60 | ≤0.21 | 0.60-0.90 | ≤0.035 | ≤0.035 | 0.15-0.40 | ≥220 | 415-585 | ≥21 | |
A516 GR65 | ≤0.24 | 0.85-1.20 | ≤0.035 | ≤0.035 | 0.15-0.40 | ≥240 | 450-585 | ≥19 | |
A516 GR70 | ≤0.27 | 0.85-1.20 | ≤0.035 | ≤0.035 | 0.15-0.40 | ≥260 | 485-620 | ≥17 | |
7 | ASTM A537 | ≤0.24 | 0.70-1.35 | ≤0.035 | ≤0.035 | 0.15-0.50 | ≥345 | 485-620 | ≥22 |
8 | A387 Gr2 Cl-1 | 0.05-0.21 | 0.55-0.80 | ≤0.035 | ≤0.035 | 0.15-0.40 | ≥228 | 380-550 | ≥22 |
A387 Gr2 Cl-2 | - | - | - | - | - | ≥310 | 485-620 | ≥22 | |
A387 Gr11 Cl-1 | 0.05-0.17 | 0.40-0.65 | ≤0.035 | ≤0.035 | 0.15-0.40 | ≥242 | 415-585 | ≥22 | |
A387 Gr11 Cl-2 | - | - | - | - | - | ≥310 | 515-690 | ≥22 | |
A387 Gr12 Cl-1 | 0.05-0.17 | 0.40-0.65 | ≤0.035 | ≤0.035 | 0.50-0.80 | ≥228 | 380-550 | ≥22 | |
A387 Gr12 Cl-2 | - | - | - | - | - | ≥275 | 450-585 | ≥23 | |
A387 Gr22 Cl-1 | 0.05-0.15 | 0.30-0.60 | ≤0.035 | ≤0.035 | ≤0.50 | ≥210 | 415-585 | ≥18 | |
A387 Gr22 Cl-2 | - | - | - | - | ≥310 | 515-690 | ≥18 |

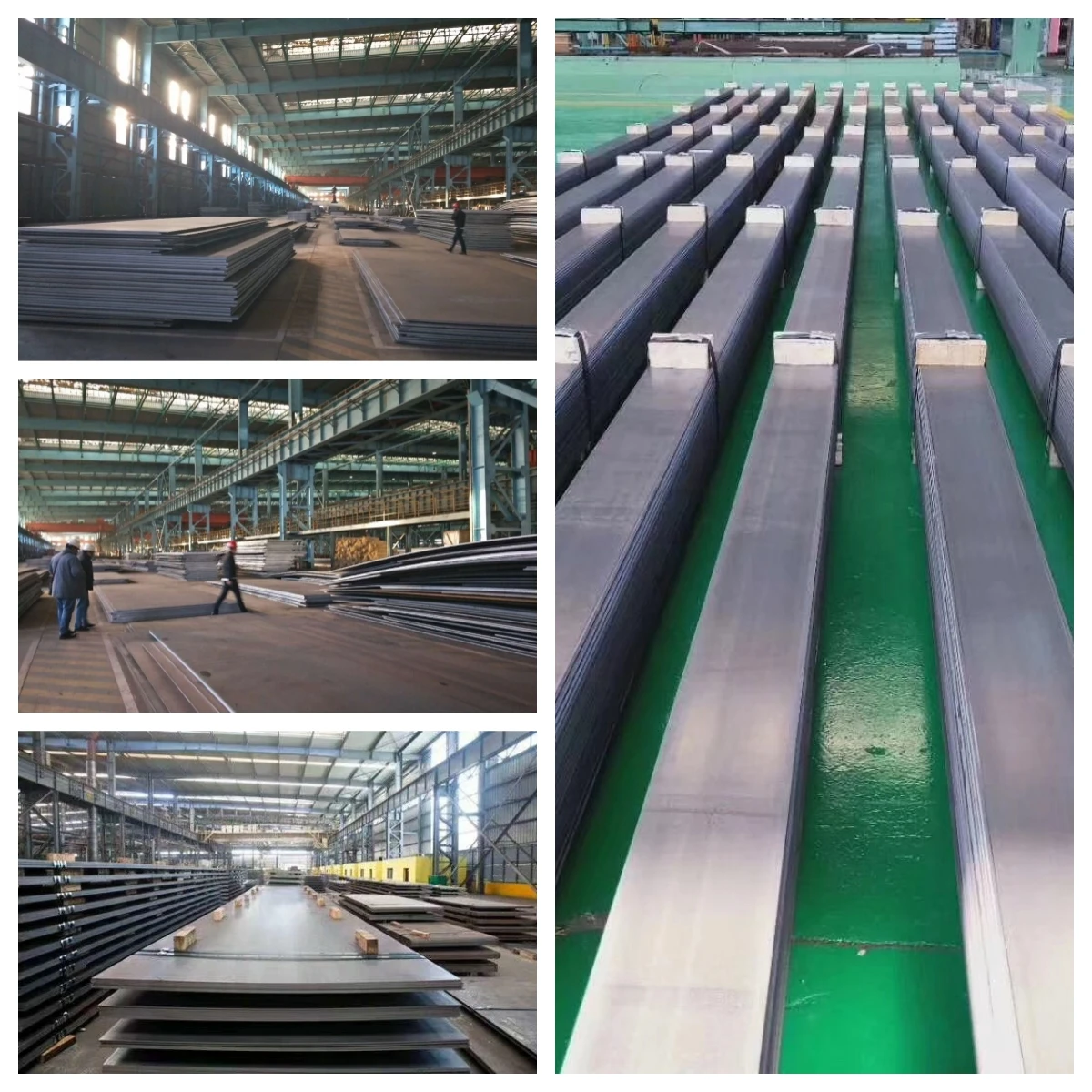

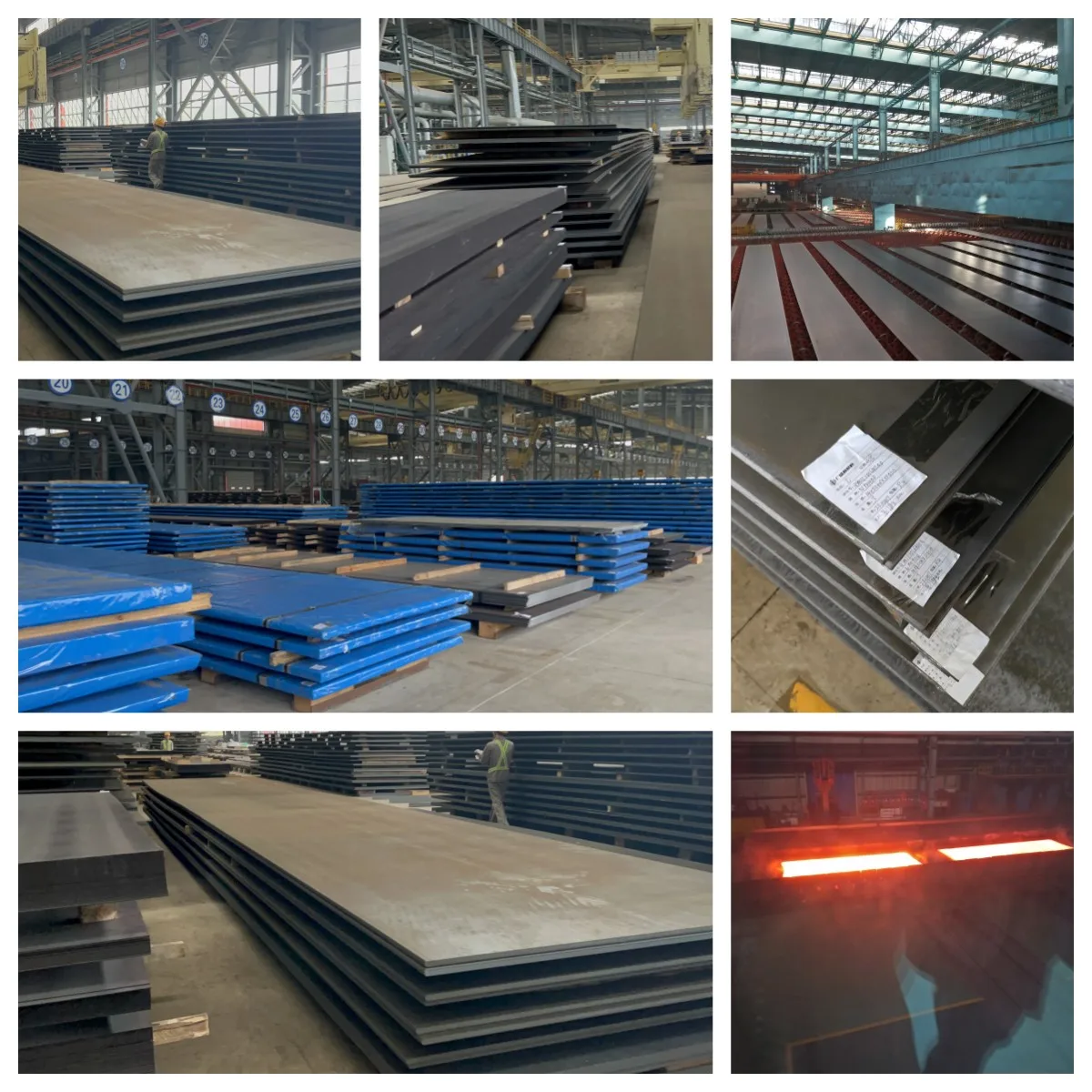

Detailed Images

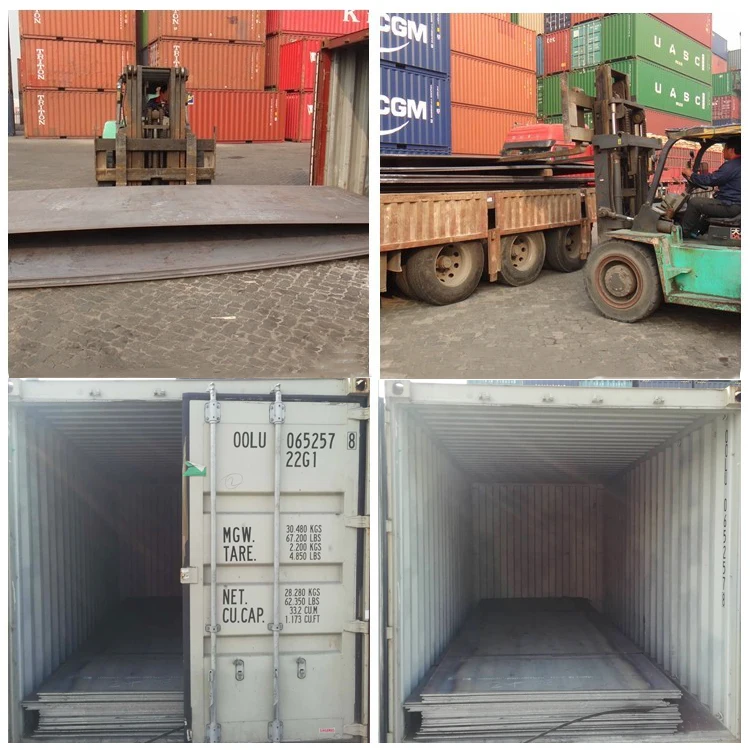

Packing & Delivery
Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
20' container: 25Tons
40' container: 27 Tons
Application
It is mainly used in tool steel, cementation steel and bearing steel.Like reactor, heat exchanger, separator, spherical tank, liquefied gas tank, nuclear reactor pressure vessel, boiler steam drum, liquefied gas cylinders, hydropower station high pressure hose, spiral case and other equipment and components.
About Us
Shandong Kunda Steel Co.,Ltd. Located in Liaocheng city,Shandong province,which is a picturesque city be crowned as"the Oriental Venice".Liaocheng in the west of Shandong province,200Km South from Beijing City,100Km west from Jinan City.Jiqing Expressway cross the city from East to West;Beijing-Kowloon Railway runs though North to South,benefit from the convenient traffic condition ,Liaocheng economy develops rapidly and formed the largest steel logistics centre in North China.
Kunda Steel is a subsidiary of Laiwu Steel Mill Plant, founded in 2010 and engaged in production and sales of Wear Resistant Steel Plate/Weathering Steel Plate/High Strength Carbon Steel Plate/Stainless Steel/Aluminum&Brass and Sectional materials.Kunda operation more than 15000square meters space,existing staff 200 workers,including 12 technical specialists,we passed Certificate ISO9001 / ISO14001 / OHSAS18001.With good reputation in Europe/ Southeast Asia/ Middle East / South America and Africa,our annual export volume twenty-five million dollars,about forty percentage of total sales.
We sincerely welcome you come to our company negotiate business and make great achievement together !
