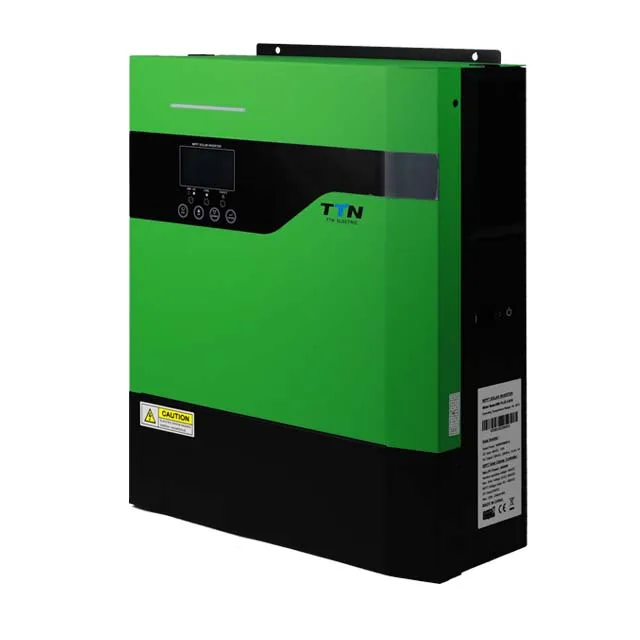

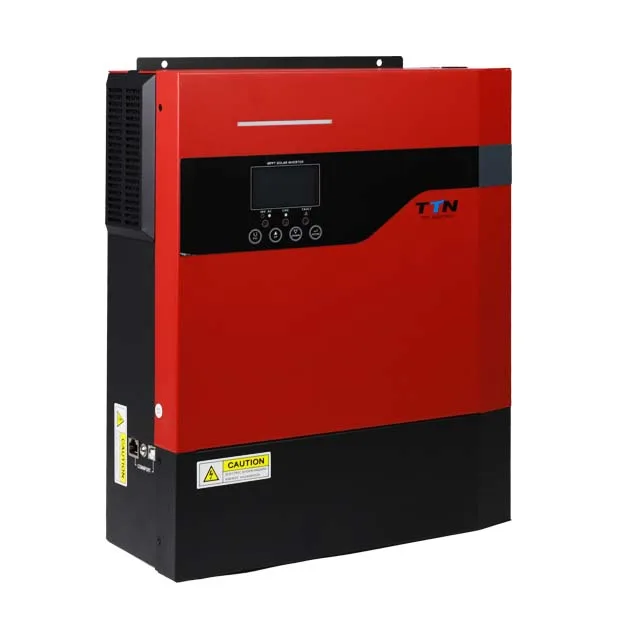

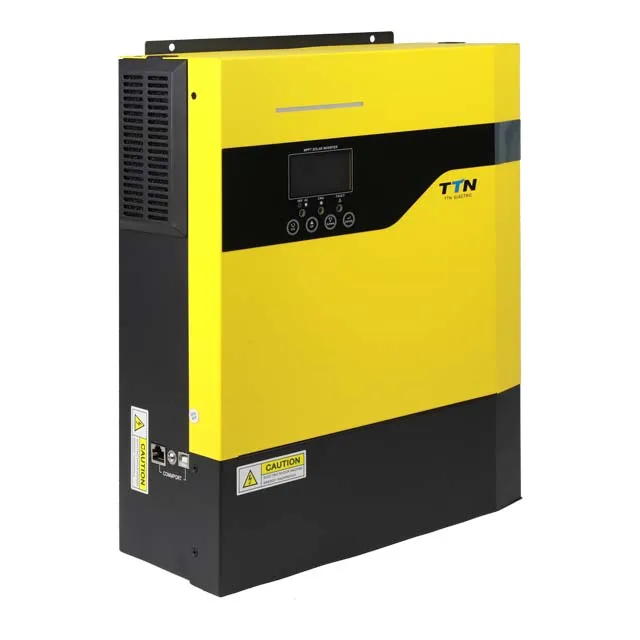

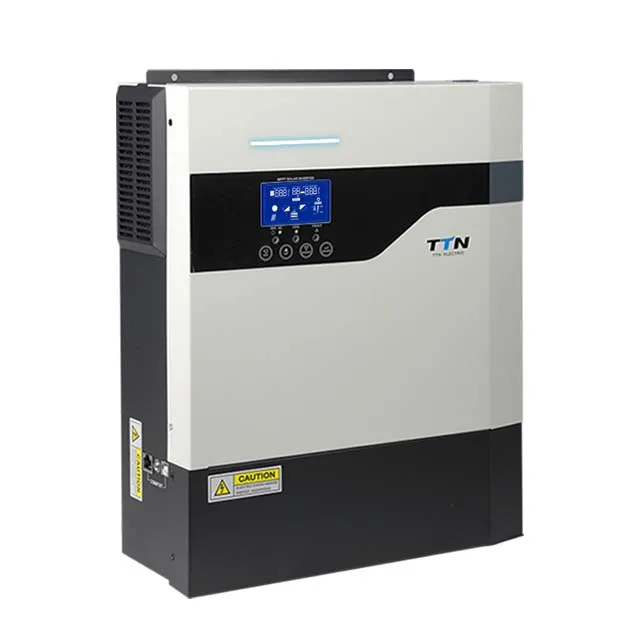

TTN 2023 full new off grid inverter/converter for solar home energy storage products
- Category: >>>
- Supplier: TTN New Energy Technology (Wenzhou) Co. Ltd.
Share on (1600996572057):
Product Overview
Description
Product Description
TTN3.6kw 24v/48V Hybrid Solar Inverter With 100A MPPT Solar Charger Led Display
| DATASHEET | TTN PLUS 3600-24 | TTN PLUS 5600-48 | TTN PLUS 6200-48 |
| RATED POWER | 3600W | 5600W | 6200W |
| INPUT | |||
| Voltage | 230VAC | ||
| Selectable Voltage Range | 170-280VAC(for personal computers) | ||
| 90-280VAC (for home appliances) | |||
| Frequency Range | 50/60HZ (Auto sensing) | ||
| OUTPUT | |||
| AC Voltage Regulation (Batt. Mode) | 230vac+-5% | ||
| Surge Power | 7200VA | 11200VA | 12400VA |
| Efficiency (peak )PV to INV | 97% | ||
| Efficiency IPeak Battery to INV | 94% | ||
| Transfer Time | 10 ms(forpersonal computers), 20 ms(for home appliances) | ||
| Output Port | single output | dual output(smart load) | dual output(smart load) |
| Waveform | pure sine wave | ||
| BATTERY & AC CHARGER | |||
| Battery Voltage | 24VDC | 48VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC | 54VDC |
| Overcharge Protection | 33VDC | 61VDC | 61VDC |
| Maximum Charge Current | 100A(From Grid) | ||
| S0C display | shows battery state of charge in percentage and involtage as well) | ||
| Sleeping Mode | yes | ||
| Battery voltage low cut off selectable | 21v-24v | 42v-49v | 42v-49v |
| Battery High voltage range selectable | 25-30v | 50-60v | 50-60v |
| Works without Battery | yes | ||
| SOLAR CHARGER | |||
| Maoimum PV Array Power | 5000w | 5600W | 6500w |
| MPPT Ran @ Operating Voltage | 60-450VDC | ||
| Maximum PV Amay Open Circut Valtage | 500VDC | ||
| Maximum Charging Cument | 120A | ||
| Maximum Eficiency | 98% | ||
| PHYSICAL | |||

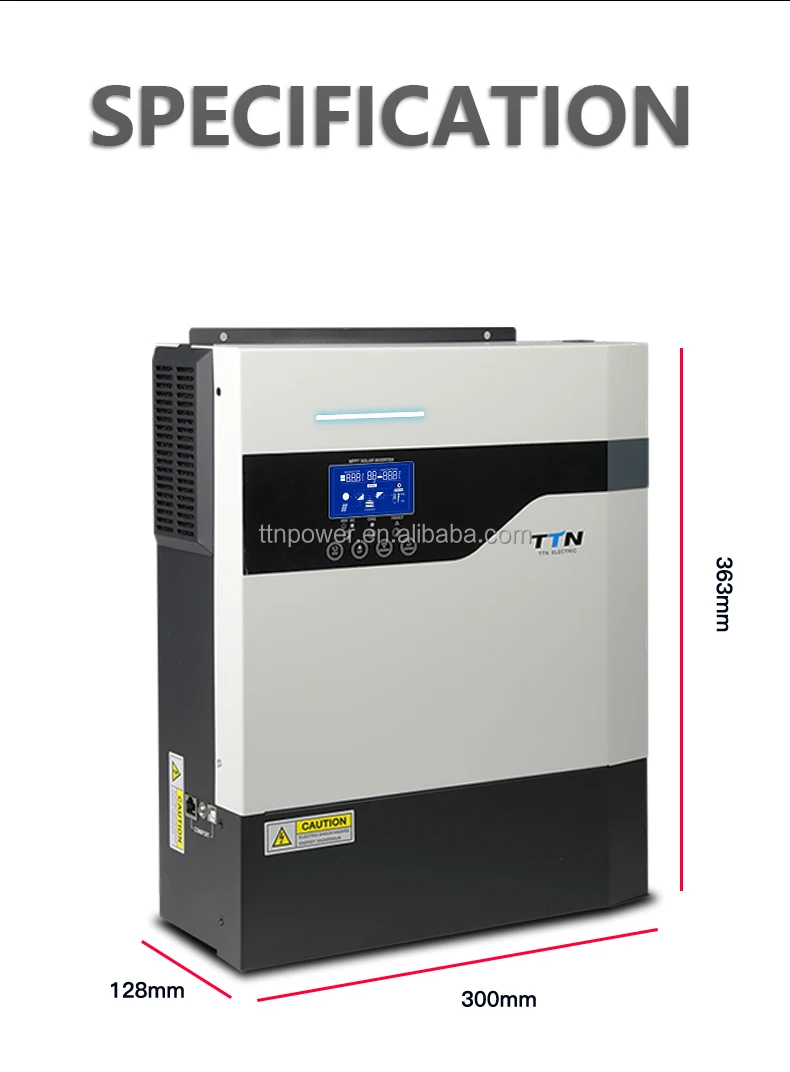

| Dimension, D x W x H (mm) | 128*300*363 | ||
| Net Weight (kgs) | 8.7 | 9.9 | 10.6 |
| Communication interface | RS485/wifi option(BMS Compatible with lithium battery using RS-485) | ||
| LCD display | General LCD | ||
| Operating environment | |||
| Humudity | 5% to 95% Relative humidity 9non-condensing) | ||
| Operating Temperature | 0℃-55℃ | ||
| Storage Temperature | -15℃-60℃ | ||
