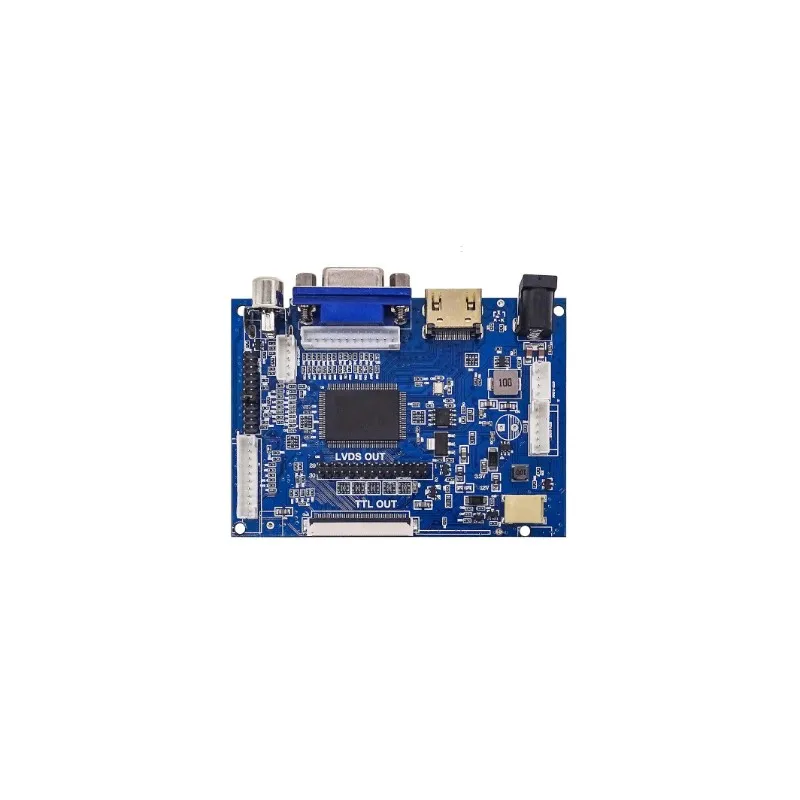

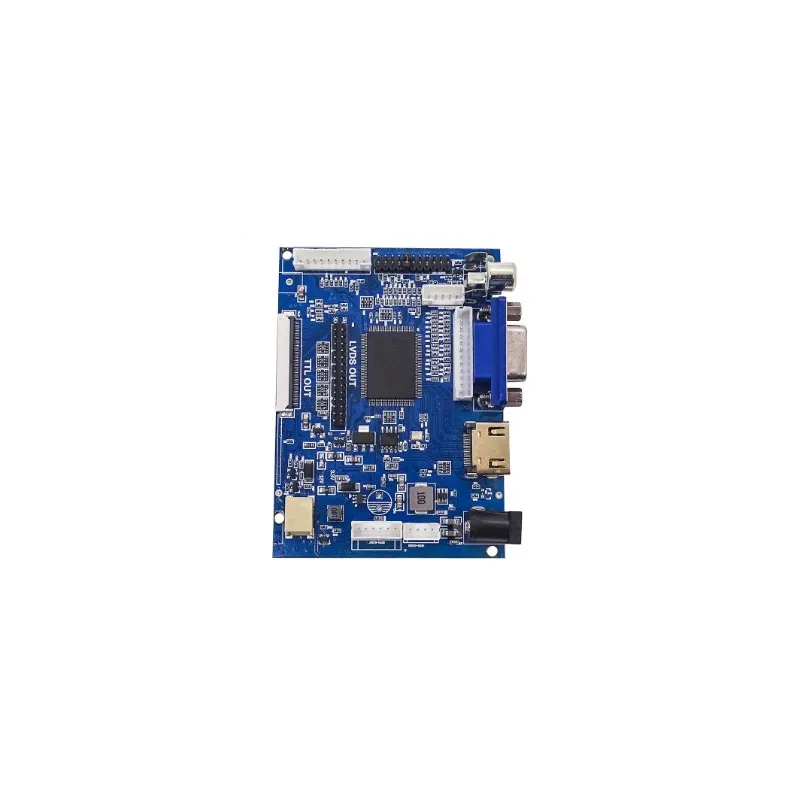

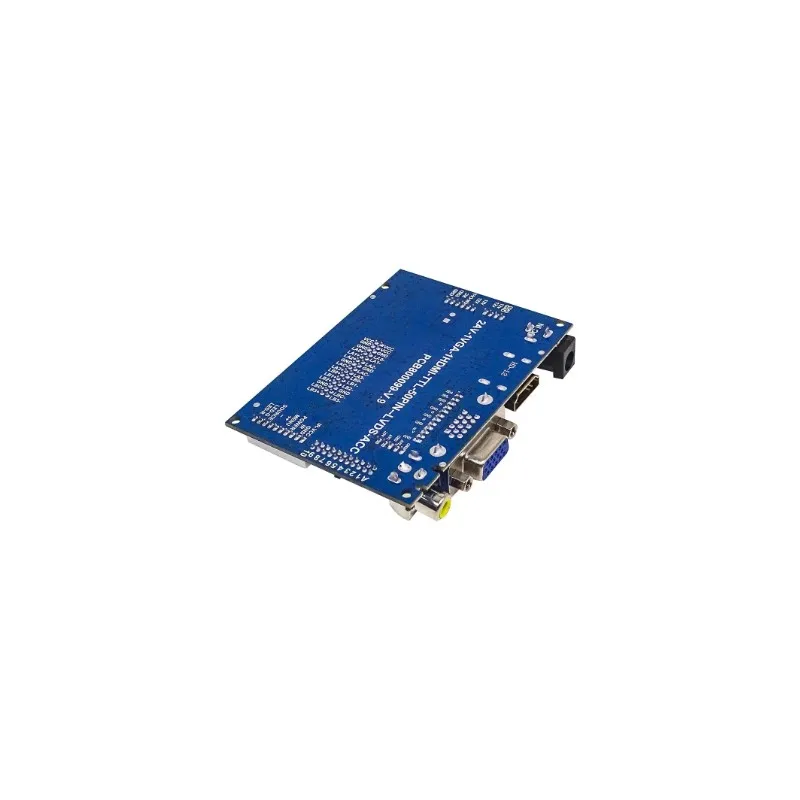

LCD Display TTL LVDS Controller Board VGA 2AV 50PIN for AT070TN90 92 94 Support Automatically VS TY2662 V1
- Category: >>>
- Supplier: Shenzhen Hongfeng Electronics Co. Ltd.
Share on (1600996589458):
Product Overview
Description
Interface :50 PIN RGB
Input Port :DC005 socket
Input V :5V~12V
Input Current :1A
Package including:
Drive Board *1
The 800 * 480 at070tn92 screen program is sent by default, and all subsequent consequences (program incompatibility) shall not be borne by our party.
1. Product Description:
This drive board can
1, 1 channel VGA signal input
2, 2-way AV signal input
3. One channel of HDMI signal input, and this IC supports hdmi1.2
4. 1-way reverse signal input
5. It supports wide voltage input and can work normally between 5v-24v,
6. Standard backlight 6pin interface, which can be externally connected to high-voltage board
7. The driving board integrates LCD and LED backlight driving board,
8. Standard LVDS signal output, which can support LCD screens of single 6, single 8, double 6, double 8 and other standard LVDS signals, but only LCD screens with screen power supply of 3.3V

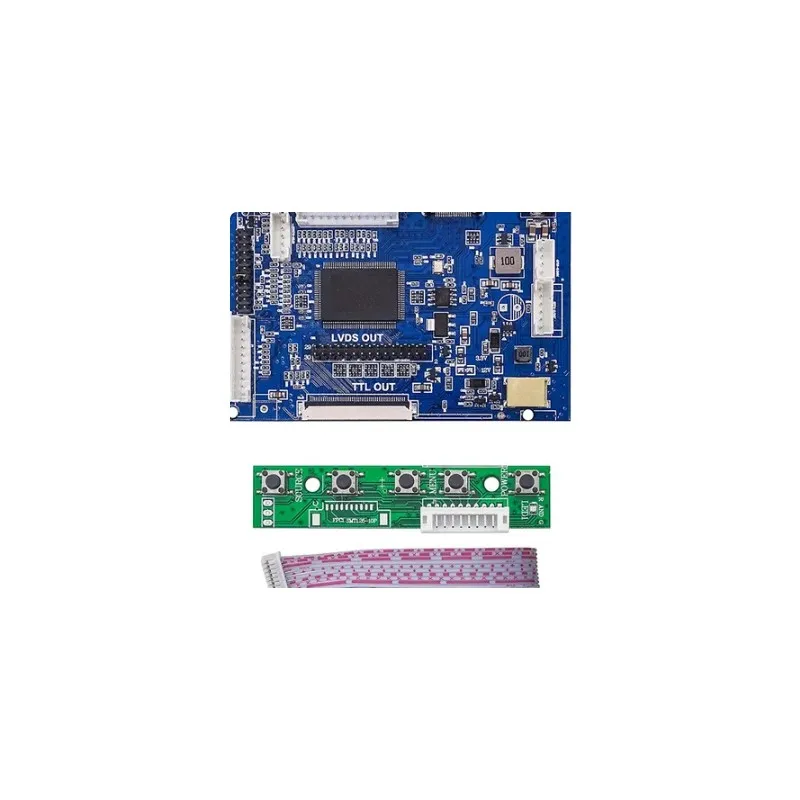

9. Standard key board interface and support dual color LED indicator display
10. Support TTL signal output,
Can support at070tn92,
AT065TN14
AT080TN52
AT090TN12
AT090TN10
AT070TN90
AT070TN93
At070tn94, TTL LCD with general 50pin interface
11. With the LCD adapter board, the following LCD screens can be supported
Ej070na01-1024x600 resolution
Ej080na04b-1024x768 resolution
Zj070na01, universal 40pin high score LCD screen
12. With the LCD adapter board, it can also support 4.3, 5, 6, 7-inch, 40pin general screen. See at0543tn24v, 1 for the definition
13. The larger output display resolution of the drive board is 1920x1080. When the display resolution exceeds 1440x900, the heat sink needs to be added according to the working condition of the IC to reduce the working temperature of the IC)
14. The VGA part of this IC can directly input YPbPr signal, which needs to be realized through software program
15. The driver board can add remote control function, which needs to be realized through software program
16. Support reversing control and display it on AV2. The reversing voltage supports voltage input within 50V
17. There are four positioning holes in the drive plate
18. Using the company's USB interface program download board, you can add logo on bin code by yourself.
Input Port :DC005 socket
Input V :5V~12V
Input Current :1A
Package including:
Drive Board *1
The 800 * 480 at070tn92 screen program is sent by default, and all subsequent consequences (program incompatibility) shall not be borne by our party.
1. Product Description:
This drive board can
1, 1 channel VGA signal input
2, 2-way AV signal input
3. One channel of HDMI signal input, and this IC supports hdmi1.2
4. 1-way reverse signal input
5. It supports wide voltage input and can work normally between 5v-24v,
6. Standard backlight 6pin interface, which can be externally connected to high-voltage board
7. The driving board integrates LCD and LED backlight driving board,
8. Standard LVDS signal output, which can support LCD screens of single 6, single 8, double 6, double 8 and other standard LVDS signals, but only LCD screens with screen power supply of 3.3V
9. Standard key board interface and support dual color LED indicator display
10. Support TTL signal output,
Can support at070tn92,
AT065TN14
AT080TN52
AT090TN12
AT090TN10
AT070TN90
AT070TN93
At070tn94, TTL LCD with general 50pin interface
11. With the LCD adapter board, the following LCD screens can be supported
Ej070na01-1024x600 resolution
Ej080na04b-1024x768 resolution
Zj070na01, universal 40pin high score LCD screen
12. With the LCD adapter board, it can also support 4.3, 5, 6, 7-inch, 40pin general screen. See at0543tn24v, 1 for the definition
13. The larger output display resolution of the drive board is 1920x1080. When the display resolution exceeds 1440x900, the heat sink needs to be added according to the working condition of the IC to reduce the working temperature of the IC)
14. The VGA part of this IC can directly input YPbPr signal, which needs to be realized through software program
15. The driver board can add remote control function, which needs to be realized through software program
16. Support reversing control and display it on AV2. The reversing voltage supports voltage input within 50V
17. There are four positioning holes in the drive plate
18. Using the company's USB interface program download board, you can add logo on bin code by yourself.
Introduction
Shenzhen Hongfeng Electronics Co.,Ltd.

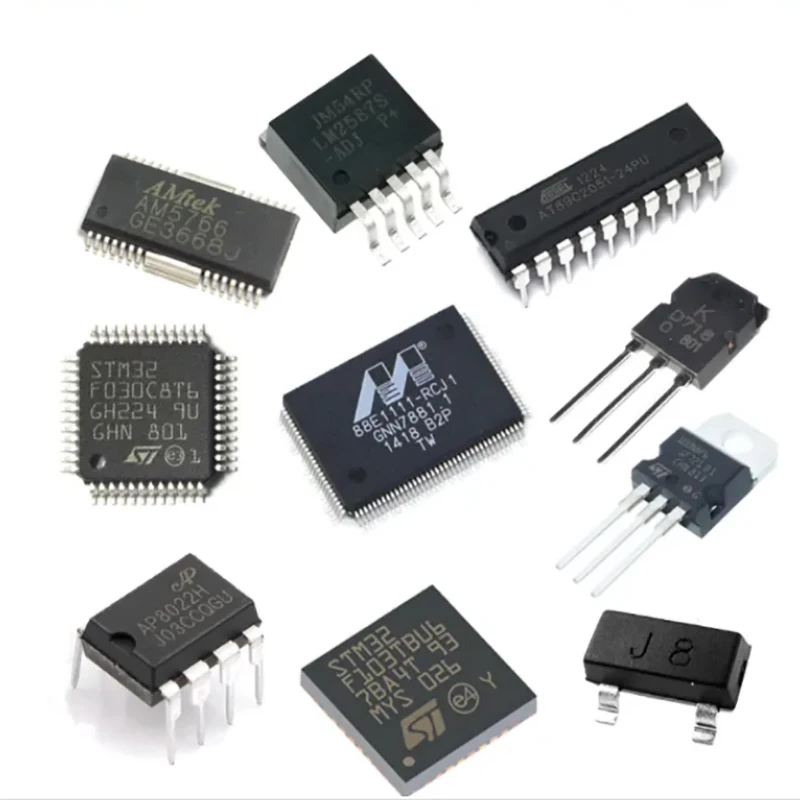

Shenzhen Hongfeng Electronics Co., Ltd. was established in 2008 and is an experienced supplier of IC electronic components. We focus on order BOM matching. one-stop supporting services,and have millions of electronic component inventory models. At the same time, it professionally supports all electronic components such as analog integrated circuits, digital integrated circuits, digital-analog hybrid integrated circuits. RF power amplifiers, modules, memory chips, transistors, MCUs, etc.
