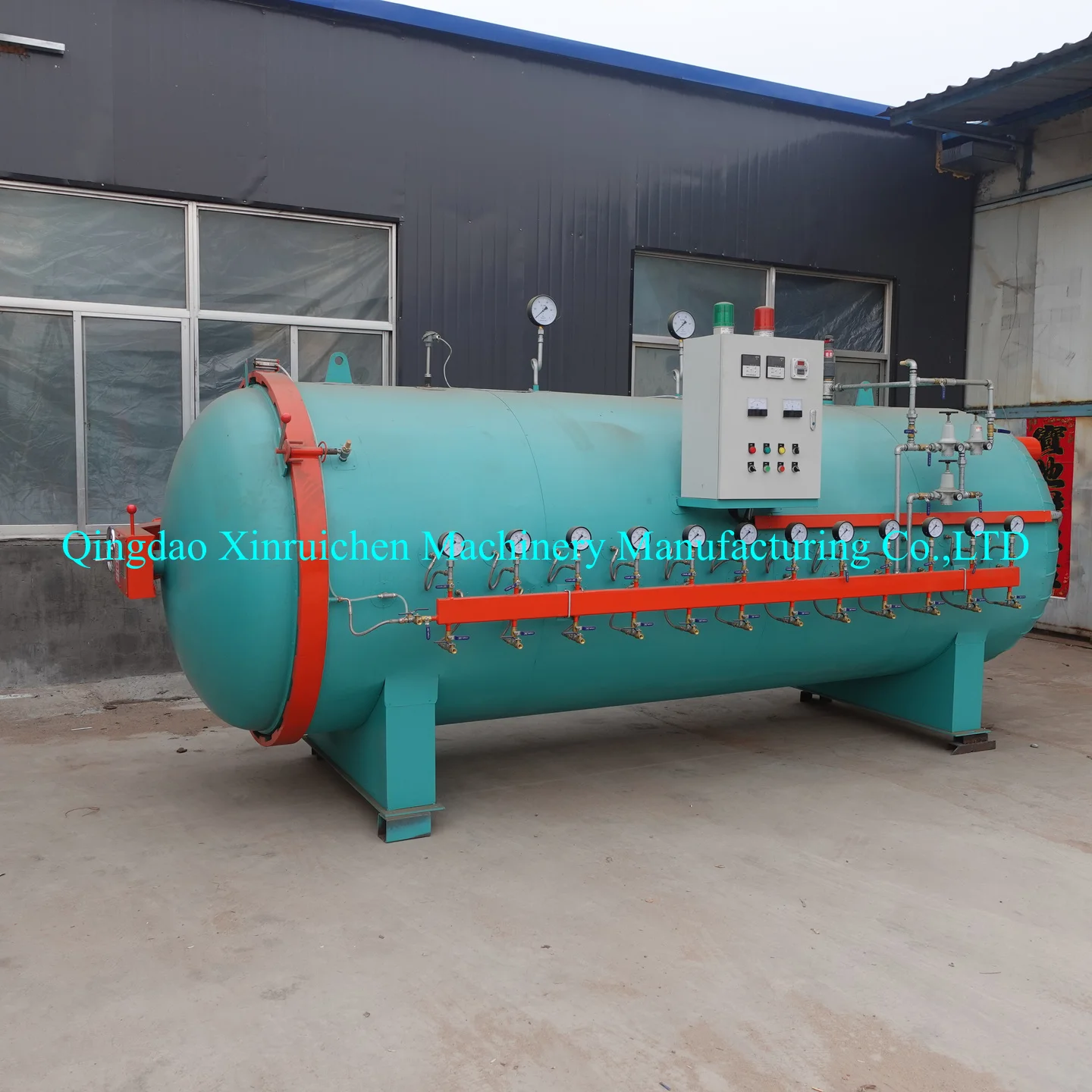

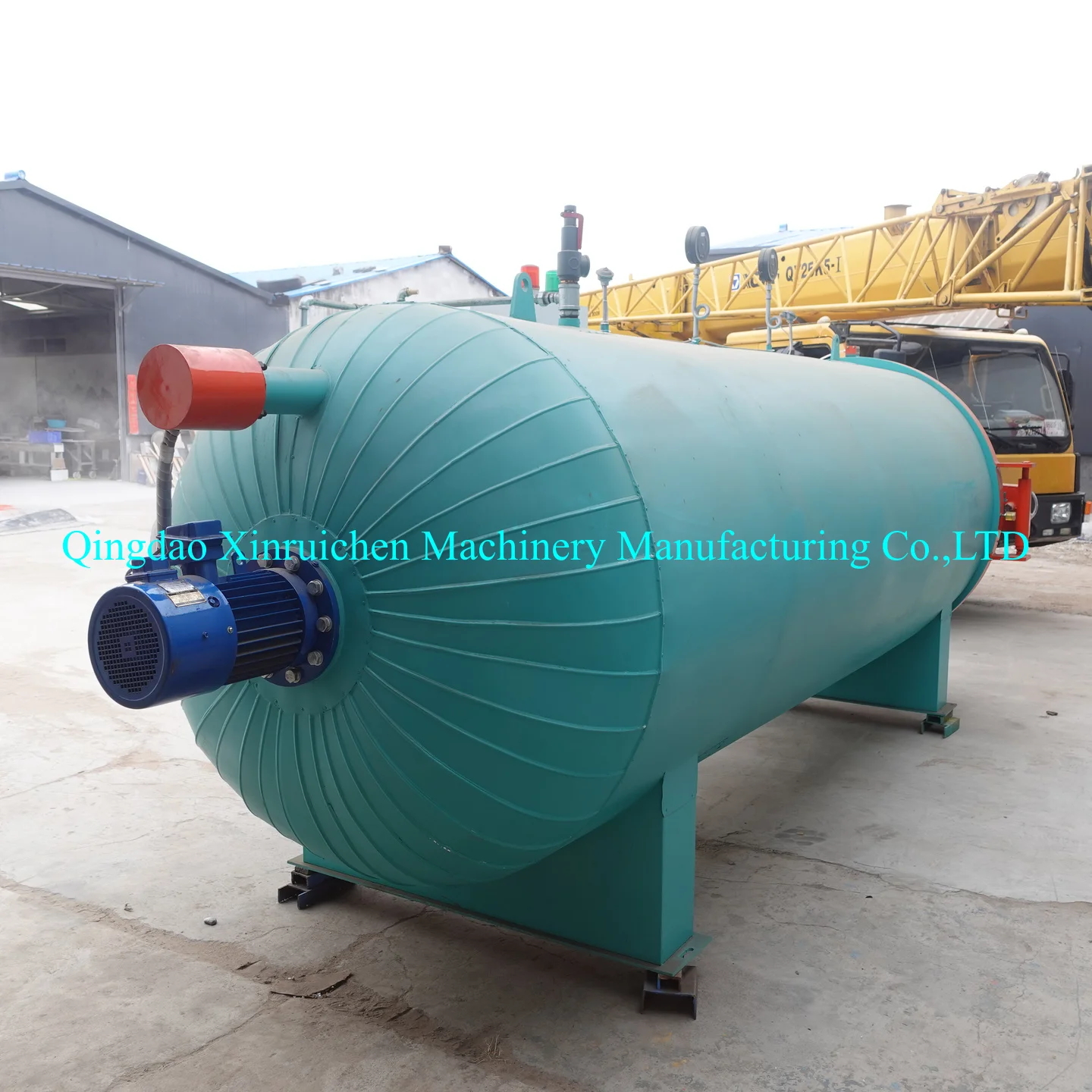

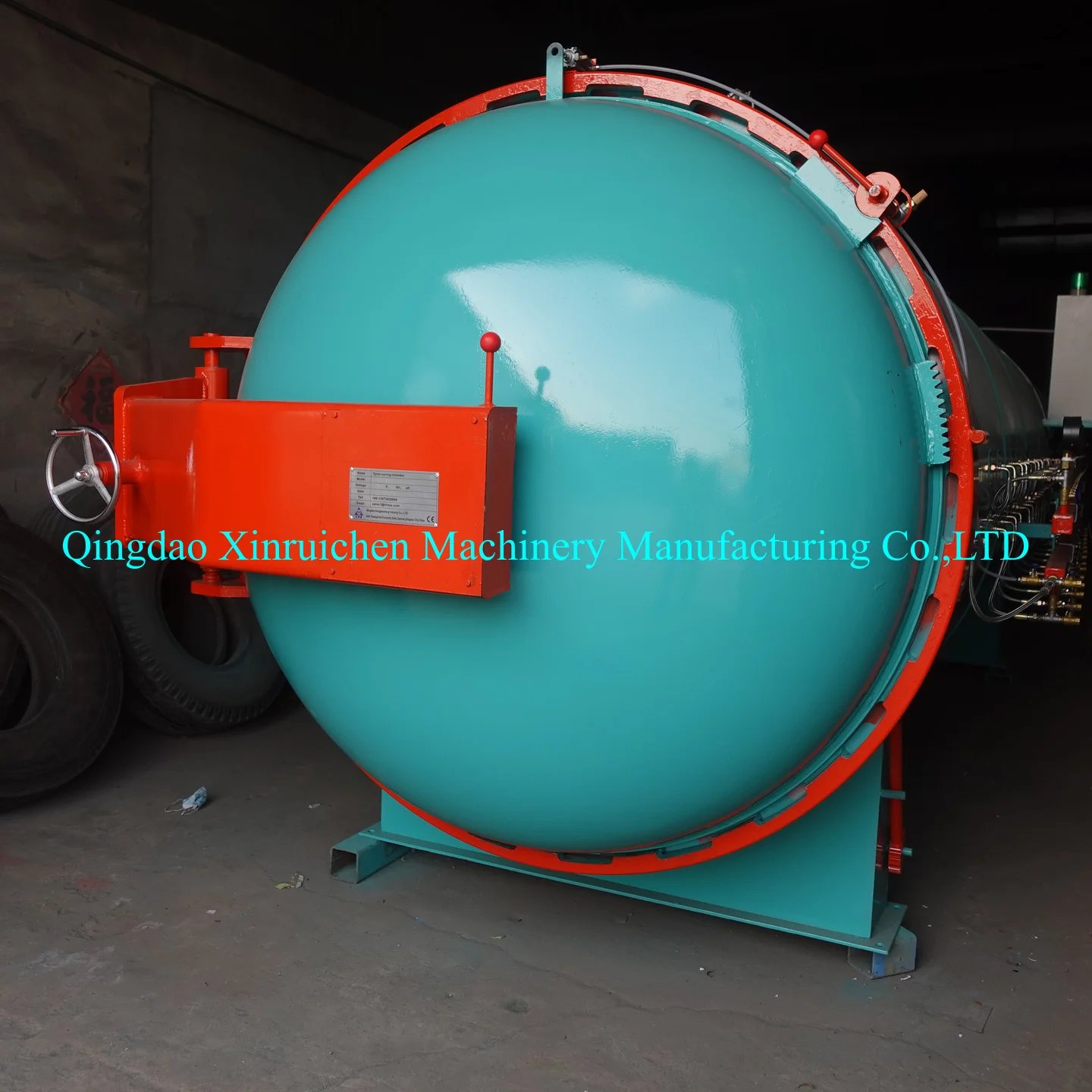

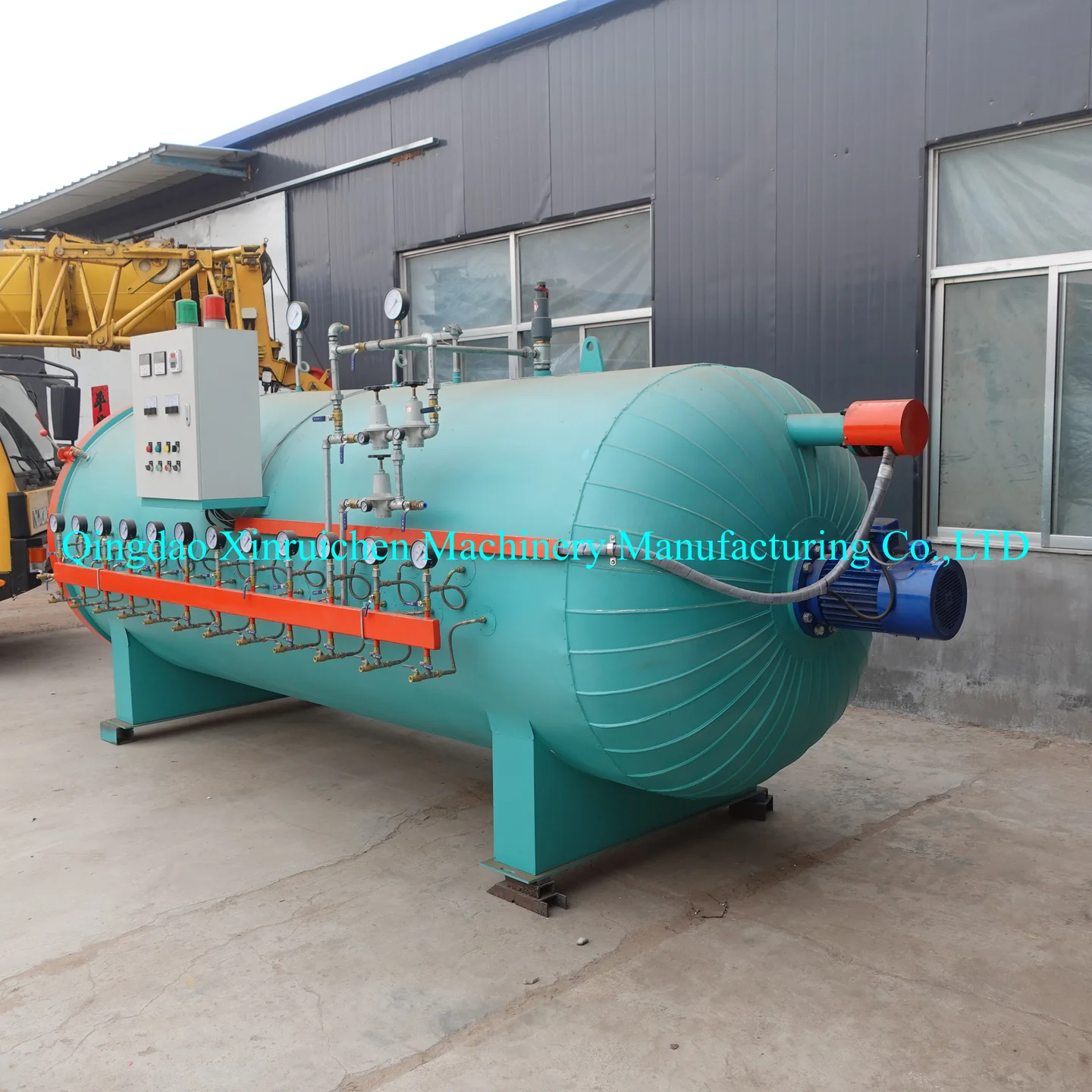

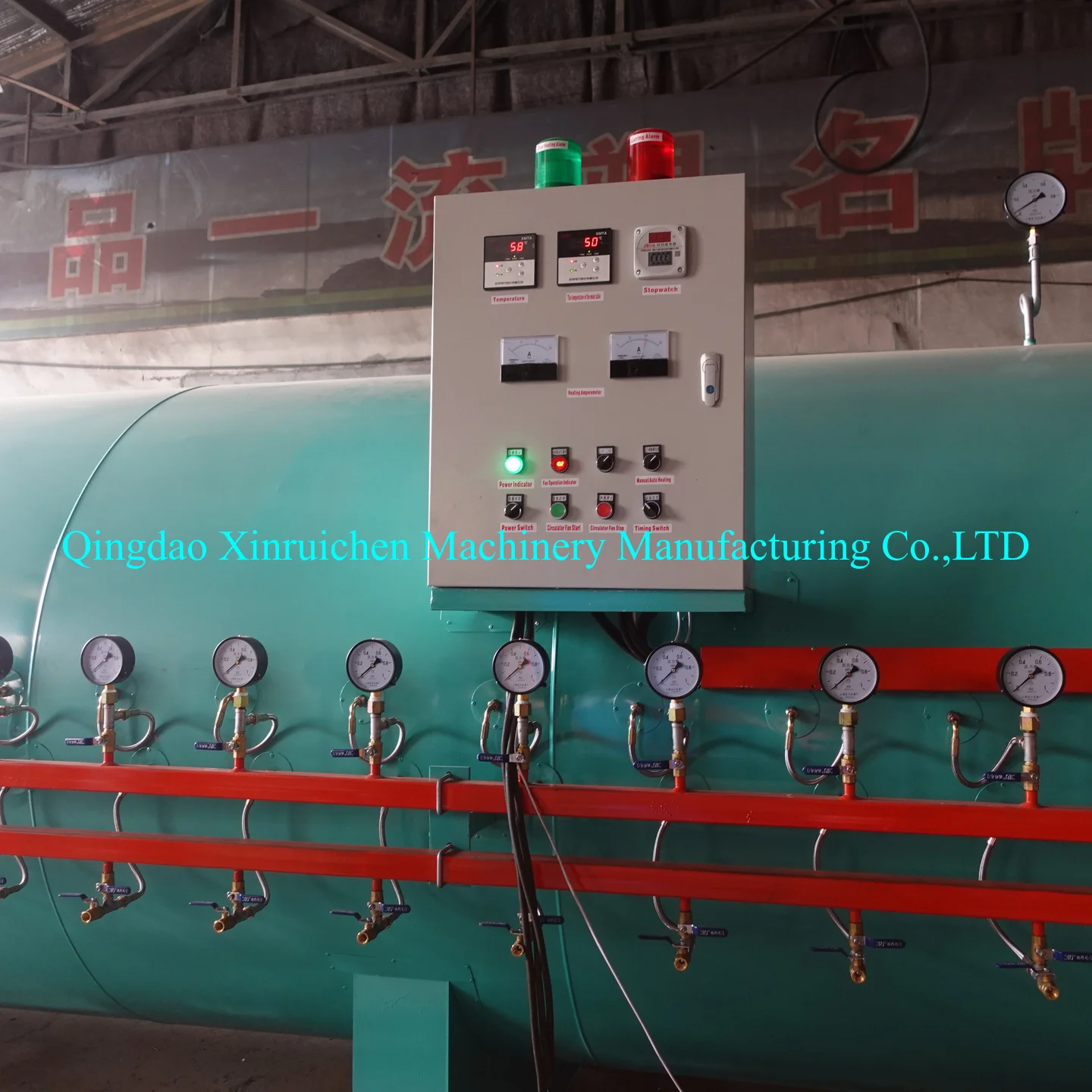

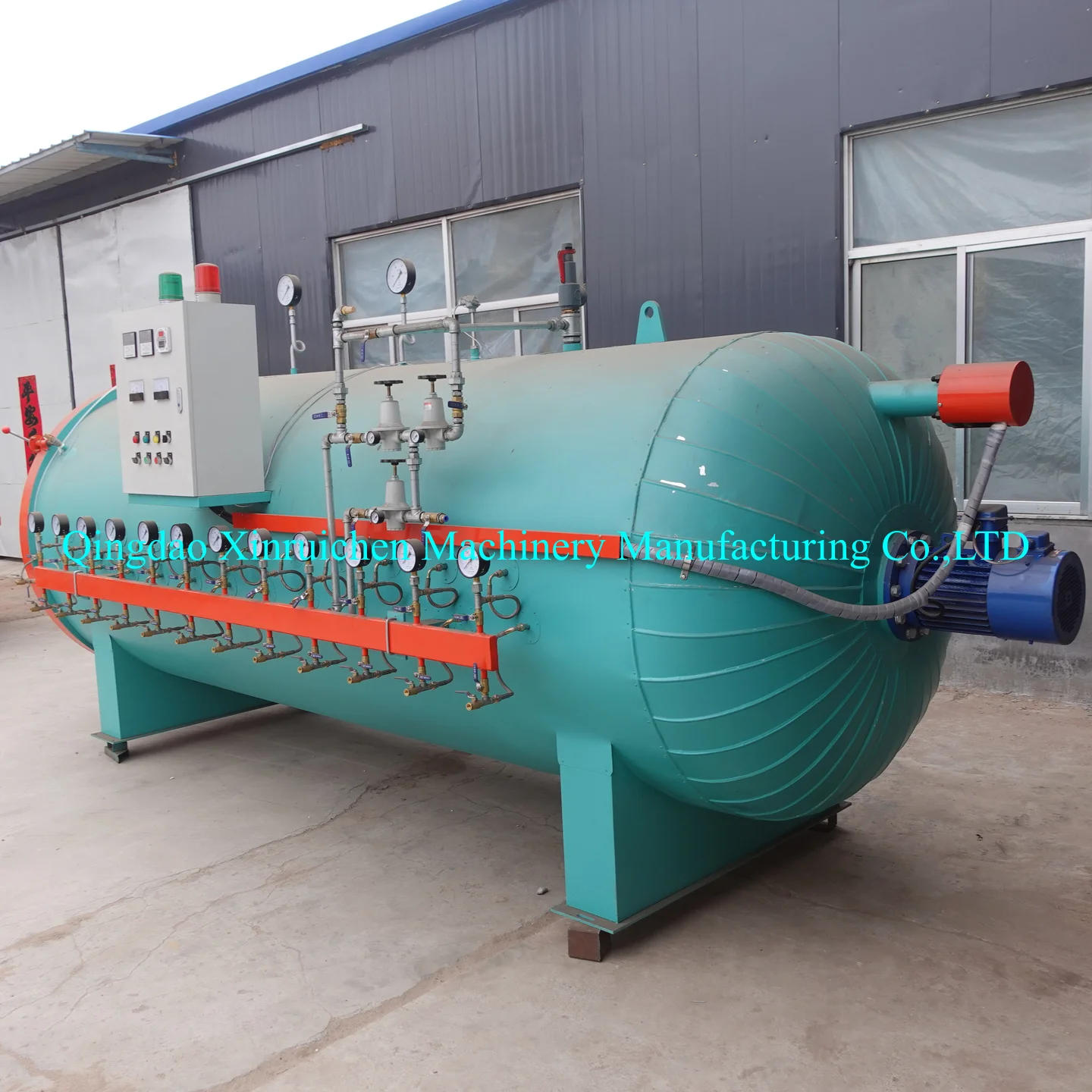

Rubber Autoclave Curing Chamber For Tire Retreading Machine
- Category: >>>
- Supplier: Qingdao Xinruichen Machinery Manufacturing Co. Ltd.
Share on (1600996775952):
Product Overview
Description
Product Description

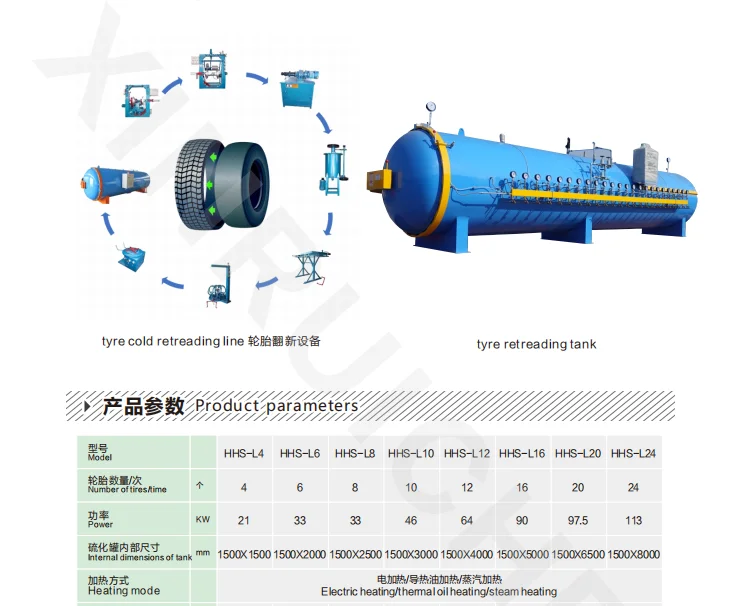

Truck Tyre Retreading Tank
In the pre-cured technology, the tread is supplied to the retreading factory cured, with the tread pattern already in place. The treads are supplied in rolls of various lengths (typically 3.5 to 10 meters in length), or as rings that can be stretched onto the casing. In the application of both pre-cured methods, a bonding material, the cushion gum, is applied to the tread or the casing prior to the application of the tread.
Diffrerent Tire Capacity from 4 tires to 24 tires,for truck ,bus and OTR tires.
Diamter:1500-3500 mm
Heating Method :elctric/oil/steam
Tyre number 12.00 R20 | 12 | 14 | 16 | 18 | 22 | 25 |
Theoretical steam consumptionkcal/h | 43000 | 52000 | 60000 | 65000 | 70000 | 90000 |
Electric hot-tube power--electric kw | 50 | 60 | 70 | 75 | 80 | 100 |
Electric hot-tube power--steam kw | 8 | 8 | 9 | 9 | 12.5 | 12.5 |
Fan motor power kw | 4 | 4 | 5 | 5 | 11 | 11 |
Width--uncovered mm | 5900 | 6600 | 7400 | 7800 | 8900 | 9900 |
Width--covered mm | 5100 | 5800 | 6600 | 7100 | 8100 | 9100 |
Practicable work width mm | 3600 | 4200 | 5000 | 5500 | 6800 | 7500 |
Height mm | 2200 | |||||
Weight t | 4.6 | 4.9 | 5.3 | 5.52 | 5.9 | 6.4 |
Designed pressure MPa | 0.9 | |||||
Maximum pressure MPa | 0.8 | |||||
Experimental pressure MPa | 1.1 | |||||
Designed temperature(c) | 180 | |||||
Compressed air source MPa | 0.8 | |||||
Related Machines
Our factory can manufacture curing chamber from 4-28tires, just based on your request.
If 8tire line is a small capacity,you can try 28tire chamber.
Please click here for more details.
Our Service
Pre-Sales Service After-Sales Service
* Machine quotation and techinical communication. * Train how to install and use.
* Provide drawing design. * Technician overseas service.
* Test machine before delivery. * 24H technical support by video call.
