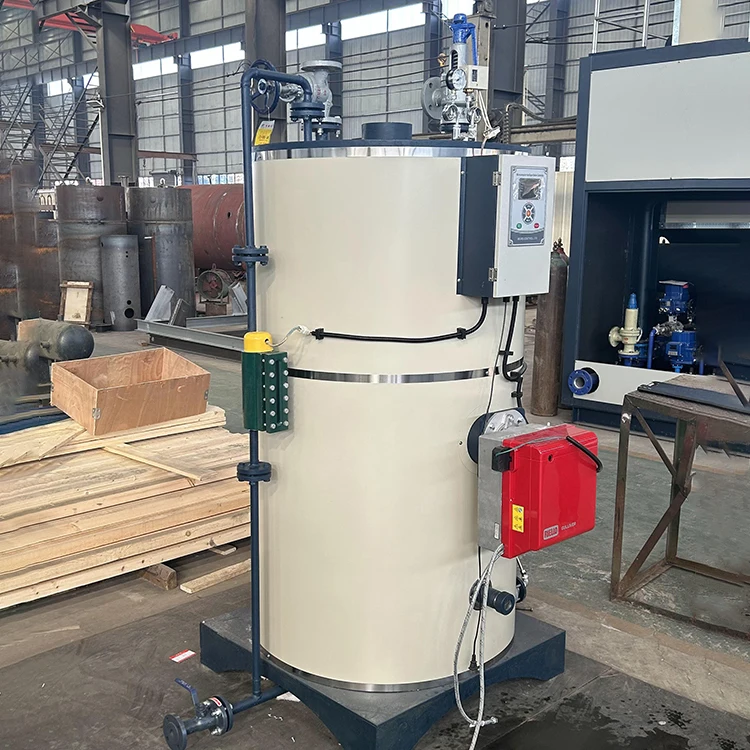

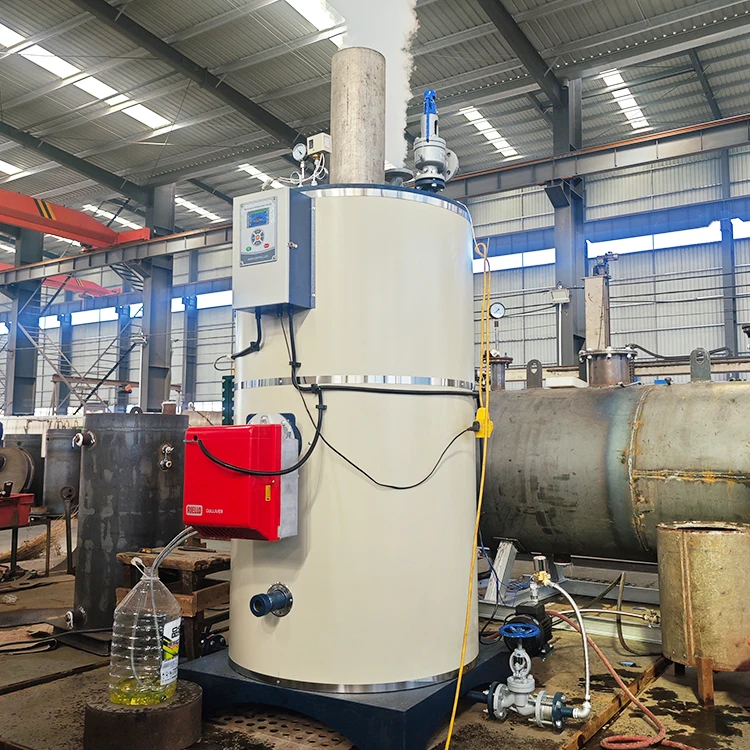

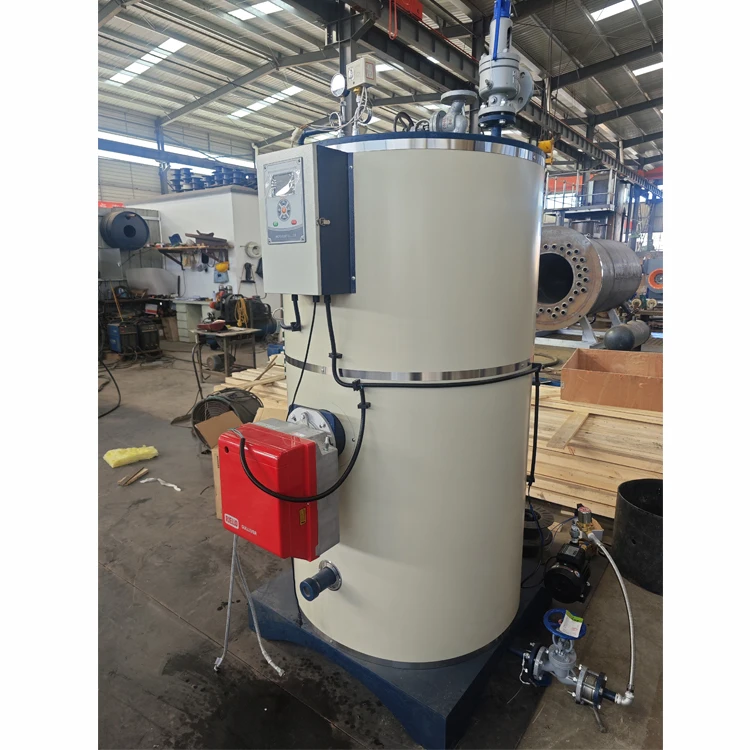

Industrial Small Vertical Natural Gas/Oil Fired Steam Generator for Textile Factory

Product Overview

Description

Industrial Small Vertical Natural Gas/Oil Fired Steam Generator for Textile Factory

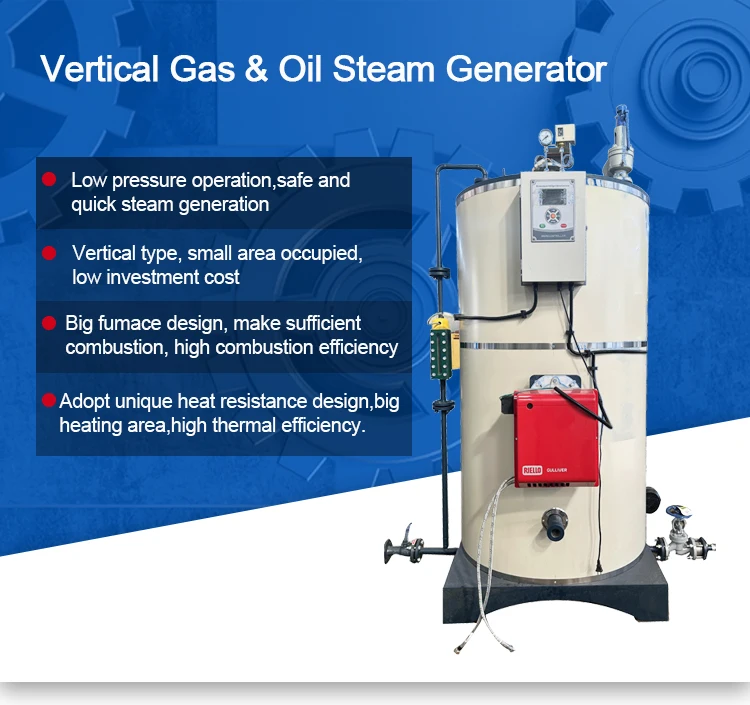

Gas Steam Generator Features:
1.This boiler is adopted of tubeless to prevent any tube explosion. With big water capacity, the boiler can tolerate more variants. Fully automatic, easy maintenance.
2.Introducing advanced technology, energy-saving, easy operation, fast start-up.

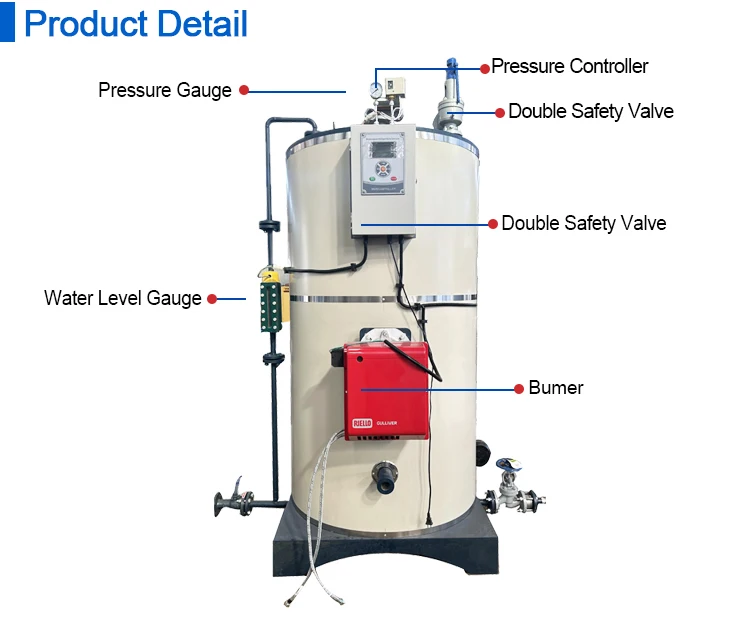

3.Equipped with European brand burner with functions like flame detection, control of air and fuel, etc.
4.High quality steam, the dryness is above 96%.
5.Multi-safety protections such as pressure, temperature, water level, etc.

Model	LSH0.1-0.7	LSS0.2-0.7	LSS0.3-0.7	LSS0.5-0.7
Rated steam output	100kg/h	200kg/h	300kg/h	500kg/h
Rated pressure	7bar	7bar	7bar	7bar
Rated steam temperature	170℃	170℃	170℃	170℃
Feeding water temperature	20℃	20℃	20℃	20℃
Thermal efficiency	98%	98%	98%	98%
Water inlet port	DN20	DN15	DN15	DN25
Steam outlet port	DN25	DN32	DN40	DN40
Drain outlet port	DN15	DN20	DN40	DN25
Chimney diameter	Φ159	Φ159	Φ250	Φ273
Natural gas consumption	7.7 Nm3/h	15.8 Nm3/h	28.8 Nm3/h	41.2 Nm3/h
Boiler body weight	170KG	230KG	660KG	1075KG
Boiler body dimensions((mm)	1050*750*1450	950*850*1905	1060*950*2161	2350*1350*1850

Scope of Application:
Suitable for use in factories, schools, hospitals, hotels, dry cleaners, food factories and chemical plants. The product has many functions such as washing, disinfecting, drying, cooking, ironing, gas supply and hot water supply.

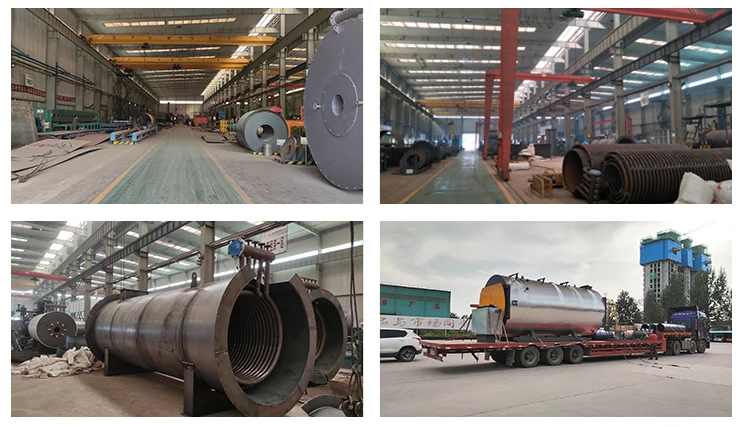

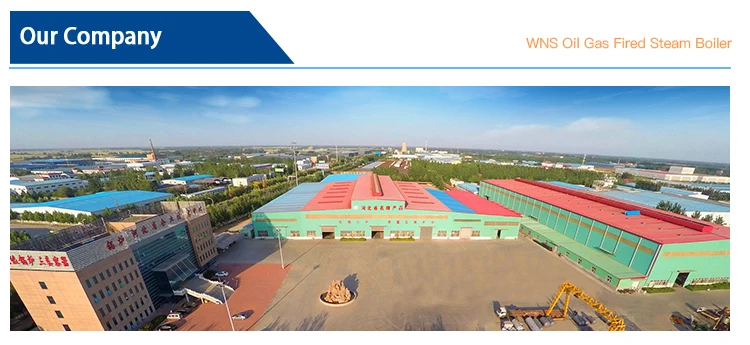

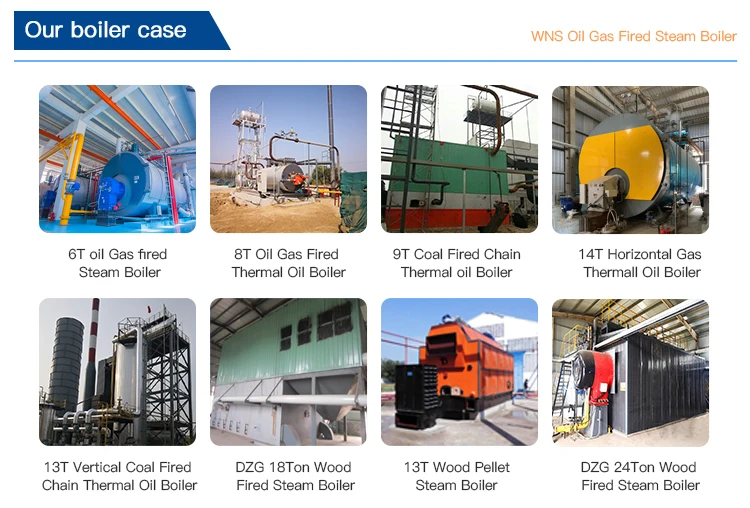

Bidragon Group is engaged in boiler for many years and we mainly supply hot water boiler, steam boiler, thermal oil heater, etc., boilers. We have our own technical team, R&D team, sales team, and cooperative factories. Our factory was established in 1980, covering an area of 80,000 square meters, with more than 20 patented technologies. Take thermal oil heater for example, our technical team designs coil tube on boiler top and which design increases the thermal oil heaters thermal efficiency higher more than two points than the common oil gas fired thermal oil heater, which technical update is highly appreciated by customer at home and oversea because it saves fuel many consumption costs for customers.
