The controller can drive a brushless DC motor or a PMSM (Permanent-Magnet Synchronous Motor).The advanced vector control algorithm is adopted, which can accurately control the motor torque and speed.It has energy feedback control to improve the driving range of vehicles and meet the needs of different customers.
The slope anti slip function can be selected to improve the driving safety.
The software can be customized according to the different needs of different users to meet the personalized needs of customers.
It is widely used in electric tricycles, elderly scooters, electric leisure vehicles, electric covered vehicles, electric wheelchair vehicles, low-speed four-wheel vehicles, electric yacht and special vehicles.

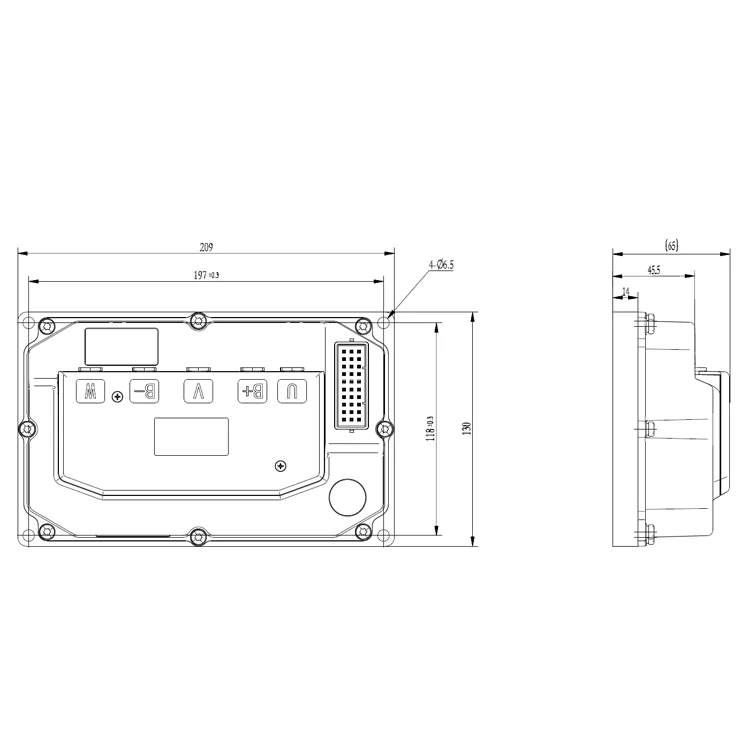

Outline Drawing
Outline Drawing
Product Parameters
Product Parameters
Model | 72250 | 72500 | 72700 | ||
Rated Input Current | 65-80 A DC | 75-90 A DC | 210 A DC | ||
Input Voltage Range | 18-88V DC | 25-88 V DC | 25-88 V DC | ||
Max Input Current | 150 A DC | 220 A DC | 500 A DC | ||
Max Output Current | 250 A DC | 360 A AC | 700 A AC | ||
Peak Power | 7KW | 10KW | 30KW | ||
Operation Temperature | -20~+55℃ | ||||
Motor Type | PMSM(Permanent-Magnet Synchronous Motor) | ||||
Control Method | FOC/MTPA/SVPWM/Flux Weaken | ||||
Motor Sensor Type | Sin Cos/ ABZ Sensor/HALL ABC Sensor | ||||
Efficiency | 97% | 98% | 98% | ||
Protect Strategy | Power derating /Over temperature protection | ||||
Dimensions | 187*111*68 | 209*130*65mm | 218*175*92 mm | ||
Weight | <1.5 | <2.5 kg | <8.0 kg | ||
Communication | CAN 2.0/ 1 wire | CAN 2.0 | CAN 2.0 | ||
Cooling Type | Air Cooling | ||||
Protection Grade | IP67 | ||||
