Sterilizer Pot Autoclave Pp Bottle Retort Steriliser Professional Evaporated Condensed Milk For Industrial top list

Share on (1600996874009):


Price:$580.00 - $599.00

Quantity:


Product Overview

Description






Product Description

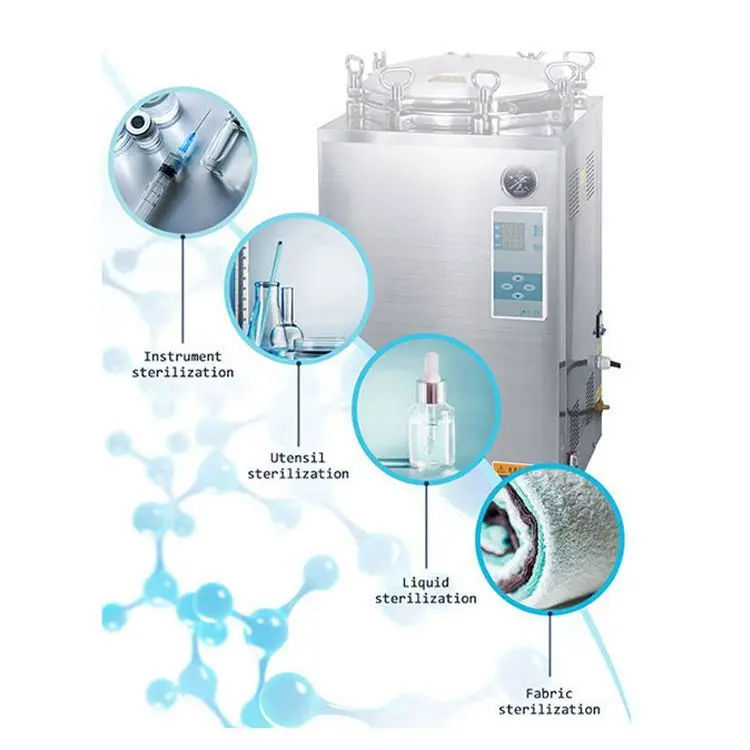

 This product is designed for two kinds of disinfection and sterilization:. Direct heating to produces pressured steam. Then the pressure steam acts on the microorganisms to destroy its structure then achieve sterilization purposes. For the rapid cooling and sterilization procedure, firstly injected 6 liters tap water into the chamber, and then heat for about 25 minutes to proceed the sterilization and at the meanwhile the temperature inside in maintained. The sterilization time is 35-40 minutes. After the completion, 0.24MPa- compressed air is manually injected into the chamber, and then the drain valve is 1/2 opened for drainage, for those soft packages are counter pressured cooled. Quickly cooling for 3 minutes, manually turn off the entering of the compressed air and tap water, the temperature of the objects in the chamber can be lowered to 30 ~ 40 °C.
















































































MODEL


FSM-35


FSM-50


FSM-75


FSM-100


Technical Data


Chamber volume


35L


50L


75L


100L


φ318×450mm


φ340×550mm


φ400×600mm


φ440×650mm


Working pressure


0.22Mpa


Working temperature


134℃


Max. working pressure


0.23Mpa


Heat average


≤±1℃


Timer range


0-99min or 0-99hour59min


Temperature adjust range


105-134℃


Power


2.5KW/AC220V 50HZ


3KW/AC220V 50HZ


4.5KW/AC220V 50HZ


Overall dimension(mm)


470×450×1020


520×500×1150


550×530×1180


580×560×1290


Transport dimension(mm)


570×570×1180


610×610×1290


650×650×1330


680×680×1450


G.W/ N.W


70Kg/63Kg


82Kg/74Kg


100Kg/93Kg


110Kg/85Kg
