210L 2.88Mpa Mobile Flask LN2 LAR LO2 Storage Dewar For Laser Cutting
- Category: >>>
- Supplier: Xinxiang Chengde Global Trading Co. Ltd.
Share on (1600996902244):
Product Overview
Description
210L 2.88Mpa Mobile Flask LN2 LAR LO2 Storage Dewar For Laser Cutting

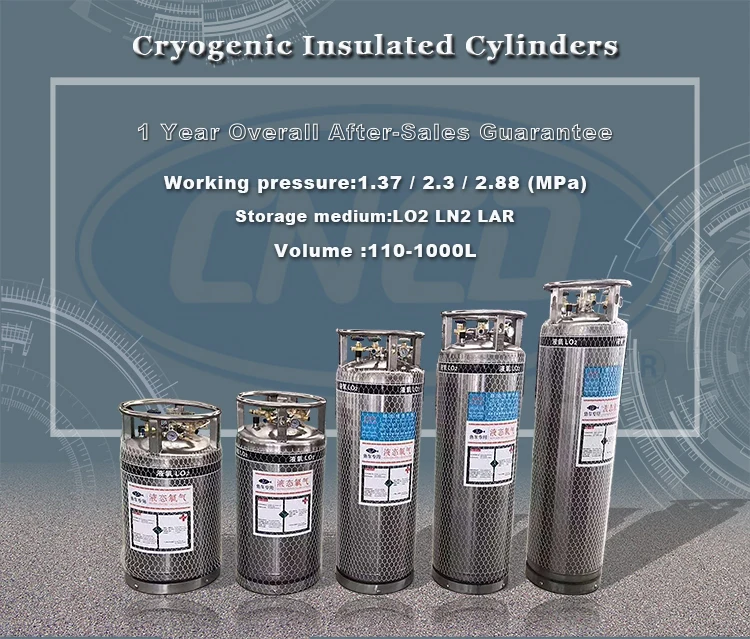

DPL series dewar cylinder is a kind of high-performance vacuum insulated cylinder, which is used to store and transport cryogenic liquid oxygen, nitrogen, argon, carbon dioxide, liquefied natural gas ,etc. It can be used for road transportation of cryogenic liquid, and also can be used for on-site storage and supply. Long storage time, wide range of applications .
Specifications | Product model | ||
| Model | DPL450-210-1.37 | DPL450-210-2.05 | DPL450-210-2.88 |
volume(L) | 210 | 210 | 210 |
Effective volume(L) | 189 | 189 | 189 |
Size(D×H)mm | Φ508×1716 | Φ508×1716 | Φ508×1716 |
Working Pressure(MPa) | 1.37 | 2.05 | 2.88 |
Set pressure of main safety value(MPa) | 1.59 | 2.41 | 3.45 |
Set pressure of bursting discset(MPa) | 2.6 | 3.6 | 5.17 |
Evaporation rate (Liquid nitrogen) | ≤2.0% | ≤2.0% | ≤2.0% |
Empty weight(kg) | 131 | 153 | 173 |
Maximum filling weight: Liquid oxygen(kg) | 215 | 215 | 215 |
Maximum filling weight: Liquid nitrogen(kg) | 153 | 153 | 153 |
Maximum filling weight: Liquid argon(kg) | 264 | 264 | 264 |
Maximum filling weight: LNG(kg) | 80 | --- | -- |
Level gauge | Float type,Capacitance | Float type, Capacitance | |
The base style | Stainless steel-rubber bas | Float type, Capacitance | |

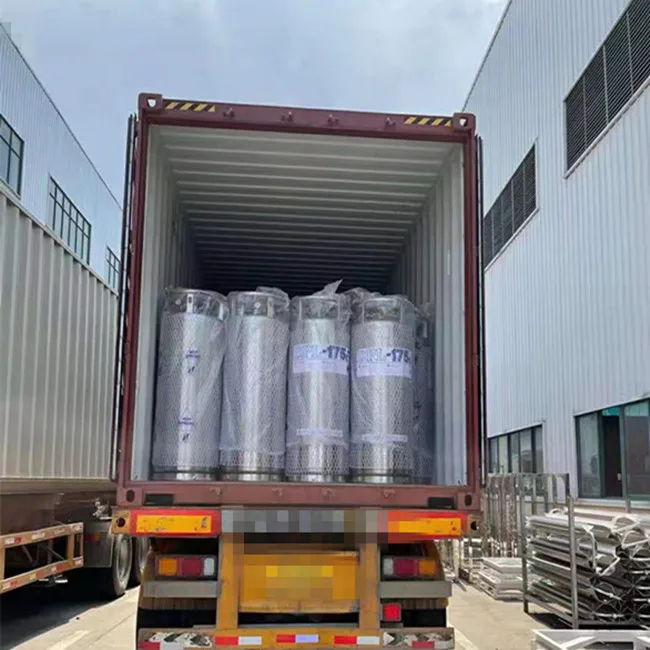

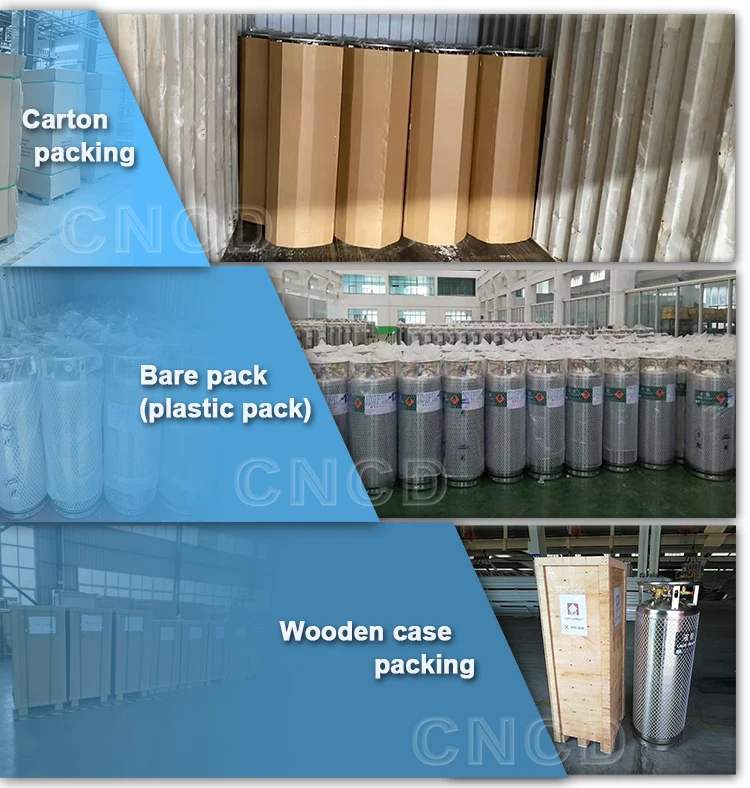

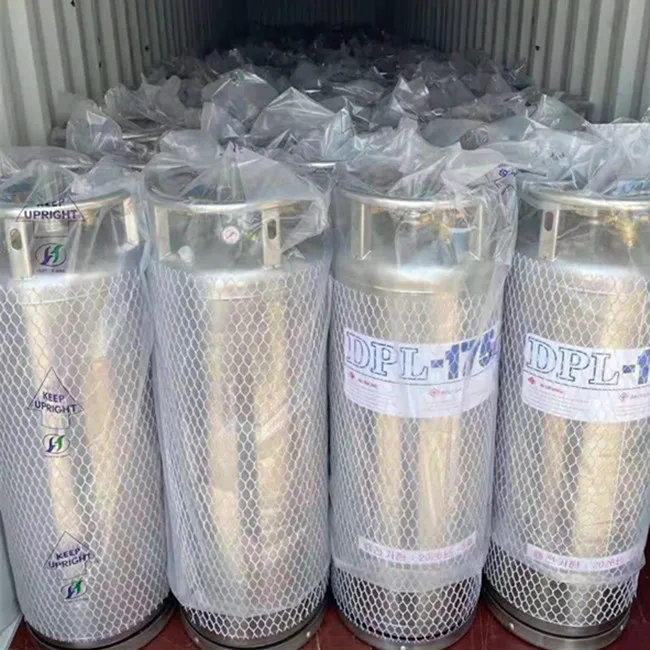

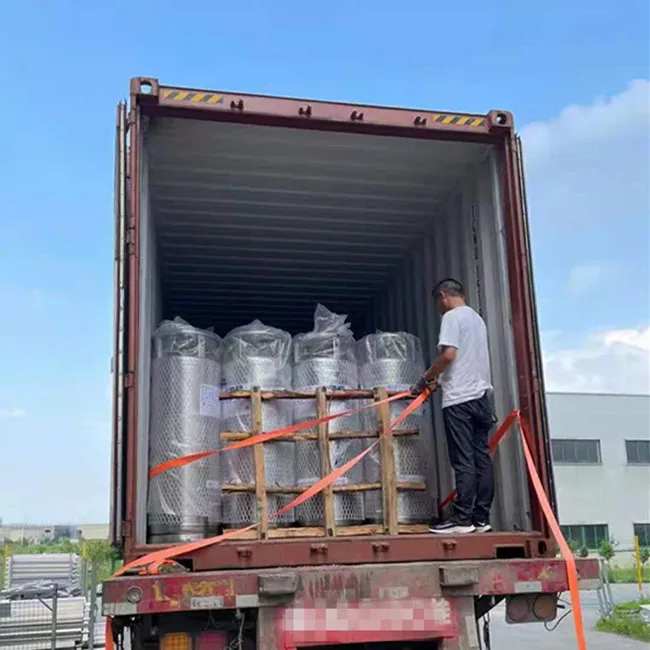

Packaging and delivery
1.packaging with nude
2.packaging with wooden pallets
3.packaging as you required
Delivery Time: About 30 days after receipt of the deposit.
1.packaging with nude
2.packaging with wooden pallets
3.packaging as you required
Delivery Time: About 30 days after receipt of the deposit.

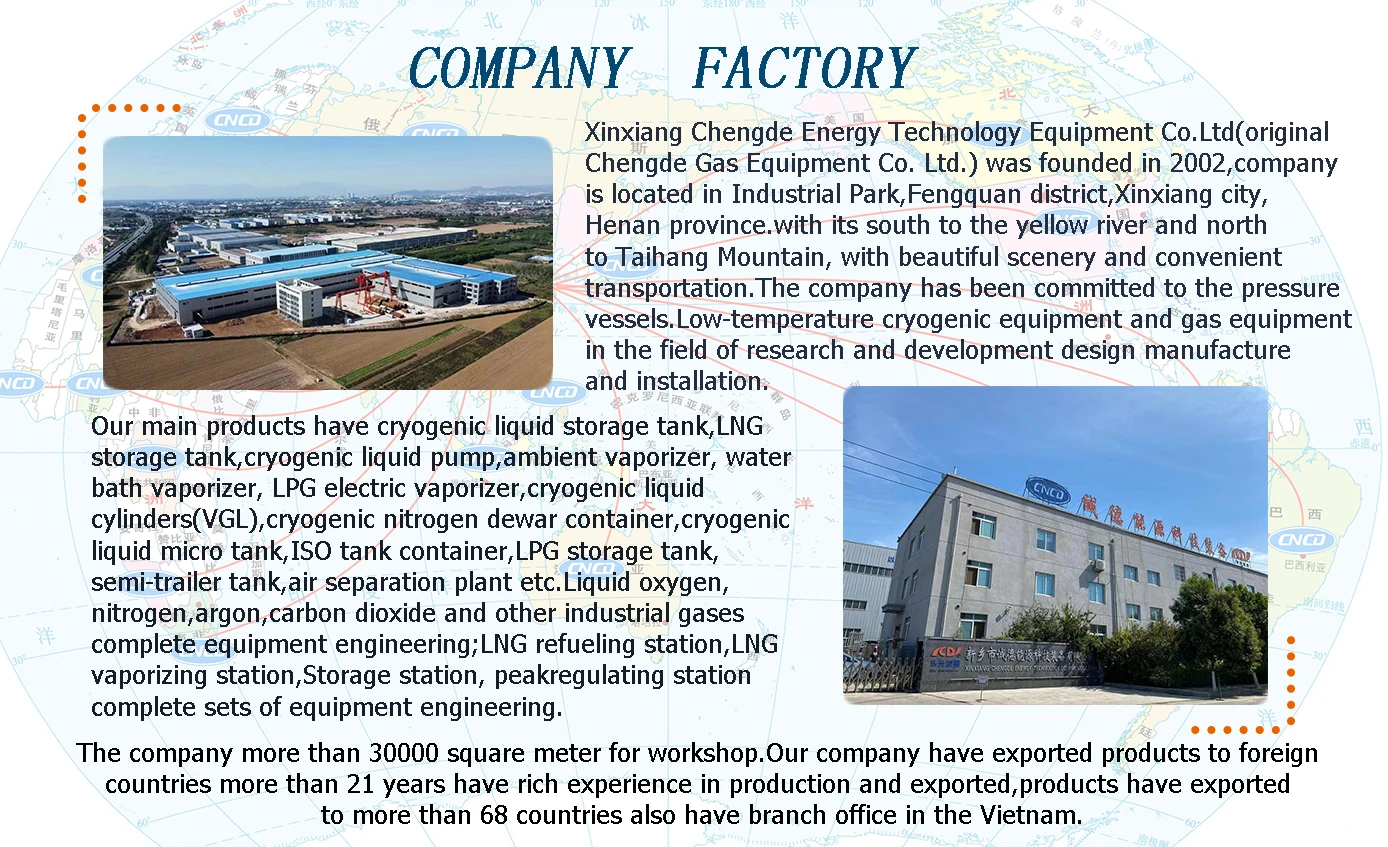

Xinxiang Chengde Energy Technology Equipment Co., Ltd. (original Chengde Gas Equipment Co., Ltd.) was founded in 2002, it is a professional engaged in the research, development, sale and service of cryogenic (liquid oxygen ,liquid nitrogen,liquid argon,liquified natural gas,liquid co2 )storage tank, cryogenic liquid pump, ambient vaporizer liquid dewar cylinder, lpg tank, 20ft iso tank container,microbulk tank,small liquid nitrogen tank and related products. Now we have over 400 employees, covers area over 60000 square meters with capability of manufacturing over 2000 tanks every year. We also have ASME,CE,ISO certificates. We have a good reputation and sales performance in the Chinese market,our products also have exported to more than 68 countries ,such as
Thailand,Indonesia,Egypt,Peru,Spain,Poland,Russia,Pakistan,Myanmar,Kazakhstan,Mongolia, Oman, Iraq, Saudi Arabia, Georgia. Burma, Korea, Kampuchea, Philippines, Romania, India etc.also have branch office in the Vietnam.We have rich experience in production and exported.We have a branch in Vietnam, which can provide on-site installation and after-sales service for the local and surrounding countries.
Our Advantages 1. Our own factory with more than 21 years experience in production, manufacture and installation.
2. We provide OEM customized service to produce and process products according to your drawings and requirements.
3. Our professional R&D and QC team can strictly control the product quality to meet your requirements.
4. We provide the best service according to your requirements,from production, processing to packing, etc.
5. Our products are of high quality and low price, and the delivery is on time.
6. We have a professional sales team to provide you with fast and enthusiastic service throughout the process.
Our Services:
1.Product quality control and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 4 hours;
4. OEM & ODM service are available;
5. Providing first-class after-sales services to the customers.
Our company often participates in domestic .foreign exhibitions .if possible, we hope you can come to visited exchange .
Many foreign customers visited our factory,some customers stay in our city do filling station test,And they get good answer.
FAQ:
1.Are you a manufacturer or a trading company?
We are a cryogenic liquid storage tank manufacturer, producing industrial gas storage equipment and ancillary products, can provide you with a complete set of gas supply equipment.
2.How about the production scale of your company?
CNCD company was founded in 2002, has a total of 5 subsidiaries, 4 production bases, a total area of more than 160 acres, the production plant of 60,000 square meters, more than 400 employees, has rich experience in design, production and export, products have been exported to 68 countries and regions.
3.Do your products meet international standards? What are the certifications?
Our products are in full compliance with international standards and have been certified and certified by many international standards, including ASME,CE,ISO,CCS,BV, etc.
4.Can you provide drawings before delivery?
Of course, we are always ready to provide you with the drawings of the products you need for confirmation.
5.Can I customize the products I need?
Of course, if you think our regular product model does not meet your needs, you can contact us, we will customize the most suitable for your needs.
6.How to deal with the quality problem of the product after purchase?
Our products are of good quality and usually there won't be any problems. However, in case of product problems, you can immediately contact us, we will provide you with remote guidance and replacement parts or other services.
