CIOT Robot Smart AI Robot Human Size Robots for Sale
$1,599.99-1,899.99

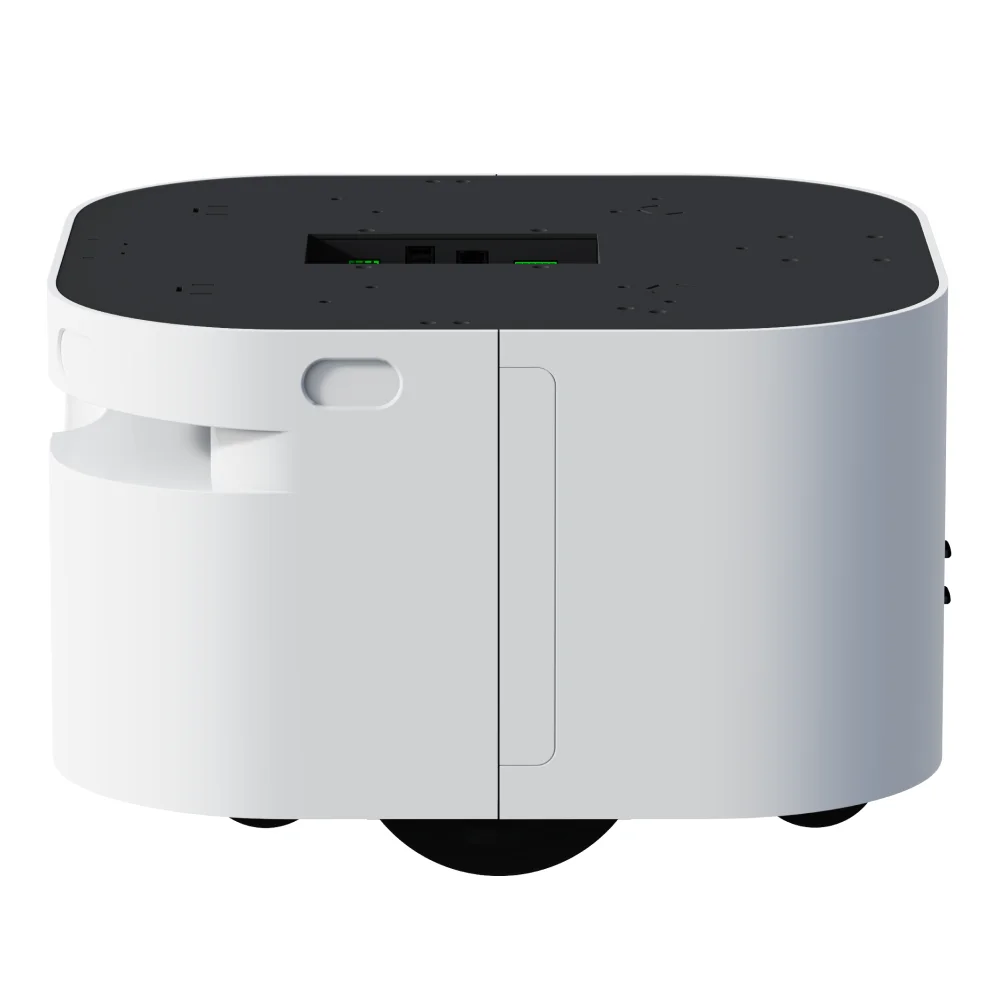

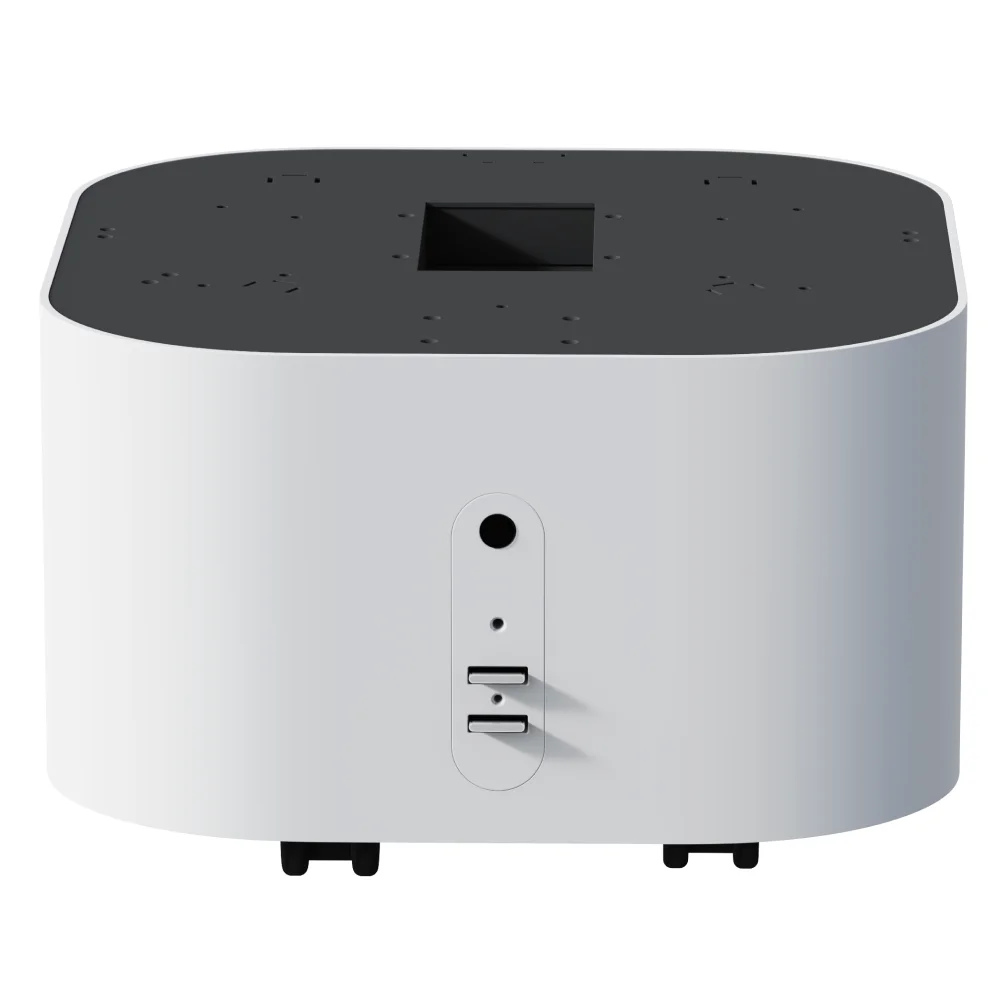

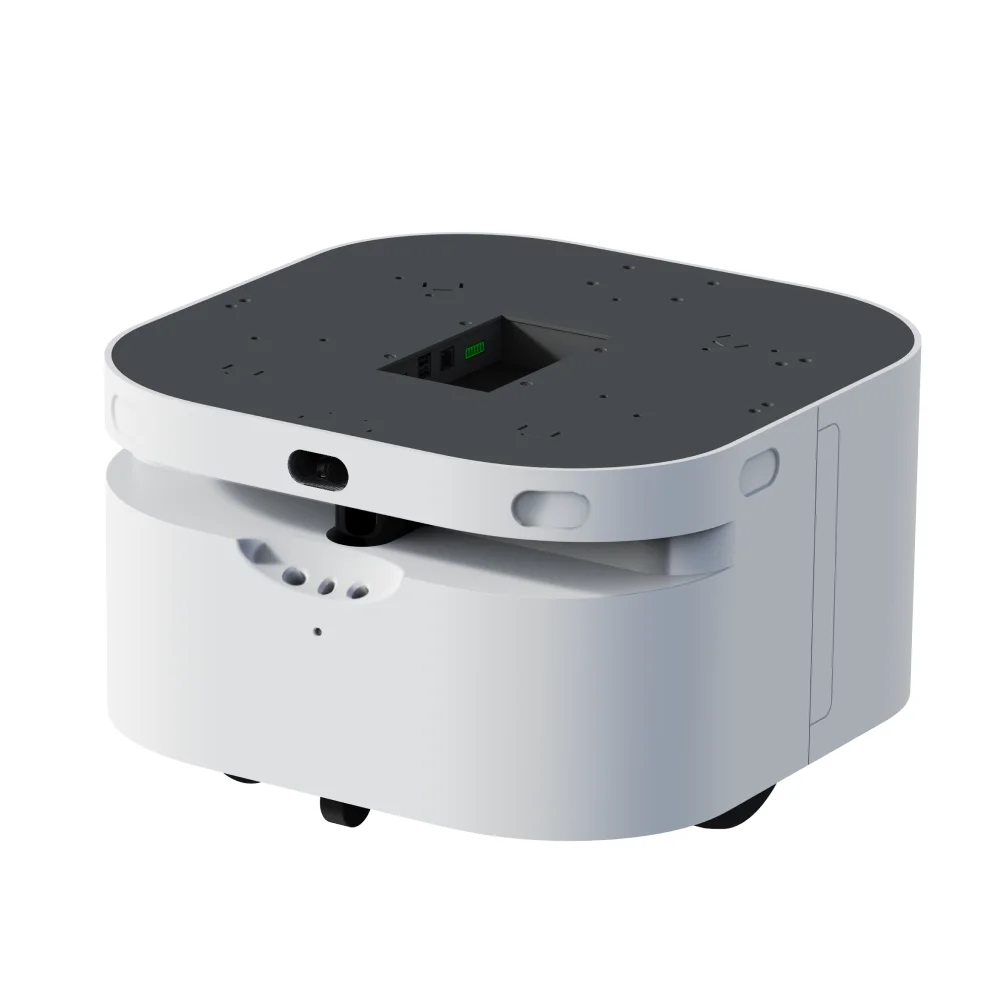

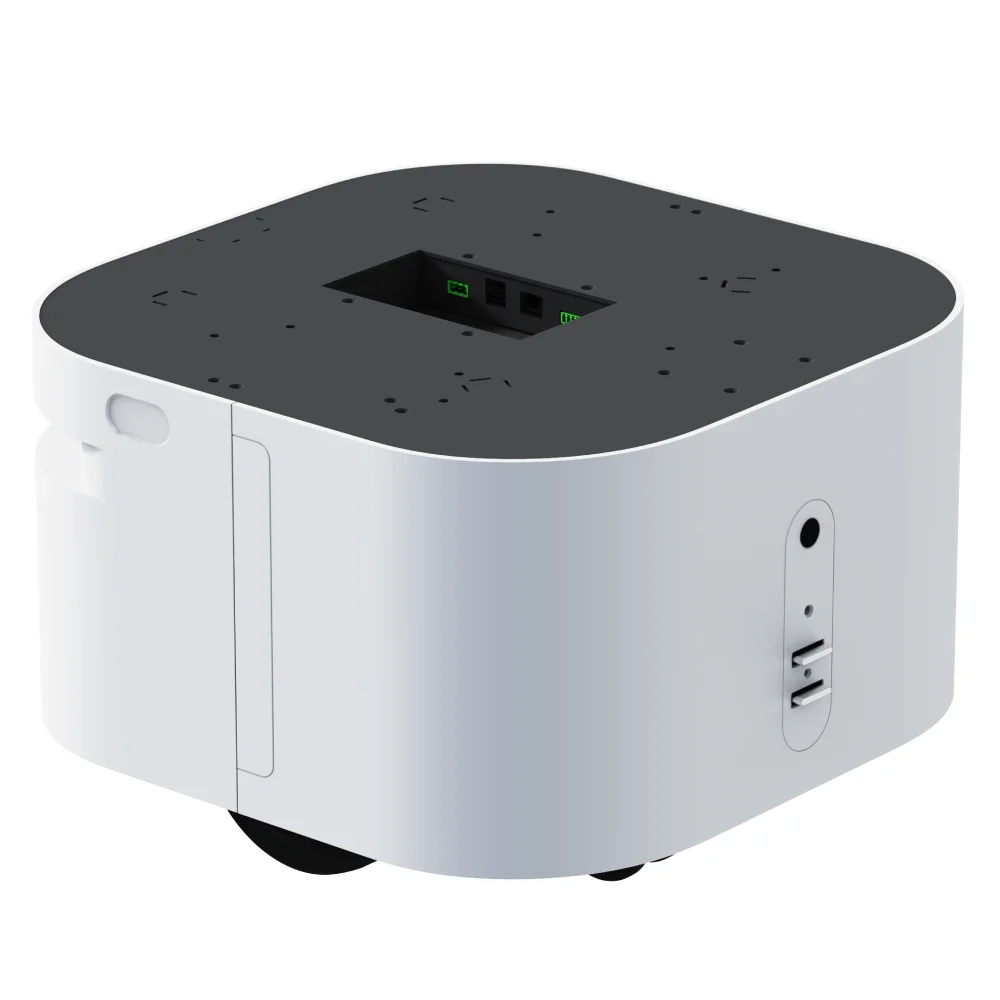

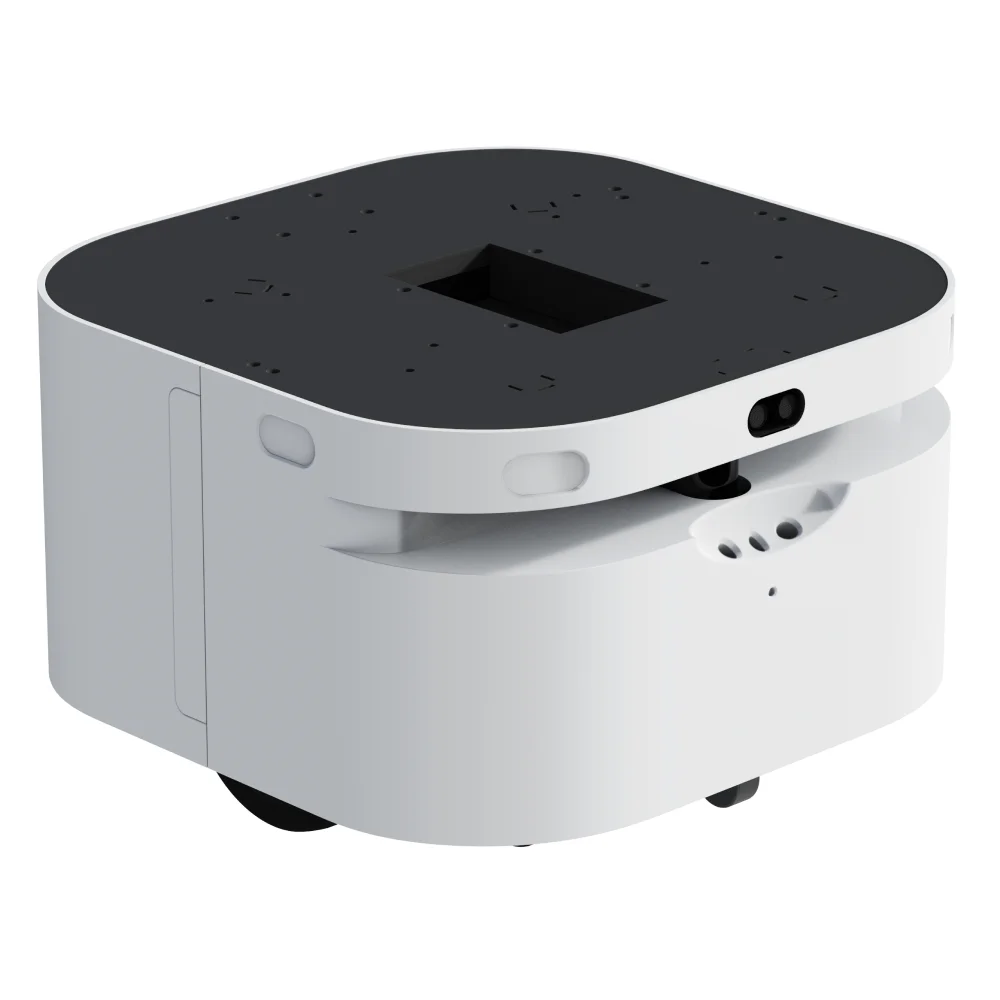

CIOT Factory Warehouse Intelligent Carrying ROBOT Platform AMR robot AGV Workshop Delivery Robot
- Category: >>>
- Supplier: Shenzhen Kedo Technology Co. Ltd.
Share on (1600996905878):
Product Overview
Description
Category | Parameter | Index |
Package size | 630mm x 590mm x 520mm | |
Max weight | 40KG | |
Product size | D500mm x H310mm | |
Product weight | 35KG（Optionally add 10kg counterweight） | |
No load working time | 12H | |
Charging time | 4H | |
Max load | 50KG | |
Battery capacity | 24V 20AH | |
Chassis form | 2* drive wheel +4* universal wheel +1* directional wheel | |
Laser radar | TOF20m*1 | |
Hub motor | 6.5 "servo hub motor (with odometer) *2 | |
RGBD Depth Camera | RGBD Depth Camera (0.6-8m) *1 | |
Ultrasonic ranging sensor | Ultrasonic ranging sensor (0.3-1.2m) *1 | |
Attitude sensor | IMU six-axis attitude sensor *1 | |
Industrial computer | High-performance X86 industrial computer *1 | |
Maximum navigation speed | 0.8m/s | |
Maximum speed | 1.5m/s | |
Angle of climb | 5° | |
Obstacle height | 10mm | |
Ditch width | 40mm | |
Turning radius | 0mm | |
Maximum rotation speed | 60°/s | |
Positioning accuracy | ±5cm | |
Map area | 10000㎡ | |
Navigation accuracy | ±5cm | |
Power interface | 24V (Power 200W) | |
USB | reserved peripherals x 2 | |
Network interface | RJ45, communication or routing | |
Physical mounting interface | Structural mounting hole | |
Other interface | System switch, emergency stop switch | |
Charging mode | Contact charging | |
Input | AC 110-240V | |
Output | 29.4V / 7A | |
Protection mechanism | Short circuit, overcurrent, etc | |
Working environment | 5℃-40℃ | |
Storage environment | -10℃-60℃ |
