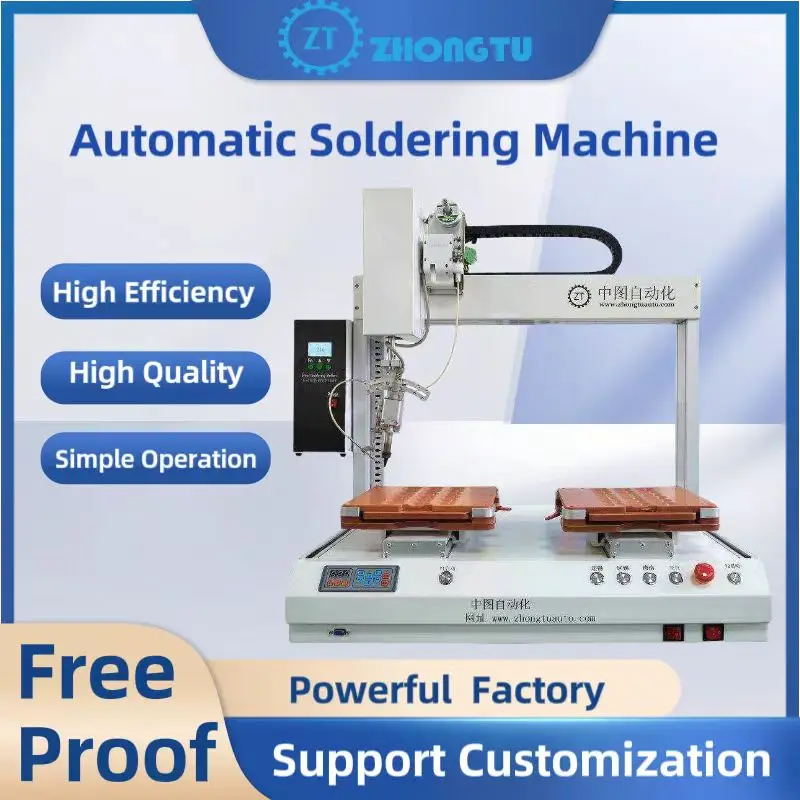

Professional Automatic Soldering Machine For Welding Electronic Components Has Precise Temperature Control Can Use
- Category: >>>
- Supplier: Shenzhen Zhongtu Automation Technology Co. Ltd.Shenzhen Ltd.
Share on (1600996916671):
Product Overview
Description
Key attributes：
Condition： | New | Place of Origin: | ShenZhen, China | ||
Applicable Industries： | Manufacturing Plant, SMT , DIP | Key Selling Points: | Automatic | ||
Video outgoing-inspection： | Provided | Weight (KG): | 65Kg | ||
Marketing Type： | New Product 2023 | Voltage: | 220/110V 50~60Hz | ||

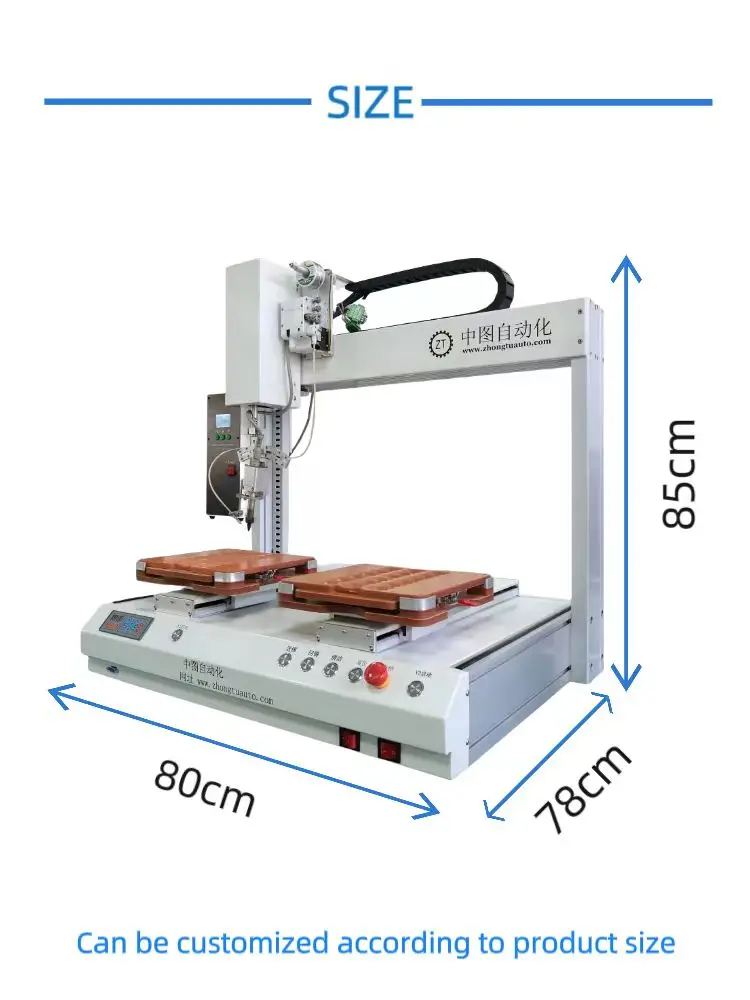

Warranty period: | 1 Year | Dimensions： | 850*750*850mm | ||
Warranty of core components： | 3 Years | Solder Wire: | 0.6~1.5mm solder wire | ||
ore Components： | PLC | Temperature Accuracy | ±3° | ||
Power: | 680W | Solder Feeding Speed | 1~50mm/s | ||

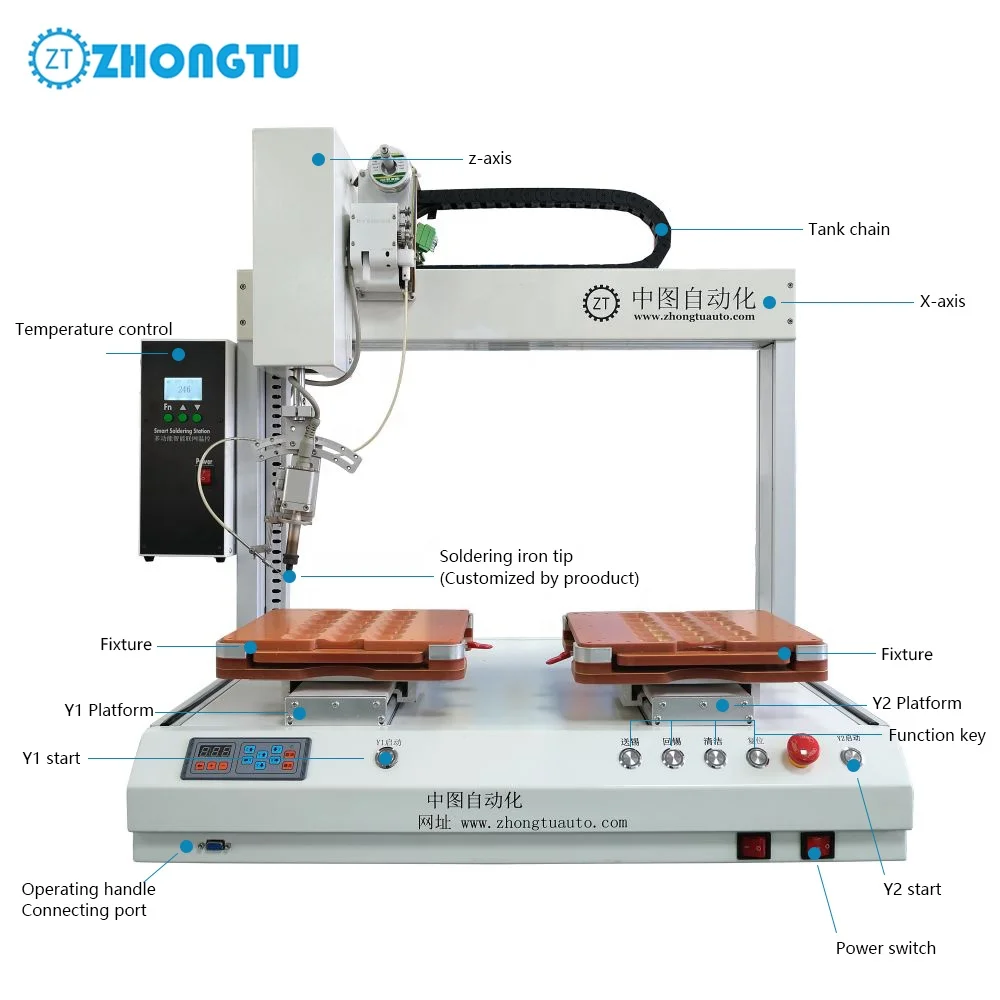

Name: | Automatic Soldering Robot | Repeate Accuracy | ±0.02mm | ||
Specification：
Model | ZT-HXJ041R | ZT-HXJ441-R | ZT-HXJ4411-02 | ZT-HXJ4411-02R | Fixture Customization | ||||
Solder Power | 200W | 200/400w 600W | 200/400W | 200/400/600W | Need | ||||
Heating Temperature Range | 0-550℃ | ||||||||
Machine Axis Number | 4axis | 4axis | 4axis | 5axis | Max moving speed | ||||
X Axis | 400mm | 400mm | 400mm | 400mm/2X | 600mm/s | ||||
Y Axis | 300mm | 300mm/2Y | 300mm/2Y | 300mm/2Y | 600mm/s | ||||
Z Axis | 100mm | 100mm | 100mm | 100mm | 400mm/s | ||||
R Axis | 360° | 360° | 0 | 360° | ±0.05° Error | ||||
Temperature Errors | ±2° | ±2° | ±2° | ±2° | ON | ||||
Tin Wire Diameter | φ0.6mm-1.5mm | ||||||||
Teaching File Capacity | 256MB, up to 999 files, single file up to 1000 points | ||||||||
Air Pressure | 4-5kg/cm² | ||||||||
Weight(Kg) | 58Kg | 68Kg | 75Kg | 85Kg | Customized | ||||
Size(mm) | 600*750*850 | 800*750*850 | 850*750*850 | 1000*750*850 | To order | ||||
Features:

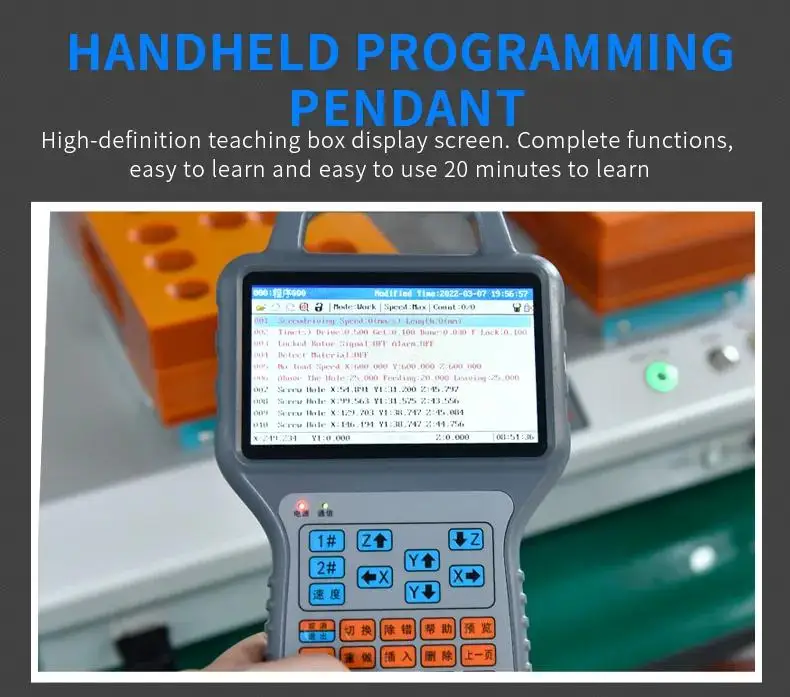

1, Contains BASIC interpreter, simple programming, direct handle teaching, you can directly enter the welding point coordinates, but also teach welding position, can reproduce the welding position coordinates.
2, Using multi-axis robots and advanced motion control algorithms for linkage to simulate the action of human hand plus tin, effectively improving the positioning accuracy of the iron head.
3, The program has built-in multi-dimension soldering method, spot welding and drag welding. All process parameters can be set by the user. It can simulate various difficult and micro soldering processes of human hands.
Product description：
Company Introduction:
1.Shenzhen Zhongtu Automation Technology Co., Ltd. introduces advanced design concepts and technologies and is an automation equipment enterprise integrating R&D, design, manufacturing, debugging and after-sales service.
2.The company is engaged in tooling fixtures, hardware jigs, machining, non-standard mechanical parts processing, production line optimization solutions, automated production line equipment transformation, non-standard automation equipment/automatic loading and unloading manipulator design and manufacturing, and equipment accessories, instruments/meters, electronics Sales of accessories.

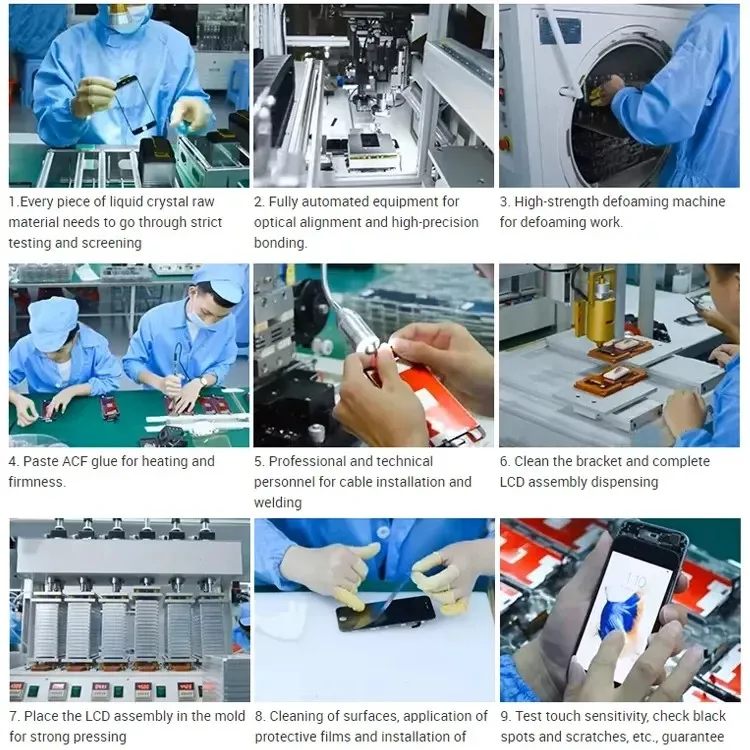

3.products successfully used in electronics, touch screens, LCD/LED, mobile phones, and communication electronics manufacturing field.
2.Reduce overall cost.
3.Improve automation level.
4.Improve informatization level.
5.Improve product yield.
6.Provide Customers With the Most Advanced System Solutions for Automation Equipment.
Exhibition：
Our Service:
Pre-Sale
1.Product Introduction,
2.Technical Communication,
3.Remote consulting service.
In Sale
1. Show the product,
2. Explain in detail how to use the product ,
3. Answer the questions raised by customers.
2. Explain in detail how to use the product ,
3. Answer the questions raised by customers.
After Sale
1.Support video service
2.The whole equipment is guaranteed for 1 year;
3.The guide rail/motor/control parts is guaranteed for 3 years.
Before Sales Service
The company's equipment supports product proofing, if you have any questions, you can contact our customer service online
After Sales Service
The whole machine is guaranteed for one year, if you have any questions, you can contact our customer service online
How To Make A Oder
Contact our online customer service, they will guide you online to place an order
Packaging & Shipping：
Weight: 135KG
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ:
1.Are you the factory or trading company?
We are the manufacturer, if you are interested in us, please contact me.
2. Do you provide free training for using and installing the machine?
Yes, our technical person can provide online training as request, customers could contact us at any time for any tech issues, our engineer team could support at any time if you need.
3. If we come to your factory, will you provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
3. If we come to your factory, will you provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
4. Can you produce according to the samples?
Yes, we can customize according to your samples or technical drawings.
5. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
