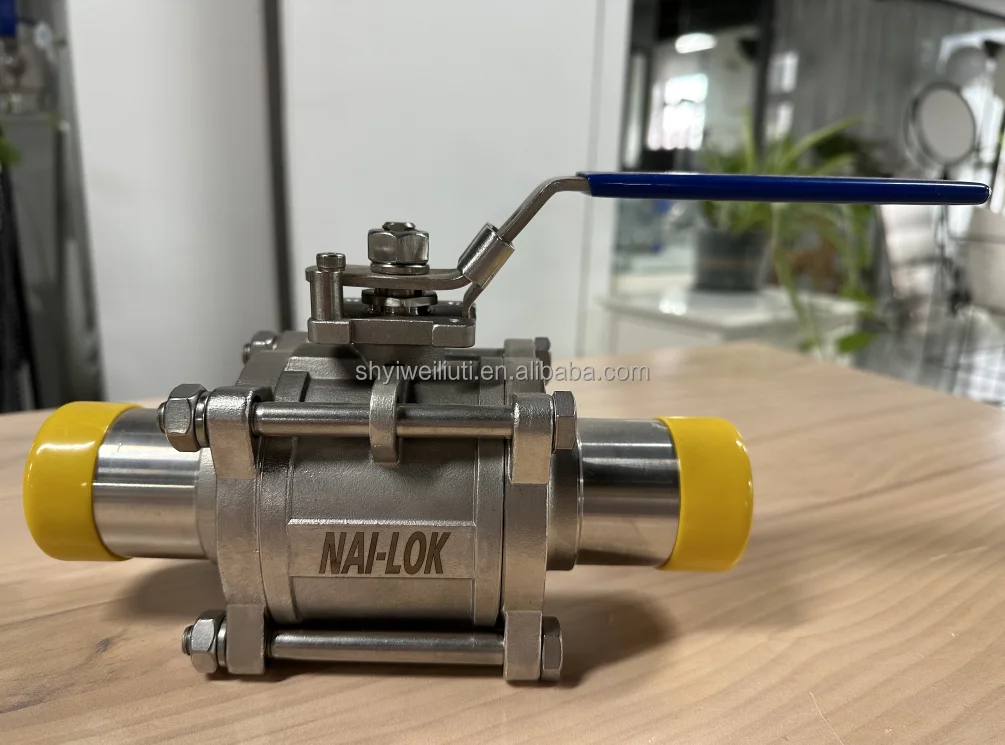

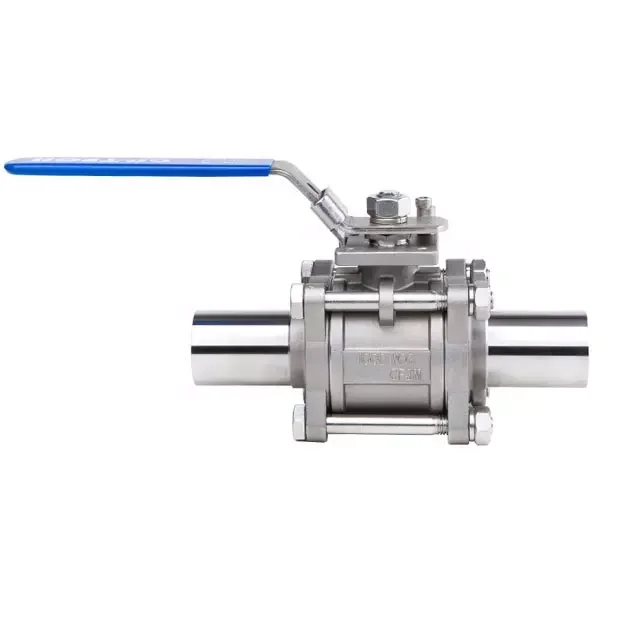

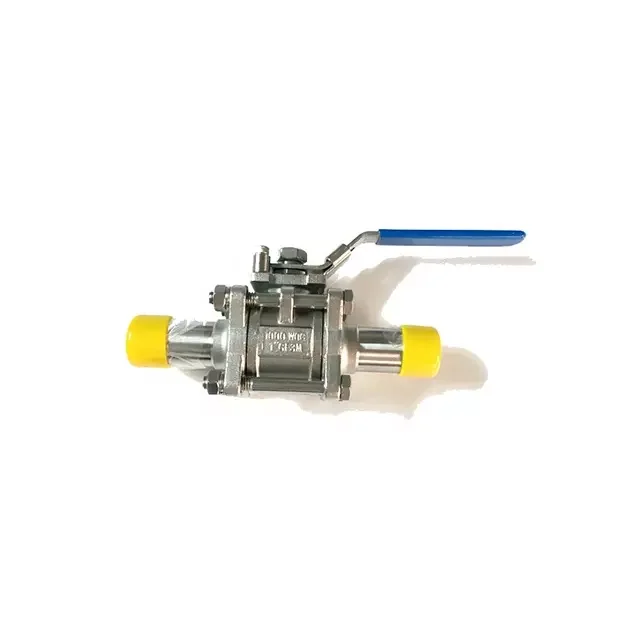

6 inch 3 PCS Ultra High Purity 800psi Orbital Butt Welding SS316L Ball Valves for Specialty Gases Equipment
- Category: >>>
- Supplier: Shanghai Yiwei Flow Control Technology Co. Ltd.
Share on (1600996927010):
Product Overview
Description
Product Overview
BL SERIES Ball Valve
Features：
NAI-LOK 3PCS Stainless Steel 316 Ball Valve for Gas Media With High Quality From China Supplier
* Swing out 3PC design for easy field maintenance
* All extend weld ends in SS316L material allows orbital welding in place.
* Locking handle stand in most sizes.
* High punity cleaning (Oil free)
* 100% leak testing of all valve assemblies.
* Double polyethylene bag packaging with polyethylene caps.
* Pressure Rating :Vacuum to 800psig
* Operating temperature:-40C
* Casting marking and inspecting:MSS Sp25 &MSS Sp55
* Polish standard:All welded parts are polished to 180Grit/180-23u in (0.46 to 0.58u)
* Other available optins --pneumatic actuator
NAI-LOK 3PCS Stainless Steel 316 Ball Valve for Gas Media With High Quality From China Supplier
* Swing out 3PC design for easy field maintenance
* All extend weld ends in SS316L material allows orbital welding in place.
* Locking handle stand in most sizes.
* High punity cleaning (Oil free)
* 100% leak testing of all valve assemblies.

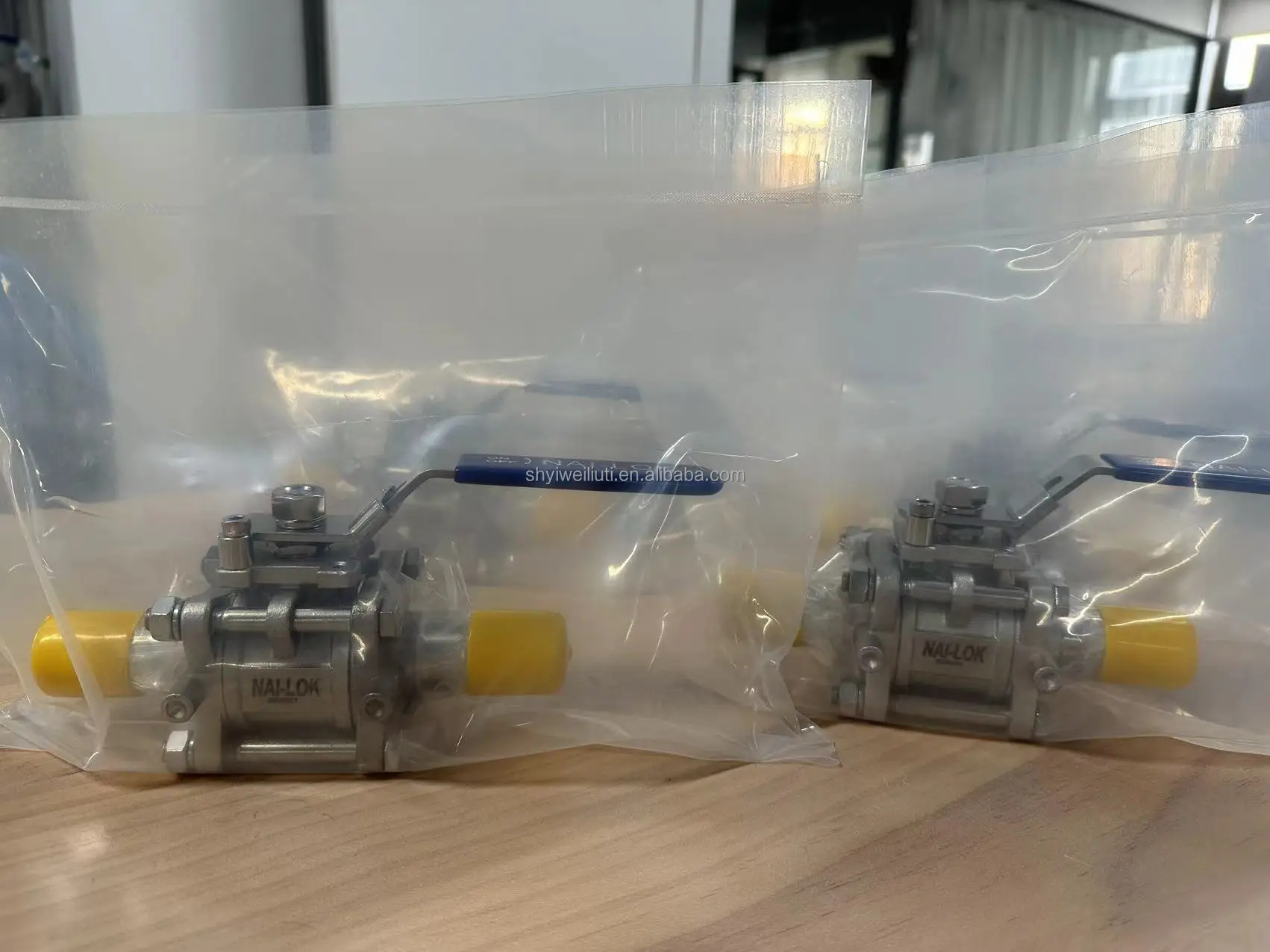

* Double polyethylene bag packaging with polyethylene caps.
* Pressure Rating :Vacuum to 800psig
* Operating temperature:-40C
* Casting marking and inspecting:MSS Sp25 &MSS Sp55
* Polish standard:All welded parts are polished to 180Grit/180-23u in (0.46 to 0.58u)
* Other available optins --pneumatic actuator

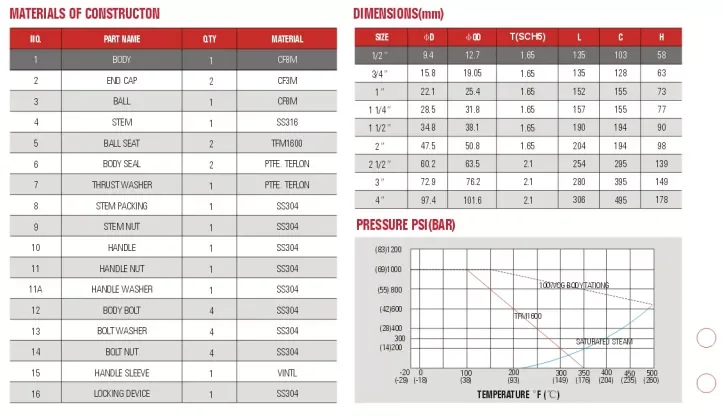

PRODUCT SPECIFICATIONS
Products | UHP three piece orbital welding ball valve |
Size Range | 1/2"~6" |
Material | SS316L/ Hastelloy C276 |
Working Pressure | 800psi |
Connect | Butt Welding |
Operating temperaturer | -20-150 centidegree |
Applicable Media | Ultra High Purity Semiconductor and Vacuum System |
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper |

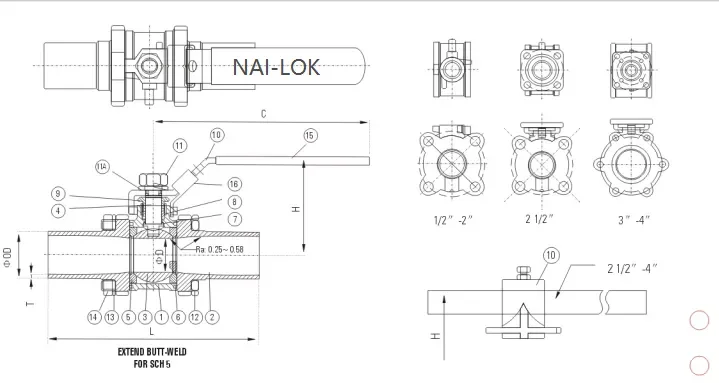

PRODUCT CONFIGURATION

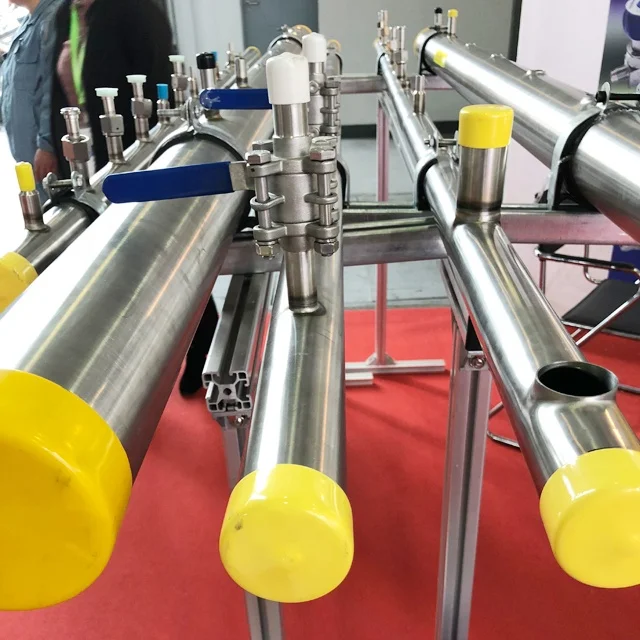

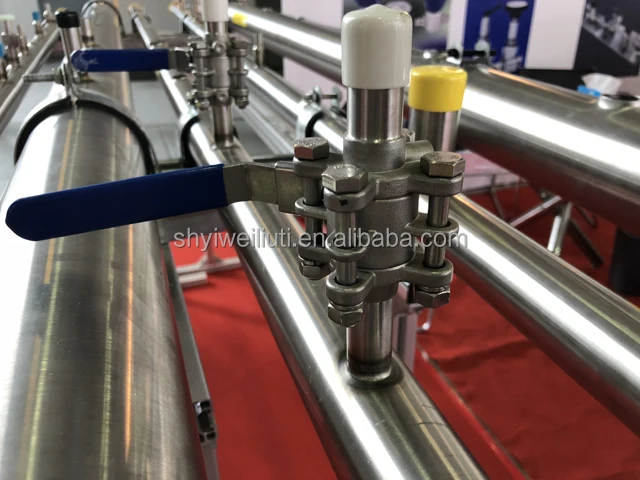

Successful Project
SIMILAR PRODUCTS
Company Profile
NAI-LOK is the leader in flow control technology fields of manufacturers.
NAI-LOK`s target is challenge and beyond the technical limits, continuing pursuit becoming the industry leader. Since the
establishment, we have settled the developing direction of research and develop precise valve, regulator, fluid connectors and high-tech flow control system products.
NAI-LOK`s products are widely accepted and approved by the users on its safety and stability. The application filed covering semi-conductor industry, aero-space industry, solar power battery, petroleum and petrochemical industry, power energy,bio-pharmaceuticals industry and vacuum system, etc. NAI-LOK will keep moving and making unceasing progress in the high-tech flow control field and serve the customers sincerely.
NAI-LOK`s target is challenge and beyond the technical limits, continuing pursuit becoming the industry leader. Since the
establishment, we have settled the developing direction of research and develop precise valve, regulator, fluid connectors and high-tech flow control system products.
NAI-LOK`s products are widely accepted and approved by the users on its safety and stability. The application filed covering semi-conductor industry, aero-space industry, solar power battery, petroleum and petrochemical industry, power energy,bio-pharmaceuticals industry and vacuum system, etc. NAI-LOK will keep moving and making unceasing progress in the high-tech flow control field and serve the customers sincerely.
NAI-LOK`s reliable products are made continuous progress by the aim of “super, extreme, micro, preciseness” in the flow control system.
