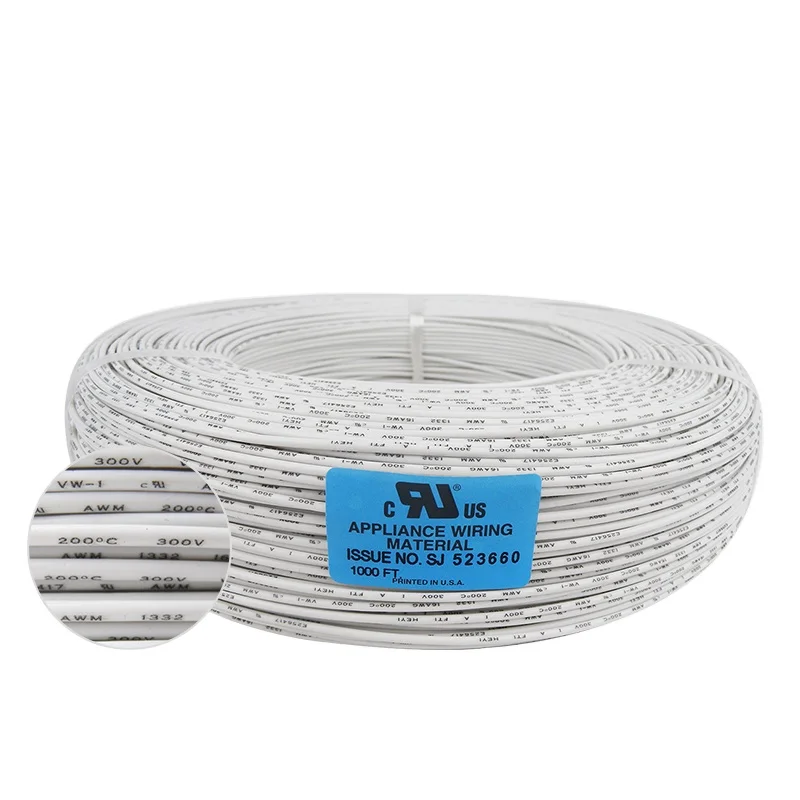

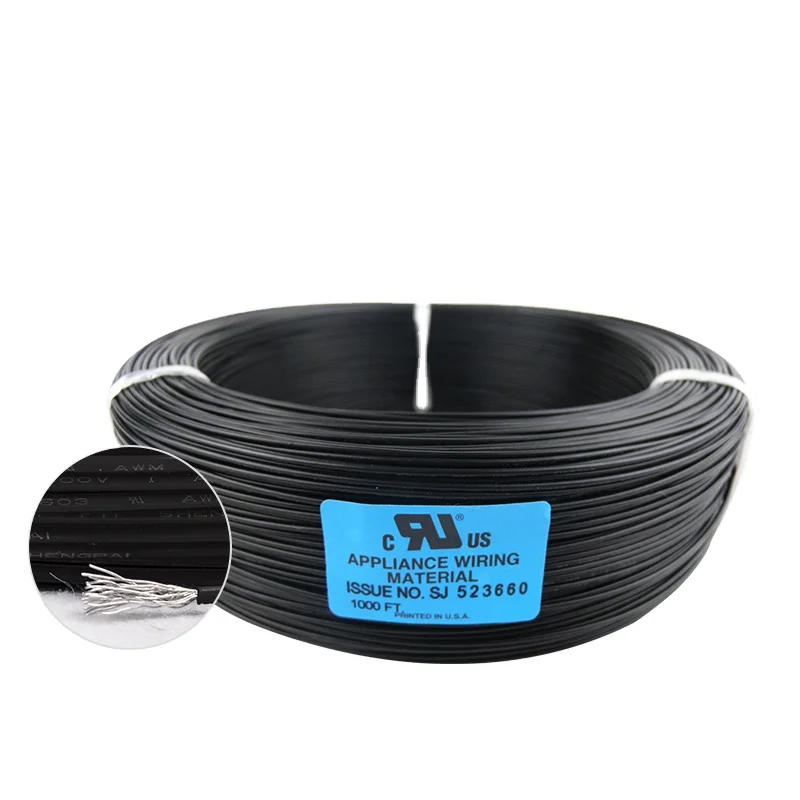

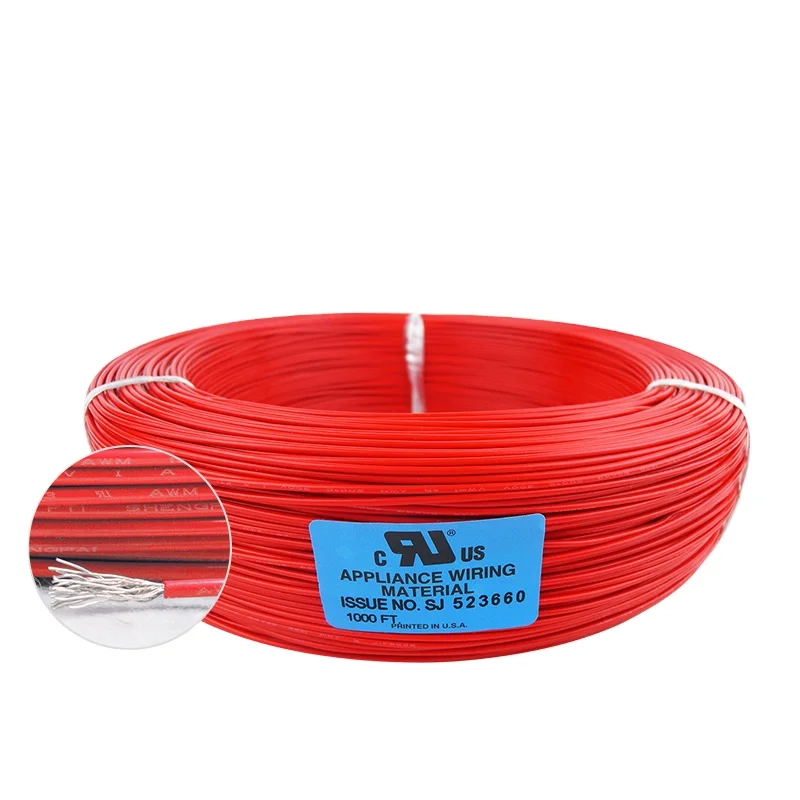

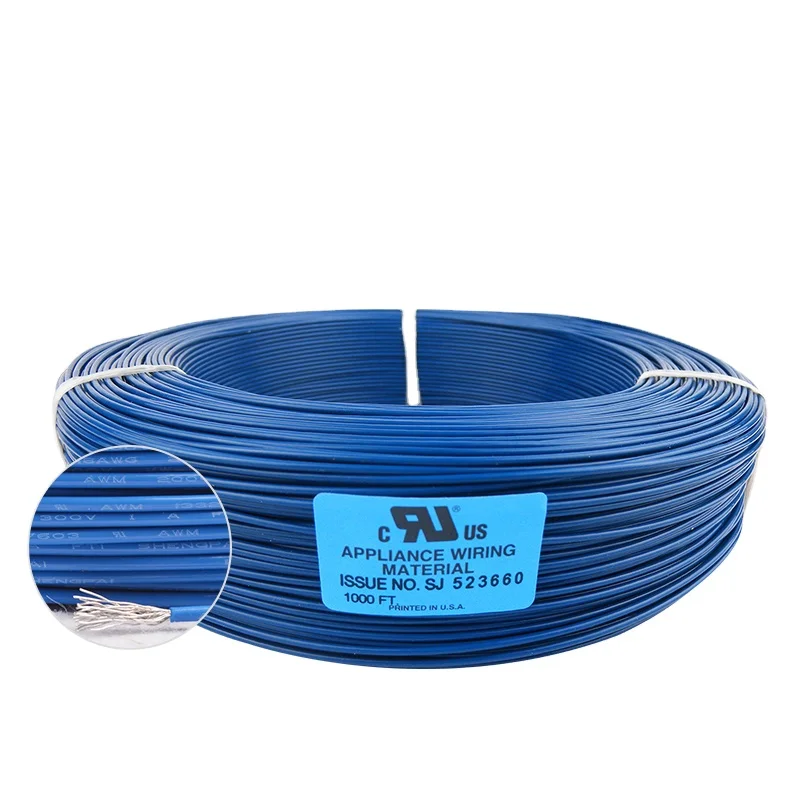

1000FT/R FEP wire 1332 16AWG 18AWG 20AWG lead out connecting wires for electronic equipment/temperature sensors electrical wire

Product name

1332 ETFE insulated wire cable

Cable length per roll

305/roll

Conductor material

Tinned copper, bare copper

Insulation material

ETFE

Conductor specification

7 / 0.16TS for 26awg

Color

red-black-yellow-green-blue-white-orange-gray-brown-pink-yellow and green

Temperature range

-100℃~+200℃

Rated voltage

600V

OEM

Acceptable

Features

Must pass UL VW-1 and Ft1 vertical flame retardant tests, with uniform insulation thickness

Uses

Lead out connecting wires for household appliances, lighting fixtures, electronic equipment, temperature sensors, etc.

Advantage

Inventory spot, one roll up purchase

Sample

Free sample, customer pays freight

Conductor

Insulator

Packing

AWG

Conductor construction NO.Xmm

Diameter

mm

Insulator

Thick

mm

Over

Diameter

M/roll

30

7/0.10

0.30

0.33

0.95

305

28

7/0.127

0.38

0.33

1.02

305

26

7/0.16

0.48

0.33

1.15

305

24

7/0.20

0.61

0.33

1.27

305

22

19/0.15

0.75

0.33

1.46

305

20

19/0.19

0.95

0.33

1.62

305

18

19/0.235

1.18

0.33

1.87

305

16

19/0.30

1.50

0.33

2.17

305

14

19/0.37

1.85

0.33

2.52

305

12

19/0.49

2.45

0.33

3.19

305

10

19/0.60

3.00

0.33

3.47

305
