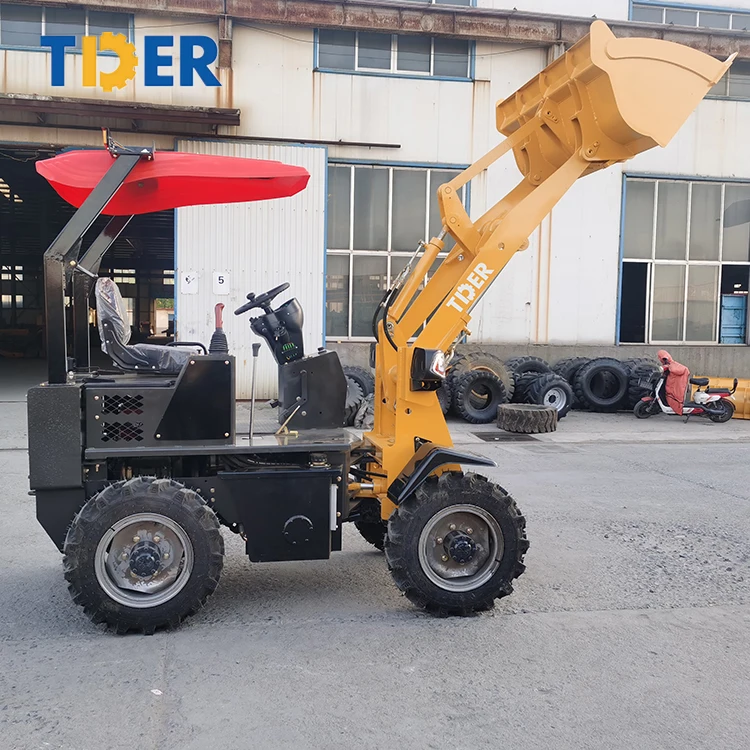

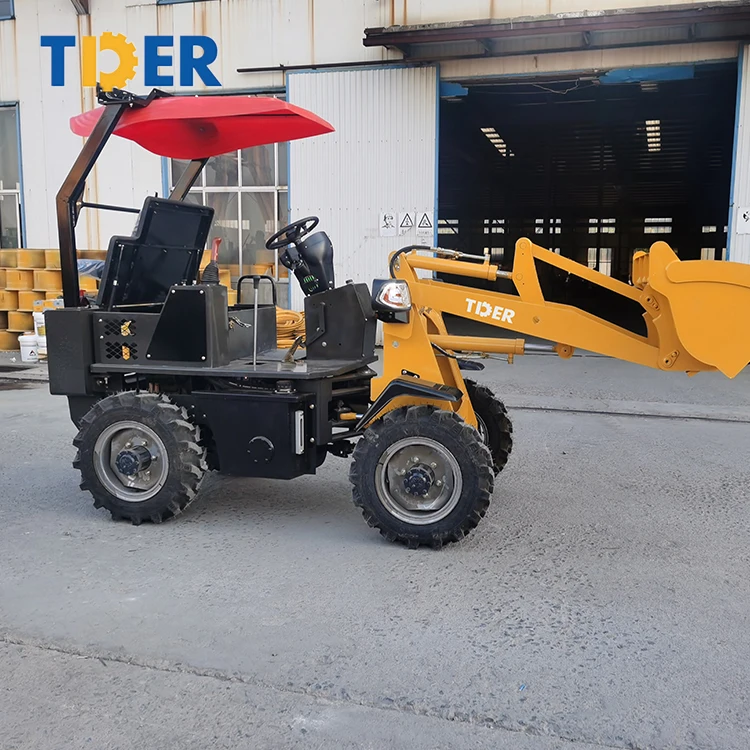

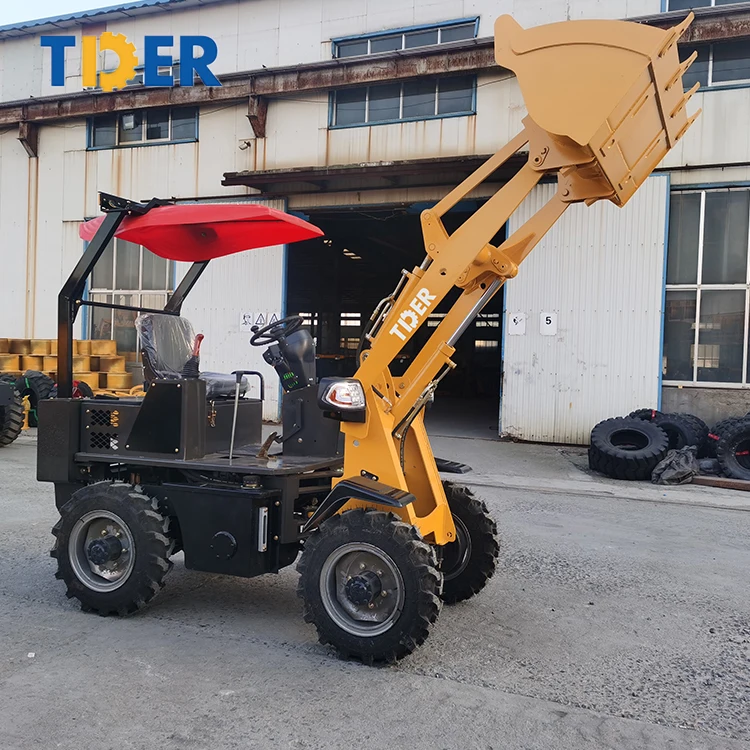

2024 TDER 0.8 ton loader mini loader china 906 mini wheel loader in farm
- Category: >>>
- Supplier: Xiamen Tder Industrial Co. Ltd.
Share on (1600997203900):
Product Overview
Description

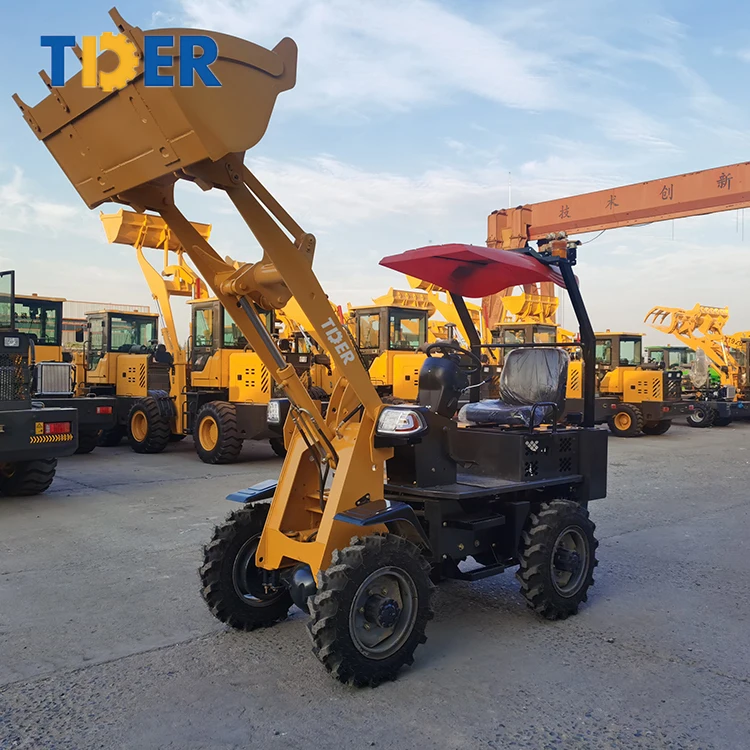

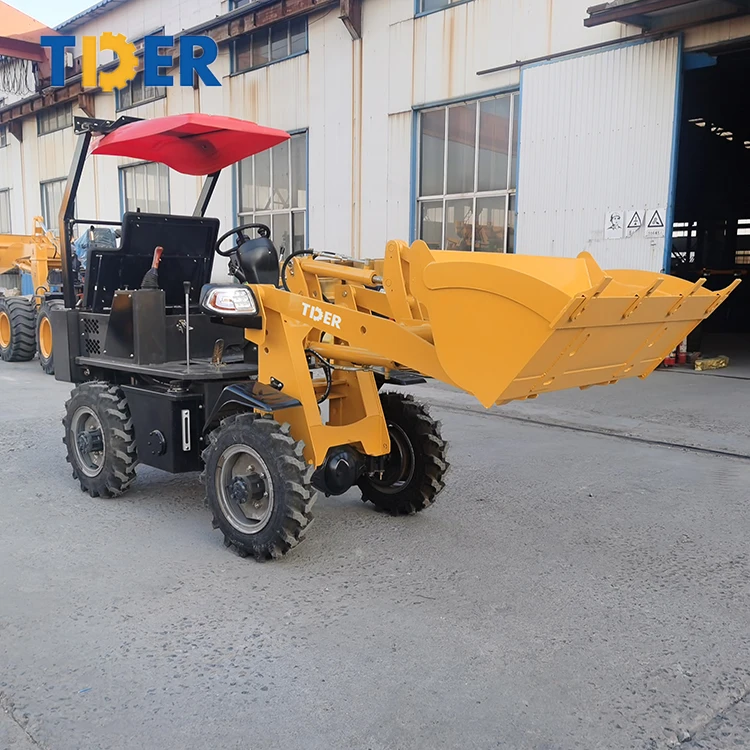

2024 TDER 0.8 ton loader mini loader china 906 mini wheel loader in farm
Detailed Images
Product Description
The specification of 800kg mini loader as below:
Engine | Perkins | |
Model | LT908H | |
Engine model | PERKINS 403D-11 | |
Rated power | 18.5Kw | |
Rated speed | 2800rpm | |
Displacement | 1131cm3 | |
Transmission system | ||
Type | Hydrostatic | |
Control Mode | ||
Type | Joystick | |
Performance Parameter | ||
Operating weight | 1490kg | |
Bucket capacity | 0.4m³ | |
Rated loading | 800kg | |
Mini ground clearance | 208mm | |
Max travel speed | 17km/h | |
Steering Turn angle | 54° | |
Dimensions | ||
Length * Width * Height | 3615*930*2192mm | |
Max.dumping height | 2030mm | |
Reach at max.dump | 501mm | |
Wheel Base | 1345mm | |
Track width | 714mm | |
Turning radius | ||
Inside turning radius(mm) | 865mm | |
Radius at outer edge | 1829mm | |
Max turning radius | 2210mm | |
Tires Size | 27*8.5-15 | |
Feature:
1. Original Perkins engine.2. Original Italian Sauer static hydraulic pump and hydraulic control valve;
3. New articulated and steering style, operation more stably;
4. Min width 950mm, less than 1.9m high, go across gate easily;
5. 43° big turning angle, much more flexible to operate;
6. Side support and enhanced working devices ensure safe;
7. Either multi-integrated joystick or hydraulic arm damping system, your best choice;
8. Cabin with heater.
Packing & Delivery

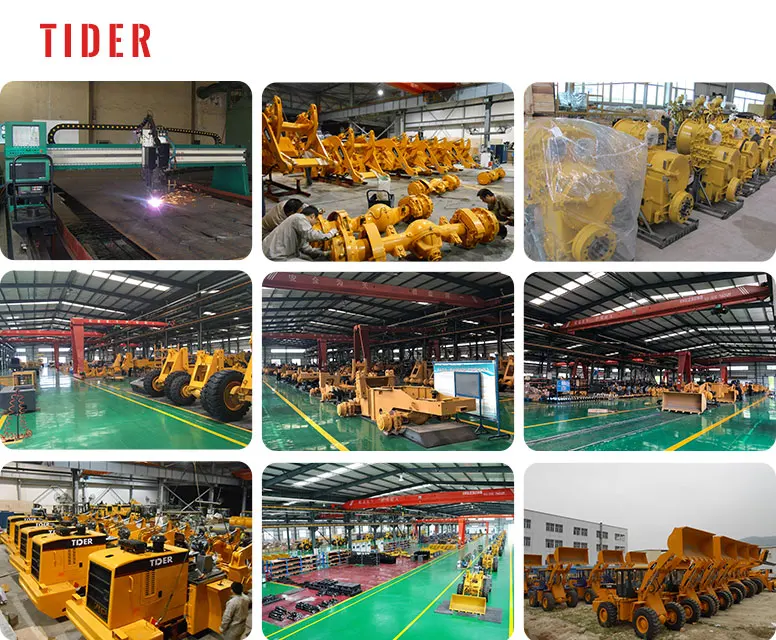

Our Company
TIDER Industrial Co.,Ltd. is a manufacturer, whichis specialized in the development and production of streamlined engineering machinery.
TIDER wheel loader factory has a production scale of more than 50,000 square meters with annual production capacity of 2000 units wheel loader
Our team
Our Service
After-services:
Tider industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive after-services.
All the products purchased from Tider enjoy one year or 2000 hours (which occurs first) warranty. During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges.
